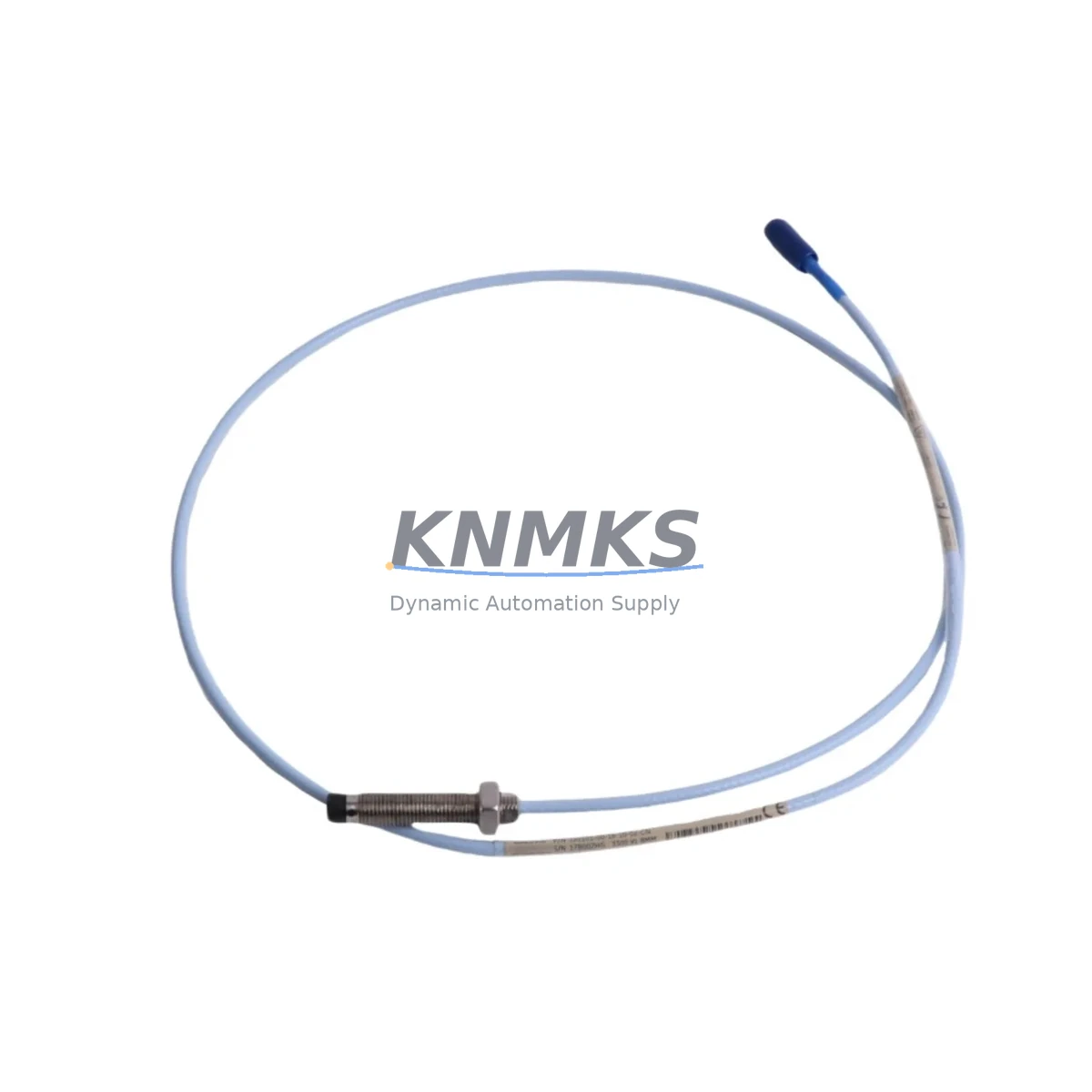

Bently Nevada 330101-00-18-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-18-10-02-CN Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-18-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and airborne contamination — making it a cornerstone component in safety-critical control cabinets and protective relay circuits worldwide.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical mills, and offshore platforms — unplanned machinery downtime carries catastrophic consequences. The 330101-00-18-10-02-CN addresses this risk directly. Its precision-wound sensing coil and hermetically sealed stainless steel housing maintain measurement accuracy across the full operating temperature range, preventing the signal drift and false trips that can cascade into emergency shutdowns or, worse, undetected mechanical failures. The probe’s output linearity ensures that the paired Bently Nevada 3300 XL proximitor/driver receives a clean, consistent voltage signal, eliminating the ambiguity that leads to nuisance alarms or missed fault detection in critical interlock loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-18-10-02-CN does not operate in isolation. Its signal integrity depends on — and contributes to — a layered system of protective and monitoring components. The probe connects via a low-loss coaxial extension cable (such as the Bently Nevada 330130-045-00-CN armored extension cable) to a dedicated 3300 XL Proximitor driver module, which conditions the raw eddy-current signal into a calibrated DC voltage suitable for input to a Bently Nevada 3500 Series rack-based machinery protection system. Within the 3500 rack, dedicated I/O modules process radial vibration, axial position, and speed signals simultaneously, feeding real-time data to the plant DCS or safety PLC.

Surge and transient protection is equally critical in high-EMI environments such as motor control centers and variable-frequency drive (VFD) cabinets. Installing a Phoenix Contact TRABTECH surge protection device on the signal cable entry point prevents voltage spikes — generated by nearby contactors, bus bars, or lightning events — from corrupting the probe’s millivolt-level output or damaging the proximitor input circuitry. For power supply integrity within the protection rack, a dedicated 24 VDC DIN-rail power supply with active PFC (such as those from the QUINT or TRIO series) ensures that voltage fluctuations on the plant AC bus do not propagate into the measurement chain.

In safety interlock architectures, the proximity probe signal may feed directly into a safety relay module or a SIL 2-rated safety PLC I/O card, where it participates in the high-vibration trip logic that initiates an emergency shutdown (ESD) sequence. Proper cable segregation, shielded conduit routing, and grounding at a single point — typically at the proximitor chassis — are essential practices to maintain the signal-to-noise ratio that the 330101-00-18-10-02-CN is designed to deliver.

Critical Industrial Safety Applications

The 330101-00-18-10-02-CN is deployed across a broad spectrum of safety-critical rotating machinery applications:

Petrochemical and Refinery Plants: Monitoring radial shaft vibration on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors. In these environments, a missed high-vibration alarm can result in catastrophic seal failure, hydrocarbon release, and fire. The probe’s SIL-capable design supports the functional safety requirements of IEC 61511-compliant safety instrumented systems (SIS).

Power Generation (Thermal, Nuclear, Hydro): Turbine shaft eccentricity and differential expansion monitoring on steam turbines and gas turbines. The probe’s wide operating temperature range and resistance to steam condensation make it suitable for turbine hall environments where ambient conditions fluctuate dramatically during startup and shutdown cycles.

Mining and Mineral Processing: Axial position monitoring on large ball mill pinion bearings and SAG mill drive trains. High dust concentrations and mechanical shock loads are standard in these environments; the IP67 rating and robust stainless steel housing ensure long service intervals between replacements.

Water and Wastewater Treatment: Vibration monitoring on high-speed centrifugal blowers and vertical turbine pumps in continuous-duty service. Unplanned pump failures in water treatment can disrupt municipal supply; the probe’s stable long-term output prevents false trips that would unnecessarily interrupt service.

Metallurgy and Steel Production: Monitoring of rolling mill main drive motors and continuous caster pinch roll drives. The probe operates reliably in the presence of strong magnetic fields generated by large DC drive systems and induction furnaces.

Port and Marine Applications: Shaft monitoring on ship propulsion systems, bow thrusters, and cargo pump turbines. The combination of IP67 sealing and corrosion-resistant housing addresses the salt-spray and humidity challenges inherent in marine machinery spaces.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-18-10-02-CN?
The support terms confirmed by quotation cover all manufacturing defects, functional failures under normal operating conditions, and deviations from published specifications. If the probe fails to deliver the specified output sensitivity or exhibits physical defects in the housing, cable, or connector within 12 months of shipment, KNMKS will provide a replacement unit or documented resolution support. Support requests are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-18-10-02-CN unit undergoes functional output verification against a calibrated steel target, cable continuity and insulation resistance testing, and visual inspection of the connector and housing before dispatch. Units that do not meet Bently Nevada’s published sensitivity and linearity specifications are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is this probe directly interchangeable with other 3300 XL 8mm probes in an existing installation?
Yes. The 330101-00-18-10-02-CN is dimensionally and electrically compatible with other Bently Nevada 3300 XL 8mm proximity probes sharing the same cable length and connector configuration. It is designed as a drop-in replacement for existing installations using the 3300 XL proximitor system, requiring no recalibration of the driver module when replacing a like-for-like unit. Always verify the connector type (CN = 2-pin coaxial) and cable length (18 inches) match the existing installation before ordering.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
KNMKS maintains dedicated safety-critical spare inventory of the 330101-00-18-10-02-CN to support planned maintenance shutdowns, insurance spare programs, and emergency replacement requirements. For facilities operating multiple machines with this probe model, blanket purchase orders and consignment stock arrangements are available. Contact our technical sales team to discuss a customized supply agreement that aligns with your plant’s maintenance schedule and safety spare strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-18-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-18-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
