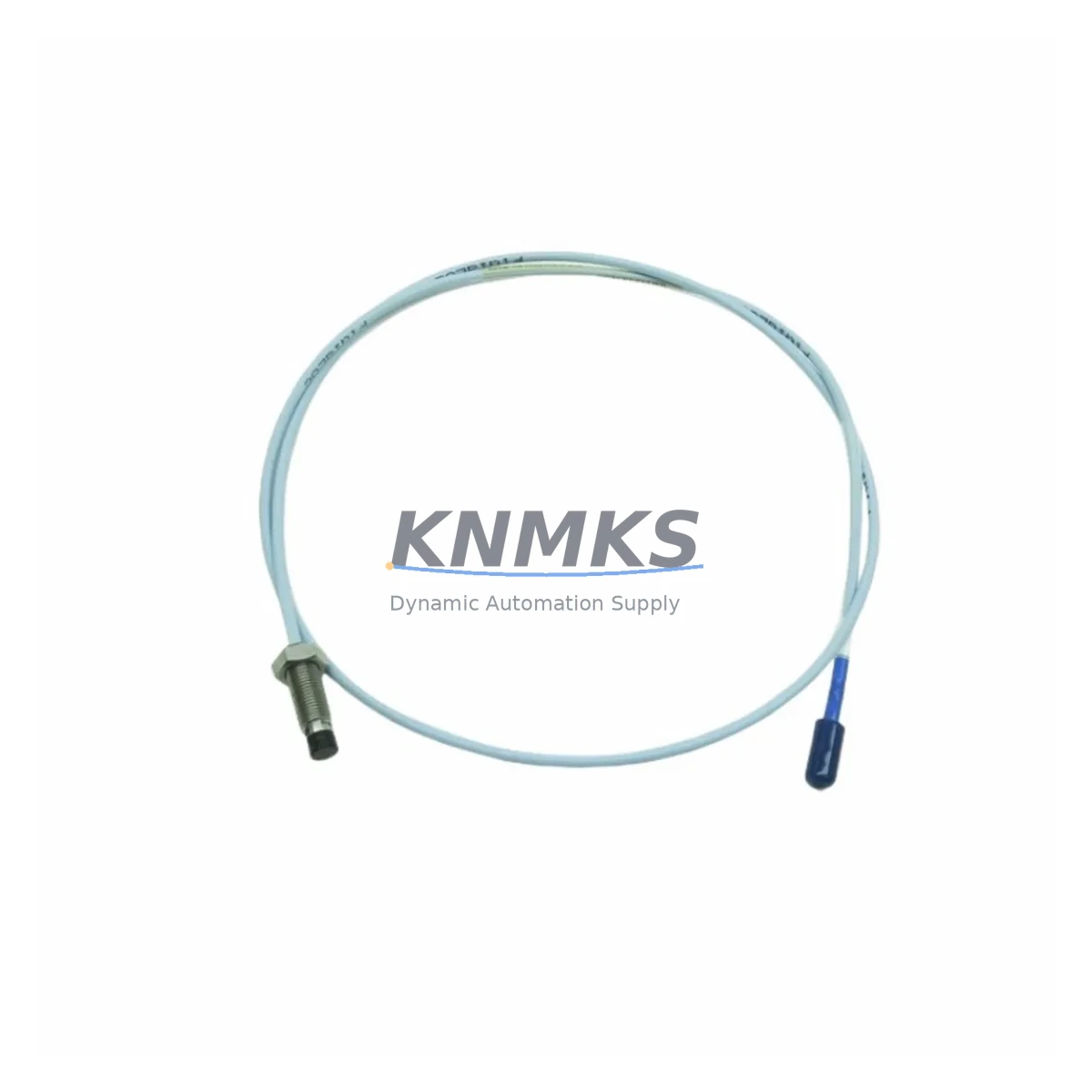

Bently Nevada 330101-00-18-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-18-10-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Reliability

The Bently Nevada 330101-00-18-10-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to integrate seamlessly with Bently Nevada 3300 XL proximitor/seismic systems, this probe delivers stable, drift-free output signals even under high electromagnetic interference, mechanical vibration, thermal cycling, and harsh ambient conditions — making it a cornerstone component for machinery protection systems in critical process industries.

Where unplanned downtime carries catastrophic safety and financial consequences, the 330101-00-18-10-02-05 provides the measurement integrity that operators and reliability engineers depend on. Its robust construction, tight gap calibration tolerance, and surge-protected signal path ensure that rotating machinery — turbines, compressors, pumps, and motors — is continuously monitored without false trips, signal drift, or communication anomalies that could compromise safety interlocks or trigger unnecessary shutdowns.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-18-10-02-05 probe operates as the field-sensing front end of a complete vibration monitoring chain. The probe connects via matched extension cable — typically the Bently Nevada 330130-045-00-00 or equivalent 3300 XL extension cable — to a Bently Nevada 3300 XL Proximitor (such as the 3300/16), which conditions the raw eddy-current signal into a calibrated DC voltage for the monitoring system.

Within the control cabinet, the Bently Nevada 3500/42M Proximitor I/O module receives these conditioned signals and feeds them into the 3500 Series rack for real-time processing, alarm management, and safety interlock triggering. To protect the entire signal chain from power-line transients and voltage spikes — common in heavy industrial environments with large motor drives, arc furnaces, or high-voltage switchgear nearby — a dedicated DC/DC isolated power supply module (such as those from the Phoenix Contact QUINT or TRIO series) is recommended to power the proximitor and monitoring rack cleanly.

For facilities running parallel PLC-based safety systems, the vibration trip output from the 3500 rack is typically wired into a Siemens S7-300 or S7-400 fail-safe CPU (F-CPU) or an Allen-Bradley GuardLogix controller, enabling the safety PLC to execute emergency shutdown sequences when vibration thresholds are exceeded. In high-EMI environments — such as those near variable frequency drives or large transformer banks — shielded signal cables and proper cabinet grounding, combined with the probe’s inherent coaxial shielding, are essential to prevent signal noise from causing nuisance trips or masking genuine fault conditions.

Critical Industrial Safety Applications

Petrochemical and Refining: In continuous catalytic cracking units, ethylene crackers, and compressor trains, the 330101-00-18-10-02-05 provides the shaft radial vibration measurement required by API 670 machinery protection standards. Any signal anomaly — whether from bearing wear, rotor imbalance, or oil whirl — is detected immediately, allowing the safety system to initiate a controlled shutdown before catastrophic mechanical failure occurs.

Power Generation: Steam turbine and gas turbine generator sets in thermal and combined-cycle power plants rely on eddy-current proximity probes for shaft eccentricity, differential expansion, and radial vibration monitoring. The 330101-00-18-10-02-05’s wide operating temperature range and stable scale factor make it suitable for both hot-end and cold-end bearing housings, where thermal gradients can otherwise cause measurement drift in lesser probes.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, moisture ingress, and structural vibration. The robust mechanical construction and sealed coaxial cable of the 330101-00-18-10-02-05 resist contamination and maintain measurement integrity across extended maintenance intervals — reducing the risk of undetected bearing failures that could halt an entire processing line.

Water and Wastewater Treatment: High-service pumping stations and blower trains in municipal water infrastructure require continuous, unattended monitoring. The probe’s non-contact measurement principle eliminates wear and eliminates the need for periodic recalibration under normal operating conditions, supporting the long mean-time-between-maintenance intervals demanded by utility operators.

Metallurgy and Steel: Rolling mill main drives, continuous casters, and ID fan trains in steel plants are subject to heavy shock loads and high ambient temperatures. The 330101-00-18-10-02-05’s rated operating temperature up to 177°C and its resistance to oil mist and metallic dust make it a reliable choice for these severe-duty applications, where a missed vibration alarm could result in a costly unplanned outage or a safety incident.

Marine and Port Equipment: Shipboard propulsion systems, bow thrusters, and large crane drives increasingly incorporate API 670-compliant vibration monitoring. The compact 8mm probe format of the 330101-00-18-10-02-05 fits within the tight bearing housing clearances typical of marine machinery, while its surge-protected signal path withstands the electrical noise generated by onboard power systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-18-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance under normal operating conditions. If the probe fails to meet its published scale factor, linearity, or temperature specifications within the confirmed support period, we will replace or repair the unit at no charge. Support requests are processed promptly with advance replacement available for critical applications to minimize downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330101-00-18-10-02-05 unit undergoes a 100% functional test prior to shipment. This includes verification of the probe’s gap-versus-output voltage curve, scale factor confirmation, cable continuity and insulation resistance check, and connector integrity inspection. Test records are available upon request for quality-critical installations requiring full traceability documentation.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330101-00-18-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor system and integrates directly with 3500 Series I/O modules including the 3500/42M and 3500/40M. It is also backward-compatible with legacy 3300 Series proximitors, making it suitable for both new installations and direct replacement of worn or damaged probes in existing machinery protection systems without requiring recalibration of the monitoring rack.

Q4: Can long-term supply and replacement support be guaranteed for this SKU?
Yes. We maintain dedicated inventory of the 330101-00-18-10-02-05 and its associated 3300 XL series components to support both planned maintenance programs and emergency replacement requirements. For facilities with critical rotating machinery, we recommend establishing a consignment or blanket-order arrangement to ensure immediate availability. Our team can also assist with cross-referencing obsolete or discontinued SKUs to compatible current-production equivalents where applicable.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-18-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-18-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
