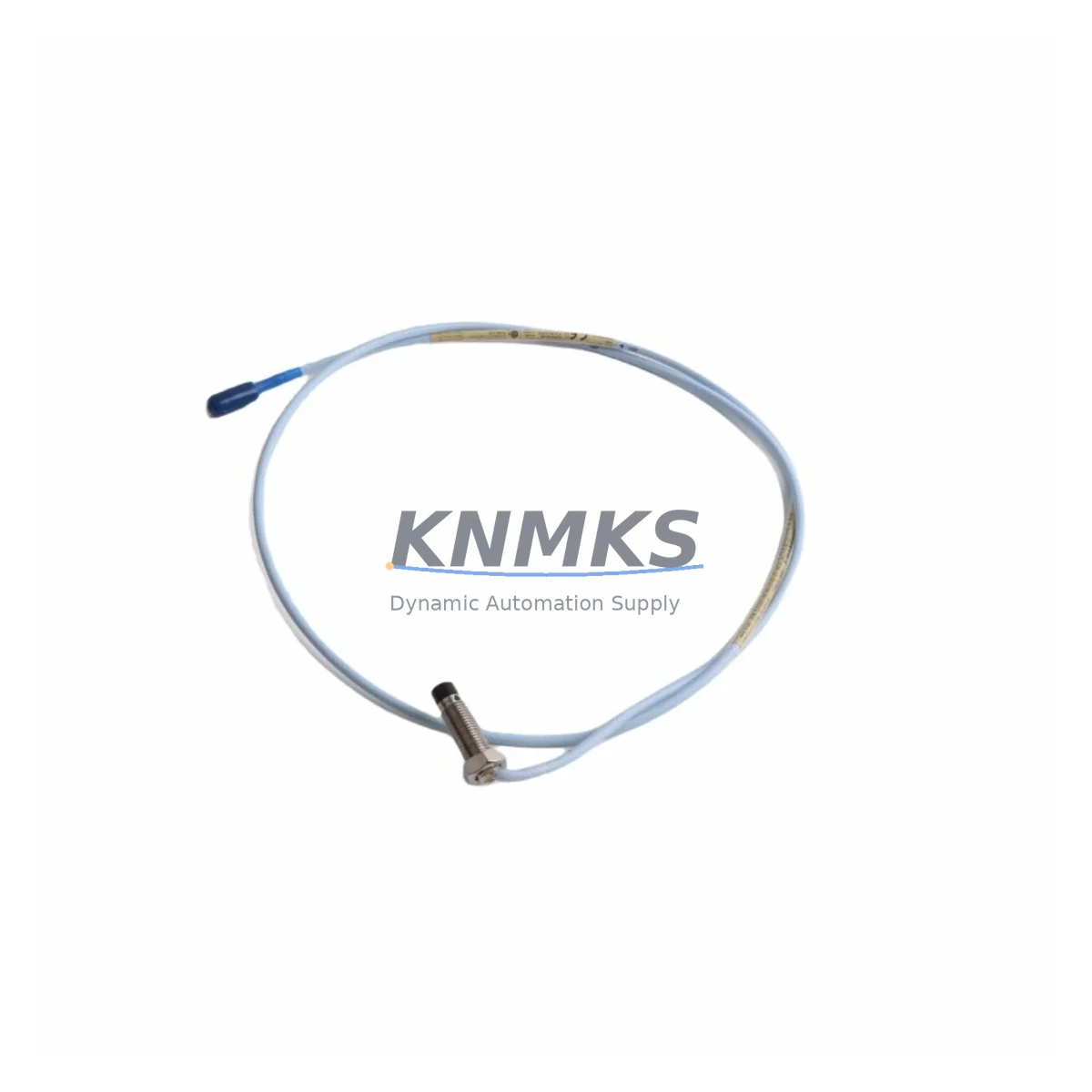

Bently Nevada 330101-00-17-10-02-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-17-10-02-00 Fail-Safe Proximity Transducer: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-17-10-02-00 is a precision eddy-current proximity transducer engineered for the 3500 XL Series continuous machinery protection platform. Designed to deliver fail-safe, uninterrupted vibration and position monitoring in the most demanding industrial environments, this transducer is a critical component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities worldwide.

In continuous production environments where unplanned downtime carries catastrophic operational and financial consequences, the 330101-00-17-10-02-00 provides the signal integrity and mechanical robustness required to maintain reliable control loop performance. Its eddy-current sensing principle is inherently immune to contamination from oil mist, dust, moisture, and non-conductive process media — making it the preferred choice for safety-critical shaft monitoring in high-vibration, high-temperature, and chemically aggressive installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-17-10-02-00 transducer does not operate in isolation — it is the sensing front-end of a tightly integrated machinery protection architecture. In a properly engineered control cabinet, this transducer feeds its signal through a matched Bently Nevada 330130-045-00-00 extension cable to a 3500/42M Proximitor I/O Module, which processes the raw proximity signal and interfaces directly with the 3500/20 Rack Interface Module for system-level alarm and trip logic.

For installations requiring redundant power supply integrity — a non-negotiable requirement in SIL-rated safety loops — the transducer system is typically powered through a 3500/15 Power Supply Module with hot-swap redundancy, ensuring that a single power supply failure cannot interrupt vibration monitoring continuity. In high-EMI environments such as variable frequency drive (VFD) cabinets, arc furnace control rooms, or large motor control centers, the signal path benefits from the shielding architecture of the 3300 XL 8mm Proximitor series, which provides additional common-mode noise rejection when installed in close proximity to high-current switching equipment.

For facilities operating under IEC 61511 functional safety requirements, the 330101-00-17-10-02-00 is commonly integrated with Bently Nevada 3500/33 16-Channel Relay Output Module to provide hardwired trip outputs to emergency shutdown (ESD) systems, ensuring that machinery protection signals reach the safety instrumented system (SIS) without dependency on software-based logic solvers. This architecture eliminates single points of failure in the vibration monitoring chain and supports the fail-safe design philosophy required in Category 3 and Category 4 safety circuits.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, the 330101-00-17-10-02-00 provides continuous shaft orbit and axial position monitoring on critical rotating equipment. Its resistance to hydrocarbon vapors, H₂S atmospheres, and high-temperature bearing housings makes it the standard choice for API 670-compliant machinery protection in ATEX and IECEx classified zones.

Power Generation: Steam turbine and gas turbine installations demand sub-millisecond response to shaft displacement anomalies. This transducer’s DC-to-10,000 Hz frequency response ensures that both low-speed runout and high-frequency blade-pass events are captured with full fidelity, enabling the 3500 XL system to initiate protective trips before mechanical damage propagates to bearings or seals.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high vibration floors, and frequent electrical transients from large motor starts. The non-contact eddy-current principle of the 330101-00-17-10-02-00 eliminates the signal degradation that affects contact-based sensors in these conditions, providing stable gap measurements regardless of process contamination on the shaft surface.

Water & Wastewater Treatment: High-humidity pump stations and blower buildings present corrosion and condensation challenges for instrumentation. The sealed construction and wide operating temperature range of this transducer support reliable long-term deployment in wet utility environments without signal drift or connector degradation.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace auxiliaries generate intense electromagnetic interference. The inherent EMI immunity of the eddy-current sensing method ensures that vibration signals remain clean and actionable even when installed adjacent to high-power induction heating equipment or large DC drive systems.

Port & Marine: Shipboard propulsion systems, crane drives, and offshore platform compressors require instrumentation that maintains calibration stability through temperature cycling, salt spray exposure, and structural vibration. The 330101-00-17-10-02-00 meets these requirements and supports direct replacement of legacy Bently Nevada transducers without recalibration of the host monitoring system.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-17-10-02-00?
The support terms confirmed by quotation cover all manufacturing defects, signal output failures, connector integrity issues, and cable insulation faults from the date of shipment. If the unit fails to meet Bently Nevada 3500 XL system specifications during the confirmed support period under normal operating conditions, we provide full replacement or repair at no additional cost. Support requests are processed within 5 business days of unit receipt.

Q2: How is the 330101-00-17-10-02-00 tested before shipment?
Every unit undergoes a full pre-shipment functional verification, including static gap sensitivity measurement, frequency response check across the rated bandwidth, connector continuity and insulation resistance testing, and cable shield integrity verification. Test records are available upon request and accompany each shipment for traceability documentation.

Q3: Is this transducer a direct drop-in replacement for existing 3500 XL installations?
Yes. The 330101-00-17-10-02-00 is a direct replacement for all Bently Nevada 3500 XL and compatible 3300 XL system installations using the same part number. No recalibration of the Proximitor or monitor modules is required. The transducer maintains the same sensitivity (200 mV/mil), linear range, and connector interface as the original factory specification, ensuring zero-downtime replacement during planned maintenance windows.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated inventory of the 330101-00-17-10-02-00 to support critical spare parts programs, planned turnaround maintenance, and emergency breakdown requirements. For facilities requiring guaranteed stock reservation, blanket purchase order arrangements are available. Our standard lead time for in-stock units is 1–3 business days to worldwide destinations, with expedited shipping options for emergency shutdowns.
