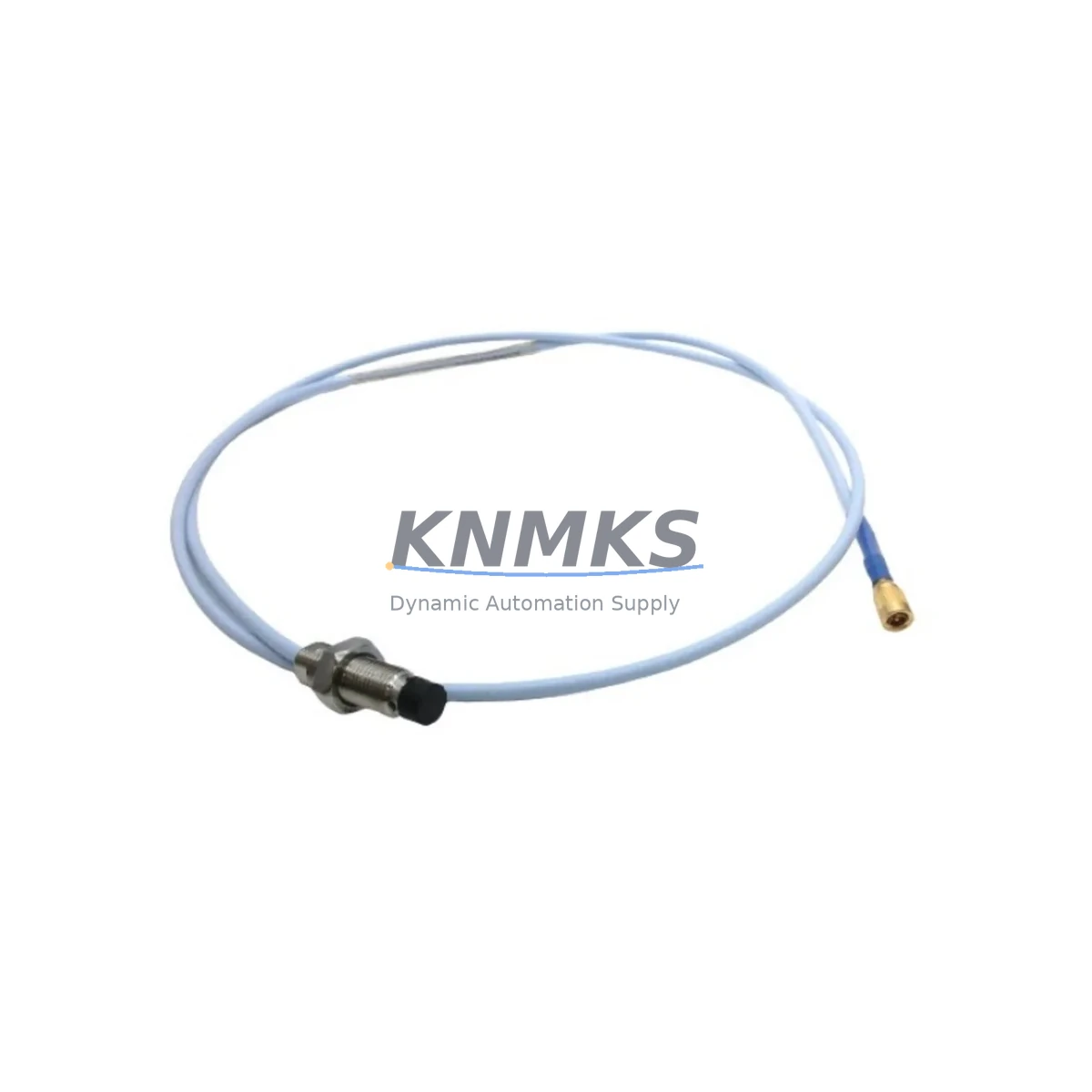

Bently Nevada 330101-00-16-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-16-10-02-05 Migration-Ready Proximity Probe: Legacy System Migration and Compatible Upgrade

The Bently Nevada 330101-00-16-10-02-05 is a 5 mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy 3300 Series installations approach end-of-support milestones, maintenance engineers and reliability teams are under increasing pressure to source verified drop-in replacements that preserve existing wiring, signal conditioning, and vibration monitoring logic without triggering a full system overhaul. The 330101-00-16-10-02-05 addresses this need directly: it maintains the same 5 mm tip diameter, 200 mV/mil (7.87 V/mm) sensitivity, and -18 VDC driver supply compatibility as the original 3300 XL probe family, allowing it to slot into existing cable runs and terminal blocks with no re-ranging of the 3300 XL proximitor/driver module.

For plants running mixed-generation monitoring cabinets — where a 3300 XL rack may sit alongside a newer System 1 Evolution node or a Trendmaster 2000 data concentrator — the 330101-00-16-10-02-05 provides a stable, field-proven signal source that does not require reconfiguration of the proximitor output or adjustment of the gap voltage setpoint. Engineers migrating from earlier 7200 Series probes should verify the cable length and extension cable pairing, as the 330101 system is calibrated as a matched set: probe, extension cable (330130 series), and proximitor (3300 XL 8mm or 5mm driver) must be confirmed together before commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-16-10-02-05 into an aging machinery protection cabinet begins well before the probe is physically removed. The first step is a full audit of the existing 3300 XL rack configuration: identify the proximitor driver module (typically a 3300 XL 8 mm or 5 mm driver card), confirm the extension cable part number from the 330130 series, and record the current gap voltage reading at the proximitor output terminal. This baseline reading — typically between -10 VDC and -18 VDC for a properly gapped probe — becomes the acceptance criterion for the replacement unit.

Terminal block wiring on the 3300 XL I/O module follows a standard three-wire coaxial arrangement (center conductor, shield, and drain). Before disconnecting the existing probe, photograph or document the terminal assignments on the I/O terminal block. If the cabinet also houses a 3500 Series rack for overspeed or thrust position monitoring, note that the 3500/42M position monitor uses a different probe calibration curve and is not interchangeable with the 3300 XL driver without recalibration.

Plants that have partially migrated to the System 1 Evolution condition monitoring platform should verify that the EU (engineering unit) conversion factor for the affected measurement point is correctly mapped in the System 1 database. The 330101-00-16-10-02-05 outputs the same 200 mV/mil sensitivity as the original probe, so no EU factor change is required — but the gap voltage alarm setpoints in System 1 should be reviewed against the new probe’s actual installed gap. If the control room HMI displays vibration trends from a Trendmaster 2000 data concentrator, the channel configuration in the TM2000 should also be verified to confirm the input range and alarm thresholds remain valid after the probe swap.

For cabinets that include a 3300 XL power supply module, confirm that the supply rail can support the additional current draw if multiple probes are being replaced simultaneously. The 3300 XL power supply is typically rated for a fixed number of channels; adding extension cables beyond the original design length can introduce signal attenuation that affects the gap voltage reading. A signal isolation barrier or in-line signal conditioner may be required if the total cable run exceeds the calibrated length for the matched probe-extension-proximitor set.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Where the process permits a brief controlled shutdown, the preferred approach is to place the affected monitoring channel in bypass mode within the 3300 XL rack before disconnecting the probe. This prevents a spurious trip signal from propagating to the plant DCS or safety instrumented system during the physical swap. If the 3300 XL rack is configured with a voted-logic trip (e.g., 2-out-of-3 voting on radial vibration channels), confirm with the control room operator that the voting logic will not generate a trip on the remaining active channels while the replacement probe is being gapped and commissioned.

Once the 330101-00-16-10-02-05 is installed and the gap voltage is confirmed within the acceptable range, remove the channel bypass and verify that the OK relay on the proximitor module is energized. Document the final gap voltage, the vibration reading at normal operating speed, and the alarm setpoint status before returning the machine to full load. This commissioning record serves as the baseline for the next planned maintenance interval and supports the support terms confirmed by quotation claim process if a defect is identified during the confirmed support period.

For multi-machine retrofits across a production line — for example, replacing proximity probes on a series of compressor trains or pump sets — a phased replacement schedule that staggers machine outages across shifts can reduce the total impact on production throughput. Pre-staging replacement probe sets, extension cables, and proximitor driver modules in the control room before the outage window begins is strongly recommended. Each replacement unit supplied by KNMKS is pre-tested prior to shipment to confirm sensitivity, OK/Not OK relay function, and connector integrity, reducing the risk of a commissioning failure during a time-critical outage window.

Retrofit Support FAQ

Q1: Is the 330101-00-16-10-02-05 a direct replacement for my existing 3300 XL 5 mm proximity probe?
A: Yes, provided the existing installation uses a 3300 XL 5 mm proximitor driver module and a compatible 330130 series extension cable. The probe body dimensions, thread pitch (M10 × 1.0), sensitivity (200 mV/mil), and driver supply voltage (-18 VDC) are identical to the original 3300 XL 5 mm probe specification. Confirm the extension cable part number and total cable run length before installation.

Q2: What commissioning checks are required after installing the replacement probe?
A: Set the probe gap to achieve a gap voltage between -10 VDC and -18 VDC (typically -12 VDC for a standard 3300 XL installation on AISI 4140 steel). Verify the OK relay on the proximitor is energized, confirm the vibration reading at operating speed is consistent with the pre-replacement baseline, and check that alarm setpoints in the 3300 XL rack and any connected System 1 Evolution or Trendmaster 2000 node are still valid.

Q3: Does KNMKS supply the matching extension cable and proximitor driver for a complete matched set?
A: Yes. KNMKS maintains stock of 330130 series extension cables and 3300 XL proximitor driver modules to support complete matched-set supply. Contact [email protected] with your required cable length and proximitor part number to confirm availability and lead time.

Q4: What support terms and pre-shipment testing does KNMKS provide?
A: Every 330101-00-16-10-02-05 unit supplied by KNMKS is functionally tested prior to shipment — including sensitivity verification, OK/Not OK relay function, and connector integrity check. A support terms confirmed by quotation against manufacturing defects is included from the date of shipment. Support requests are supported by the pre-shipment test record provided with each unit.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-16-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-16-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
