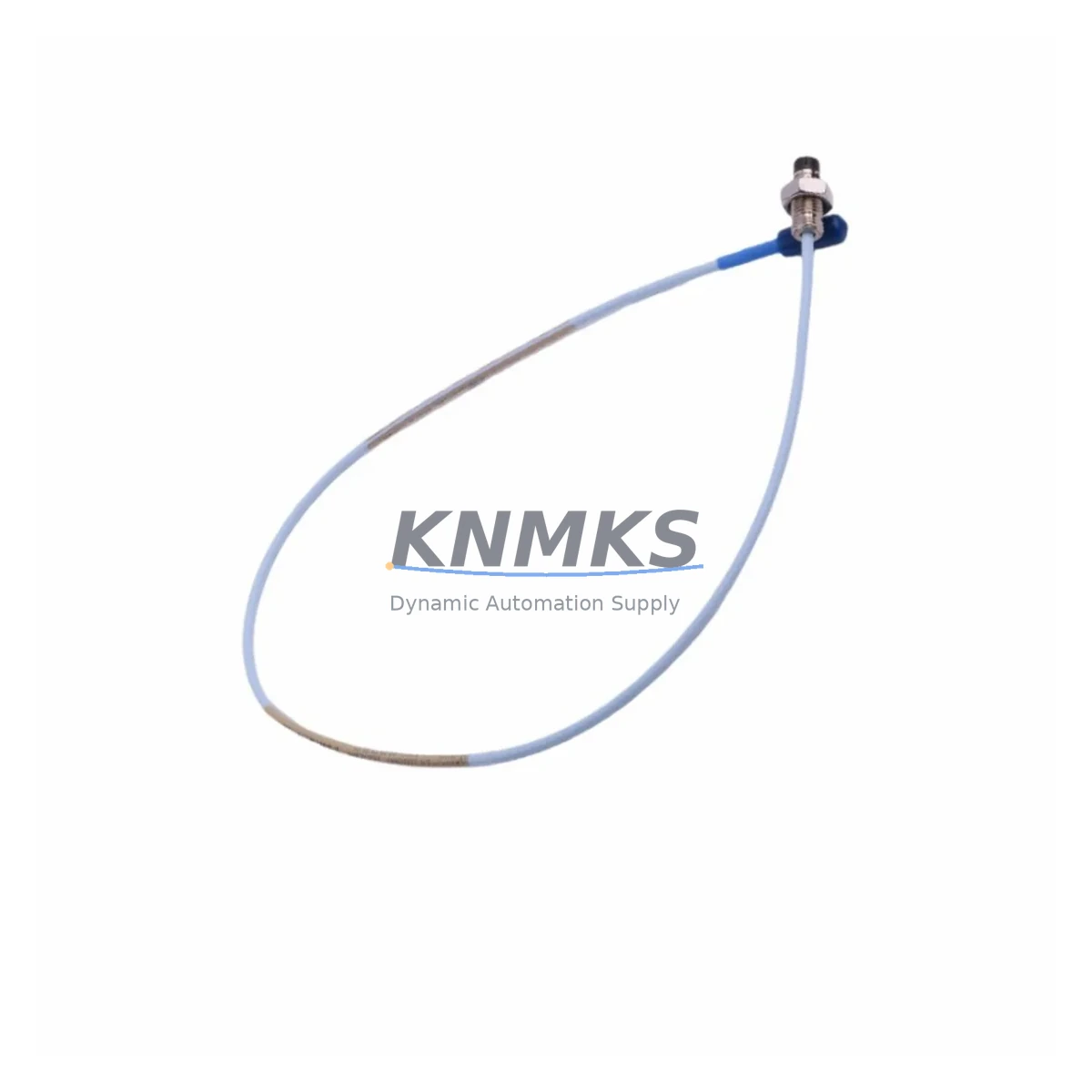

Bently Nevada 330101-00-16-10-02-00 Spare Proximity Probe

Overview

Bently Nevada 330101-00-16-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-00-16-10-02-00 is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. Widely deployed across rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — this probe is a critical sensing element in shaft radial vibration, axial position, and differential expansion measurement loops. Maintaining a verified spare of the 330101-00-16-10-02-00 in your on-site inventory is a fundamental requirement for any maintenance program targeting zero unplanned downtime.

At KNMKS, every 330101-00-16-10-02-00 unit is sourced from authorized supply channels, inspected for physical integrity, and bench-tested for output linearity and gap voltage response before shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, supporting your site’s spare parts governance and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-16-10-02-00 proximity probe is flagged during routine vibration monitoring — whether through a gap voltage drift alarm, a high-vibration trip, or a physical inspection finding — the replacement workflow must extend beyond the probe itself. A disciplined maintenance engineer will simultaneously verify the condition of the 330180 Series Proximitor Sensor, which provides the oscillator/demodulator function and directly affects the probe’s output linearity. A degraded Proximitor can produce false readings even with a new probe installed.

The interconnecting 330130 extension cable (or equivalent 3300 XL series armored extension cable) should be inspected for jacket damage, connector corrosion, and continuity. Cable faults are a leading cause of intermittent gap voltage errors and are frequently overlooked during probe-only replacements. Verify the cable’s impedance and shield integrity before commissioning the new probe.

At the monitor rack level, confirm that the 3300 XL monitor module (such as the 3300/16 or 3300/20 series) is correctly configured for the 8mm probe sensitivity scale (200 mV/mil). Incorrect scale selection will result in miscalibrated vibration amplitude readings and potentially mask real machinery faults. If the monitor card shows any alarm LED anomalies or communication faults on the 3500 Series rack backplane, address those concurrently to avoid a repeat outage.

For installations in hazardous areas or high-EMI environments, verify that the signal isolation barrier or Zener barrier associated with the probe loop is within its rated service life. Barrier degradation can introduce noise into the vibration signal and trigger nuisance trips. Additionally, inspect the terminal block wiring at the junction box for loose terminations, moisture ingress, and correct polarity — particularly in outdoor or high-humidity installations.

Procurement engineers should note that the 330101-00-16-10-02-00 is a long-lead item from OEM channels. Maintaining a minimum buffer stock of two units per critical machine train is a widely adopted practice in petrochemical, power generation, and LNG facilities. KNMKS supports blanket-order arrangements and regional consignment stock programs to eliminate emergency procurement lead times.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitor channel associated with the probe being replaced. Record the existing gap voltage (typically –10 VDC ±0.5 V for a correctly gapped 8mm probe) as a baseline reference.

Step 2 — Probe Removal: Using the correct spanner, unthread the probe from the bracket. Inspect the probe tip for impact damage, pitting, or contamination. Inspect the mounting bracket threads and replace if worn.

Step 3 — New Probe Installation: Thread the 330101-00-16-10-02-00 into the bracket. Set the air gap to the manufacturer-specified nominal value (typically 50 mil / 1.27 mm for this probe series). Verify gap voltage at the Proximitor output with a calibrated voltmeter before reconnecting to the monitor.

Step 4 — System Verification: Re-energize the monitor channel. Confirm gap voltage, vibration baseline, and alarm setpoints in the 3300 XL or 3500 monitor. Perform a slow-roll check if the machine can be safely rotated. Document all readings in the site maintenance management system (CMMS).

Step 5 — Commissioning Sign-Off: Obtain sign-off from the responsible engineer. Archive the replaced probe for failure analysis if required. Update the spare parts inventory record to trigger reorder of the consumed unit.

This workflow is compatible with direct replacement of legacy 330101 series probes and supports back-to-back compatibility with existing 3300 XL monitor configurations, minimizing engineering change documentation requirements.

Spare Parts Support FAQ

Q1: Is the 330101-00-16-10-02-00 a direct drop-in replacement for older 330101 series probes?
Yes. The 330101-00-16-10-02-00 maintains dimensional and electrical compatibility with earlier 330101 series variants used in 3300 XL monitoring systems. No monitor reconfiguration is required for standard installations. Always verify the gap voltage after installation to confirm correct probe-to-target geometry.

Q2: What is the recommended inventory quantity for a critical rotating machine?
Industry practice for critical machinery (API 670-compliant installations) recommends a minimum of two spare probes per machine train, plus one additional unit per five machines as a site float. For facilities with extended OEM lead times, KNMKS offers blanket-order and consignment stock programs to maintain buffer inventory without capital commitment.

Q3: How does KNMKS verify the 330101-00-16-10-02-00 before shipment?
Each unit undergoes physical inspection (tip condition, connector integrity, cable jacket), gap voltage output verification using a calibrated test rig, and linearity check across the specified measurement range. Units that do not meet OEM specification are rejected. A test report is available upon request. All units ship with a support terms confirmed by quotation from the date of delivery.

Q4: Can KNMKS support long-term supply for discontinued or allocation-constrained Bently Nevada parts?
Yes. KNMKS maintains regional warehouse stock for high-demand 3300 XL and 3500 Series components, including proximity probes, extension cables, and Proximitor sensors. For parts under OEM allocation or end-of-life notice, we offer forward-buy programs and multi-year supply agreements to protect your maintenance schedule.
