Bently Nevada 330101-00-16-05-02-05 Spare Part: Maintenance-Proven Proximity Transducer for Factory Uptime

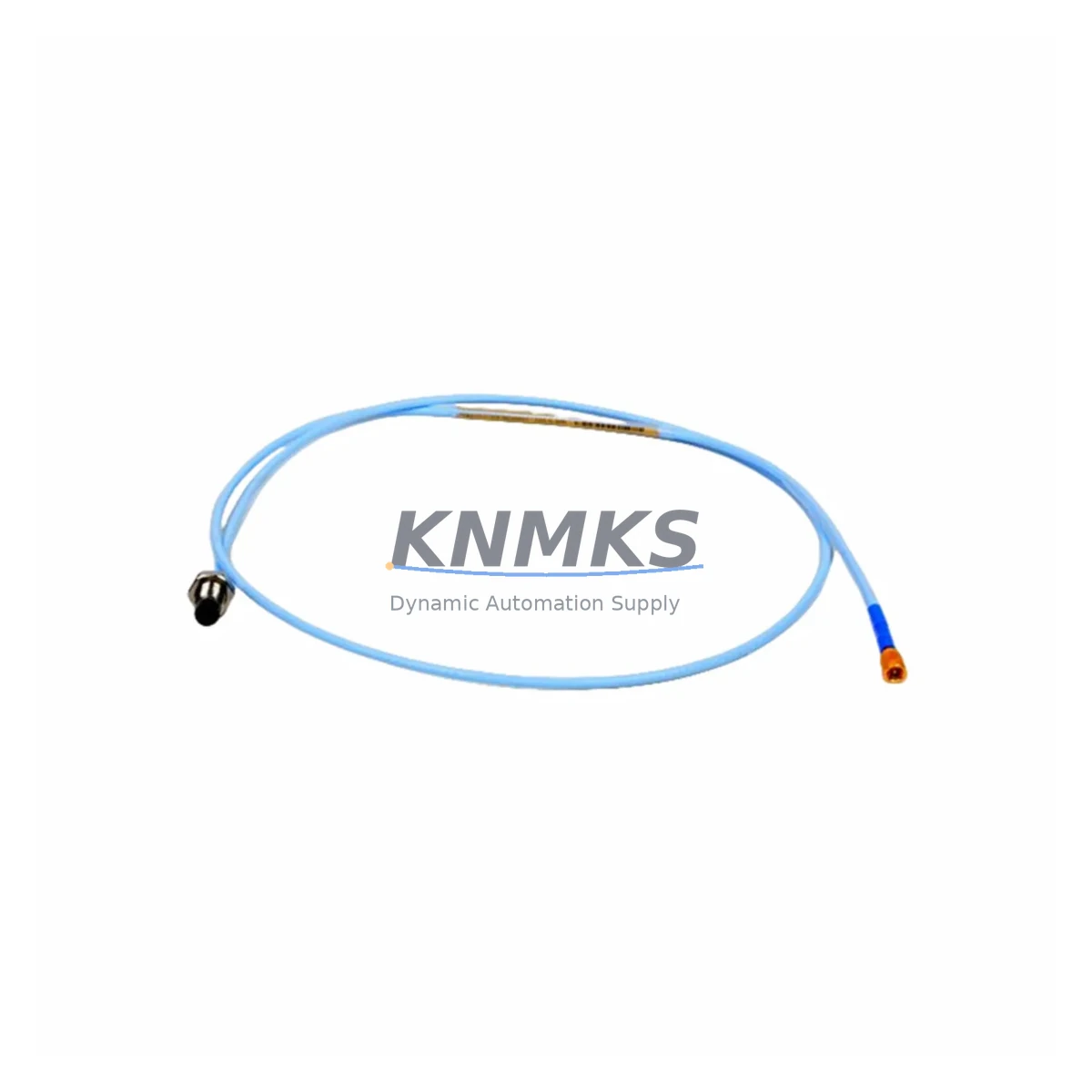

The Bently Nevada 330101-00-16-05-02-05 is an 8mm proximity transducer engineered for the 3300 XL continuous vibration monitoring system. Widely deployed in rotating machinery protection across power generation, oil & gas, petrochemical, and heavy industrial facilities, this transducer delivers reliable non-contact displacement and vibration measurement critical to turbine, compressor, and pump protection loops. Sourced as an original spare, each unit undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation, ensuring your maintenance team receives a verified, drop-in replacement ready for immediate installation.

For maintenance engineers managing aging 3300 XL installations, securing a verified stock of the 330101-00-16-05-02-05 is a cornerstone of any predictive maintenance or emergency response plan. Proximity transducer failures are among the most common causes of unplanned machinery trips — a single degraded sensor can trigger false shutdowns or, worse, mask genuine rotor instability. Keeping this SKU on the shelf eliminates the lead-time risk associated with OEM procurement channels and ensures your plant can restore full monitoring coverage within hours rather than days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-16-05-02-05 proximity transducer during a scheduled outage or emergency callout, a disciplined maintenance engineer will treat the transducer as one node in a broader vibration monitoring chain — not an isolated component. Begin by inspecting the 3300 XL extension cable (typically the 330130 series) for jacket abrasion, connector corrosion, or impedance drift caused by years of thermal cycling near hot machinery casings. A degraded cable will corrupt the gap voltage reading even after a new transducer is installed, leading to repeat trips or nuisance alarms.

Next, verify the paired 3300 XL proximitor / oscillator-demodulator (such as the 330180 series) is within calibration. The proximitor converts the transducer’s raw eddy-current signal into a DC voltage proportional to gap distance; a drifting proximitor will produce inaccurate vibration amplitude readings regardless of transducer condition. If the proximitor has accumulated more than five years of continuous service, consider replacing it as a matched set with the transducer to restore full system accuracy.

At the monitor rack level, inspect the 3300/16 monitor card for alarm setpoint integrity and channel configuration. Confirm that the OK relay output is functioning correctly and that the channel is not latched in a fault state from a previous trip event. While the rack is accessible, audit the rack power supply module — an unstable DC supply rail is a frequent but overlooked contributor to erratic proximity readings. Check terminal block connections on the I/O side for looseness or oxidation, particularly in humid or coastal environments.

For plants running parallel protection systems, cross-reference the replacement transducer’s gap voltage against the redundant channel before returning the machine to service. If your facility uses a Keyphasor transducer (such as the 330980 series) for phase reference, verify its gap and signal integrity simultaneously — Keyphasor faults can disable speed-based alarm functions across the entire monitor. Finally, confirm that any signal conditioning barriers or Zener barriers in the intrinsically safe circuit are within their rated voltage and current limits, as degraded barriers are a common source of unexplained signal noise in hazardous-area installations.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow your site LOTO procedure. De-energize the monitor channel and confirm the machine is in a safe state before accessing the transducer mounting location.

Step 2 — Gap Measurement: Before removing the old transducer, record the installed gap (typically 1.0–1.5mm for 8mm probes on steel targets). Use a calibrated gap tool or measure the DC gap voltage at the proximitor output (nominal -10.4 VDC at 1.27mm gap for standard 3300 XL systems).

Step 3 — Transducer Removal: Unscrew the transducer from its armored mounting bracket. Inspect the thread condition and bracket for corrosion or mechanical damage. Replace the bracket if thread engagement is compromised.

Step 4 — Install 330101-00-16-05-02-05: Thread the new transducer to the recorded gap depth. Secure the locknut. Route the integral cable to the junction box, avoiding sharp bends or contact with hot surfaces.

Step 5 — Cable Connection: Connect to the extension cable at the junction box. Verify connector seating and apply appropriate cable gland torque for the IP rating.

Step 6 — Functional Verification: Re-energize the monitor channel. Confirm gap voltage at the proximitor output is within the linear range. Check that the OK relay is energized and the monitor channel shows no fault indication.

Step 7 — Documentation: Record the replacement in your CMMS with the new transducer serial number, installed gap, and gap voltage. Update the spare parts inventory to trigger reorder of a replacement 330101-00-16-05-02-05 for the next event.

Spare Parts Support FAQ

Q1: Is the 330101-00-16-05-02-05 a direct drop-in replacement for older 330101 series transducers?
The 330101-00-16-05-02-05 is part of the 3300 XL proximity transducer family and is designed for direct compatibility with 3300 XL monitor systems and 330130 extension cables. For installations using earlier 3300 series (non-XL) monitors, verify the proximitor model and system configuration before installation, as connector and calibration requirements may differ.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-16-05-02-05 unit is functionally tested prior to dispatch. Testing includes gap voltage linearity verification, cable continuity, connector integrity, and visual inspection for mechanical damage. A test report is available upon request for critical applications.

Q3: Can you support long-term supply agreements for this SKU?
Yes. KNMKS maintains multi-region stock of the 330101-00-16-05-02-05 and can support blanket purchase orders, annual supply agreements, and emergency call-off arrangements. Contact our team to discuss volume pricing and guaranteed lead times for your maintenance program.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits. Support requests are supported with direct technical assistance and expedited replacement dispatch.
