Bently Nevada 330101-00-16-05-01-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-16-05-01-00 Migration-Ready Proximity Probe for Legacy Control Systems

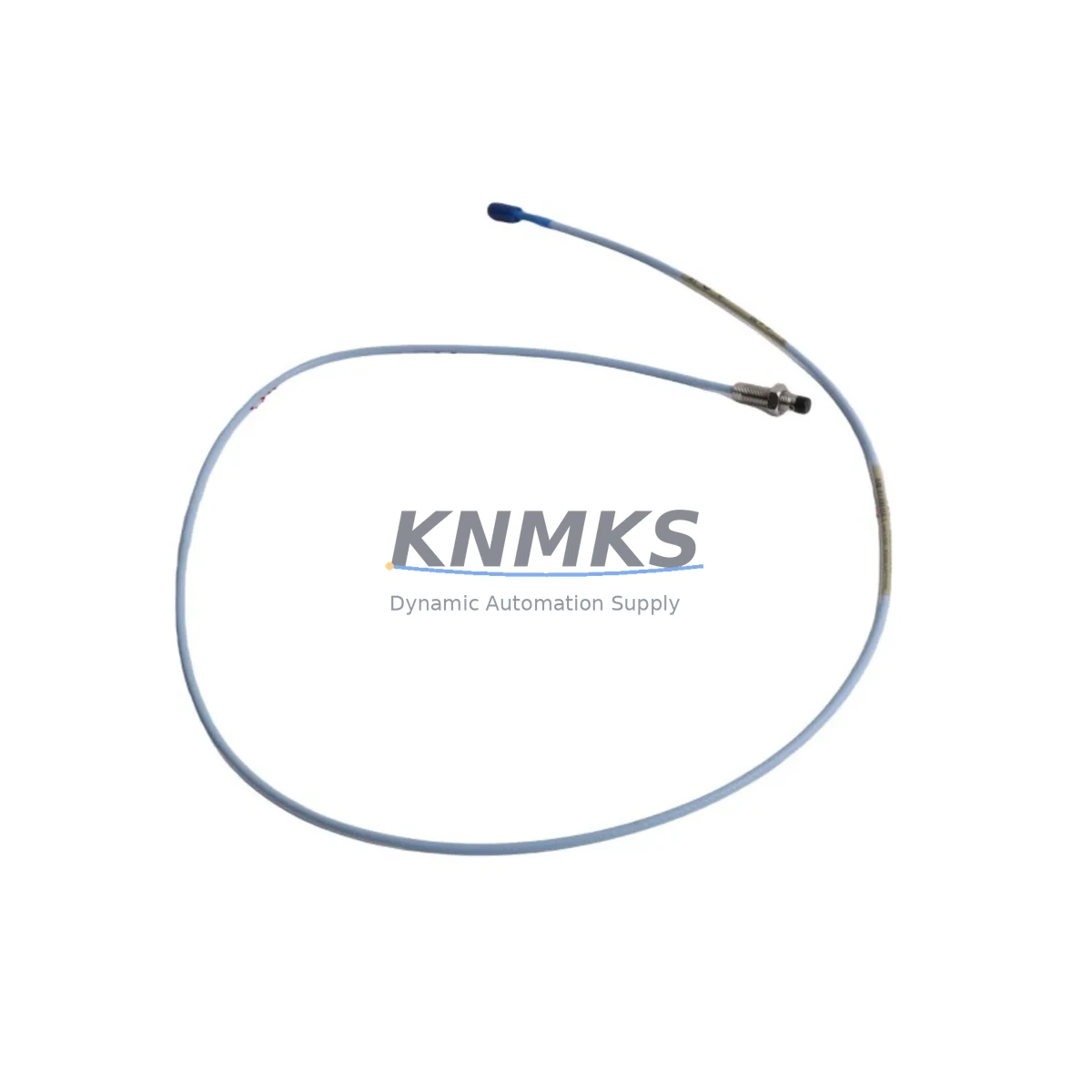

The Bently Nevada 330101-00-16-05-01-00 is an 8mm eddy-current proximity probe designed for the 3300 XL Series continuous vibration monitoring system. As legacy rotating machinery protection platforms approach end-of-support, this migration-ready replacement enables maintenance teams to sustain shaft vibration, axial position, and differential expansion measurement without redesigning the monitoring architecture. The probe is mechanically and electrically compatible with existing 3300 XL extension cables and proximitor sensors, allowing direct substitution in turbine, compressor, pump, and generator protection loops where the original Bently Nevada hardware has been discontinued or is no longer available through standard distribution channels.

For facilities operating GE Bently Nevada 3500 Series rack-based monitoring systems alongside legacy 3300 XL installations, the 330101-00-16-05-01-00 provides a validated retrofit path that preserves existing Keyphasor signal references, gap voltage calibration settings, and alarm setpoints stored in the 3500/40M or 3500/42M monitor modules. Engineers planning a phased migration from 3300 XL to 3500 Series can continue using this probe during the transition period, avoiding the cost and risk of a full-platform cutover during a single planned outage.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-16-05-01-00 into an operating machinery protection loop requires a structured pre-outage review. Before scheduling the replacement window, the maintenance engineer should pull the existing channel configuration from the 3300 XL monitor or, if the facility has already partially migrated, from the 3500/40M Proximitor I/O Module. Key parameters to document include the current gap voltage reading, the OK relay setpoint, the danger and alert thresholds for radial vibration in mils peak-to-peak, and the Keyphasor channel assignment if the probe is used in a phase-referenced measurement loop.

The extension cable — typically a 330130-080-00-00 or 330180-series armored cable — must be inspected for jacket integrity and connector corrosion before reuse. If the extension cable is being replaced simultaneously, the total probe-plus-extension system length must match the calibrated range of the proximitor. Mixing cable lengths from different calibration sets will shift the gap voltage curve and invalidate the existing alarm setpoints. In installations where the proximitor itself is a 3300 XL Proximitor/MX, consider whether the migration plan calls for upgrading to a 3500/15 Power Supply and 3500/22M Transient Data Interface to gain access to System 1 condition monitoring software — a common upgrade path for turbine protection systems moving toward predictive maintenance architectures.

For control cabinets housing both vibration monitoring and process control I/O, the retrofit window should be coordinated with the DCS or safety system team. If the machinery protection rack shares a cabinet with a Honeywell TDC 3000 or Experion PKS controller node, or with an Emerson DeltaV I/O carrier, the vibration channel wiring must be segregated from analog process signals to prevent ground loop interference. Signal isolators — such as a DIN-rail mounted galvanic isolator on the –24 VDC supply line — are recommended when the proximitor power supply shares a common ground with the DCS analog input card. In facilities running Siemens SIMATIC S7-400 or S7-300 PLCs for auxiliary machinery control, the OK relay output from the 3300 XL monitor can be wired directly to a digital input module without protocol conversion, preserving the existing interlock logic during the probe swap.

HMI screens displaying shaft vibration trends should be reviewed before the outage. If the facility uses a GE iFIX, Wonderware InTouch, or Ignition SCADA platform, the historian tag associated with the vibration channel should be placed in manual mode or flagged as under maintenance to prevent false alarm escalation during the gap voltage re-establishment period immediately after probe installation. Once the new probe is seated, gapped, and the proximitor output is confirmed within the OK band, the historian tag can be returned to scan and the alarm management system re-enabled.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging the replacement unit, verifying the gap tool and feeler gauge are available at the work site, and confirming that the monitor channel can be placed in bypass mode without triggering a machinery trip. On 3300 XL systems, the channel bypass is typically executed through the front-panel keypad or, on later firmware revisions, through the System 1 software interface. Bypassing the channel before breaking the coaxial connection prevents the monitor from interpreting the open-circuit condition as a probe fault and initiating an emergency shutdown of the protected machine.

The physical swap — removing the old probe, cleaning the probe boss threads, installing the new 330101-00-16-05-01-00, and setting the initial gap — can typically be completed within 30 to 45 minutes by a technician familiar with eddy-current probe installation. The critical path item is gap voltage verification: the proximitor output must read within the OK window (typically –10.0 VDC ±1.0 VDC at the nominal gap) before the channel bypass is removed and the monitor is returned to protective service. If the gap voltage falls outside the OK band after installation, the most common causes are incorrect gap distance, a damaged probe tip, or a mismatch between the probe and the extension cable calibration set — all of which can be diagnosed on-site without returning the unit to the manufacturer.

For facilities with redundant measurement loops — where a second proximity probe monitors the same shaft journal from a 90-degree offset position — the replacement can be performed with the machine running by taking the affected channel out of the voting logic, provided the safety instrumented system or machinery protection philosophy permits single-channel operation during maintenance. This approach eliminates the need for a planned shutdown and is the preferred method in continuous-process industries where a turbine or compressor outage carries significant production cost. After the replacement probe is installed and verified, the channel is returned to the voting logic and the redundant protection is restored before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the 330101-00-16-05-01-00 a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330101-00-16-05-01-00 is manufactured to the same mechanical and electrical specification as the original 3300 XL 8mm proximity probe. The probe diameter, thread pitch, cable length, connector type, and sensitivity curve are identical to the factory original, allowing direct substitution without modification to the probe boss, extension cable, or proximitor. Gap voltage re-verification is required after any probe replacement as a standard commissioning step.

Q2: Has this unit been tested before shipment?
Yes. Each 330101-00-16-05-01-00 unit undergoes functional testing prior to shipment, including verification of the output voltage-versus-gap curve against the factory calibration standard. Units that do not meet the sensitivity and linearity specification are rejected before packaging. A test report is available upon request for critical applications requiring documented pre-shipment verification.

Q3: What is the lead time and inventory availability?
Stock units are available for immediate shipment. For projects requiring multiple probes or a scheduled outage delivery, contact the sales team to confirm quantity availability and arrange priority dispatch. Regional warehouse stock is maintained to support emergency replacement requirements with short lead times.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified temperature and pressure ratings. Support requests are processed by returning the defective unit with a description of the failure mode; a replacement unit is dispatched upon confirmation of the defect.
