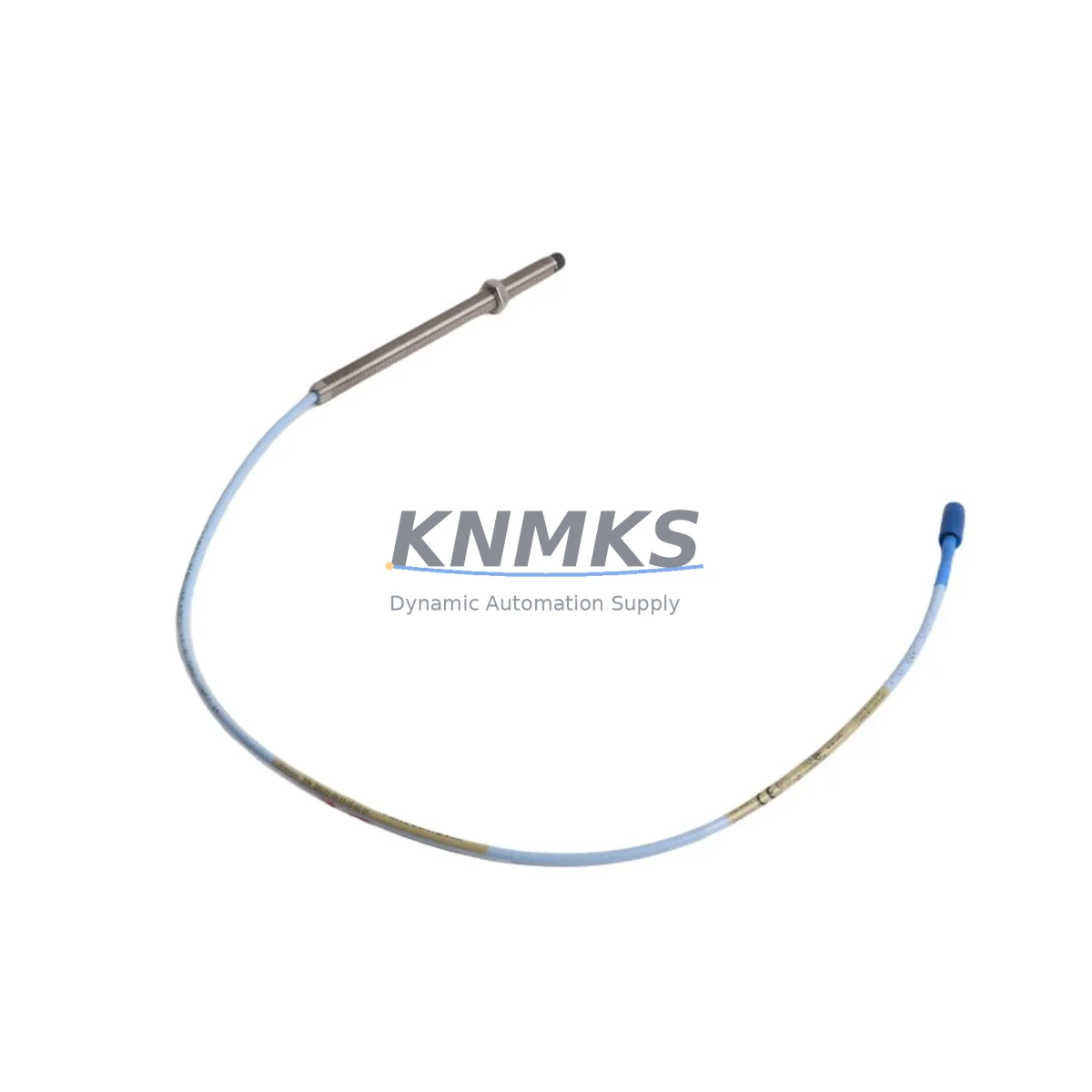

Bently Nevada 330101-00-15-20-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-15-20-02-05 Migration-Ready Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330101-00-15-20-02-05 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery applications. Designed as a migration-ready replacement for legacy 3300 XL Series installations, this probe delivers drop-in mechanical and electrical compatibility with existing field wiring, extension cables, and Proximitor® sensor assemblies — eliminating the need for full system overhauls during planned or emergency maintenance windows.

Industrial facilities operating aging 3300 Series vibration monitoring systems frequently encounter discontinued probe assemblies, degraded cable connectors, and obsolete Proximitor® housings that are no longer available through OEM channels. The 330101-00-15-20-02-05 addresses this supply gap with a verified-compatible, in-stock replacement that supports direct substitution without reprogramming the host monitor or reconfiguring the 3500 Series rack-based monitoring system.

Before initiating a probe swap, maintenance engineers should confirm the following: the existing extension cable length and connector type (typically the 330130 series), the Proximitor® sensor model in use (such as the 330180 or 330190), the gap voltage setting at the current installation (nominally –10 VDC at 1.0 mm gap for standard 3300 XL probes), and the monitor channel configuration within the 3500/40M or 3500/42M displacement monitor cards. Verifying these parameters before removal prevents calibration drift and avoids false alarm conditions during recommissioning.

For facilities upgrading from earlier 7200 Series or 3000 Series probe assemblies to the 3300 XL platform, the 330101-00-15-20-02-05 serves as the entry point for a phased migration strategy. The upgrade path typically involves replacing the probe and extension cable first, followed by Proximitor® sensor substitution, and finally reconfiguring the 3500 rack monitor cards to accept the updated sensitivity scale factor (–7.87 V/mm). This staged approach allows operations teams to maintain shaft monitoring continuity on adjacent channels while individual probe circuits are being replaced.

When integrating this probe into a control cabinet retrofit, installation teams should verify available conduit space for the armored extension cable, confirm that the junction box terminal block accepts the existing field wiring gauge, and check that the Proximitor® sensor mounting bracket is compatible with the new probe body diameter. In applications where the original probe was mounted in a custom bracket machined for an older probe series, a transition adapter sleeve may be required to maintain the correct radial gap distance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-15-20-02-05 into an existing vibration monitoring loop requires a structured review of all components in the signal chain. The probe itself is only one element; the 330130 Series extension cable connecting the probe to the Proximitor® sensor must be inspected for jacket integrity, connector corrosion, and impedance continuity before reuse. In high-temperature or high-vibration environments, extension cable replacement is recommended as a precautionary measure even when the cable appears visually intact.

The Proximitor® sensor — typically a 330180 or 330190 unit — converts the probe’s eddy-current signal into a usable voltage output for the 3500 Series monitor rack. If the Proximitor® housing shows signs of moisture ingress, terminal oxidation, or output drift, it should be replaced concurrently with the probe to avoid introducing a new fault source into a freshly calibrated circuit. The 3500/40M or 3500/42M monitor cards in the rack should be reviewed for firmware revision compatibility, particularly if the rack has not been updated since the original 3300 XL installation.

For facilities that also operate Bently Nevada 3500/22M Transient Data Interface cards or 3500/92 Communication Gateway modules, the probe replacement should be coordinated with the system integrator to ensure that the Transient Data Manager (TDM) software configuration reflects the updated probe serial number and calibration data. Failure to update the TDM database can result in historical trend data mismatches and alarm threshold inconsistencies during post-retrofit audits.

In multi-machine train applications — such as compressor-turbine-generator sets — where multiple 330101 series probes are installed across a shared 3500 rack, a phased channel-by-channel replacement strategy is strongly recommended. This approach allows the protection system to remain active on all other channels while individual probe circuits are taken offline for replacement, minimizing the risk of a full rack bypass during the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components — including the 330101-00-15-20-02-05 probe, the matched extension cable, and a spare Proximitor® sensor — at the work site before the maintenance window begins. A pre-verified spare assembly, gap-set and bench-tested prior to installation, can reduce field commissioning time from several hours to under 30 minutes per channel.

To protect the original program logic in the 3500 Series monitor rack, all channel configuration parameters — including full-scale range, alarm setpoints, gap voltage limits, and OK relay logic — should be exported from the rack configuration software (Rack Configuration Software, RCS) before any hardware is disturbed. This configuration backup serves as the restoration baseline if a channel card requires replacement or if the rack undergoes a firmware update during the same maintenance cycle.

Field continuity is maintained by keeping the protection system in bypass mode only for the specific channel under replacement, rather than issuing a full rack bypass. This requires coordination with the control room operator to acknowledge the bypassed channel in the DCS or SCADA historian and to document the bypass start and end times for compliance records. Once the replacement probe is installed and the gap voltage is confirmed within the acceptable window (typically –9.5 to –10.5 VDC), the channel bypass is released and the alarm logic is restored to normal operation.

Post-installation, a 24-hour trend review in the vibration monitoring historian is recommended to confirm that the new probe is tracking shaft position consistently with adjacent channels and that no spurious alarm conditions are present. This final verification step closes the retrofit record and confirms that the 330101-00-15-20-02-05 is performing within specification in the live production environment.

Retrofit Support FAQ

Q1: Is the 330101-00-15-20-02-05 a direct drop-in replacement for earlier 3300 Series proximity probes?
For like-for-like 3300 XL probe replacements, the 330101-00-15-20-02-05 is a direct mechanical and electrical substitute. No monitor card reprogramming is required provided the replacement probe uses the same sensitivity scale factor (–7.87 V/mm) and the gap distance is re-verified after installation. For replacements from older 7200 Series probes, a sensitivity scale factor adjustment in the 3500 monitor card configuration may be required.

Q2: What commissioning checks are required after installation?
After mechanical installation, confirm the probe gap voltage using a calibrated DC voltmeter at the Proximitor® output terminals. The nominal gap voltage should read –10 VDC ±0.5 V at the specified installation gap. Verify the OK relay output is energized and that the channel is reporting a valid vibration reading in the 3500 rack display or the connected DCS/SCADA system before releasing the channel from bypass.

Q3: Can this probe be used with third-party Proximitor®-compatible sensors from other manufacturers?
The 330101-00-15-20-02-05 is optimized for use with Bently Nevada 330180 and 330190 Series Proximitor® sensors. Use with third-party sensors that claim 3300 XL compatibility is possible in some cases, but gap calibration and sensitivity verification must be performed independently, as third-party sensor transfer functions may differ from the Bently Nevada specification. KNMKS recommends using matched Bently Nevada Proximitor® assemblies for critical machinery protection applications.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
All 330101-00-15-20-02-05 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Units are pre-tested prior to shipment to verify electrical continuity, connector integrity, and sensitivity within the published specification range. Stock is maintained in regional warehouses to support urgent replacement requirements, with standard lead times of 3–5 business days. For blanket-stock or emergency allocation requests, contact the KNMKS sales team directly.
