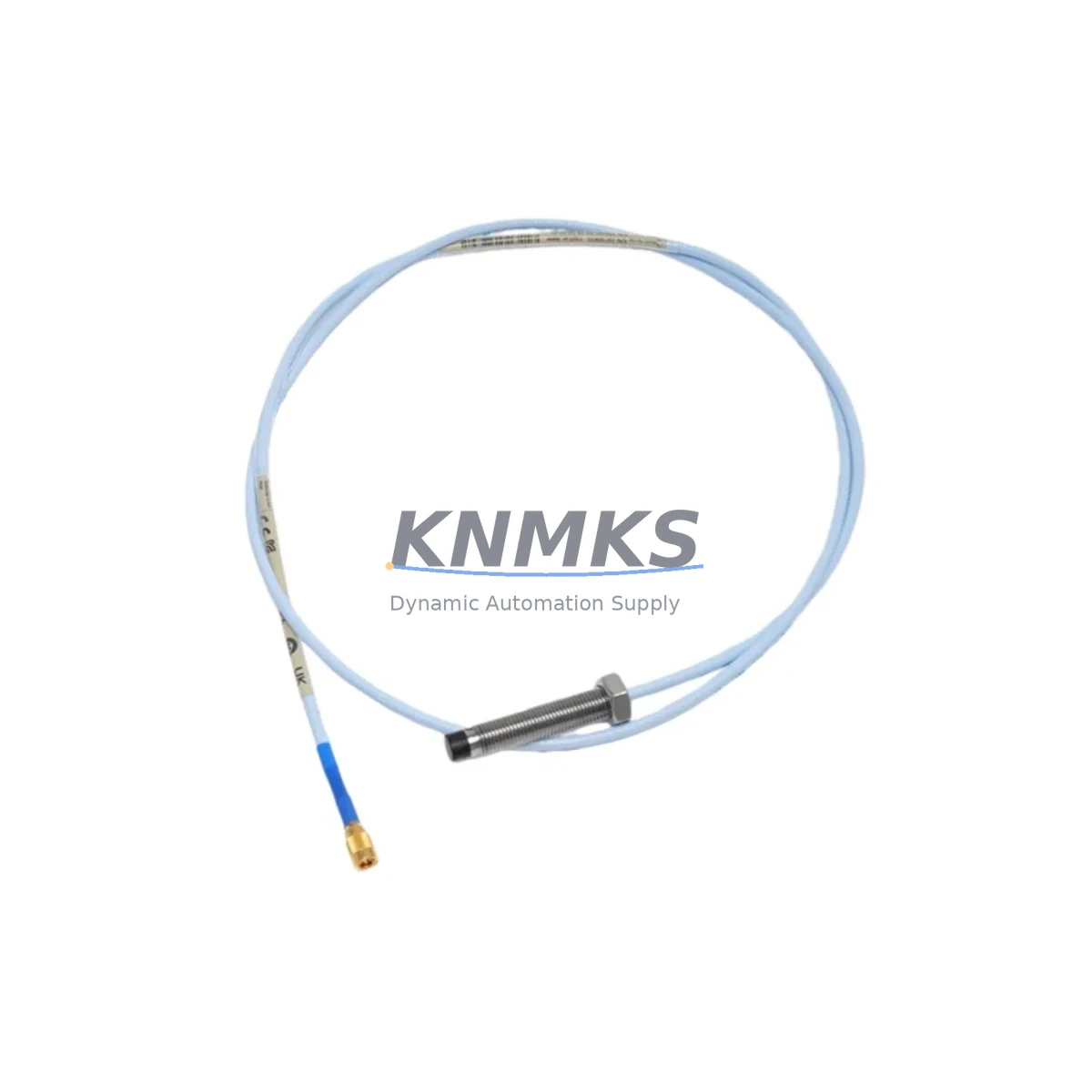

Bently Nevada 330101-00-15-15-02-05 Maintenance Spare Part: Factory-Proven Proximity Probe for Continuous Uptime

The Bently Nevada 330101-00-15-15-02-05 is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Widely deployed across rotating machinery in energy generation, petrochemical processing, compressor trains, and heavy manufacturing, this probe is a critical field-replaceable unit (FRU) in any predictive maintenance program. Sourced as an original spare, each unit is inspected and tested prior to shipment, backed by a support terms confirmed by quotation, and available for long-term supply commitment to support your MRO inventory strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330101-00-15-15-02-05 proximity probe, maintenance engineers should treat the intervention as a full loop verification, not a single-component swap. The 3300 XL proximity system operates as a matched set: the probe, the extension cable (Bently Nevada 330130-045-00-00 or equivalent 1.5m extension), and the Proximitor driver (such as the 330180-X1-05 or 330190-X0-CN series) must all be within calibrated tolerance for the system to deliver accurate gap voltage and vibration amplitude readings.

During the probe replacement window, inspect the 3300 XL monitor rack and its associated I/O modules. Verify that the monitor card (e.g., 3300/16 or 3300/20 series) shows no alarm latching or channel fault flags. Check the terminal board wiring for corrosion, loose ferrules, or insulation breakdown on the coaxial cable shield — a common failure mode in high-vibration environments. If the cabinet houses a 3500 Series rack alongside legacy 3300 XL hardware, confirm that the Proximitor driver output voltage (-18 VDC nominal) is within specification at the monitor input terminals.

For facilities running extended turnaround intervals, it is advisable to stock the following companion components alongside the 330101-00-15-15-02-05: a matched extension cable set, at least one spare Proximitor driver module, and the relevant 3300 XL power supply module (typically 3300/05 or equivalent). Relay output modules connected to the vibration monitor — used for trip and alarm annunciation — should also be tested for contact integrity during the same maintenance window. Signal isolators or 4–20 mA output conditioners feeding the DCS or SCADA historian should be verified for zero/span drift, particularly in high-temperature installations near turbine casings.

For older installations where the 3300 XL rack backplane shows signs of connector wear or oxidation, this probe replacement is an appropriate trigger point for a full rack health audit. Documenting gap voltage readings before and after probe installation provides a baseline for the next inspection cycle and supports predictive maintenance trending in your CMMS.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor driver supply at the monitor rack. Record the existing gap voltage (typically -10 VDC ±1 VDC for 8mm probe at nominal gap) from the monitor display or DCS historian before disconnection.

Step 2 — Probe Removal: Loosen the probe locknut and back the probe out carefully. Note the thread engagement depth for reinstallation reference. Inspect the probe tip for mechanical damage, pitting, or contamination from shaft contact.

Step 3 — New Probe Installation: Thread the 330101-00-15-15-02-05 into the probe holder. Set the air gap to the manufacturer-specified nominal (typically 1.0–1.27 mm / 40–50 mil for 8mm probes). Torque the locknut to specification. Reconnect the extension cable and Proximitor driver.

Step 4 — System Verification: Re-energize the driver supply. Confirm gap voltage is within the linear range (-10 VDC ±1 VDC). Check the monitor for alarm-free status. Verify vibration baseline against historical trend data in the DCS or SCADA system.

Step 5 — Documentation: Record the new probe serial number, installation date, gap voltage, and technician ID in the CMMS. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical rotating machinery.

This workflow supports direct replacement of legacy 330101-series probes without requiring monitor recalibration, provided the extension cable and driver remain within the original matched-set specification — minimizing downtime and preserving system compatibility across the 3300 XL platform.

Spare Parts Support FAQ

Q1: Is the 330101-00-15-15-02-05 compatible with both the 3300 XL and 3500 Series monitors?
The probe is natively designed for the 3300 XL system. Compatibility with the 3500 Series depends on the specific monitor card and Proximitor driver configuration. In many installations, the probe can be used with 3500 Series hardware when paired with the correct driver and extension cable within the 5m total system length. Confirm the monitor card part number before ordering for 3500 Series applications.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-15-15-02-05 unit undergoes functional output verification and sensitivity measurement prior to dispatch. Units that do not meet the 7.87 V/mm (±0.5%) sensitivity specification are quarantined. A test report is available upon request for critical applications.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failure under normal operating conditions. The support terms does not cover damage resulting from incorrect installation, mechanical contact with the shaft, or operation outside the specified temperature and gap range. Replacement or credit is issued after failure analysis confirmation.

Q4: Can long-term supply agreements be arranged for MRO inventory programs?
Yes. For facilities requiring scheduled annual or biannual replenishment of 330101-series probes and companion components, long-term supply commitments with reserved stock allocation are available. Contact our team to discuss volume pricing, lead time guarantees, and consignment stocking options tailored to your planned maintenance intervals.
