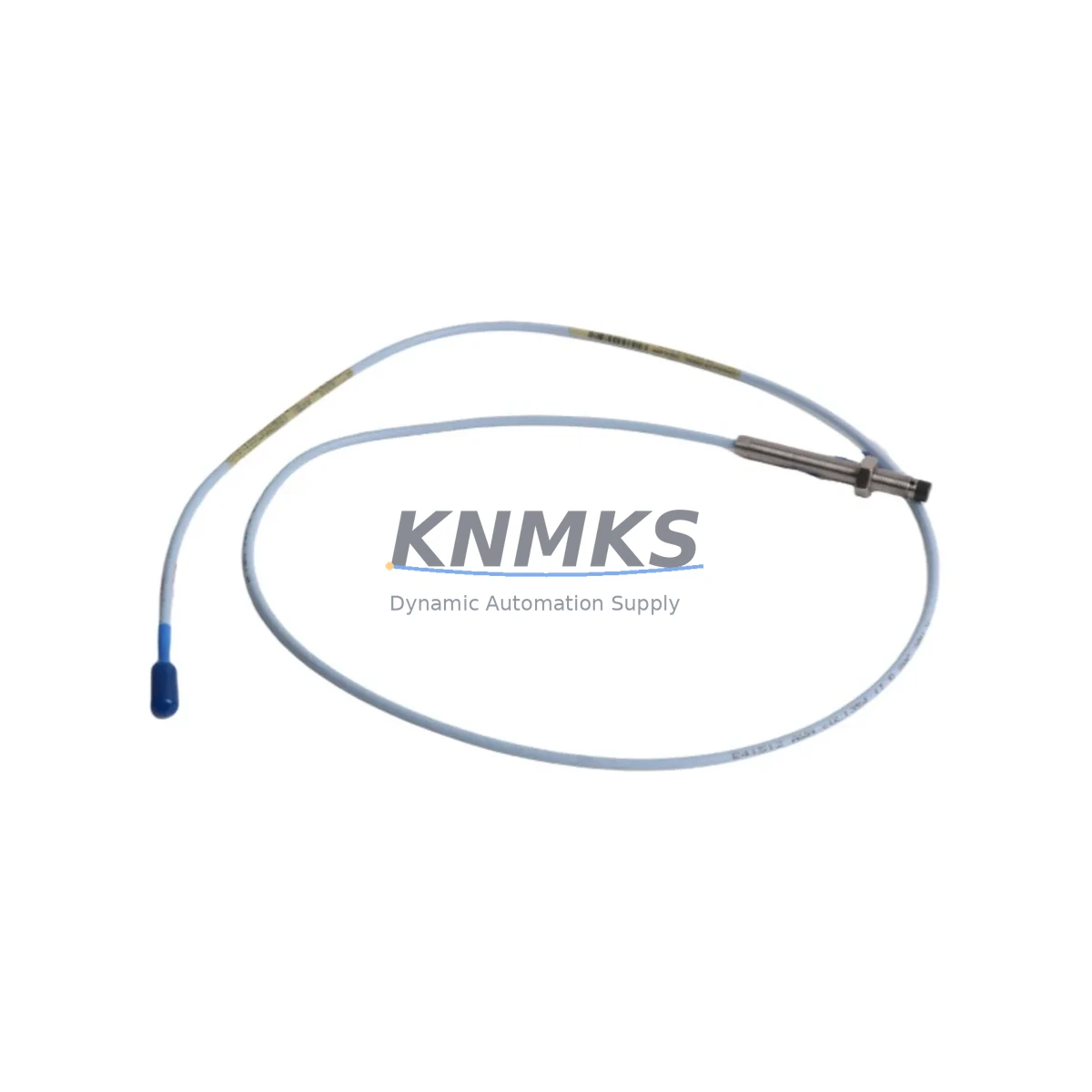

Bently Nevada 330101-00-15-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-15-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-15-10-02-05 is a 3300 XL Series eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. With a 15 mm tip diameter, 1000 mm cable length, and standard 5 mm/V sensitivity, this probe is fully compatible with existing 3300 XL proximitor/driver assemblies, making it the preferred choice for engineers managing aging turbomachinery protection infrastructure, compressor train upgrades, and rotating equipment retrofit projects where minimizing downtime and preserving original program logic are paramount.

When a plant’s existing 330101-series probe reaches end-of-life or is flagged as a discontinued spare, the replacement process requires careful validation across multiple system layers. Engineers must confirm that the replacement probe’s gap voltage range (typically –10 VDC at 2.0 mm) aligns with the installed Bently Nevada 3300 XL Proximitor, such as the 330180-51-05 or 330180-91-00 driver module, before any field swap is initiated. Mismatched sensitivity curves between the probe and proximitor will produce erroneous vibration amplitude readings and may trigger false shutdowns on the machinery protection system.

Terminal wiring compatibility is equally critical. The 330101-00-15-10-02-05 uses the standard Bently Nevada coaxial cable termination with an Armored Extension Cable (AEC) interface, typically routed through a 330130-series extension cable to the proximitor. During retrofit, technicians should verify that the existing 330130 extension cable is undamaged and that the connector seating torque meets Bently Nevada field installation specifications. If the extension cable is also being replaced, the 330130-045-00-00 is the most common companion component in 3300 XL installations and should be staged alongside the probe prior to shutdown.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330101-00-15-10-02-05 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing 3300 XL monitoring loop: confirm the proximitor model (330180-51-05 or 330180-91-00), inspect the 330130 extension cable for insulation damage or connector corrosion, and document the current gap voltage reading at the installed probe tip. This baseline reading is essential for post-installation verification and for confirming that the replacement probe is operating within the expected –10 VDC ± 0.5 VDC window at the nominal 2.0 mm air gap.

For plants running a Bently Nevada 3500 Series machinery protection rack, the probe replacement integrates directly with the 3500/42M Proximitor I/O Module. Engineers should verify that the 3500/42M channel configuration in System 1 software reflects the correct probe type and sensitivity before the new probe is energized. If the plant is migrating from an older 7200 Series monitoring system to the 3300 XL or 3500 platform, additional steps are required: the 7200-series probe holders use a different thread pitch (3/8-24 UNF), so a new probe bracket or adapter must be sourced and installed during the outage window.

Control cabinet space is rarely a constraint for probe swaps, but cable routing deserves attention. The 330101-00-15-10-02-05’s 1000 mm integral cable must be routed without sharp bends (minimum bend radius: 50 mm) to avoid signal degradation. Where the cable passes through a junction box or conduit seal, verify that the existing gland fittings are compatible with the probe cable OD. In high-vibration environments, cable clamps should be installed every 300 mm along the routing path to prevent fatigue failure at the connector.

For plants that also need to replace or upgrade the signal conditioning layer, the Bently Nevada 3300 XL Proximitor (330180-series) and the 3500/42M I/O module are the two most common companion components staged during a 330101-series probe replacement outage. If the plant’s DCS or safety system reads vibration data via a 4–20 mA output card, confirm that the 3500 rack’s output module is configured for the correct engineering unit scaling before the new probe is commissioned. HMI faceplate updates in the plant’s SCADA or DCS (such as a Yokogawa CENTUM VP or Emerson DeltaV system) should reflect the new probe tag and alarm setpoints prior to returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clearly defined commissioning sequence. Before the machine is taken offline, the replacement 330101-00-15-10-02-05 probe should be bench-tested using a portable Bently Nevada proximitor calibration kit to confirm sensitivity and gap voltage output. This pre-verification step eliminates the risk of installing a defective spare and discovering the fault only after the machine is back online.

During the outage, the original program logic in the 3500 rack or System 1 software should not be modified unless a deliberate setpoint change is part of the scope. Preserving the existing alarm and danger setpoints ensures that the machine can be returned to service immediately after the probe gap is set and verified, without requiring a formal management-of-change review for the control logic. If the plant’s safety instrumented system (SIS) monitors the vibration channel, the SIS bypass procedure must be activated before the probe is disconnected and deactivated before the machine is restarted.

Post-installation commissioning should follow the Bently Nevada field commissioning checklist: (1) set the probe gap to achieve –10 VDC ± 0.2 VDC at the nominal air gap, (2) verify the vibration reading in System 1 or the 3500 rack display matches the expected baseline for the machine at rest, (3) confirm that the OK relay on the 3500/42M module is energized, and (4) perform a slow-roll check at minimum operating speed to confirm that the probe is tracking shaft runout correctly before full-speed operation is authorized. This four-step sequence typically requires less than 30 minutes of commissioning time, keeping total outage duration to a minimum.

Retrofit Support FAQ

Q1: Is the 330101-00-15-10-02-05 a direct replacement for older 330101-series probes with different cable lengths?
A: The 330101-00-15-10-02-05 specifies a 1000 mm integral cable. If the existing installation uses a 330101-00-15-10-02-00 (500 mm cable) or 330101-00-15-10-02-10 (2000 mm cable), the replacement probe must match the original cable length, or the 330130 extension cable length must be adjusted accordingly to maintain the correct total cable length for the proximitor’s calibration range. Confirm total cable length (probe + extension) against the proximitor’s specification sheet before ordering.

Q2: What wiring checks are required before installing the replacement probe?
A: Inspect the 330130 extension cable connector for pin corrosion, bent contacts, and damaged insulation. Measure the cable’s DC resistance (should be <5 Ω end-to-end) and insulation resistance (should be >100 MΩ at 500 VDC). If either measurement is out of specification, replace the extension cable alongside the probe. Reuse of a degraded extension cable is the most common cause of post-installation gap voltage instability.

Q3: Has the 330101-00-15-10-02-05 been tested before shipment?
A: Yes. Each unit is function-tested prior to shipment, including gap voltage output verification at 2.0 mm nominal gap and sensitivity confirmation at 200 mV/mil. A test report is available upon request. Units are shipped in anti-static packaging with protective tip caps to prevent damage during transit.

Q4: What support terms and supply lead time should I expect?
A: All units carry a support terms confirmed by quotation covering manufacturing defects under normal operating conditions. Stock is maintained for immediate dispatch; standard lead time for in-stock units is 3–5 business days for international shipments. For blanket orders or long-term supply agreements to support multi-year maintenance programs, contact our sales team to discuss priority allocation and extended support terms options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-15-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-15-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
