Bently Nevada 330101-00-15-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

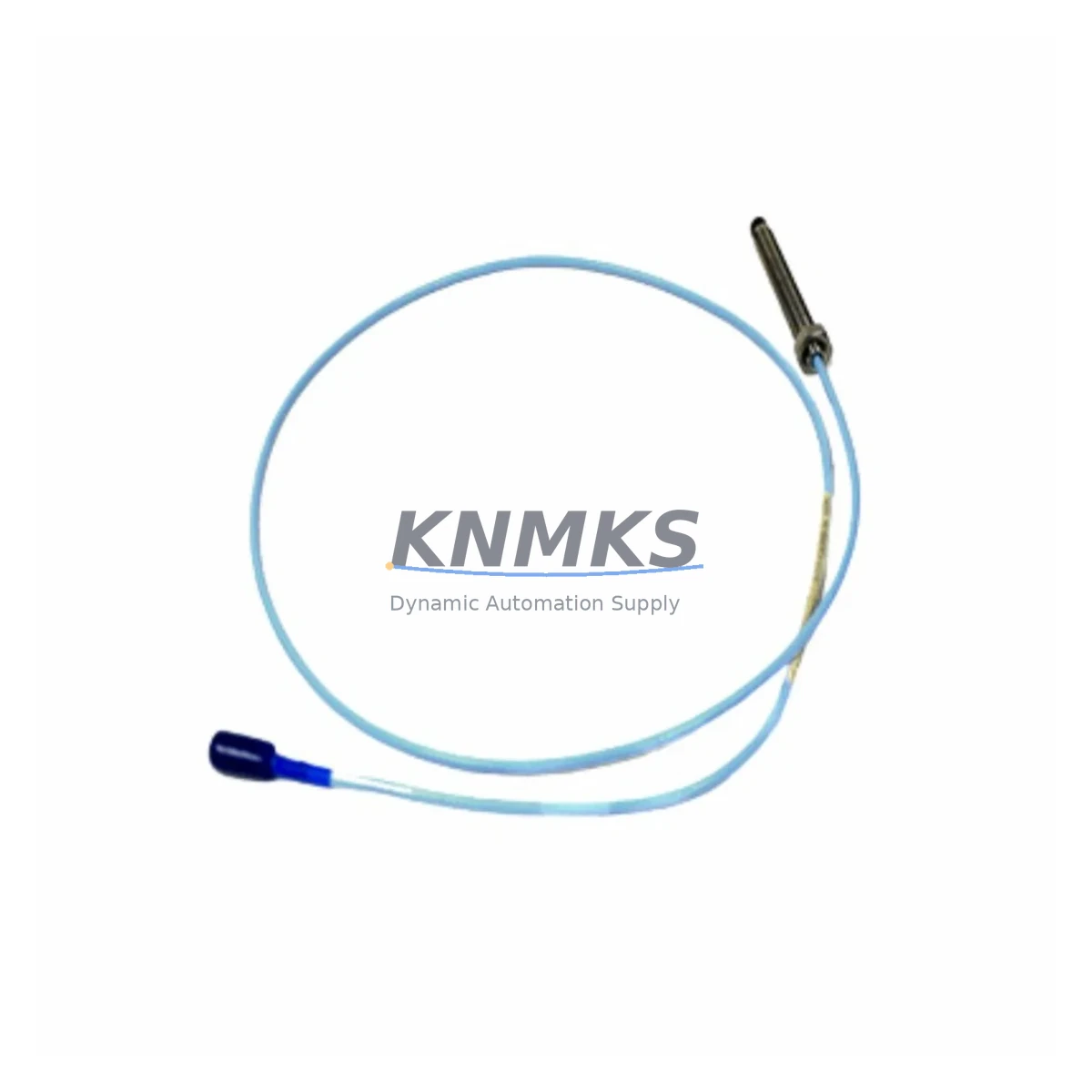

The Bently Nevada 330101-00-15-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, this probe serves as a verified drop-in replacement for obsolete or discontinued 3300 XL probe assemblies, enabling plant engineers to extend system service life without full platform replacement. Whether you are executing a targeted spare-parts replenishment, a partial control-cabinet upgrade, or a full migration from an older Bently Nevada 7200 Series installation, the 330101-00-15-10-02-00 provides the dimensional, electrical, and signal-chain compatibility required to maintain continuous machinery protection with minimal downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-15-10-02-00 into an existing machinery protection architecture requires a structured pre-installation review. Begin by auditing the 3300 XL driver module — typically the 330180-X1-05 8mm driver — to confirm it is seated correctly in the 3500 Series rack backplane and that the rack’s power supply module (such as the 3500/15 Power Supply) is delivering stable −24 VDC to the driver circuit. Voltage sag at the driver input is a common root cause of false gap-voltage alarms during probe replacement and should be measured before the new probe is installed.

Terminal wiring is the next critical checkpoint. The 330101-00-15-10-02-00 uses a standard three-conductor shielded cable (probe, extension, driver) topology. When replacing a probe in an operating cabinet, label and photograph all terminal connections on the 3500/42M Proximitor Monitor or equivalent I/O card before disconnection. Confirm that the extension cable — often a 330130-Series extension — is undamaged and that its connector seating is secure, as intermittent extension-cable contacts are a frequent source of noise after retrofit.

For plants migrating from the older Bently Nevada 7200 Series platform to the 3300 XL or 3500 architecture, additional steps apply. The 7200 Series used a different sensitivity scale factor (200 mV/mil vs. the 3300 XL’s 200 mV/mil nominal, but with different gap-voltage windows), so the 3500/42M monitor’s alert and danger setpoints must be re-entered in the rack configuration software (System 1 or Rack Configuration Software) after probe swap. HMI trend screens tied to the old channel tags should be updated to reflect the new probe’s calibrated gap range, typically −10 V to −18 V for a 25–75 mil gap.

I/O expansion considerations are also relevant when the retrofit is part of a broader control-cabinet upgrade. If additional measurement points are being added alongside the probe replacement — for example, adding a second radial channel or a thrust position channel — the 3500 rack may require an additional 3500/42M module or a 3500/46M Hydro Monitor, both of which share the same backplane bus and power budget. Confirm the rack’s total power draw against the 3500/15 Power Supply’s rated output before adding modules. Signal isolation between the new probe channel and adjacent analog I/O cards connected to the plant DCS should also be verified to prevent ground-loop interference.

Finally, if the plant uses a programming cable (such as the 3500 Rack Interface Module cable) for online configuration, ensure the laptop running System 1 software has the correct driver version loaded before going live. Firmware mismatches between the rack interface module and the configuration software are a known source of communication faults during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the machine is taken offline. The recommended approach is to pre-configure the replacement 330101-00-15-10-02-00 and its associated 330180-X1-05 driver as a bench-tested assembly, verifying gap voltage output against a calibrated target material before installation. This eliminates the most common cause of extended commissioning time: discovering a wiring or calibration issue only after the machine is shut down.

Where the process permits, a hot-standby strategy can be employed: the new probe is installed in a spare probe port (if available) and its signal verified against the running machine’s vibration baseline before the original probe is disconnected. This approach preserves the original program logic and alarm setpoints in the 3500/42M monitor without modification, since the channel configuration remains unchanged.

For machines that cannot tolerate any monitoring gap, coordinate the probe swap with the plant’s existing planned maintenance window and pre-stage all materials: the 330101-00-15-10-02-00 probe, the appropriate extension cable, a calibrated gap-setting tool, and a laptop with System 1 loaded and licensed. Document the pre-swap gap voltage reading, execute the swap, re-gap to the nominal −12 VDC center point, and confirm the monitor’s OK relay re-energizes before restarting the machine. Total field time for an experienced technician is typically under 30 minutes, keeping the maintenance window impact minimal.

All units shipped from our inventory undergo pre-shipment functional testing, including gap-voltage linearity verification, before dispatch. This ensures that the probe arrives ready for installation without requiring additional bench calibration on-site, further compressing the retrofit timeline.

Retrofit Support FAQ

Q1: Is the 330101-00-15-10-02-00 a direct replacement for the Bently Nevada 7200 Series 8mm probes?
The 330101-00-15-10-02-00 is dimensionally and electrically compatible with 3300 XL Series drivers and monitors. When migrating from the 7200 Series, the probe body and thread are interchangeable, but the associated driver must be updated to a 3300 XL 8mm driver (330180-X1-05) to ensure correct sensitivity and gap-voltage output. Setpoints in the 3500/42M monitor must be re-entered after the driver change.

Q2: What wiring checks are required before installation?
Verify the extension cable (330130-Series) for continuity and shield integrity. Confirm terminal connections at the driver input match the probe/extension/driver topology. Measure supply voltage at the driver to confirm −24 VDC ± 1 V. Check that the monitor channel is in bypass mode before disconnecting the old probe to prevent spurious trip signals.

Q3: How is compatibility with the 3500 rack confirmed before ordering?
The 330101-00-15-10-02-00 is compatible with the 3500/42M Proximitor Monitor and the 3500/46M Hydro Monitor when paired with the 330180-X1-05 driver. Confirm your rack’s monitor module part number and firmware version using the 3500 Rack Configuration Software before ordering. If your rack uses an older 3300 XL monitor (non-3500), the probe is still compatible but the monitor’s configuration interface will differ.

Q4: What does the support terms confirmed by quotation cover, and what is the typical lead time?
The support terms confirmed by quotation cover manufacturing defects and signal-chain performance failures under the probe’s specified operating conditions (temperature, gap range, target material). It does not cover damage from incorrect installation, over-torquing the probe body, or operation outside the rated gap range. In-stock units typically ship within 1–3 business days. Pre-shipment functional testing is performed on all units before dispatch to confirm gap-voltage linearity and cable integrity.
