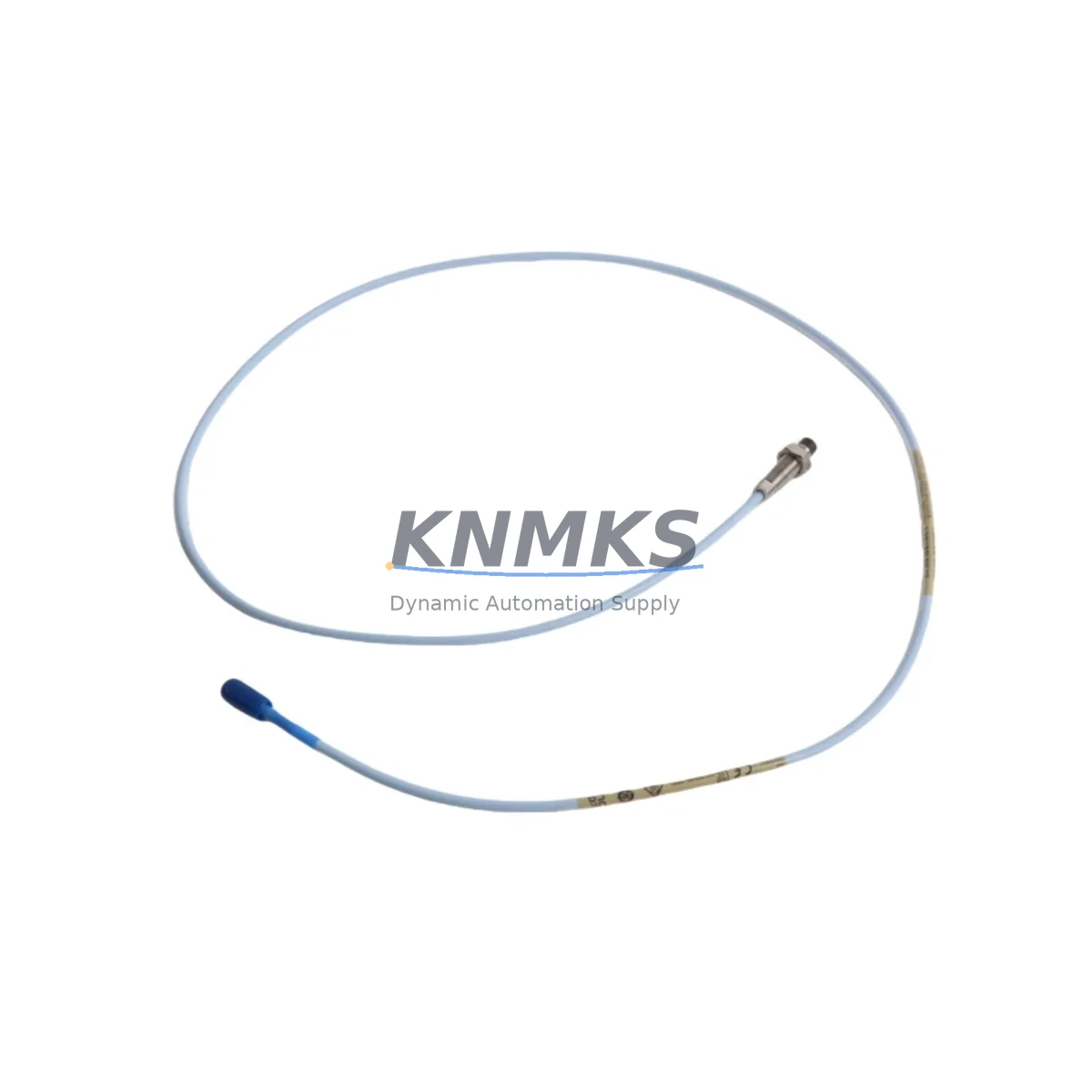

Bently Nevada 330101-00-15-10-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-15-10-01-05 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330101-00-15-10-01-05 is an 8mm eddy current proximity probe from the renowned 3300 XL Series, engineered to deliver fail-safe, continuous shaft vibration and position monitoring in the most demanding industrial environments. Designed for critical machinery protection systems, this probe is a cornerstone component in safety instrumented systems (SIS), turbine protection loops, compressor control cabinets, and rotating equipment monitoring architectures where unplanned downtime is simply not an option.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port crane systems — the integrity of every vibration monitoring channel directly determines whether a machine trip is timely and protective or dangerously delayed. The 330101-00-15-10-01-05 addresses this challenge with a non-contact sensing principle that eliminates mechanical wear, ensuring signal fidelity over years of uninterrupted service. Its eddy current technology provides linear, drift-free output even under high electromagnetic interference (EMI), making it the preferred choice for control cabinets installed near variable frequency drives (VFDs), large motor starters, and high-current bus bars.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-15-10-01-05 proximity probe does not operate in isolation — its full protective value is realized when integrated into a properly engineered control cabinet and machinery protection architecture. In a typical turbine or compressor protection panel, this probe connects to a Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy current signal into a clean, calibrated voltage output suitable for the monitoring system. The Proximitor is typically mounted inside the control cabinet on a DIN rail, where it must be protected from power supply fluctuations and conducted EMI.

For power supply stability within the same cabinet, engineers frequently pair the Proximitor with a Bently Nevada 3500/15 Power Supply module, which provides regulated, isolated DC power to the entire 3500 Series rack — ensuring that voltage transients from motor starts or grid switching events do not propagate into the sensitive monitoring circuitry. Surge protection at the cabinet entry point, using devices such as the Bently Nevada 3500/22M Transient Data Interface, further shields the system from lightning-induced surges and high-energy transients common in outdoor substations and coastal industrial facilities.

For facilities running a full Bently Nevada 3500 Series Machinery Protection System, the 330101-00-15-10-01-05 probe integrates seamlessly with the 3500/40M Proximitor® / Seismic Monitor module, enabling simultaneous radial vibration, axial position, and eccentricity monitoring from a single rack. In safety-critical interlock loops, the monitor’s relay outputs connect directly to the plant’s Emergency Shutdown System (ESD), ensuring that a probe signal loss or over-limit condition triggers a controlled, fail-safe machine trip rather than an uncontrolled catastrophic failure.

In high-dust or high-humidity environments — such as cement plants, coal handling facilities, or offshore platforms — the probe’s IP67 rating and the sealed cable assembly prevent moisture ingress and particulate contamination that would otherwise cause signal drift or intermittent faults. When combined with a Bently Nevada 330130 Extension Cable of the correct matched length, the system maintains its factory-calibrated sensitivity scale factor, eliminating the measurement errors that arise from mismatched cable impedance.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and centrifugal compressor trains, the 330101-00-15-10-01-05 monitors shaft radial vibration and provides the primary trip signal to the ESD system. Any bearing degradation, rotor imbalance, or oil whirl instability is detected within milliseconds, allowing the safety system to initiate a controlled shutdown before catastrophic bearing failure or seal damage occurs — preventing both personnel injury and costly secondary damage to casings and impellers.

Power Generation: Steam turbine-generator sets in thermal and combined-cycle power plants rely on API 670-compliant proximity probe systems for continuous shaft monitoring. The 330101-00-15-10-01-05, installed at the turbine journal bearings, feeds real-time vibration data to the plant DCS and protection relay, enabling operators to trend bearing condition and schedule predictive maintenance outages rather than reacting to emergency trips.

Mining & Mineral Processing: Large ball mills, SAG mills, and crusher drives in mining operations generate extreme vibration and shock loads. The robust construction and wide operating temperature range of the 330101-00-15-10-01-05 make it suitable for these high-severity applications, where probe failure would result in unmonitored operation and potential catastrophic mechanical failure of multi-million-dollar grinding equipment.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment plants operate continuously, often in humid, chemically aggressive environments. The IP67-rated probe assembly withstands wash-down procedures and condensation, maintaining reliable shaft monitoring without signal degradation over extended service intervals.

Metallurgy & Steel: Rolling mill drives and continuous casting machine motors in steel plants are subject to intense electromagnetic interference from large thyristor drives and induction furnaces. The eddy current technology of the 330101-00-15-10-01-05 is inherently immune to these EMI sources, delivering clean vibration signals even in the most electrically noisy mill environments.

Port & Marine: Shipboard propulsion systems and port crane hoisting machinery require compact, vibration-resistant monitoring solutions. The 330101-00-15-10-01-05’s small 8mm form factor and rugged cable assembly allow installation in confined machinery spaces, providing continuous shaft monitoring that supports both predictive maintenance programs and regulatory compliance with classification society requirements.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-15-10-01-05?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. If the probe fails to meet its specified sensitivity scale factor or exhibits signal anomalies within the confirmed support period, we provide replacement or full technical support at no additional cost.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-15-10-01-05 probe undergoes functional verification prior to dispatch, including sensitivity scale factor confirmation, cable continuity and insulation resistance testing, and connector integrity inspection. Units are shipped with test documentation available upon request, ensuring traceability for safety-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330101-00-15-10-01-05 is a direct, pin-compatible replacement for the standard Bently Nevada 3300 XL 8mm probe family. It is fully compatible with 3300 XL Proximitor® Sensors and 3500 Series monitor modules without requiring recalibration, provided the matched extension cable length is maintained per the system’s original design specification.

Q4: Can KNMKS support long-term and emergency supply requirements?
KNMKS maintains dedicated inventory of the 330101-00-15-10-01-05 and related 3300 XL Series components to support both planned maintenance programs and emergency breakdown situations. We offer expedited shipping to minimize plant downtime, and our technical team can assist with cross-referencing, compatibility verification, and installation guidance for replacement projects.
