Bently Nevada 330101-00-15-10-01-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-15-10-01-00 Migration-Ready Proximity Probe for Legacy Control Systems

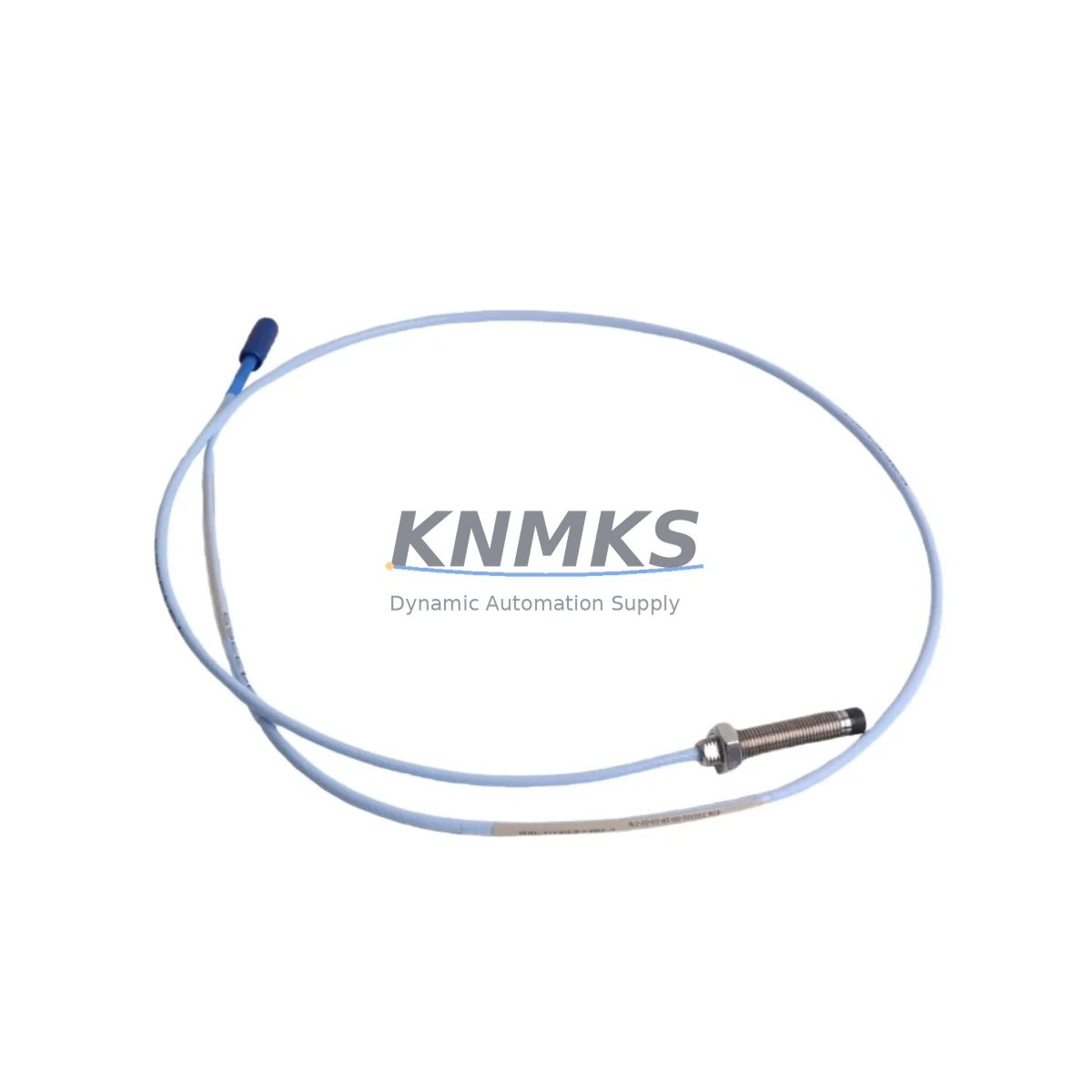

The Bently Nevada 330101-00-15-10-01-00 is an 8mm proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series systems approach end-of-life and original spare parts become increasingly scarce, this migration-ready replacement module provides a direct, verified substitute for facilities managing aging turbine control panels, compressor monitoring racks, and critical rotating equipment protection systems.

This unit is fully compatible with the Bently Nevada 3300 XL signal conditioning architecture, maintaining the same 5-meter extension cable interface, standard -24 VDC bias voltage, and 200 mV/mil (7.87 V/mm) output sensitivity. Engineers undertaking a legacy system retrofit or spare parts lifecycle extension program can install this probe without modifying existing terminal wiring, Keyphasor signal routing, or rack slot assignments in the 3300 XL rack.

Each unit ships pre-tested and is backed by a support terms confirmed by quotation, with in-stock inventory available for immediate dispatch to support unplanned outage recovery and scheduled turnaround maintenance windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-15-10-01-00 into an existing rotating machinery protection system requires a structured pre-installation review. Before removing the legacy probe, maintenance engineers should document the current gap voltage reading — typically between -10 VDC and -18 VDC for a properly installed 8mm probe — and record the physical probe-to-target distance to serve as the baseline for reinstallation verification.

In systems where the 3300 XL proximity probe interfaces with a Bently Nevada 3300/16-channel monitor module, confirm that the monitor’s channel configuration (radial vibration, axial position, or Keyphasor) is preserved in the system database before disconnecting the probe. If the control system also includes a Bently Nevada 3500 Series rack operating in parallel for redundancy or as part of a phased migration, ensure that the signal routing between the 3300 XL driver and the 3500 monitor card is not disrupted during the probe swap.

For facilities upgrading from older 3300 Series non-XL probes to the 3300 XL platform, the extension cable assembly — such as the Bently Nevada 330130-045-00-00 extension cable — must be verified for length compatibility and connector type before installation. Mismatched cable lengths will affect the system’s calibrated sensitivity and introduce measurement error that may not be immediately apparent during initial power-up.

In control cabinets where the proximity probe signal feeds into a DCS or safety instrumented system (SIS) via a signal isolator or barrier, verify that the isolator’s input impedance and voltage range remain within specification for the replacement probe’s output characteristics. Signal isolators from the Phoenix Contact MACX or MTL 700 Series are commonly found in these applications and should be checked for compatibility before commissioning.

Where the 3300 XL rack also houses power supply modules — such as the Bently Nevada 3300/05 power supply — confirm that the rack’s total power budget is not affected by the probe replacement, particularly in high-density configurations where multiple monitor cards and I/O modules share a common backplane power rail. Probe replacement itself draws negligible additional power, but this step is critical in racks that are already operating near capacity.

Finally, if the plant’s HMI or historian is configured to display vibration trend data from this channel, coordinate with the control room team to suppress alarms on the affected channel during the swap window to prevent nuisance trips. After reinstallation, restore alarm setpoints and verify that the HMI display reflects the correct live gap voltage and vibration amplitude before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window opens. The 330101-00-15-10-01-00 is a hardware-level replacement that requires no firmware updates, no rack reconfiguration, and no changes to the monitor module’s internal programming — factors that significantly reduce the risk of extended outages compared to more complex module substitutions.

The recommended approach is to pre-stage the replacement probe at the work site with gap voltage pre-verified using a portable oscillator/driver simulator, confirming that the probe’s output at a known gap distance matches the expected sensitivity curve before the machine is taken offline. This eliminates the most common cause of extended commissioning time: discovering a defective replacement unit only after the original probe has been removed.

During the swap, maintain the original probe’s terminal connections as a reference until the replacement is physically installed and the gap voltage has been confirmed within the acceptable window. If the system uses a Keyphasor probe on an adjacent channel — such as a Bently Nevada 330180-X1-05 Keyphasor probe — ensure that the Keyphasor signal remains active throughout the radial probe replacement to avoid losing phase reference data that may be required for machinery diagnostics running in parallel.

Once the replacement probe is installed and gap voltage is confirmed, perform a brief vibration check by observing the monitor module’s front-panel indicators or the DCS trend display before closing the control cabinet. Document the as-left gap voltage, probe serial number, and installation date in the plant’s maintenance management system to support future spare parts planning and support terms tracking. With proper preparation, total downtime for a single-channel proximity probe replacement in a 3300 XL system is typically achievable within a two-hour maintenance window.

Retrofit Support FAQ

Q: Is the 330101-00-15-10-01-00 a direct drop-in replacement for the original Bently Nevada OEM part?
A: Yes. This unit replicates the OEM mechanical dimensions, electrical output sensitivity, and connector interface of the original 330101-00-15-10-01-00. No modifications to the existing extension cable, terminal block wiring, or monitor module configuration are required for a standard replacement in a 3300 XL system.

Q: What commissioning steps are required after installation?
A: After physical installation, verify the probe gap voltage using the monitor module’s front-panel meter or a handheld voltmeter at the driver output terminals. Confirm the reading falls within the system’s configured linear range (typically -10 VDC to -18 VDC for an 8mm probe). Restore any suppressed alarms and confirm live data is visible on the HMI or historian before returning the machine to service.

Q: Is in-stock inventory available for urgent or unplanned outage requirements?
A: Yes. KNMKS maintains ready stock of the 330101-00-15-10-01-00 to support both planned turnaround maintenance and emergency spare parts requirements. Contact [email protected] or call +86 18359268345 to confirm current availability and lead time for your location.

Q: What support terms coverage is provided?
A: All units are covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify output sensitivity and electrical integrity before dispatch. Support requests are handled directly by KNMKS with replacement or credit issued upon confirmation of the defect.
