Bently Nevada 330101-00-15-05-11-00 3300 XL Spare Part: Maintenance-Proven Proximity Probe for Factory Uptime

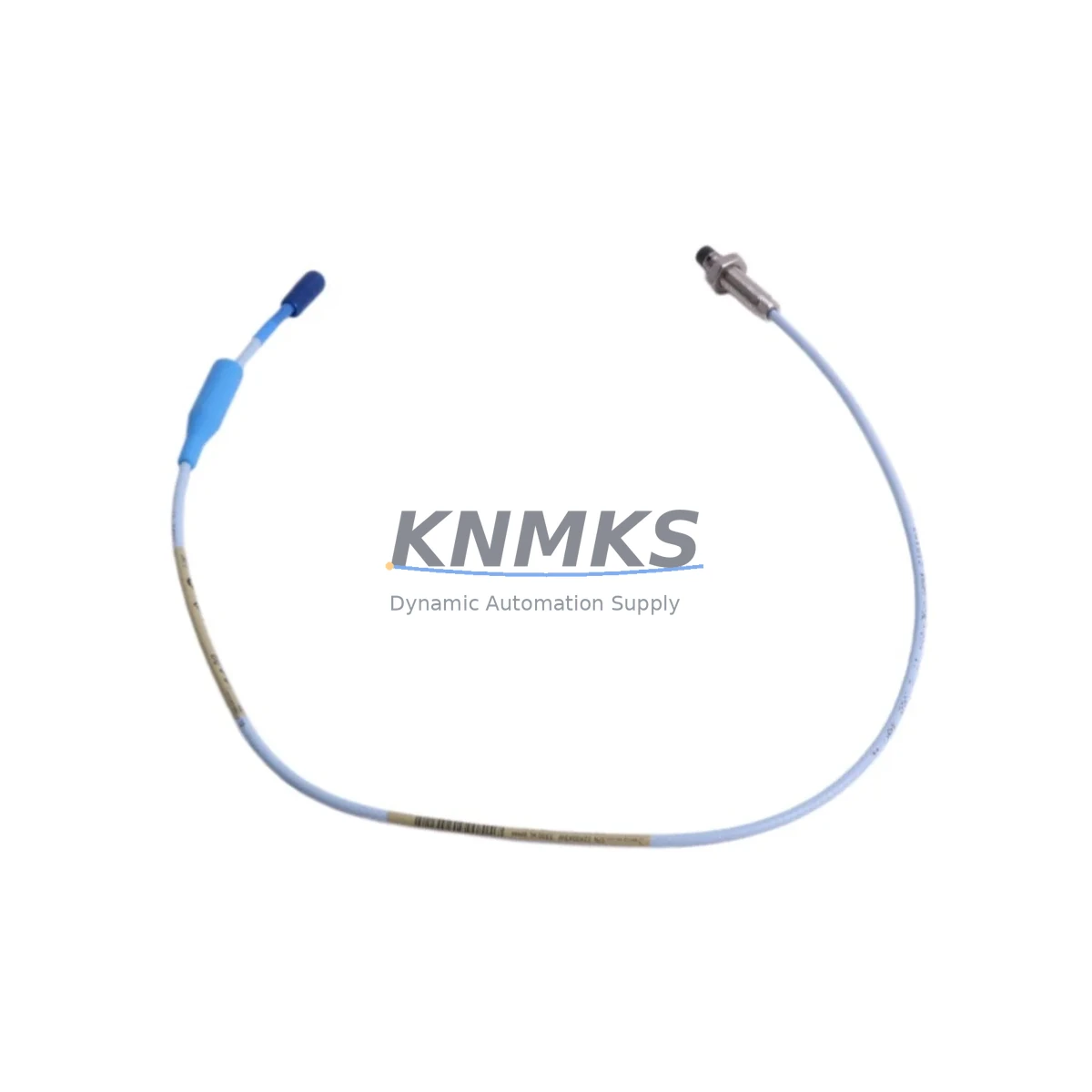

The Bently Nevada 330101-00-15-05-11-00 is a 5 mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Widely deployed in rotating equipment protection across power generation, oil & gas, petrochemical, and heavy manufacturing facilities, this probe is a critical sensing element for radial vibration, axial position, and speed measurement on turbines, compressors, pumps, and motors. Maintaining a verified stock of the 330101-00-15-05-11-00 is a fundamental requirement for any maintenance team responsible for API 670-compliant machinery protection systems.

At KNMKS, every 330101-00-15-05-11-00 unit is sourced from verified supply channels, inspected prior to dispatch, and shipped with a support terms confirmed by quotation. We support maintenance engineers and procurement teams with fast quotation, pre-shipment functional verification, and long-term supply continuity for both active and discontinued Bently Nevada part numbers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-15-05-11-00 proximity probe is flagged during routine point inspection or condition monitoring review, the replacement scope should never be limited to the probe alone. The 3300 XL measurement chain is a tightly coupled system: probe, extension cable, and Proximitor module must be calibrated and verified together to ensure measurement accuracy within API 670 alert and danger setpoint tolerances.

Begin by inspecting the 330130 Series extension cable paired with this probe. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. A degraded extension cable will introduce signal noise that mimics probe failure, leading to unnecessary probe replacement and extended troubleshooting time. Replace the extension cable as a matched set whenever probe replacement is performed.

Next, verify the condition of the 330180 Series 3300 XL Proximitor module in the monitoring rack. The Proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance. Aging Proximitor modules can exhibit drift, particularly in high-vibration rack environments, and should be bench-tested or swapped with a known-good spare during any probe replacement event. Keeping a spare 330180 Proximitor in the maintenance inventory eliminates a common source of extended downtime during fault isolation.

Within the 3500 Series monitoring rack or 3300 XL rack, inspect the 3500/42M Proximitor I/O Module and associated terminal blocks for loose connections, oxidation, and insulation breakdown. Loose field wiring at the I/O module is a frequent root cause of intermittent vibration signal faults that are incorrectly attributed to probe failure. Torque all terminal connections to specification and apply dielectric grease at exposed connector interfaces in outdoor or high-humidity installations.

For facilities running 3500/01 Rack Power Supplies, confirm that supply voltage is within specification at the rack backplane. Undervoltage conditions cause Proximitor output instability and can trigger false machinery protection trips. A dedicated rack power supply spare, or at minimum a verified spare power supply module, should be part of the critical spares inventory for any 3300 XL or 3500 Series installation.

Where the 3300 XL system interfaces with a DCS or PLC via 4–20 mA or relay outputs, verify that the signal conditioning path — including any signal isolators or barriers in the field junction box — is functioning correctly. Faulty isolators can corrupt vibration trend data in the historian, masking developing machinery faults. During annual overhaul, replace isolators that have exceeded their rated service life or show evidence of thermal stress.

Finally, review the fuse and surge protection components in the field junction box and control cabinet serving the 3300 XL system. Blown fuses and degraded surge arrestors are often overlooked during probe replacement but are a leading cause of repeat failures after maintenance. Stocking a set of matched fuses and MOV-type surge protectors alongside the 330101-00-15-05-11-00 probe ensures a complete, single-visit repair capability.

Site Replacement Workflow

Replacing the 330101-00-15-05-11-00 in the field follows a structured sequence to minimize downtime and ensure measurement chain integrity. Before removing the existing probe, record the current gap voltage at the Proximitor output and document the physical gap setting (typically 1.0–1.5 mm for 5 mm probes on steel targets). This baseline is essential for verifying correct installation of the replacement probe.

Isolate the measurement channel at the 3300 XL or 3500 rack before disconnecting field wiring. Remove the probe from the bracket, noting the thread engagement depth and any locking compound used. Install the replacement 330101-00-15-05-11-00 to the same thread depth, reconnect the extension cable, and restore power to the channel. Adjust the probe gap to achieve the target Proximitor output voltage (typically -10 VDC at mid-range gap for 3300 XL systems). Verify that the channel reads within the expected vibration baseline for the machine at normal operating speed before returning the protection system to service.

For facilities transitioning from older 3300 Series (non-XL) probes, confirm that the replacement 330101-00-15-05-11-00 is matched to a 3300 XL Proximitor. Mixing non-XL probes with XL Proximitors — or vice versa — will result in calibration errors and incorrect machinery protection setpoints. KNMKS technical support can assist with compatibility verification prior to shipment to eliminate on-site surprises.

All units supplied by KNMKS undergo pre-shipment electrical verification including coil resistance check, insulation resistance test, and oscillator frequency confirmation. A test report is available upon request. This pre-shipment testing protocol reduces the risk of installing a defective spare and supports quality documentation requirements for ISO-certified maintenance programs.

Spare Parts Support FAQ

Q1: Is the 330101-00-15-05-11-00 compatible with both 3300 XL and 3500 Series monitoring systems?
The 330101-00-15-05-11-00 is designed for the 3300 XL system. It is compatible with 3500 Series racks when used with the appropriate 3500/42M Proximitor I/O module and a matched 3300 XL Proximitor. Always confirm the Proximitor model number before ordering to ensure full measurement chain compatibility. KNMKS can provide compatibility guidance based on your rack configuration.

Q2: What is the recommended spare parts inventory strategy for the 330101-00-15-05-11-00?
For critical rotating equipment, a minimum of two probe assemblies per machine train is recommended, supplemented by at least one spare extension cable (330130 Series) and one spare Proximitor module (330180 Series). Facilities with multiple identical machine trains should consider a pooled critical spares strategy to optimize inventory cost while maintaining rapid response capability. KNMKS supports blanket order arrangements for long-term supply continuity.

Q3: How does KNMKS verify the condition of surplus 330101-00-15-05-11-00 units before shipment?
Every unit undergoes a pre-shipment inspection protocol including visual inspection, coil resistance measurement, insulation resistance test, and oscillator output verification. Units that do not meet OEM electrical specifications are rejected. A support terms confirmed by quotation is provided on all shipped units, covering defects in materials and workmanship under normal operating conditions.

Q4: Can KNMKS supply the 330101-00-15-05-11-00 for long-term or repeat procurement needs?
Yes. KNMKS maintains ongoing sourcing relationships to support both immediate emergency replacement and planned annual maintenance procurement. We offer long-term supply agreements, priority allocation for critical spares, and consistent lead times. Contact our team at [email protected] or +86 18359268345 to discuss your annual maintenance volume and establish a preferred supplier arrangement.
