Bently Nevada 330101-00-15-05-01-00 Spare for Factory Uptime

Overview

Bently Nevada 330101-00-15-05-01-00 Spare for Factory Uptime

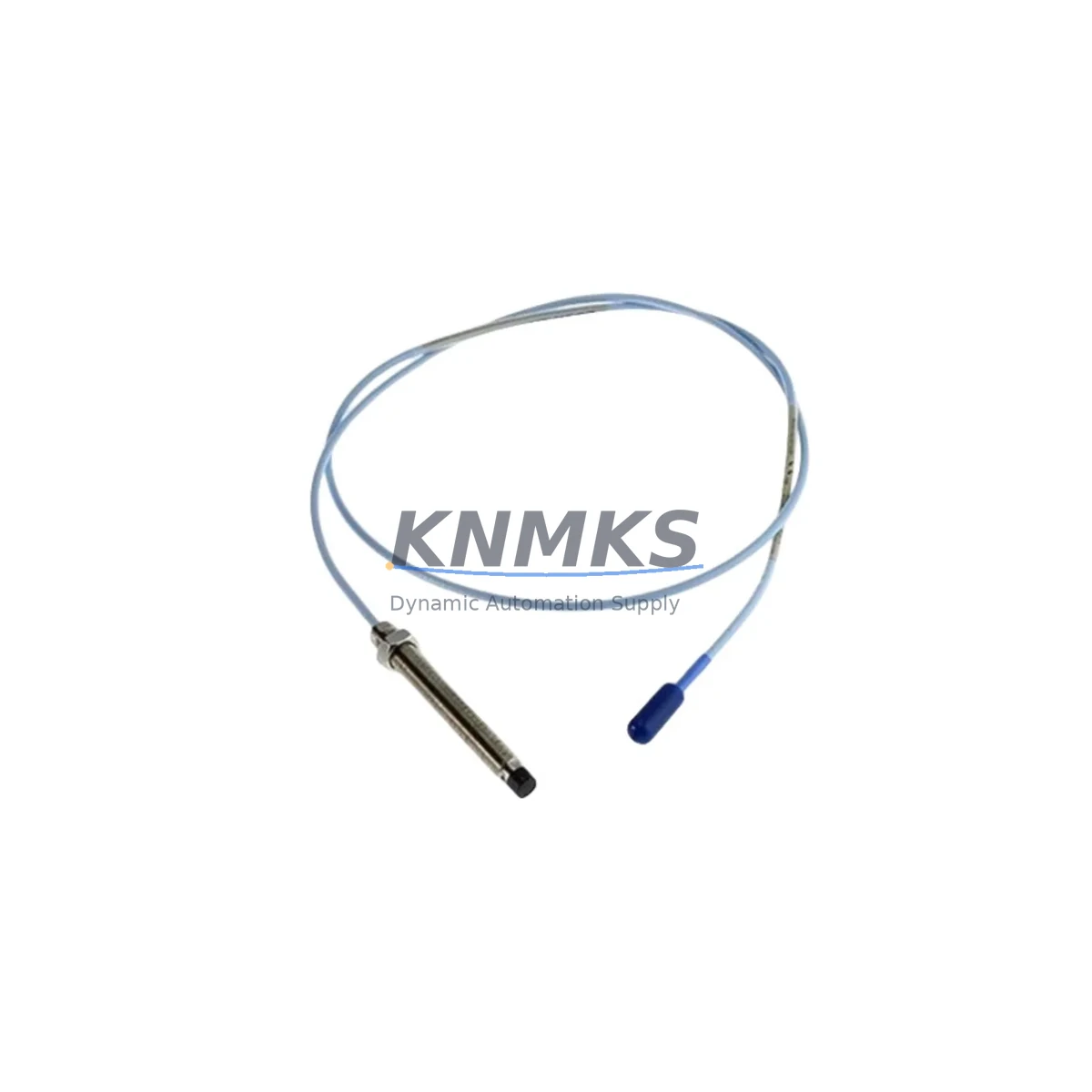

The Bently Nevada 330101-00-15-05-01-00 is an 8mm proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed to deliver precise non-contact vibration and position measurements on rotating equipment — including turbines, compressors, pumps, and motors — this probe is a critical component in any predictive maintenance and condition monitoring program. When a 330101-00-15-05-01-00 fails or degrades, the entire vibration monitoring loop is compromised, leaving rotating machinery unprotected and exposing the plant to unplanned downtime and catastrophic mechanical failure.

At KNMKS, every 330101-00-15-05-01-00 unit is sourced from verified supply channels, inspected against OEM dimensional and electrical specifications, and tested prior to shipment. We maintain buffer stock to support emergency replacement orders, annual maintenance shutdowns, and long-term spare parts programs. All units are backed by a support terms confirmed by quotation covering manufacturing defects and electrical performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-15-05-01-00 proximity probe in the field is rarely an isolated task. A thorough maintenance engineer will treat this replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. Begin by inspecting the 330130 series extension cable that connects the probe to the Proximitor sensor — cable insulation degradation, connector corrosion, or shield continuity failures are common root causes of erratic gap voltage readings that are often misdiagnosed as probe failure.

Next, verify the condition of the 3300 XL Proximitor Sensor (330180 series). The Proximitor converts the probe’s eddy current signal into a usable DC voltage output; a faulty Proximitor will produce incorrect readings even with a new probe installed. Check the Proximitor’s power supply input (typically -24 VDC) and confirm that the 3300 XL power supply module is delivering stable, within-spec voltage. Voltage ripple or transient spikes on the DC rail are a leading cause of premature probe and Proximitor degradation.

During the same maintenance window, inspect the 3300 XL monitor module (such as the 3300/16 or 3300/20 series) for alarm setpoint integrity, OK relay status, and any latched fault conditions. Confirm that terminal block connections within the control cabinet are torqued to specification and free of oxidation — loose or corroded terminals introduce resistance that skews gap voltage calibration. If the plant uses a Bently Nevada 3500 series rack for higher-channel-count monitoring, verify that the 3500/42M or equivalent proximity I/O module is correctly configured for the 8mm probe system.

For plants running legacy DCS or PLC-based interlock systems, confirm that the 4–20 mA or relay output from the monitor is correctly received at the DCS I/O card or PLC analog input module. Signal isolation barriers or galvanic isolators in the signal path should be tested for loop integrity. Finally, check any fuse or circuit protection on the -24 VDC supply rail feeding the Proximitor — a blown fuse is a common, easily overlooked cause of complete channel loss.

Procurement engineers should note that the 330101-00-15-05-01-00 is frequently ordered alongside extension cables, Proximitor sensors, and monitor modules as a matched set during annual turnaround planning. Maintaining a minimum of two spare probes per monitored machine train is a widely adopted industry practice to ensure immediate swap capability without waiting on lead times.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor sensor supply before disconnecting the probe. Record the existing gap voltage (typically -10 VDC ± 0.5 VDC for a correctly gapped 8mm probe) as a baseline reference.

Step 2 — Probe Removal: Loosen the locknut and carefully unthread the probe from the mounting bracket. Inspect the probe tip for physical damage, contamination, or oil ingress. Inspect the mounting threads for wear or cross-threading.

Step 3 — New Probe Installation: Thread the 330101-00-15-05-01-00 replacement into the bracket. Set the air gap to the OEM-specified value (typically 1.0–1.5mm for 8mm probes on steel targets). Secure the locknut. Route the integral cable to avoid mechanical contact with rotating components or heat sources.

Step 4 — Reconnection & Verification: Reconnect the extension cable to the Proximitor. Re-energize the supply. Measure the gap voltage at the Proximitor output and confirm it falls within the linear range. Verify that the monitor module shows an OK status and that no alarms are latched.

Step 5 — System Handover: Document the replacement in the maintenance management system (CMMS), record the new gap voltage, and update the spare parts inventory. If the replaced probe is being returned for evaluation, label it with the removal date, machine tag, and observed fault condition.

This workflow is compatible with both direct replacement of legacy 330101 series probes and migration from older 7200 series probe systems, provided the Proximitor and extension cable are also updated to 3300 XL-compatible variants.

Spare Parts Support FAQ

Q1: Is the 330101-00-15-05-01-00 compatible with both the 3300 XL and older 3300 series monitors?
The 330101-00-15-05-01-00 is designed for the 3300 XL system. While physical dimensions may be similar to older 3300 series probes, the XL system uses a revised Proximitor with different sensitivity calibration. Always verify that the Proximitor sensor and monitor module are XL-series variants before installing this probe. Contact our technical team for compatibility confirmation on legacy installations.

Q2: How does KNMKS verify probe condition before shipment?
Every unit undergoes pre-shipment electrical testing including coil resistance measurement, insulation integrity check, and dimensional verification of the probe tip and thread profile. Units that do not meet OEM specification tolerances are quarantined and not shipped. A test record is available upon request.

Q3: What is the recommended spare parts stocking strategy for the 330101-00-15-05-01-00?
For critical rotating machinery (turbines, compressors), we recommend a minimum of two probes per monitored shaft, plus one matched extension cable and one Proximitor sensor per machine train held in on-site inventory. For plants with 10+ monitored machines, a consignment stock arrangement with KNMKS can reduce carrying costs while guaranteeing 24-hour emergency availability.

Q4: What support terms and long-term supply commitment does KNMKS provide?
All 330101-00-15-05-01-00 units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance failures under normal operating conditions. KNMKS maintains ongoing stock and can support long-term supply agreements (LTAs) for plants requiring guaranteed availability over multi-year maintenance cycles. For obsolescence risk management, we also offer cross-reference and alternative sourcing advisory services.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-15-05-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-15-05-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
