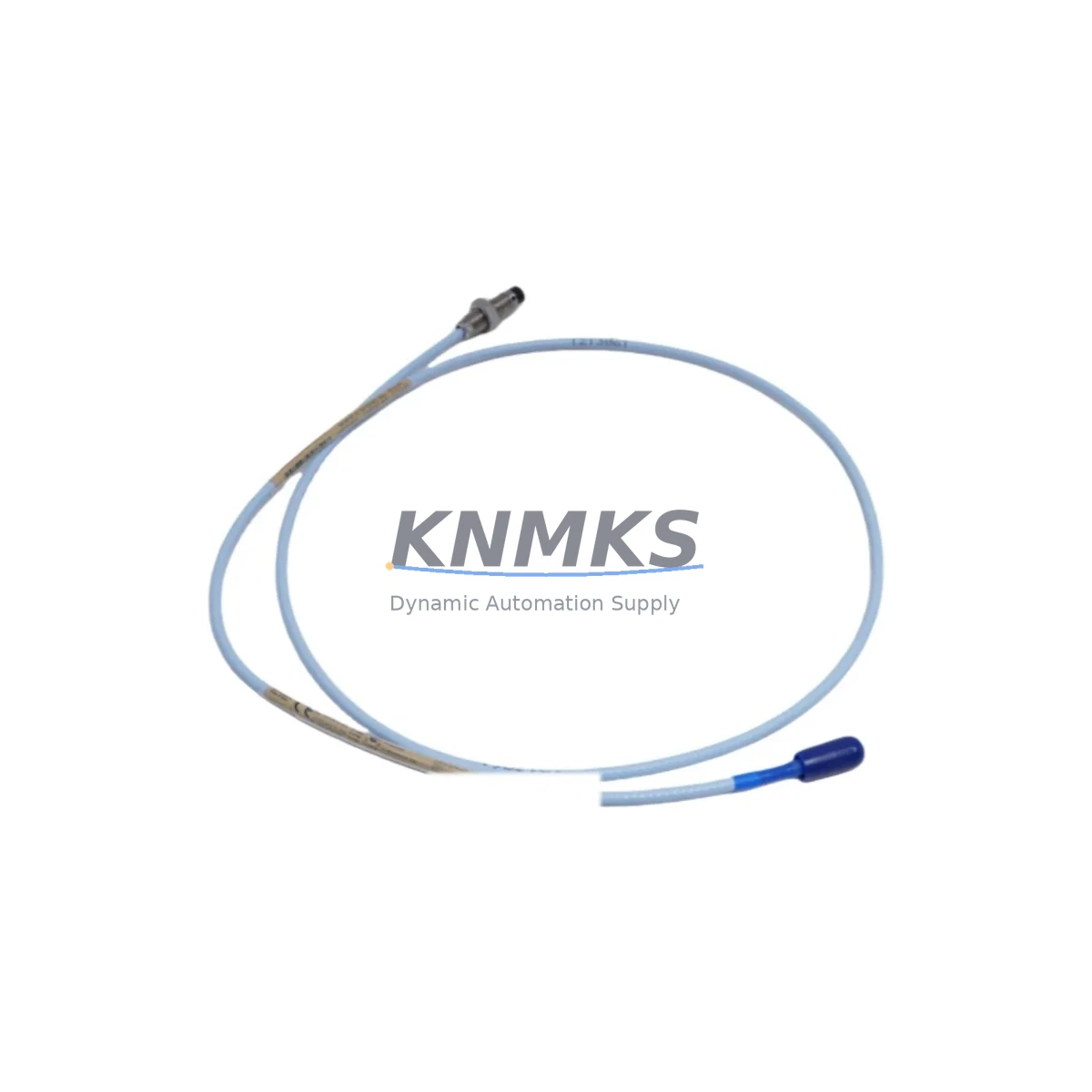

Bently Nevada 330101-00-14-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-14-10-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-14-10-02-00 is a precision eddy current proximity probe from the renowned 3300 XL Series, engineered for fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across continuous production lines, critical interlock circuits, and high-load control cabinets, this probe is a cornerstone component for plants where unplanned downtime is not an option.

In petrochemical refineries, power generation turbines, mining compressors, water treatment pump stations, metallurgical rolling mills, port crane drives, and marine propulsion systems, the 330101-00-14-10-02-00 provides real-time rotor displacement data that feeds directly into safety shutdown logic. Its non-contact measurement principle eliminates mechanical wear, ensuring measurement drift is minimized even after years of continuous operation under high electromagnetic interference, dust ingress, moisture exposure, elevated temperatures, and mechanical vibration.

When paired with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor (such as the 330180-X1-05 driver), the system forms a complete, calibrated measurement chain that meets API 670 machinery protection standards. Signal conditioning is handled by the Proximitor, which converts the probe’s impedance change into a clean 0–24 VDC or 4–20 mA output, immune to common-mode noise and power supply fluctuations. This architecture prevents false trips caused by electrical surges, ground loops, or cabinet-level EMI — a critical advantage in high-voltage switchgear rooms and variable frequency drive (VFD) environments.

For control cabinet integrators, the 330101-00-14-10-02-00 is routinely deployed alongside Bently Nevada 3500 Series Rack Monitors, Emerson Ovation DCS I/O modules, and Rockwell Automation GuardLogix Safety PLCs to form a layered machinery protection architecture. The probe’s armored coaxial cable construction resists crush damage and chemical exposure, while its stainless steel housing withstands aggressive washdown cycles and corrosive atmospheres found in pulp and paper mills or offshore platforms.

Replacement and commissioning are straightforward: the 330101-00-14-10-02-00 is a direct drop-in for legacy 3300 Series installations, reducing field calibration time and minimizing exposure of maintenance personnel to live equipment. Stocking this probe as a certified spare — alongside the matching 330130-080-00-00 extension cable — ensures that a bearing failure event does not cascade into a multi-day production outage due to parts unavailability.

Every unit shipped by KNMKS undergoes pre-shipment functional verification, including impedance continuity testing and dimensional inspection, backed by a support terms confirmed by quotation from the date of delivery. Global inventory is maintained across multiple regional stock points to support urgent MRO requirements and blanket order programs for long-term supply assurance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330101-00-14-10-02-00 typically integrates several complementary components within the same control cabinet or safety loop. The Bently Nevada 3500/42M Proximitor I/O Module provides the rack-mounted signal processing backbone, accepting inputs from multiple proximity probes simultaneously and generating relay outputs for emergency shutdown (ESD) logic. Upstream power quality is maintained by a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply, which delivers regulated 24 VDC with active buffer capability to ride through momentary mains interruptions without triggering nuisance trips.

For installations in high-EMI environments — such as those adjacent to large motor drives or arc furnaces — a Bently Nevada 330130-080-00-00 extension cable is used to route the probe signal away from power conductors, maintaining signal-to-noise ratio. Cabinet thermal management is addressed by integrating Rittal SK 3105 fan-and-filter units to prevent the Proximitor electronics from exceeding their rated ambient temperature, which could otherwise introduce measurement offset errors. Communication of vibration data to the plant DCS is handled via Modbus RTU or FOUNDATION Fieldbus interface cards within the 3500 rack, enabling real-time trending and alarm annunciation without additional signal converters.

Critical Industrial Safety Applications

In petrochemical and refinery settings, the 330101-00-14-10-02-00 monitors shaft radial vibration on centrifugal compressors and pumps handling flammable or toxic media. A probe failure or signal loss in these applications can mask an impending bearing collapse, making fail-safe design and redundant probe configurations mandatory under IEC 61511 functional safety requirements.

In power generation — including gas turbines, steam turbines, and large hydro generators — this probe feeds vibration data into the turbine supervisory instrumentation (TSI) system. Accurate displacement measurement is essential for detecting rotor bow, oil whirl, and rub events before they escalate to catastrophic failure.

In mining and mineral processing, the probe is deployed on SAG mill pinion drives, crusher main shafts, and slurry pump bearings, where dust loading, water spray, and shock loads demand the highest mechanical robustness. The 3300 XL’s sealed construction and wide temperature range make it the preferred choice for underground and open-pit installations alike.

In water and wastewater treatment, large vertical turbine pumps and blower trains rely on proximity probes to detect shaft misalignment caused by hydraulic imbalance or cavitation — conditions that, if undetected, lead to seal failures and unplanned service outages affecting municipal water supply.

In metallurgical and steel mill environments, the probe monitors rolling mill main drive spindles and continuous caster withdrawal rolls, where vibration excursions directly affect product dimensional quality and roll bearing life.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the 330101-00-14-10-02-00?
All units are covered by a support terms confirmed by quotation from the date of delivery. This covers functional failure under normal operating conditions and includes replacement or documented resolution support at KNMKS’s discretion. Support requests are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-14-10-02-00 undergoes impedance continuity verification, cable insulation resistance testing, and dimensional inspection of the probe tip and connector prior to shipment. A test report is available upon request for critical safety applications.

Q3: Is the 330101-00-14-10-02-00 compatible with existing 3300 Series Proximitor drivers?
Yes. The 330101-00-14-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and is a direct replacement for earlier 3300 Series 8mm probes. It is also compatible with the 3500/42M and 3500/45 I/O modules when used with the appropriate extension cable.

Q4: Can KNMKS support long-term or blanket order supply for this part?
Yes. KNMKS maintains multi-region inventory for the 330101-00-14-10-02-00 and can support scheduled blanket orders, consignment stock programs, and urgent MRO deliveries. Contact our team to discuss volume pricing and supply agreements tailored to your plant’s maintenance cycle.
