Bently Nevada 330101-00-13-15-02-05 Maintenance-Proven Spare Part for Factory Uptime

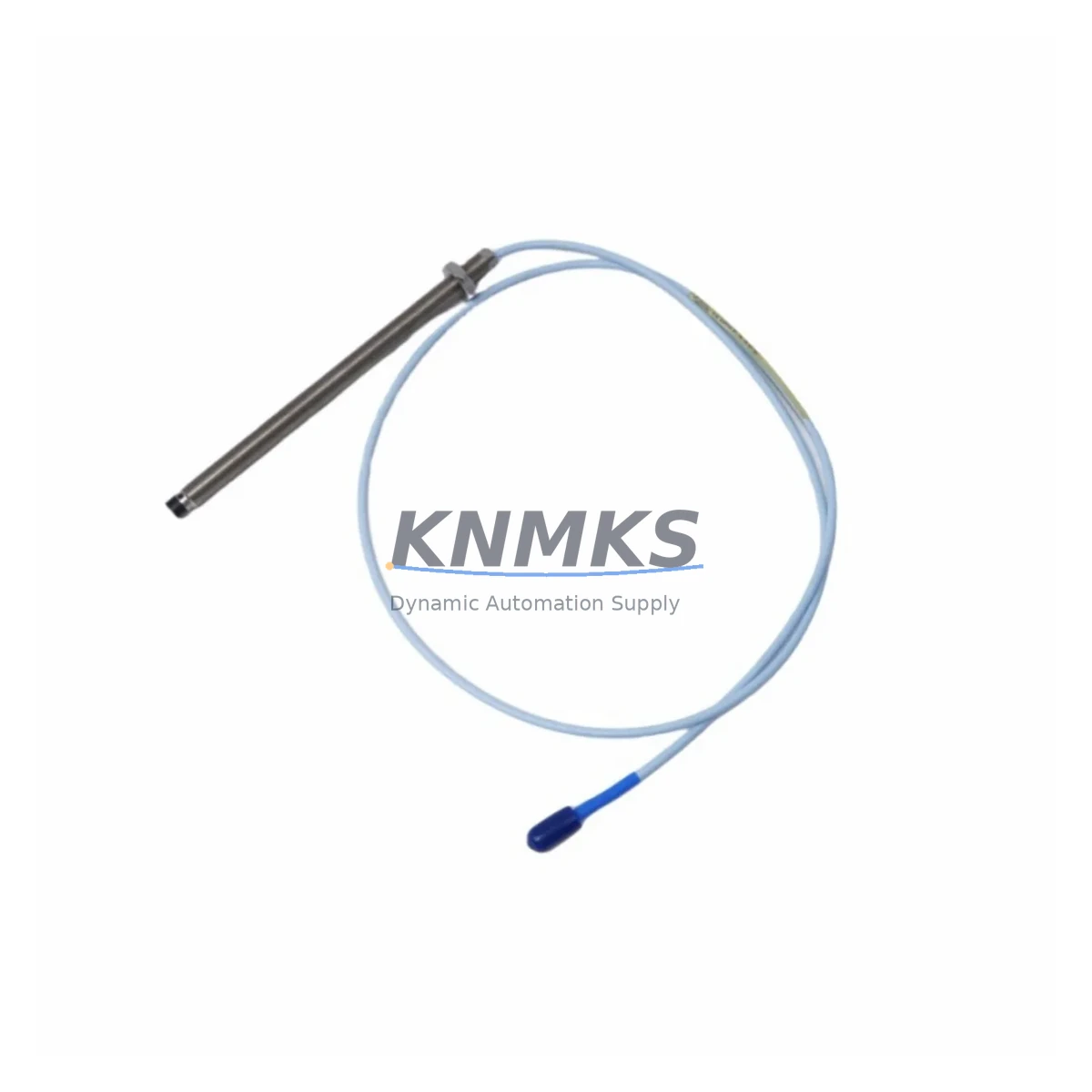

The Bently Nevada 330101-00-13-15-02-05 is an original eddy-current proximity transducer engineered for the 3300 XL vibration monitoring system. Designed for continuous-duty industrial environments, this transducer delivers precise non-contact shaft displacement and vibration measurements critical to rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Keeping a verified spare of the 330101-00-13-15-02-05 in your maintenance inventory is a proven strategy for minimizing unplanned downtime and protecting high-value rotating assets such as steam turbines, compressors, pumps, and gearboxes.

Maintenance engineers and reliability teams worldwide rely on the 3300 XL platform for its field-proven accuracy and long service life. When a transducer fails or degrades during routine point inspection, having a pre-tested replacement on the shelf means the difference between a 30-minute swap and a multi-day production halt. This spare is sourced, inspected, and shipped with full traceability to support your planned maintenance intervals, emergency replacement events, and annual overhaul schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for the 3300 XL vibration monitoring loop extends well beyond the 330101-00-13-15-02-05 transducer itself. During any scheduled outage or corrective maintenance event, reliability engineers should simultaneously inspect the complete signal chain to prevent repeat failures and ensure measurement integrity upon restart.

Begin with the 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the transducer signal and converts gap voltage to a 4–20 mA or voltage output for the monitoring rack. A degraded proximitor can produce false vibration readings even when the transducer is new, so both components should be verified together. Next, inspect the 3300 XL Extension Cable (330130 series) that bridges the transducer to the proximitor — cable insulation breakdown or connector corrosion is a leading cause of intermittent signal faults in high-temperature bearing housings.

At the monitoring rack level, verify the 3500/42M Proximitor/Seismic Monitor or equivalent 3300 rack card for correct channel configuration, alarm setpoints, and OK relay status. If the plant runs a 3500 Rack Power Supply (3500/15 or 3500/05), confirm output voltage stability under load — an under-voltage condition will shift the transducer’s linear operating range and trigger nuisance trips. For facilities using Modbus or FOUNDATION Fieldbus integration, the 3500 Communication Gateway module should be checked for firmware version compatibility and communication health.

During control cabinet inspection, also review terminal block assemblies and signal isolators in the vibration signal loop. Loose terminations or failed isolators introduce noise that can mask real vibration events or generate false alarms. Where fused protection is installed on the −24 VDC supply rail, replace any glass or ceramic fuses showing signs of heat discoloration. Finally, if the plant HMI displays 3300 XL data via an OPC-DA or OPC-UA server, confirm that the HMI communication driver is polling the correct rack address after any hardware swap — a misconfigured tag will silently lose vibration data post-maintenance.

Stocking the 330101-00-13-15-02-05 alongside these associated components in a dedicated vibration monitoring spare kit reduces mean time to repair (MTTR) and supports a proactive maintenance culture aligned with ISO 13373 and API 670 best practices.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the −24 VDC proximitor supply at the rack before disconnecting the transducer cable to avoid electrostatic discharge to the monitor card.

Step 2 — Gap Measurement: Using a calibrated gap tool or digital multimeter, record the existing gap voltage of the failed transducer before removal. This baseline confirms whether the fault is in the transducer, extension cable, or proximitor.

Step 3 — Transducer Removal: Unscrew the 330101-00-13-15-02-05 from the bearing housing bracket. Inspect the probe tip for mechanical damage, target surface scoring, or contamination. Clean the mounting threads and verify bracket integrity.

Step 4 — Spare Installation: Install the replacement 330101-00-13-15-02-05 and set the gap to the OEM-specified voltage (typically −10 VDC ± 0.5 VDC for standard steel targets at 1.0 mm gap). Torque the locknut to specification to prevent vibration-induced loosening.

Step 5 — Signal Verification: Re-energize the proximitor supply and confirm OK LED status on the 3300 XL Proximitor. Verify gap voltage at the rack terminal and confirm the monitor channel clears the NOT OK alarm. Cross-check the reading against the adjacent transducer (Y-axis or thrust) for plausibility.

Step 6 — System Handover: Document the replacement in the CMMS with the new transducer serial number, installation date, and gap voltage. Update the spare parts inventory to trigger a replenishment order for the next 330101-00-13-15-02-05 unit, maintaining minimum stock levels for uninterrupted factory uptime.

This workflow is compatible with legacy 3300 series installations and current 3300 XL deployments, making the 330101-00-13-15-02-05 a reliable long-term replacement solution for aging vibration monitoring infrastructure without requiring rack reconfiguration or software changes.

Spare Parts Support FAQ

Q1: Is the 330101-00-13-15-02-05 compatible with both the original 3300 and the 3300 XL series?
The 330101-00-13-15-02-05 is designed for the Bently Nevada 3300 XL platform. While the physical connector and thread dimensions are similar to earlier 3300 series probes, scale factor and sensitivity specifications differ. Always verify the proximitor model number and confirm compatibility with your specific rack configuration before installation to avoid measurement errors.

Q2: What is included in the support terms confirmed by quotation, and how does the claims process work?
Every 330101-00-13-15-02-05 shipped from KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing with documented results. In the event of a support terms claim, contact [email protected] with the order number and fault description; replacement or refund is processed within the agreed lead time.

Q3: How should I manage long-term inventory for the 330101-00-13-15-02-05 given Bently Nevada’s product lifecycle?
Bently Nevada periodically transitions legacy part numbers to newer platform equivalents. To protect against obsolescence risk, maintenance planners are advised to hold a minimum of two units per critical machine train and establish a blanket purchase order for annual replenishment. KNMKS maintains long-term supply capability for the 330101-00-13-15-02-05 and can advise on cross-reference options if the part number is discontinued by the OEM.

Q4: Can KNMKS provide batch testing documentation for multiple units ordered for a plant-wide spare kit?
Yes. For orders of three or more units, KNMKS provides individual test reports confirming gap voltage linearity, scale factor, and OK output status. Batch certificates of conformance are available upon request to support your incoming inspection and quality management system (QMS) requirements. Contact [email protected] or +86 18359268345 to arrange documentation with your order.
