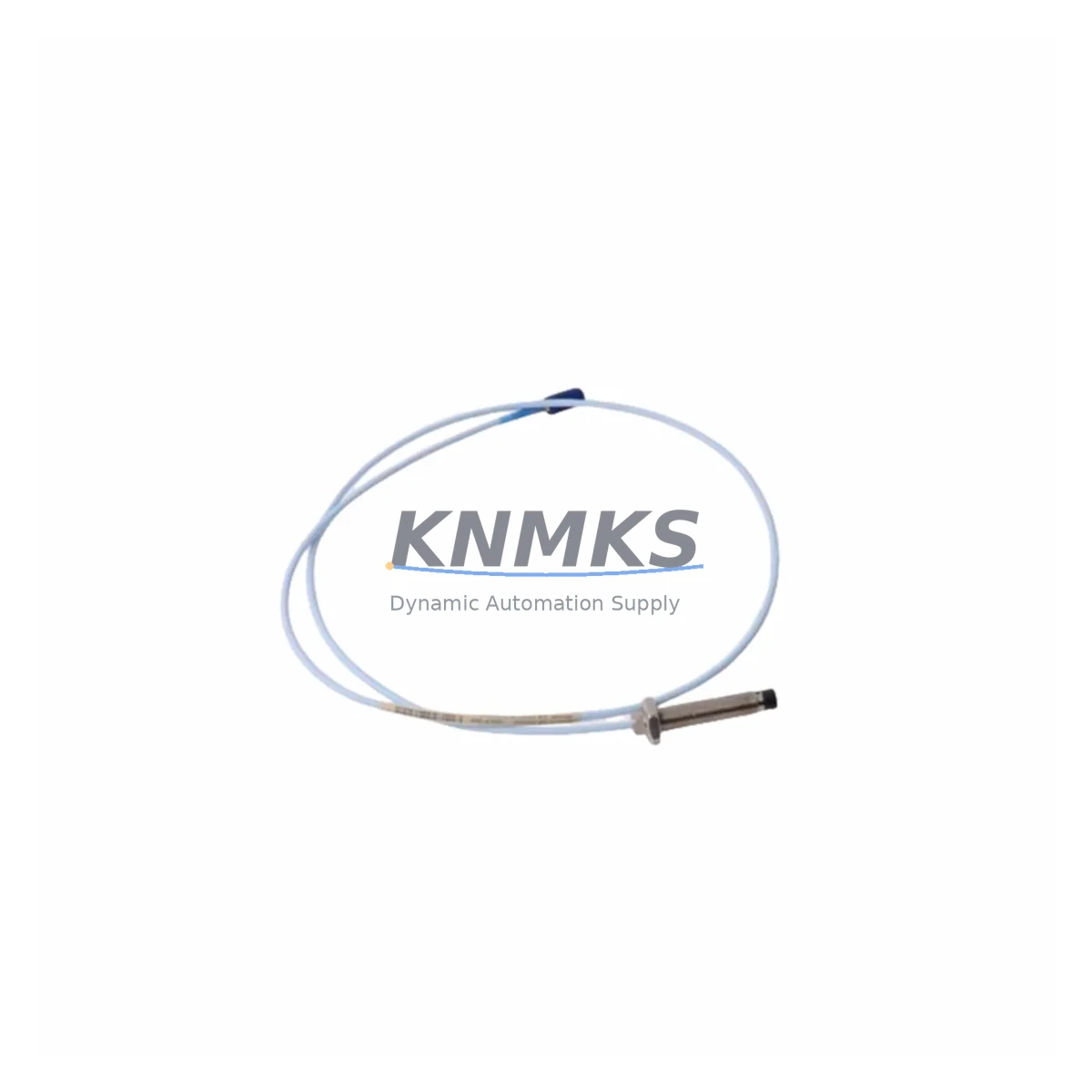

Bently Nevada 330101-00-13-15-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-13-15-02-00 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330101-00-13-15-02-00 is an 8mm eddy current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for protecting rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and continuous manufacturing lines.

In critical industrial sites where unplanned downtime carries severe safety and financial consequences, the 330101-00-13-15-02-00 provides the measurement integrity that protection systems depend on. Its eddy current sensing principle operates without physical contact, eliminating mechanical wear and ensuring signal stability even under sustained high-speed shaft rotation. The probe’s robust stainless steel housing and hermetically sealed tip resist moisture ingress, particulate contamination, and chemical exposure — making it equally reliable in humid coastal environments, dusty mining galleries, and high-temperature turbine halls.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-13-15-02-00 proximity probe does not operate in isolation — its measurement reliability depends on a well-engineered signal chain and a properly protected control cabinet. In a typical 3300 XL machinery protection system, the probe connects to a Bently Nevada 3300 XL Extension Cable (matched 5-metre or custom-length assembly) which routes the raw eddy current signal to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00), where the signal is conditioned and converted to a calibrated DC voltage output. This output feeds directly into a Bently Nevada 3500/40M Proximitor Monitor or equivalent rack-mounted monitor card, which applies alarm and danger setpoints for automatic machinery trip.

Within the control cabinet, power supply stability is paramount. Voltage fluctuations or transient surges on the -24 VDC supply rail can introduce signal drift or false trips. Pairing the monitoring system with a Bently Nevada 3500/15 Power Supply Module — or an equivalent redundant DC power conditioner — ensures the Proximitor and probe receive clean, regulated power even during grid disturbances or generator switchovers. For installations in high electromagnetic interference environments such as variable frequency drive (VFD) rooms or high-voltage switchgear bays, additional shielded cable trays and ferrite suppression cores on signal cables are recommended to preserve the probe’s measurement accuracy.

In safety instrumented systems (SIS) where the proximity probe output feeds a Triconex or Honeywell Safety Manager safety logic solver, signal integrity from the 330101-00-13-15-02-00 is directly linked to the reliability of the safety function. Any signal interruption, open-circuit fault, or out-of-range output must be detected and annunciated immediately. The 3300 XL system’s built-in self-diagnostics and the monitor’s OK relay output provide this layer of fault detection, ensuring that a failed probe does not silently compromise the protective function.

Critical Industrial Safety Applications

The 330101-00-13-15-02-00 is deployed across a wide spectrum of critical industrial applications where rotating machinery protection is non-negotiable:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, the probe monitors shaft radial vibration and provides early warning of bearing degradation, rotor imbalance, and seal wear. In API 670-compliant machinery protection systems, it forms part of the mandatory vibration monitoring loop that prevents catastrophic compressor failures and associated process safety incidents.

Power Generation: On steam turbines, gas turbines, and boiler feed pumps, the 330101-00-13-15-02-00 provides continuous shaft position and vibration data to the turbine control system. Abnormal vibration trends detected by the probe trigger controlled rundown sequences, preventing blade contact, bearing seizure, and turbine hall structural damage.

Mining and Mineral Processing: In ball mills, SAG mills, and large slurry pumps operating in dusty, high-vibration environments, the probe’s IP67 rating and robust construction ensure reliable operation without frequent recalibration or replacement. Continuous monitoring reduces unplanned mill stoppages that can halt entire ore processing circuits.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from non-contact vibration monitoring that requires no lubrication or mechanical maintenance. The probe’s long-term stability reduces the total cost of ownership in facilities where maintenance access is restricted.

Metallurgy and Steel Production: On rolling mill drive trains, continuous caster pinch rolls, and blast furnace blowers, the 330101-00-13-15-02-00 withstands high ambient temperatures and electromagnetic interference from induction furnaces and large motor drives, delivering consistent measurement data to the plant’s condition monitoring system.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-13-15-02-00?
The support terms confirmed by quotation cover all manufacturing defects, sensitivity drift beyond specification, cable integrity failures, and functional non-conformance identified under normal operating conditions. Support requests are supported with replacement dispatch from multi-region stock to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-00-13-15-02-00 unit undergoes full functional verification including sensitivity calibration check (target: 7.87 V/mm ±3%), cable continuity and insulation resistance test, and visual inspection of the probe tip, connector, and cable jacket. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330101-00-13-15-02-00 is a direct OEM-equivalent replacement for the Bently Nevada 3300 XL 8mm probe system. It is fully compatible with 3300 XL Proximitor Sensors (330180 series) and all 3500 Series monitor cards that accept the standard -24 VDC eddy current probe input. No reconfiguration of the monitor is required for a like-for-like replacement.

Q4: Can long-term supply agreements be arranged for scheduled maintenance programs?
Yes. For facilities with annual or biennial turnaround schedules requiring multiple probe replacements, long-term supply agreements with reserved stock allocation are available. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stock options tailored to your maintenance program.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-13-15-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-13-15-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
