Bently Nevada 330101-00-13-10-02-05 Maintenance Spare Part: Precision Eddy Current Probe for Factory Uptime

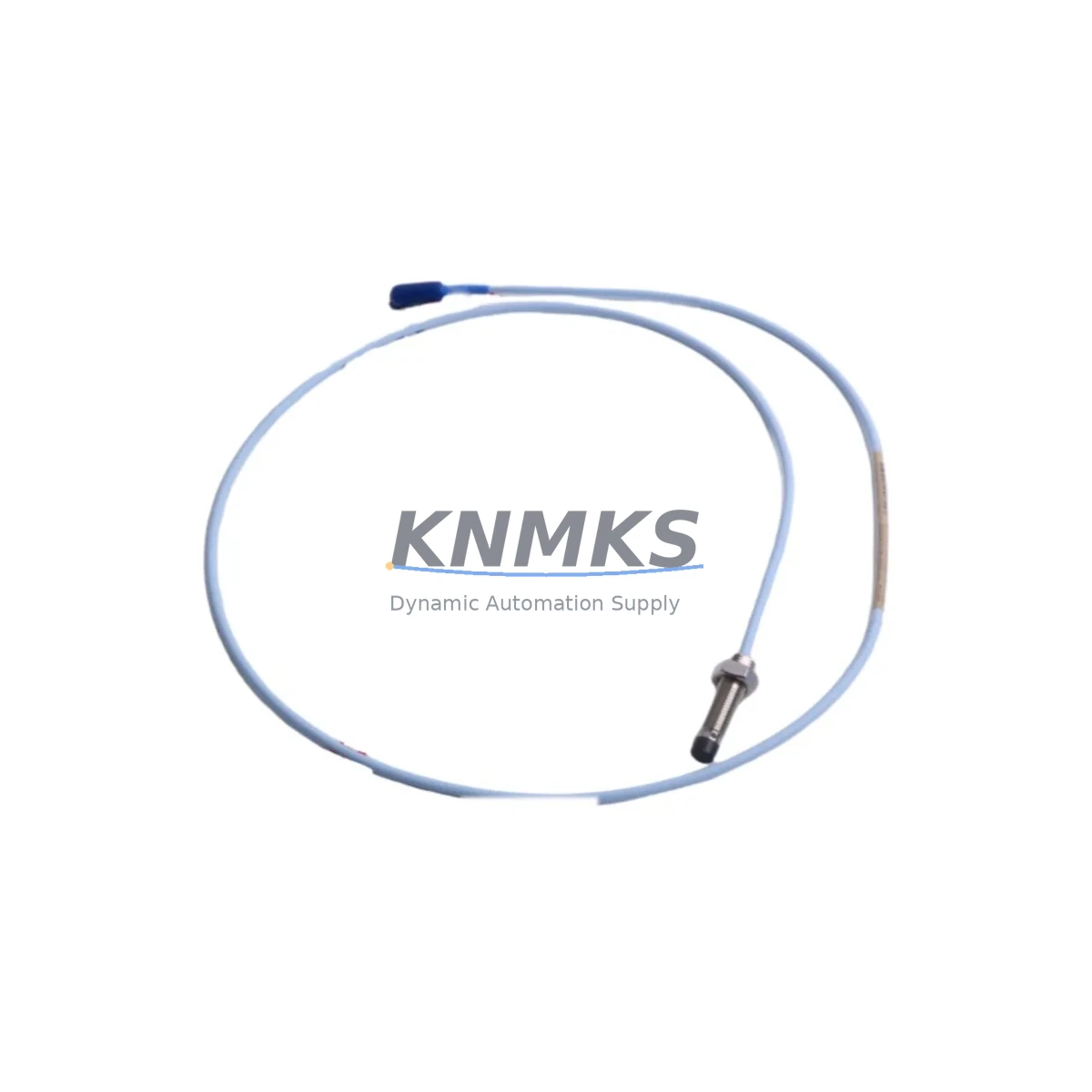

The Bently Nevada 330101-00-13-10-02-05 is an 8mm eddy current proximity probe from the 3300 XL series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-proven spare part, it is widely deployed in turbines, compressors, pumps, and generators across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Keeping a verified original spare of the 330101-00-13-10-02-05 in your critical spare inventory is a fundamental strategy for reducing unplanned downtime and protecting high-value rotating assets.

This probe is designed to work within the complete Bently Nevada 3300 XL measurement chain, which includes the extension cable, proximitor/oscillator driver, and the monitoring system rack. When any element of this chain is compromised, the entire vibration measurement loop is affected. Maintenance engineers and reliability teams sourcing a replacement 330101-00-13-10-02-05 should treat this as a system-level event, not a single-component swap.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A field replacement of the 330101-00-13-10-02-05 probe is rarely an isolated task. Experienced maintenance engineers know that when a proximity probe shows drift, signal loss, or erratic output, the fault may originate anywhere in the measurement chain. Before declaring the probe faulty and ordering a replacement, the following components should be inspected and tested in sequence.

The Bently Nevada 330105 extension cable (or equivalent 3300 XL series extension cable) is the first element to check. Cable damage, connector corrosion, or impedance mismatch caused by an incorrect cable length will produce the same symptoms as a failed probe. Verify the cable length matches the system calibration — the 330101-00-13-10-02-05 is calibrated as a system with its paired extension cable and proximitor.

The Bently Nevada 330180 proximitor/oscillator driver (3300 XL 8mm proximitor) is the active electronic component that powers the probe and converts the gap signal to a DC voltage. A failed or drifting proximitor will cause false vibration alarms or flat-line outputs. During any probe replacement, the proximitor should be bench-tested or swapped with a known-good spare.

At the monitoring system level, the Bently Nevada 3500/42M Proximitor I/O Module receives the conditioned signal from the proximitor. Loose field wiring, terminal block corrosion, or a failed I/O module can mask a healthy probe. Inspect the terminal strip connections and verify channel configuration in the 3500 rack software before condemning the probe.

For facilities running older Bently Nevada 7200 series probes alongside 3300 XL hardware, be aware that the two series are not interchangeable without recalibration. If your maintenance BOM includes both series, maintain separate spare pools and label them clearly to prevent cross-installation errors during emergency shutdowns.

Power supply integrity is equally critical. The Bently Nevada 3500/15 Power Supply Module provides the regulated -24 VDC required by the proximitor. A sagging or noisy power rail will introduce measurement error that appears as probe malfunction. Always verify supply voltage at the proximitor terminals — not just at the rack input — before replacing the 330101-00-13-10-02-05.

Finally, for facilities using the Bently Nevada 3500/22M Transient Data Interface or similar communication modules for condition monitoring data export, confirm that the channel mapping and engineering unit scaling are correctly restored after any probe or cable replacement. Incorrect scaling after a maintenance event is a common source of nuisance alarms in the weeks following a repair.

Site Replacement Workflow

Replacing the 330101-00-13-10-02-05 in a live industrial environment requires a structured approach to minimize downtime and avoid introducing new faults. The following workflow is recommended for maintenance engineers performing a planned or emergency replacement.

Step 1 — Pre-replacement verification: Confirm the replacement probe is the correct part number and cable length. The 3300 XL system is calibrated as a matched set (probe + extension cable + proximitor). Using a mismatched cable length will shift the linear range and invalidate the calibration. Verify the target material of the shaft — if the machine uses a non-standard alloy, a special calibration may be required.

Step 2 — Isolation and lockout: Follow site LOTO procedures. De-energize the proximitor supply at the 3500 rack or junction box. Do not simply disconnect the probe connector while the proximitor is powered — this can damage the oscillator circuit.

Step 3 — Physical removal and inspection: Remove the probe from the bearing housing. Inspect the probe tip for mechanical damage, pitting, or contamination. Inspect the probe body threads and the housing bore for damage. Clean the bore before installing the replacement.

Step 4 — Gap setting: Install the replacement 330101-00-13-10-02-05 and set the probe gap to the system nominal gap voltage (typically -10.0 VDC for a 1.0 mm gap on 3300 XL 8mm systems). Use a calibrated gap-setting tool or a digital multimeter at the proximitor output terminals. Record the as-left gap voltage in the maintenance log.

Step 5 — System verification: Re-energize the system and verify the channel reads correctly in the 3500 monitoring rack. Check that the OK relay is energized and that the vibration reading is within the expected baseline range for the machine at rest. Compare against the pre-fault baseline if available.

Step 6 — Return to service: Clear any latched alarms in the monitoring system. Notify the control room before returning the machine to service. Monitor the channel for the first 24 hours of operation to confirm stable readings.

This workflow applies equally to planned annual overhaul replacements and emergency unplanned replacements. Maintaining a pre-kitted spare set — probe, extension cable, and proximitor — in the plant spare parts room eliminates the most common source of delay during emergency repairs: waiting for parts.

Spare Parts Support FAQ

Q1: Is the 330101-00-13-10-02-05 compatible with both the Bently Nevada 3300 XL and 3500 series monitoring systems?
Yes. The 330101-00-13-10-02-05 probe is designed for use with the 3300 XL measurement chain (probe + extension cable + proximitor) and is fully compatible with the 3500 series monitoring rack when used with the appropriate 3300 XL proximitor. It is not directly interchangeable with 7200 series or 3300 NSv probes without recalibration.

Q2: How do you verify the 330101-00-13-10-02-05 before shipment?
Each unit is tested for electrical continuity, coil resistance, and output linearity before dispatch. A test report is available upon request. All units are shipped with protective packaging to prevent tip damage in transit. The support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications.

Q3: What is the recommended inventory strategy for the 330101-00-13-10-02-05 in a critical rotating machinery application?
For machines classified as critical (single-train, no installed spare), we recommend maintaining a minimum of two matched spare sets (probe + extension cable + proximitor) in the plant spare parts room. For non-critical or spared machines, one matched set per machine type is typically sufficient. Annual inspection of stored spares — checking connector condition and storage environment — is recommended to ensure readiness.

Q4: Can you support long-term supply of the 330101-00-13-10-02-05 for multi-year maintenance contracts or blanket orders?
Yes. We support blanket purchase orders and long-term supply agreements for the 330101-00-13-10-02-05 and related 3300 XL series components. Contact our sales team to discuss annual volume commitments, lead time guarantees, and consignment stock arrangements. All units supplied under long-term agreements carry the same support terms confirmed by quotation from date of shipment.
