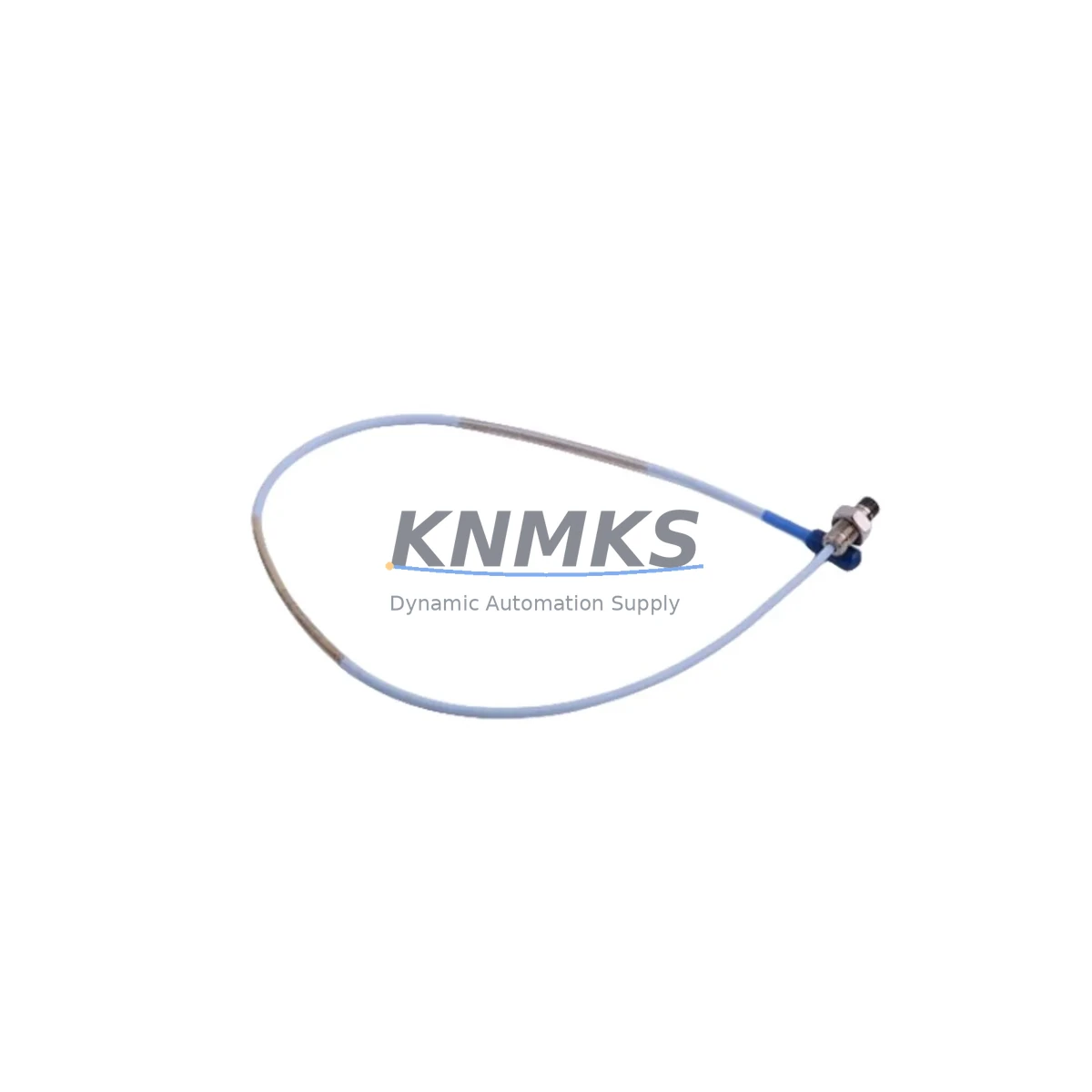

Bently Nevada 330101-00-13-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-13-10-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-13-10-02-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across high-vibration, high-temperature, and electromagnetically noisy plant conditions, this probe is a critical component in machinery protection systems where unplanned downtime is not an option.

In rotating machinery protection — turbines, compressors, pumps, fans, and motors — the proximity probe is the first line of defense against catastrophic mechanical failure. The 330101-00-13-10-02-00 provides precise, non-contact displacement measurement, continuously feeding shaft position and vibration data to the monitoring system. Its robust eddy current sensing principle ensures stable output even in the presence of oil mist, condensation, metallic dust, and strong electromagnetic interference from adjacent variable frequency drives or high-current bus bars. Signal drift, a common failure mode in inferior probes, is effectively suppressed through the probe’s tightly controlled sensitivity and linearity specifications.

When integrated with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 series) and a compatible 3500 Series Machinery Protection Rack, the 330101-00-13-10-02-00 forms a complete, certified vibration monitoring loop. This loop is capable of triggering alarm and trip outputs within milliseconds of detecting abnormal shaft movement, protecting high-value rotating assets from bearing failure, rotor rub, and oil whirl instability. The system’s deterministic response time is essential for safety instrumented functions in SIL-rated protection architectures.

The probe’s armored extension cable and stainless steel housing provide mechanical protection against the physical hazards of industrial cabinets and field installations — including cable abrasion, vibration fatigue at conduit entry points, and chemical exposure from lubricants and cleaning agents. In petrochemical and refinery applications, where hazardous area classification demands intrinsically safe or explosion-proof instrumentation, the 330101-00-13-10-02-00 is routinely deployed in conjunction with Bently Nevada 3300 XL Barriers and certified junction boxes to maintain zone compliance without compromising measurement accuracy.

For control cabinet integrators managing dense wiring environments, the probe’s standardized connector interface simplifies replacement and reduces the risk of miswiring during maintenance windows. Paired with a Bently Nevada 330130 Extension Cable of the appropriate length, the installation can be routed cleanly through cable trays and conduit, maintaining signal quality over distances up to several meters without amplification. This is particularly valuable in large turbine halls and compressor stations where the monitoring rack is located remotely from the machine train.

In power generation, mining, water treatment, metallurgy, port crane drives, and marine propulsion systems, the 330101-00-13-10-02-00 is a proven spare part for both legacy 3300 Series installations and current 3300 XL deployments. Its backward compatibility with existing Proximitor housings and cable assemblies means that field replacement can be completed rapidly during a planned outage — or, in emergency scenarios, during a brief maintenance window — without requiring system reconfiguration or recalibration of the monitoring rack. This minimizes mean time to repair (MTTR) and restores protective coverage quickly.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including output voltage linearity checks and gap voltage confirmation against Bently Nevada factory specifications. This testing protocol ensures that the probe arrives ready for immediate installation, eliminating the risk of commissioning delays caused by out-of-tolerance units. Long-term supply agreements are available for facilities requiring guaranteed stock availability over 12 to 36-month maintenance cycles, supporting multi-site spare parts programs and reducing procurement lead time risk.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection system depends on the integrity of every component in the measurement chain. The 330101-00-13-10-02-00 proximity probe anchors the field sensing layer, but its performance is only as strong as the supporting infrastructure. In a well-engineered control cabinet, the probe signal is conditioned by a Bently Nevada 3300 XL Proximitor Sensor, which converts the raw oscillator signal into a calibrated DC voltage proportional to gap distance. This conditioned output feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack, where alarm and trip setpoints are enforced in real time.

Power supply stability is equally critical. Voltage fluctuations or transient surges on the 24 VDC rail can introduce noise into the Proximitor output, causing false alarms or, worse, masking genuine vibration events. A dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that the monitoring rack remains energized and accurate even during upstream power disturbances. For installations in areas with high surge exposure — near large motor starters or transformer switching — additional transient protection on the DC bus is strongly recommended.

Communication integrity between the 3500 rack and the plant DCS or safety PLC is maintained through the Bently Nevada 3500/92 Communication Gateway, which supports Modbus, Profibus, and other industrial protocols. Any communication dropout or watchdog timeout in this link should be treated as a safety-relevant event, triggering a conservative response in the control logic. Complementing this architecture, Bently Nevada TK-3 Calibration Cables and portable calibration tools allow maintenance teams to verify probe gap and system response without removing the probe from service, reducing the risk of introducing installation errors during routine checks.

Critical Industrial Safety Applications

The 330101-00-13-10-02-00 is deployed across a wide range of critical industrial sectors where continuous machinery protection is a regulatory and operational requirement. In petrochemical and refinery facilities, it monitors compressor and pump shaft vibration in API 670-compliant protection systems, providing the early warning necessary to prevent seal failures and uncontrolled hydrocarbon releases. In power generation — both thermal and combined-cycle plants — it tracks turbine shaft displacement, feeding trip logic that protects against catastrophic rotor damage during load rejection or grid disturbance events.

In mining and mineral processing, where large ball mills, SAG mills, and conveyor drive motors operate under extreme mechanical loading, proximity probes provide the only reliable means of detecting bearing wear and shaft misalignment before they escalate to structural failure. Water treatment and pumping stations rely on these probes to protect high-speed centrifugal pumps in continuous-duty service, where an undetected vibration anomaly can result in impeller damage and extended service outages. In metallurgical plants — steel rolling mills, aluminum smelters, and copper refineries — the combination of high temperature, heavy vibration, and aggressive chemical environments makes the 3300 XL probe’s robust construction and wide temperature rating essential for sustained reliable operation.

Port and marine applications, including crane hoist drives and ship propulsion systems, present unique challenges: salt air corrosion, vessel motion, and variable load cycles demand instrumentation that maintains calibration stability without frequent recalibration. The 330101-00-13-10-02-00 meets these demands, making it a preferred spare part for marine engineers and port maintenance teams managing rotating machinery reliability programs.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-13-10-02-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and out-of-specification performance. Each probe is functionally tested before dispatch to confirm output linearity and gap voltage compliance with Bently Nevada factory specifications.

Q2: How is the probe tested before shipment?
Every 330101-00-13-10-02-00 unit undergoes pre-shipment verification including gap voltage output measurement, sensitivity linearity check, and cable continuity test. This ensures the probe is ready for immediate installation without requiring on-site incoming inspection, reducing commissioning time and the risk of installing a defective unit in a critical protection loop.

Q3: Is the 330101-00-13-10-02-00 compatible with existing 3300 Series installations?
Yes. The 330101-00-13-10-02-00 is designed for the 3300 XL system and is backward compatible with standard 3300 Series Proximitor housings and 330130 extension cables. It can replace worn or failed probes in existing installations without requiring rack reconfiguration, provided the target material and gap setting are verified during installation.

Q4: Can long-term supply agreements be arranged for multi-site spare parts programs?
Yes. KNMKS supports 12 to 36-month supply agreements for the 330101-00-13-10-02-00 and related 3300 XL components, ensuring guaranteed stock availability for planned maintenance cycles and emergency replacement needs across multiple plant locations. Contact our team to discuss volume pricing and consignment stock options.
