Bently Nevada 330101-00-13-05-02-00 Migration-Ready Proximity Probe

Overview

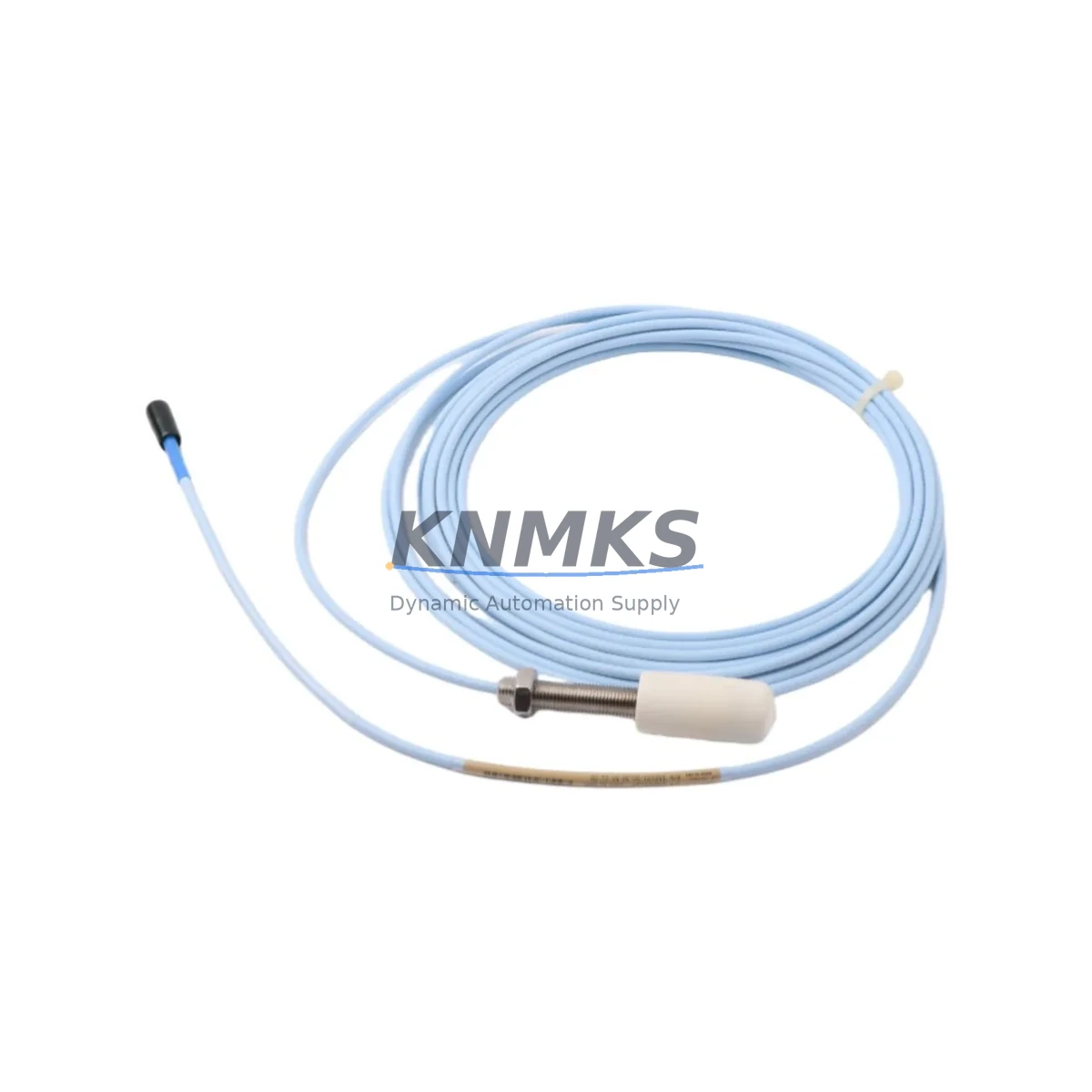

Bently Nevada 330101-00-13-05-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-13-05-02-00 is a migration-ready proximity probe engineered for direct replacement within the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, maintenance engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve existing wiring, signal conditioning chains, and system calibration. This probe is stocked and tested to meet that demand — providing a reliable, field-proven solution for plants operating aging turbomachinery protection infrastructure.

The 330101-00-13-05-02-00 is a 5-metre extension cable proximity probe system designed for eddy-current displacement measurement. It operates within the standard Bently Nevada 3300 XL signal conditioning architecture, making it directly compatible with the 3300/16 Proximity Transducer System and the 3300/55 Proximitor® Sensor. When replacing a failed or end-of-life probe in a running plant, engineers must confirm that the replacement probe’s sensitivity factor (nominally 7.87 V/mm), gap voltage range, and cable length match the original installation parameters — any deviation will require recalibration of the associated Proximitor® and adjustment of the vibration monitor’s alarm setpoints.

For plants migrating from older 3300 Series hardware to the current 3500 Series machinery protection platform, the 330101-00-13-05-02-00 can serve as an interim probe during phased migration, maintaining signal continuity while rack-level hardware is upgraded. During such transitions, it is common to run the probe alongside a 3500/42M Proximitor® I/O Module or a 3500/22M Transient Data Interface, both of which accept standard 3300 XL-compatible probe inputs. This allows the plant to maintain continuous vibration monitoring without a full system shutdown during the migration window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330101-00-13-05-02-00 into an existing machinery protection system requires a structured pre-installation review. Before removing the failed probe, the maintenance team should document the current gap voltage reading at the Proximitor® output terminal, the alarm and danger setpoints configured in the vibration monitor, and the physical probe mounting orientation relative to the shaft. This baseline data is essential for restoring the system to its pre-failure state after the replacement probe is installed.

In most 3300 XL installations, the probe is wired through a field junction box to the 3300/16 Proximitor® Sensor, which in turn feeds a 3300 Series monitor card housed in a 19-inch rack enclosure. When planning the retrofit, engineers should inspect the junction box terminal block for corrosion or loose connections — a common cause of intermittent probe faults that can be misdiagnosed as probe failure. The extension cable of the 330101-00-13-05-02-00 uses a standard coaxial construction; verify that the field cable (armoured or conduit-routed) is undamaged and that the connector at the junction box is properly torqued.

For plants that have already partially migrated to the 3500 Series platform, the probe may be connected to a 3500/42M Proximitor® I/O Module. In this configuration, the module’s channel configuration in the System 1 Evolution software must be updated to reflect the new probe’s sensitivity and gap parameters. If the plant uses a 3500/22M Transient Data Interface for startup and coast-down data capture, verify that the transient recording trigger levels are consistent with the recalibrated gap voltage. Plants running a Bently Nevada 1900/65A General Purpose Equipment Monitor as a secondary protection layer should also cross-check the alarm relay wiring to ensure the replacement probe’s output is correctly mapped to the monitor’s input channel.

Where the control system includes a DCS or SCADA integration — for example, a Honeywell Experion or Emerson DeltaV node receiving vibration data via Modbus or FOUNDATION Fieldbus — the probe replacement itself does not affect the communication link, as signal conversion occurs at the monitor rack level. However, if the rack’s output card (such as a 3500/92 Communication Gateway Module) is also being replaced as part of a broader upgrade, the gateway’s tag mapping and scaling configuration must be verified against the DCS historian before the system is returned to service.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement is a primary concern for any rotating machinery protection upgrade. The 330101-00-13-05-02-00 is pre-tested and shipped ready for installation, reducing the risk of receiving a non-conforming part that would extend the maintenance window. For planned outages, the recommended sequence is: isolate the monitor channel (bypass or inhibit the alarm relay), remove the failed probe, install the replacement, re-gap to the target voltage, verify the OK relay status, and restore the channel to normal monitoring mode before restarting the machine.

Where the plant’s safety procedures require continuous monitoring during probe replacement (hot-swap scenarios), a temporary portable vibration analyser can be connected to the Proximitor® output terminal to maintain vibration data continuity while the probe is being changed. This approach is particularly important for critical turbomachinery — steam turbines, compressors, and pumps — where the machinery protection system must remain active throughout the maintenance activity.

To protect the original program logic and HMI display configuration, no changes to the vibration monitor’s rack configuration or the DCS tag database should be made during a like-for-like probe replacement. The HMI trend displays and alarm annunciator screens will continue to function normally once the replacement probe is gapped and the monitor channel is restored. If the replacement is part of a broader system upgrade that includes rack reconfiguration or software version changes, a full functional acceptance test (FAT) should be completed before the system is returned to service, including verification of all alarm and danger relay outputs.

Inventory availability is confirmed at time of order. All units are dispatched with a support terms confirmed by quotation and an outgoing test report. Lead times are typically 1–3 business days for in-stock units, supporting urgent maintenance requirements without extended procurement delays.

Retrofit Support FAQ

Q1: Is the 330101-00-13-05-02-00 a direct replacement for other 330101 series variants?
The 330101-00-13-05-02-00 is directly interchangeable with other 330101 series probes that share the same cable length (5 metres) and sensitivity specification. Variants with different cable lengths (e.g., 330101-00-13-10-02-00 for 10-metre systems) are not directly interchangeable without adjusting the Proximitor® calibration. Always confirm the cable length suffix before ordering.

Q2: What commissioning steps are required after installation?
After physical installation, re-gap the probe to achieve the target gap voltage (typically –10 VDC to –12 VDC at the Proximitor® output for mid-range gap). Verify the OK/NOT OK relay status at the monitor front panel. Confirm that vibration readings are within expected baseline range before releasing the machine for restart. Document the as-left gap voltage for future reference.

Q3: Can this probe be used with the Bently Nevada 3500 Series rack?
Yes, with recalibration. The 3500/42M Proximitor® I/O Module accepts 3300 XL-compatible probes, but the channel configuration in System 1 Evolution software must be updated to match the probe’s sensitivity and gap parameters. Consult the 3500/42M installation manual for channel configuration procedures.

Q4: What does the support terms confirmed by quotation cover, and is an outgoing test report included?
The support terms confirmed by quotation cover manufacturing defects and signal performance under normal operating conditions. Each unit is shipped with an outgoing test report confirming sensitivity, gap voltage linearity, and connector integrity. In the event of a support terms claim, contact [email protected] with the order reference and test report number for expedited replacement processing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-13-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-13-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
