Bently Nevada 330101-00-12-10-11-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330101-00-12-10-11-05 Maintenance-Proven Spare Part for Factory Uptime

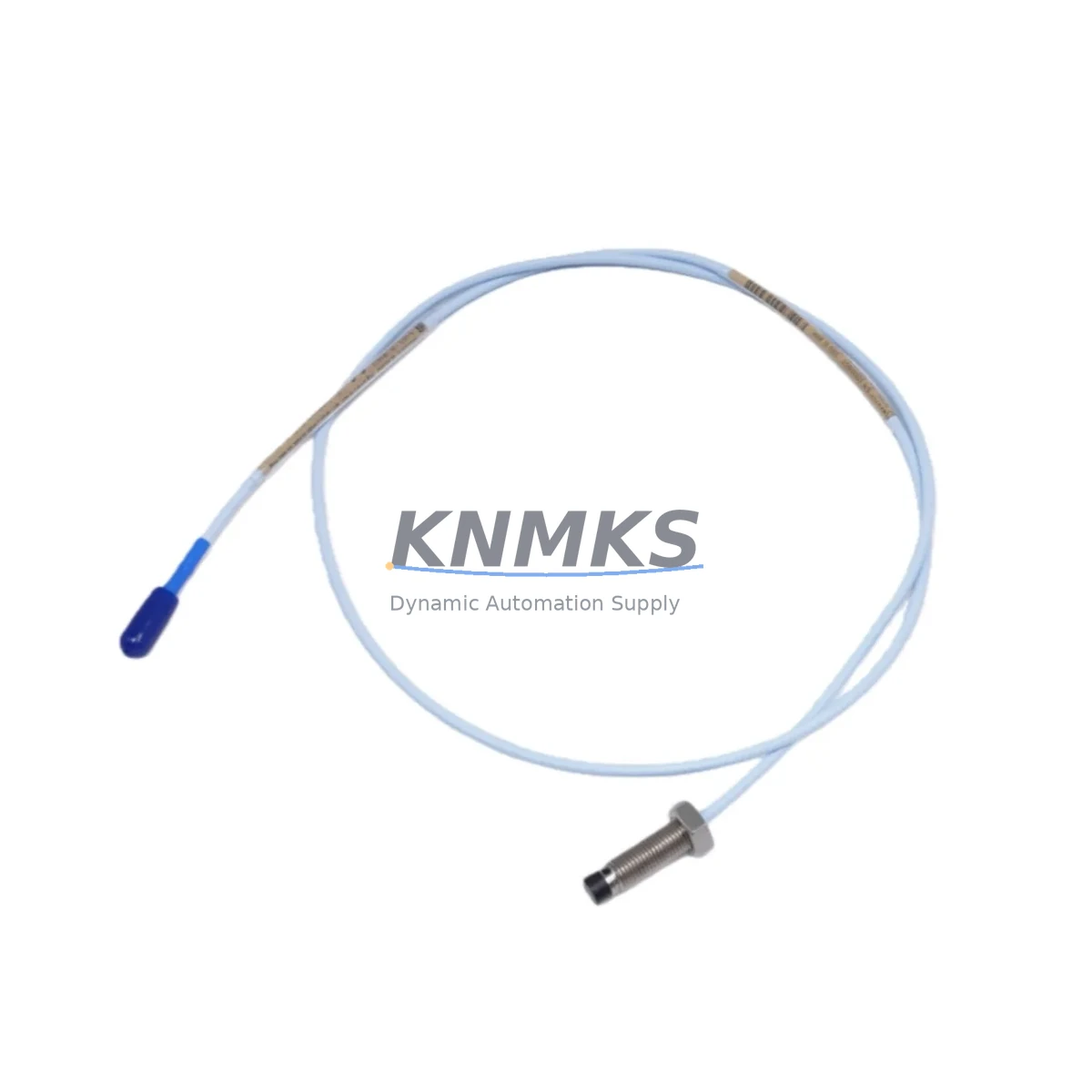

The Bently Nevada 330101-00-12-10-11-05 is a factory-original proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery across energy, petrochemical, manufacturing, and infrastructure sectors. As a direct OEM-equivalent spare, this probe is the preferred choice for maintenance engineers who require zero-compromise replacements during planned shutdowns, emergency fault isolation, and annual overhaul cycles.

Proximity probes in the 3300 XL Series are the sensing front-end of Bently Nevada’s industry-standard vibration monitoring architecture. When a 330101-00-12-10-11-05 probe fails or degrades, the entire measurement chain — from shaft displacement to alarm output — is compromised. Stocking a verified replacement eliminates the risk of extended downtime caused by procurement delays, counterfeit parts, or compatibility mismatches.

This unit ships fully tested, with electrical continuity, gap voltage linearity, and sensitivity verified against Bently Nevada factory specifications. Each unit is backed by a support terms confirmed by quotation covering manufacturing defects and performance deviation under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-12-10-11-05 proximity probe during a scheduled or emergency maintenance event, a disciplined inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity from the first restart.

Begin with the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the probe’s eddy current signal into a usable DC voltage output. A degraded Proximitor can produce erratic gap readings even with a new probe installed — verify its output voltage and linearity before closing the cabinet. Inspect the extension cable (typically 330130-080-00-00 or equivalent 3300 XL series cable) for jacket damage, connector corrosion, and continuity; cable impedance mismatch is a leading cause of sensitivity drift in field installations.

At the terminal block level, check the 3300 XL I/O module and associated terminal strip connections for loose wiring, oxidation, and correct shielding grounding. Unshielded or improperly grounded signal cables introduce noise that can trigger false alarms or mask real vibration events. If the machine is part of a larger protection system, verify that the 3300 XL rack power supply (e.g., 125680-01) is delivering stable −24 VDC; voltage sag under load is a common but overlooked cause of probe measurement error.

For installations integrated with a System 1 Evolution or TDIXl transient data interface, confirm that the channel configuration in the monitoring software matches the new probe’s sensitivity and gap range. Mismatched software parameters will cause the system to report incorrect displacement values even when the hardware is functioning correctly. If the control cabinet also houses 3500 Series monitoring modules for other measurement points, use this maintenance window to inspect those modules’ front-panel indicators and perform a functional test — cross-contamination of a fault condition between adjacent channels is a documented failure mode in high-vibration environments.

Finally, review the barrier or signal isolator in the hazardous-area circuit (if applicable) and confirm that the fuse or circuit protection on the −24 VDC supply rail is within rating. Document all findings in the maintenance log before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation: De-energize the monitoring channel at the rack. Do not remove the probe under live power; eddy current probes can generate transient signals that trigger spurious alarms or trip the machine protection system.

Step 2 — Physical Removal: Loosen the probe locknut and back the probe out of the bracket. Note the installed gap (typically measured with a feeler gauge or recorded from the last calibration report) for reference during reinstallation.

Step 3 — Inspection: Inspect the probe mounting bracket, target area on the shaft, and the extension cable connector for wear, contamination, or mechanical damage. Clean the target surface if oxidation or buildup is present.

Step 4 — Installation: Thread the new 330101-00-12-10-11-05 probe into the bracket. Set the gap to the manufacturer-specified value (typically 50 mil / 1.27 mm for standard steel targets) using a calibrated gap-setting tool. Torque the locknut to specification.

Step 5 — Reconnection and Verification: Reconnect the extension cable and re-energize the channel. Verify the Proximitor output voltage falls within the linear range (typically −10 to −18 VDC at the set gap). Confirm the reading in the monitoring system matches the physical gap measurement.

Step 6 — Documentation: Record the new probe serial number, installation date, gap setting, and Proximitor output voltage in the equipment maintenance record. Update the spare parts inventory to reflect consumption and trigger a reorder if stock falls below the minimum threshold.

This workflow is compatible with direct replacement of legacy 330101 series probes and supports system continuity without firmware or configuration changes in standard 3300 XL rack installations.

Spare Parts Support FAQ

Q1: Is the 330101-00-12-10-11-05 compatible with existing 3300 XL Proximitor Sensors and extension cables?
Yes. The 330101-00-12-10-11-05 is a direct fit for the 3300 XL measurement chain, including all standard 3300 XL Proximitor Sensors and 330130-series extension cables. No hardware or software reconfiguration is required for like-for-like replacement in existing installations.

Q2: What testing is performed before shipment?
Each unit undergoes electrical continuity verification, gap voltage linearity check across the full operating range, and sensitivity measurement against Bently Nevada factory specifications. A test report is available upon request. Units that do not meet specification are not shipped.

Q3: How should this spare be stored to maintain long-term reliability?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–40°C, <70% RH non-condensing). Avoid storing near strong magnetic fields or high-vibration areas. Inspect the connector and cable jacket annually if held in long-term inventory. Shelf life under proper storage conditions exceeds 5 years.

Q4: What is the support terms coverage and what does it include?
This part carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and performance deviation under normal operating conditions. Support requests are supported with replacement or refund. The support terms does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified operating environment. Long-term supply agreements with extended support terms terms are available — contact [email protected] for details.
