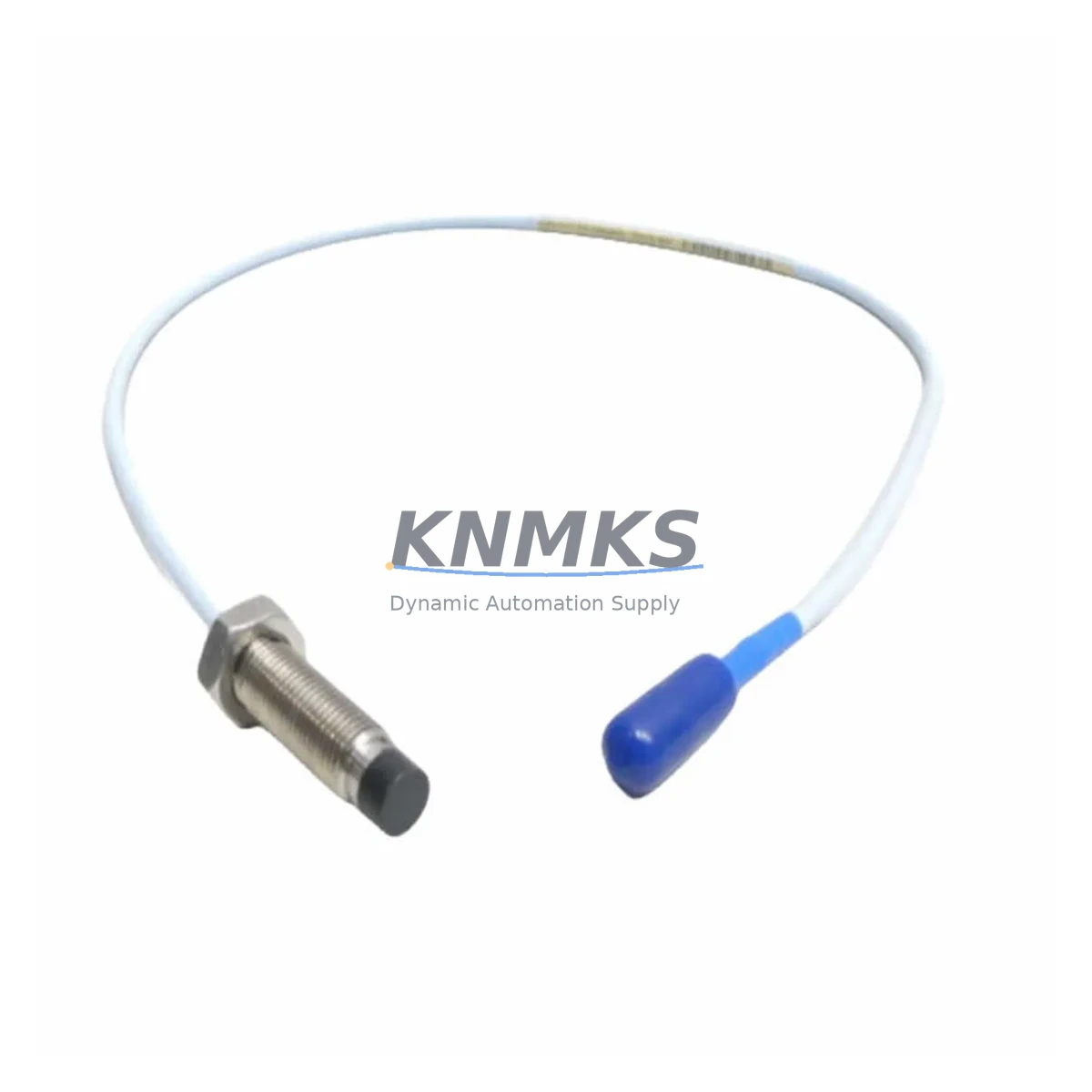

Bently Nevada 330101-00-12-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-12-10-02-05 is a 3300 XL Series eddy-current proximity probe engineered for direct retrofit into existing vibration monitoring installations. With a 25 mm (1-inch) diameter tip, 300 mm (12-inch) probe length, 2.5 m (10-foot) integral cable, and a 5 mm (0.2-inch) linear range, this probe delivers the same signal output characteristics as the original factory specification — making it the preferred drop-in replacement for maintenance teams managing aging rotating machinery protection systems. Every unit shipped by KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation covering both electrical and mechanical performance.

Facilities running legacy Bently Nevada 3300 Series or early 3500 Series racks frequently encounter discontinued probe assemblies during scheduled turnarounds or unplanned outages. The 330101-00-12-10-02-05 addresses this directly: it is pin-compatible with the standard 3300 XL proximitor/driver interface, requires no re-ranging of the 3300/16 or 3300/20 proximitor modules, and maintains the –24 VDC supply rail and 200 mV/mil (7.87 V/mm) output sensitivity that downstream monitors and DCS analog input cards expect. When replacing probes in a multi-channel rack, engineers should also verify the companion Bently Nevada 330130-040-00-00 extension cable and the 330180-X1-05 proximitor to confirm that the complete measurement chain remains within the calibrated gap voltage window — typically –10.0 VDC ±0.5 VDC at the nominal air gap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful probe retrofit begins well before the maintenance window opens. Start by pulling the as-built wiring diagram for the affected measurement point and confirming the probe boss thread specification — the 330101-00-12-10-02-05 is available in both M10×1 metric and 3/8-24 UNF imperial thread forms, and selecting the wrong thread will delay installation. Next, inspect the existing Bently Nevada 330130-040-00-00 extension cable for jacket damage, connector corrosion, or impedance drift; a degraded cable will introduce measurement error even with a new probe installed. If the cable is beyond service life, replace it as part of the same outage to avoid a repeat shutdown.

At the rack level, verify that the 3300/16 or 3300/20 proximitor module — or its 3500/42M equivalent if the system has been partially upgraded — is seated correctly and that the OK threshold is set to match the new probe’s linear range. In mixed-generation installations where some channels have already migrated to the Bently Nevada 3500 platform, the 3500/42M proximitor input card accepts the same 3300 XL probe without modification, which simplifies phased upgrades. For facilities running a Honeywell Experion PKS or Emerson DeltaV DCS as the supervisory layer, the analog 4–20 mA signal from the 3500 monitor card feeds directly into the DCS AI module — no signal conditioning change is required provided the DCS input range is already configured for the 3300/3500 output span.

Where I/O expansion is part of the upgrade scope, teams often install a Bently Nevada 3500/20 rack interface module alongside the probe swap to enable Modbus TCP or PROFIBUS DP communication to the plant DCS, replacing the legacy hardwired analog links. This is also the right time to audit the 24 VDC power supply feeding the proximitor rail: the 3300 XL system draws approximately 35 mA per channel, and an aging power supply operating near its rated capacity may not sustain inrush during a cold restart. A dedicated DIN-rail 24 VDC / 5 A power supply module for the vibration monitoring rack eliminates this risk. Finally, if the plant HMI displays shaft vibration trends from the legacy system, confirm that the engineering unit scaling (mils pk-pk or µm pk-pk) and alarm setpoints in the HMI faceplate match the new probe’s sensitivity before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured swap procedure that protects the existing program logic and maintains control continuity. Before breaking any connections, photograph the existing probe wiring at the junction box and at the proximitor terminal strip, and record the current gap voltage reading from the monitor front panel or the DCS historian. This baseline reading is your reference for post-installation verification — if the new probe’s gap voltage falls outside the expected window after installation, the discrepancy points to a cable fault, a thread engagement error, or a proximitor calibration issue rather than a probe defect.

During the swap, keep the 3300 XL rack powered if plant safety rules permit hot-work on the instrumentation bus. With the rack live, the OK relay will de-energize as soon as the probe is disconnected, which is the expected behavior — confirm with the control room that the associated DCS alarm is acknowledged and inhibited for the duration of the work. Re-engage the new probe, torque the locknut to the manufacturer’s specification, and allow the proximitor a 30-second warm-up before reading the gap voltage. Once the gap voltage is within the –10.0 VDC ±0.5 VDC window, the OK relay will re-energize, and the DCS analog input will resume tracking shaft position. Remove the alarm inhibit, confirm the vibration trend is live on the HMI, and document the as-left gap voltage in the maintenance record. The entire swap — from probe removal to alarm reinstatement — typically completes within 45 minutes when the replacement unit is pre-staged and the wiring documentation is current.

For facilities that cannot tolerate even a brief OK relay dropout, a spare proximitor channel in the same 3300 XL rack can be pre-wired to the new probe before the old probe is removed, allowing a make-before-break transition that keeps the monitor output continuous. This approach requires one additional 330130-040-00-00 extension cable run to the machine, but it eliminates the alarm inhibit step entirely and is the preferred method for critical machinery protection applications.

Retrofit Support FAQ

Q1: Is the 330101-00-12-10-02-05 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
Yes. The 330101-00-12-10-02-05 is manufactured to the same dimensional and electrical specification as the original 3300 XL probe. It is plug-compatible with all standard 3300 XL proximitors and requires no re-ranging or recalibration of the monitor module, provided the probe boss thread and cable length match the existing installation.

Q2: What commissioning checks are required after installation?
After seating the probe and torquing the locknut, measure the gap voltage at the proximitor output terminals. The target is –10.0 VDC ±0.5 VDC at the nominal air gap specified in the machine’s vibration monitoring datasheet. Confirm the OK relay energizes, verify the vibration reading on the DCS or monitor front panel is within the expected idle-speed range, and check that the Danger relay does not assert. Document the as-left gap voltage for the maintenance record.

Q3: Do you hold stock for immediate shipment, and what is the lead time?
KNMKS maintains regional warehouse stock of the 330101-00-12-10-02-05 to support emergency turnaround and planned outage schedules. In-stock units are dispatched within 1–2 business days. Contact [email protected] or call +86 18359268345 to confirm current availability and arrange expedited freight if required.

Q4: What support terms coverage applies to this probe?
Every 330101-00-12-10-02-05 supplied by KNMKS carries a support terms confirmed by quotation covering electrical performance (sensitivity, output linearity, OK threshold) and mechanical integrity (cable jacket, connector, probe body). Units that fail within the confirmed support period are replaced or credited at no charge. Pre-shipment functional testing documentation is available on request.
