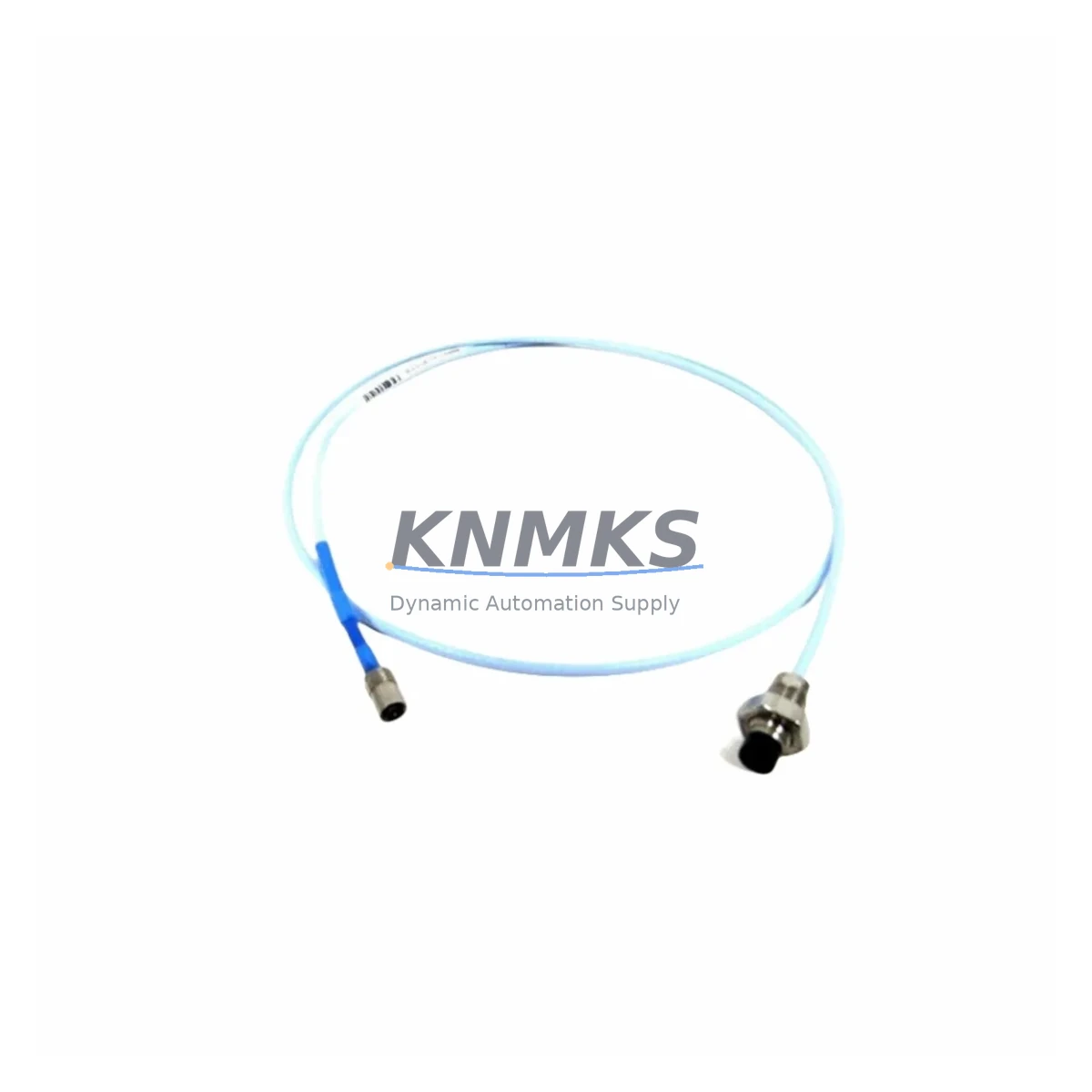

Bently Nevada 330101-00-12-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-12-10-02-00 is an 8mm proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery protection systems. As legacy Bently Nevada 3300 Series installations reach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified replacement probes that maintain signal integrity, dimensional compatibility, and system-level interoperability without triggering full rack redesigns or DCS reconfiguration.

This migration-ready unit is a direct-fit replacement for the original 330101-00-12-10-02-00, preserving the 8mm tip diameter, 5-metre integral cable, and standard Bently Nevada connector interface. It is designed to slot into existing 3300 XL monitor racks — including the 3300/16 and 3300/20 series — without requiring changes to the proximitor extension cable, field wiring terminations, or monitor channel configuration. Before installation, engineers should verify the gap voltage calibration range (typically –10 VDC at 1.0 mm gap), confirm the target material (steel, 4140 alloy recommended), and cross-check the probe driver pairing with the installed 330180 or 330130 series proximitor to ensure the system sensitivity factor (200 mV/mil or 7.87 V/mm) is preserved.

For sites migrating from earlier 3300/05 or 7200 Series probe assemblies, the 330101-00-12-10-02-00 provides a validated upgrade path. The transition typically involves re-terminating the extension cable at the junction box, updating the monitor’s probe type configuration in the System 1 software, and performing a static gap check before returning the machine to service. Where the existing proximitor is a 330180-51-00 or 330180-90-00 unit, no firmware changes are required; the probe is recognized automatically upon gap calibration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-12-10-02-00 into an operating machinery protection system requires a structured pre-outage review. Begin by auditing the existing probe boss thread specification — M10x1 and 1-inch NPT are the two most common configurations on steam turbines, compressors, and pump trains running Bently Nevada 3300 XL racks. Confirm the armoured cable routing path from the probe tip to the junction box, noting any conduit bends that may stress the integral cable near the connector.

At the junction box, the extension cable — typically a 330130-080-00-00 or 330130-045-00-00 unit — connects the probe to the proximitor. Inspect the BNC-to-TNC adapter condition and replace if oxidation is present, as connector resistance directly affects gap voltage accuracy. The proximitor itself, commonly a 330180-51-00 or 330180-90-00, should be checked for supply voltage (–24 VDC ±1 VDC) and output signal range before the new probe is installed.

Inside the 3300 XL monitor rack, verify that the channel assigned to this probe position is configured for 8mm probe type in the monitor’s configuration software. If the site uses System 1 Evolution for condition monitoring, update the probe asset tag to reflect the new serial number after installation. For plants also managing 3500/42M or 3500/40M monitor modules in adjacent racks, note that the 3300 XL and 3500 Series use different proximitor families and are not interchangeable without a full channel migration kit.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a standalone 3300 rack to an integrated 3500 Series chassis — the 330101-00-12-10-02-00 can serve as an interim probe during the transition period, maintaining vibration monitoring continuity while the new rack is commissioned in parallel. This approach avoids a full machinery shutdown and allows the protection logic to remain active on the legacy system until the new 3500/16e or 3500/22M monitor is fully validated.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement on a live rotating machine requires careful sequencing. The recommended approach is to perform the probe swap during a scheduled maintenance window, with the machine at rest and the monitor channel placed in bypass mode to prevent spurious trips during the gap adjustment procedure. Document the existing gap voltage reading before removal — typically between –9.5 VDC and –10.5 VDC at the nominal 1.0 mm air gap — so the new probe can be set to the same operating point without requiring a full vibration baseline re-establishment.

Preserve the original program logic in the 3300 XL monitor by exporting the channel configuration before any hardware changes. This protects alarm setpoints, danger thresholds, and OK relay logic that may have been customised for the specific machine train. After installing the 330101-00-12-10-02-00, restore the configuration file and verify that the OK relay energises correctly at the calibrated gap before releasing the bypass.

For sites where continuous operation is critical, a hot-swap procedure using a spare monitor channel — if available in the 3300/16 or 3300/20 rack — allows the new probe to be commissioned and gap-set while the original channel remains active. Once the new probe is verified, the monitor can be switched to the replacement channel with no interruption to the protection system. This technique is particularly effective on multi-shaft turbine trains where individual bearing positions can be temporarily monitored via adjacent channels during the transition.

Retrofit Support FAQ

Q1: Is the 330101-00-12-10-02-00 a direct replacement for the 330101-00-12-10-01-00?
Yes. The -02-00 suffix denotes the armoured cable variant of the same 8mm, 5-metre probe. The tip geometry, sensitivity, and connector interface are identical. No changes to the proximitor, extension cable, or monitor configuration are required when substituting one for the other.

Q2: What commissioning steps are required after installation?
Perform a static gap check using a calibrated gap tool or by monitoring the proximitor output voltage. Set the probe-to-target gap to achieve –10 VDC ±0.5 VDC on the proximitor output. Verify the OK relay status in the 3300 XL monitor, confirm the channel is not in bypass, and check that the vibration reading is within the expected baseline range for the machine at rest before restart.

Q3: Can this probe be used with a Bently Nevada 3500 Series monitor rack?
Direct installation into a 3500 Series rack requires a compatible 3500 Series proximitor (such as the 3500/42 or 3500/40M) and the appropriate extension cable. The 330101-00-12-10-02-00 probe tip is physically compatible, but the proximitor family must match the monitor series. Consult the 3500 Series Transducer Installation Manual for channel configuration requirements.

Q4: What support terms and pre-shipment testing is provided?
Every 330101-00-12-10-02-00 unit supplied by KNMKS includes a support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe undergoes pre-shipment functional testing — including gap voltage output verification and cable continuity check — before dispatch. In-stock units are available for immediate shipment to minimise lead time on emergency replacement orders.
