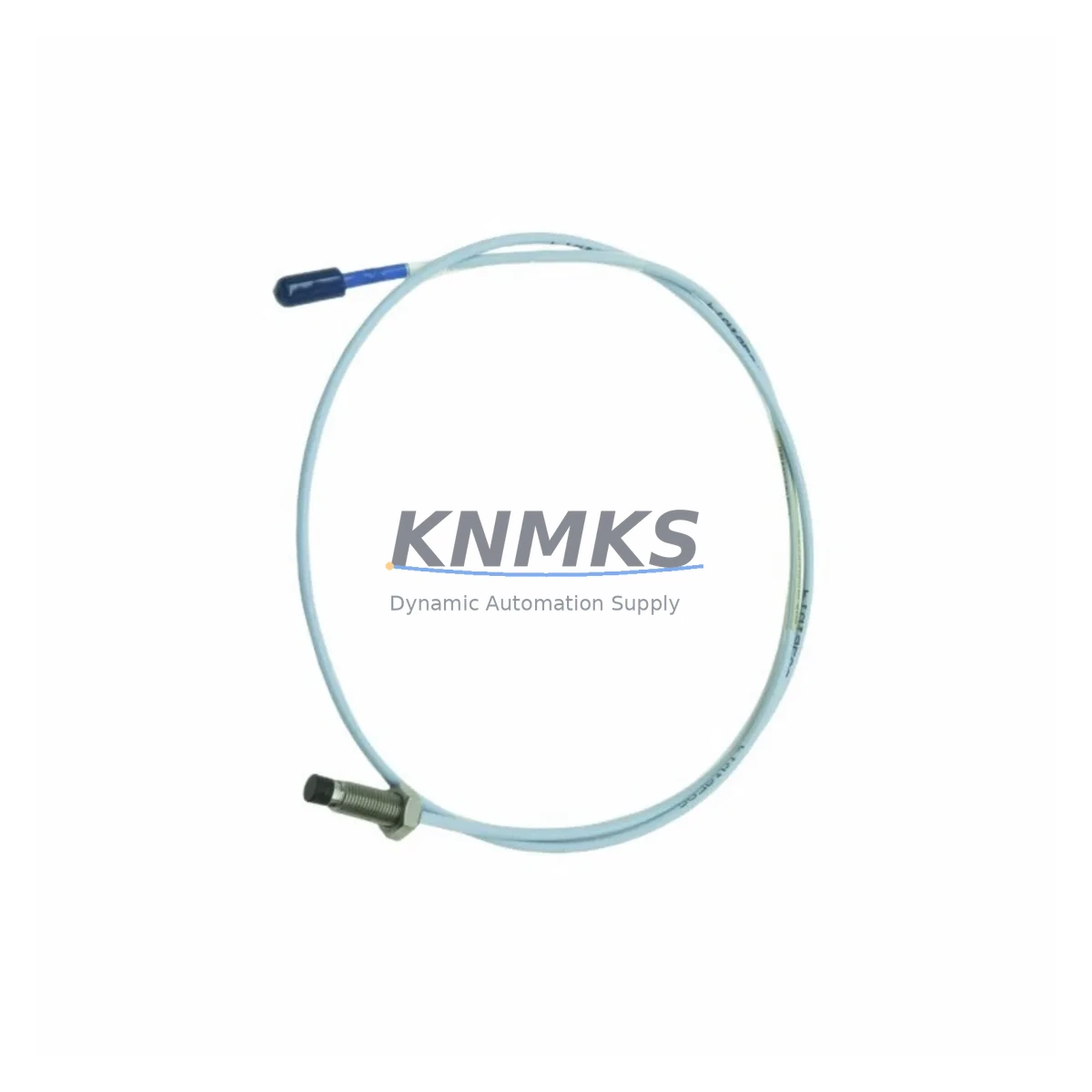

Bently Nevada 330101-00-12-10-01-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-12-10-01-CN Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-12-10-01-CN is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of critical machinery protection systems, this proximity probe delivers stable, high-accuracy output even under conditions of high electromagnetic interference, mechanical vibration, elevated temperature, and airborne contamination — making it the preferred choice for rotating equipment protection in petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In critical industrial control cabinets, a single point of signal failure can cascade into unplanned shutdowns, equipment damage, or personnel safety incidents. The 330101-00-12-10-01-CN is built to eliminate that risk. Its robust eddy current sensing technology provides non-contact measurement, removing mechanical wear as a failure mode and ensuring long-term signal integrity without drift. The probe’s shielded cable construction and EMI-hardened design suppress interference from variable frequency drives, high-power contactors, and adjacent power cabling — common sources of signal corruption in dense control enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-12-10-01-CN proximity probe operates as the primary sensing element within a complete Bently Nevada 3300 XL monitoring chain. It pairs directly with the Bently Nevada 330130-040-00-00 extension cable to bridge the distance between the probe tip and the field-mounted driver, maintaining signal fidelity across long cable runs in high-vibration environments. The driver — typically the Bently Nevada 330180-X1-05 proximitor/driver module — conditions the raw probe signal into a calibrated voltage output suitable for the monitor rack.

Within the monitor rack, the conditioned signal feeds into a Bently Nevada 3300/16 Dual Vibration Monitor or equivalent 3300 XL series monitor card, which performs real-time alarm and danger threshold evaluation. For installations requiring SIL-rated safety interlock integration, the monitor output connects to the plant’s safety PLC or emergency shutdown system via hardwired relay contacts — ensuring that a probe signal loss or over-limit condition triggers a controlled, fail-safe machine trip rather than an uncontrolled failure.

Power supply stability is equally critical. The 3300 XL system requires a clean, regulated -24 VDC supply; pairing the monitoring system with a Bently Nevada 3300/20-02-01-00 Power Supply Module ensures that voltage fluctuations, surges, or momentary outages do not cause false trips or missed alarms. In environments with significant electrical noise — such as those near large motor drives or arc furnaces — additional surge protection devices and shielded cable trays further protect signal integrity from the probe tip to the monitor card.

For facilities managing multiple rotating machines, the 330101-00-12-10-01-CN is often deployed alongside Bently Nevada 330500-02-00 velocity transducers and 330850-50-00 accelerometers to provide a comprehensive vibration signature across radial, axial, and casing measurement points — giving maintenance engineers the full picture needed to detect imbalance, misalignment, bearing wear, and resonance before they escalate to catastrophic failure.

Critical Industrial Safety Applications

The 330101-00-12-10-01-CN is deployed across a wide range of critical industrial sectors where unplanned downtime carries severe safety and financial consequences:

Petrochemical & Refining: Installed on centrifugal compressors, turbines, and pumps in hydrocarbon processing trains, where continuous shaft monitoring is mandatory under API 670 machinery protection standards. A probe failure in this environment can result in undetected rotor rub, bearing seizure, or catastrophic seal failure — making fail-safe, drift-free measurement non-negotiable.

Power Generation: Used on steam turbines, gas turbines, and boiler feed pumps in thermal and combined-cycle power plants. The probe’s high-temperature tolerance and vibration resistance ensure reliable operation in the hot, high-vibration environment immediately adjacent to turbine casings, where conventional sensors degrade rapidly.

Mining & Mineral Processing: Applied to large ball mills, SAG mills, crushers, and conveyor drive systems operating in dusty, wet, and high-vibration conditions. The IP67-rated probe body resists ingress from mineral dust and process water, maintaining measurement accuracy in environments that rapidly degrade unprotected instrumentation.

Metallurgy & Steel Production: Monitors rolling mill drives, continuous casters, and induction furnace cooling pumps, where high ambient temperatures and intense electromagnetic fields from induction heating systems challenge conventional sensing technologies. The eddy current principle is inherently immune to these electromagnetic disturbances.

Water & Wastewater Treatment: Protects large vertical turbine pumps and blower trains in municipal water infrastructure, where unplanned outages directly impact public health and regulatory compliance. Continuous vibration monitoring enables condition-based maintenance scheduling, eliminating unnecessary preventive replacements while ensuring no critical fault goes undetected.

Port & Marine Applications: Deployed on ship propulsion systems, crane drives, and port terminal conveyor systems operating in high-humidity, salt-laden environments. The probe’s sealed construction and corrosion-resistant materials maintain performance in marine-grade exposure conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-12-10-01-CN?
All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes defects in materials, workmanship, and calibration accuracy. Support requests are supported with direct technical assistance and priority replacement to minimize your equipment downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-12-10-01-CN undergoes full functional verification prior to dispatch, including output voltage calibration check across the specified gap range, cable continuity and insulation resistance testing, and connector integrity inspection. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330101-00-12-10-01-CN is a direct form-fit-function replacement for standard 3300 XL 8mm proximity probe assemblies. It is compatible with all 3300 XL extension cables, proximitor drivers, and monitor cards without requiring system reconfiguration or recalibration of the monitor rack.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated inventory of the 330101-00-12-10-01-CN to support planned maintenance schedules, emergency replacements, and multi-unit procurement for spare parts programs. Orders are processed with same-day or next-business-day dispatch for in-stock quantities, with export documentation available for international shipments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-12-10-01-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-12-10-01-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
