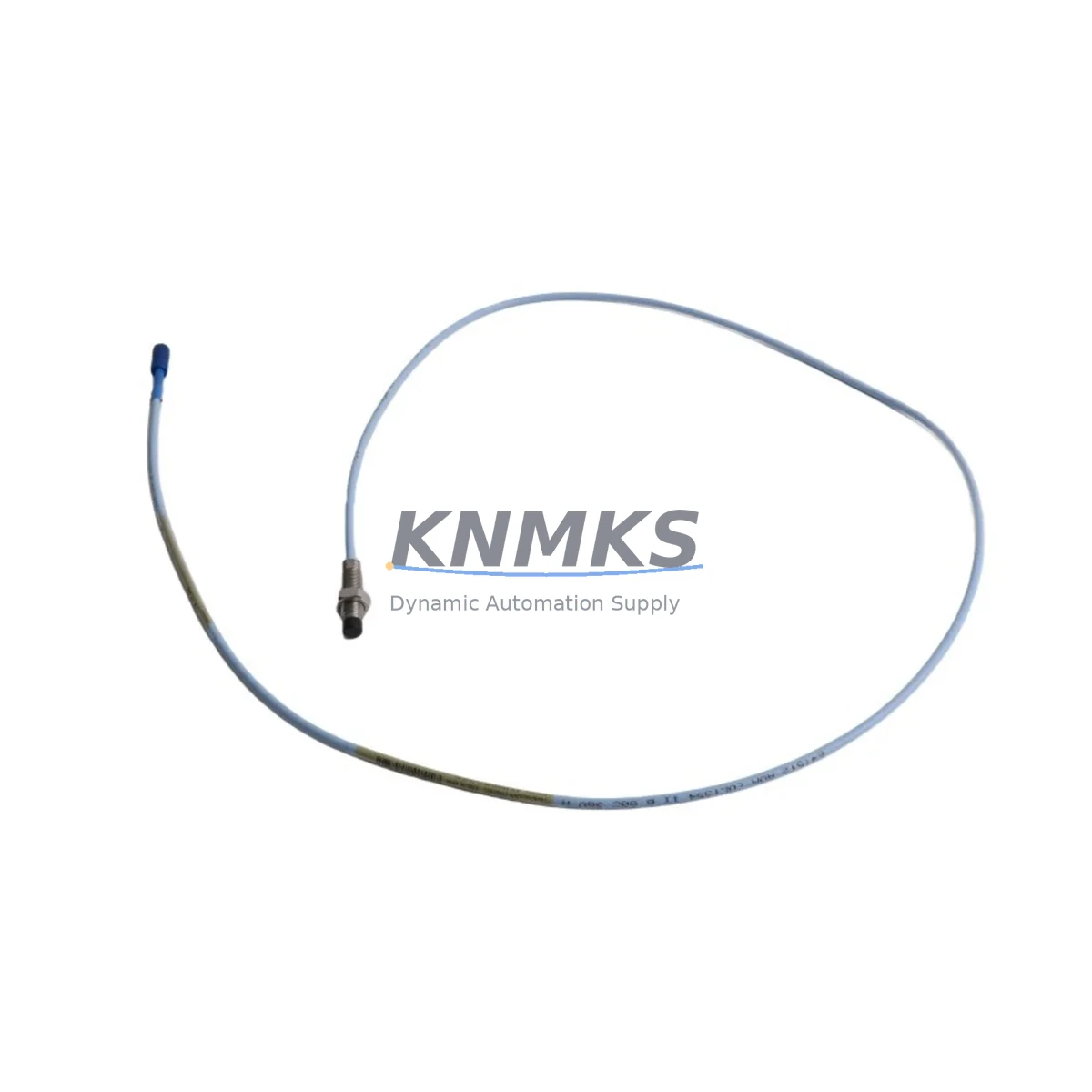

Bently Nevada 330101-00-12-10-01-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-12-10-01-05 is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 Series installations approach end-of-support, engineering teams managing turbines, compressors, pumps, and gearboxes face increasing pressure to source verified replacement probes that maintain full signal compatibility with existing Proximitor® sensor assemblies, junction boxes, and DCS/PLC monitoring channels. This migration-ready unit is pre-tested, ships with a support terms confirmed by quotation, and is stocked across multiple regions to support both emergency replacements and planned outage windows.

The 330101-00-12-10-01-05 features a 5 mm probe tip diameter, 12-inch (305 mm) armored extension cable, and a standard 10-32 UNF connector interface. It operates within the standard Bently Nevada –24 VDC bias voltage range and delivers a linear output of –200 mV/mil (–7.87 V/mm), making it a direct electrical and mechanical substitute for worn or failed probes in 3300 XL monitoring loops. Before installation, engineers should verify the existing Proximitor® sensor model — typically the 3300 XL 8mm Proximitor® (330180 series) or the standard 3300 XL 5mm Proximitor® (330130 series) — to confirm gap voltage calibration targets and cable routing clearances within the bearing housing or proximity probe bracket.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-12-10-01-05 in an operating plant requires a structured approach that accounts for the full measurement chain, not just the probe itself. The probe connects to a Bently Nevada 330130-series 3300 XL 5mm Proximitor® sensor, which in turn feeds a 3300 XL monitor module housed in a 19-inch rack or dedicated machinery protection panel. During retrofit planning, engineers must audit the entire signal path: probe gap voltage, extension cable continuity, Proximitor® output voltage, and the monitor module’s OK relay status. If the existing 3300 XL monitor modules (such as the 3300/16 Dual Vibration Monitor or the 3300/20 Thrust Position Monitor) are also approaching end-of-life, a parallel upgrade to the Bently Nevada 3500 Series rack — including the 3500/42M Proximitor®/Seismic Monitor — should be evaluated to avoid a second outage within the same maintenance cycle.

For plants running GE Mark VI or Honeywell Experion PKS as the primary control platform, the 3300 XL monitoring rack typically interfaces via a hardwired 4–20 mA or relay output to the DCS I/O marshalling cabinet. During probe replacement, confirm that the DCS input channel remains in bypass mode and that the machinery protection system’s voting logic (1oo2 or 2oo3) is correctly configured to prevent spurious trips. If the plant is migrating from a legacy Bently Nevada 3300 rack to a 3500 Series system, the 3500/20 Rack Interface Module and the 3500/22M Transient Data Interface should be included in the bill of materials to preserve System 1 data historian connectivity.

Cable routing is a frequent source of delay in proximity probe retrofits. The 330101-00-12-10-01-05’s 12-inch armored extension cable must be routed through existing conduit or cable trays without exceeding the minimum bend radius. In tight bearing pedestals or compact gearbox housings, engineers should pre-measure the available installation space and confirm that the probe holder thread (typically M10×1 or 3/8-24 UNF depending on the bracket generation) matches the replacement probe’s body thread. Spare probe holders and locking nuts should be staged before the outage begins to avoid last-minute procurement delays.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components — including the 330101-00-12-10-01-05 probe, the matching 330130-series Proximitor® sensor (if also being replaced), and any required extension cable assemblies — at least 48 hours before the scheduled outage window. A pre-outage functional test using a Bently Nevada 330185 Proximitor® Test Kit or equivalent allows technicians to verify probe sensitivity and gap voltage on the bench before installation, eliminating the risk of discovering a faulty replacement unit after the machine is already offline.

During the outage, the recommended sequence is: (1) place the affected monitoring channel in bypass at the 3300 XL or 3500 Series monitor module; (2) remove the failed probe and inspect the probe holder for thread damage or contamination; (3) install the replacement 330101-00-12-10-01-05 and set the initial gap using a feeler gauge or gap voltage measurement at the Proximitor® output; (4) verify OK relay status and channel output voltage before releasing the bypass; (5) document the as-found and as-left gap voltages in the plant’s machinery protection logbook. This sequence protects the original program logic in the DCS and ensures that HMI alarm displays and historian tags remain correctly mapped throughout the replacement process.

For plants where the 3300 XL rack is being fully decommissioned in favor of a 3500 Series system, the migration should be executed in phases: first validate the new rack’s I/O channel assignments and System 1 tag mapping in a shadow-monitoring configuration before cutting over the hardwired outputs to the DCS. This approach preserves field control continuity and allows the operations team to compare legacy and new system readings in parallel before final cutover.

Retrofit Support FAQ

Q: Is the 330101-00-12-10-01-05 a direct drop-in replacement for all 3300 XL 5mm proximity probe variants?
A: Yes, for standard 3300 XL 5mm system configurations using the 330130-series Proximitor® sensor. However, if the existing installation uses an 8mm Proximitor® (330180 series), a different probe body diameter and bracket are required. Always confirm the Proximitor® model number before ordering.

Q: What pre-shipment testing is performed on each unit?
A: Every 330101-00-12-10-01-05 unit undergoes functional verification including gap voltage linearity check, cable continuity test, and connector integrity inspection before dispatch. A test report is available on request. All units ship with a support terms confirmed by quotation covering manufacturing defects.

Q: How do I confirm firmware and software compatibility when migrating to a 3500 Series system?
A: The 330101-00-12-10-01-05 probe itself is firmware-independent — it is a passive transducer. Firmware compatibility applies to the 3500 Series monitor modules and the System 1 software version. Confirm that the 3500/42M monitor module firmware supports the channel configuration required for your shaft vibration measurement, and that the System 1 database tag mapping is updated to reflect the new rack slot assignments.

Q: What is the typical lead time and do you hold stock for emergency replacements?
A: We maintain multi-region stock of the 330101-00-12-10-01-05 to support emergency dispatch. Standard lead time for in-stock units is 1–3 business days for international shipments. For critical outage situations, contact our team directly to confirm real-time availability and expedited shipping options.
