Bently Nevada 330101-00-12-05-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-12-05-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

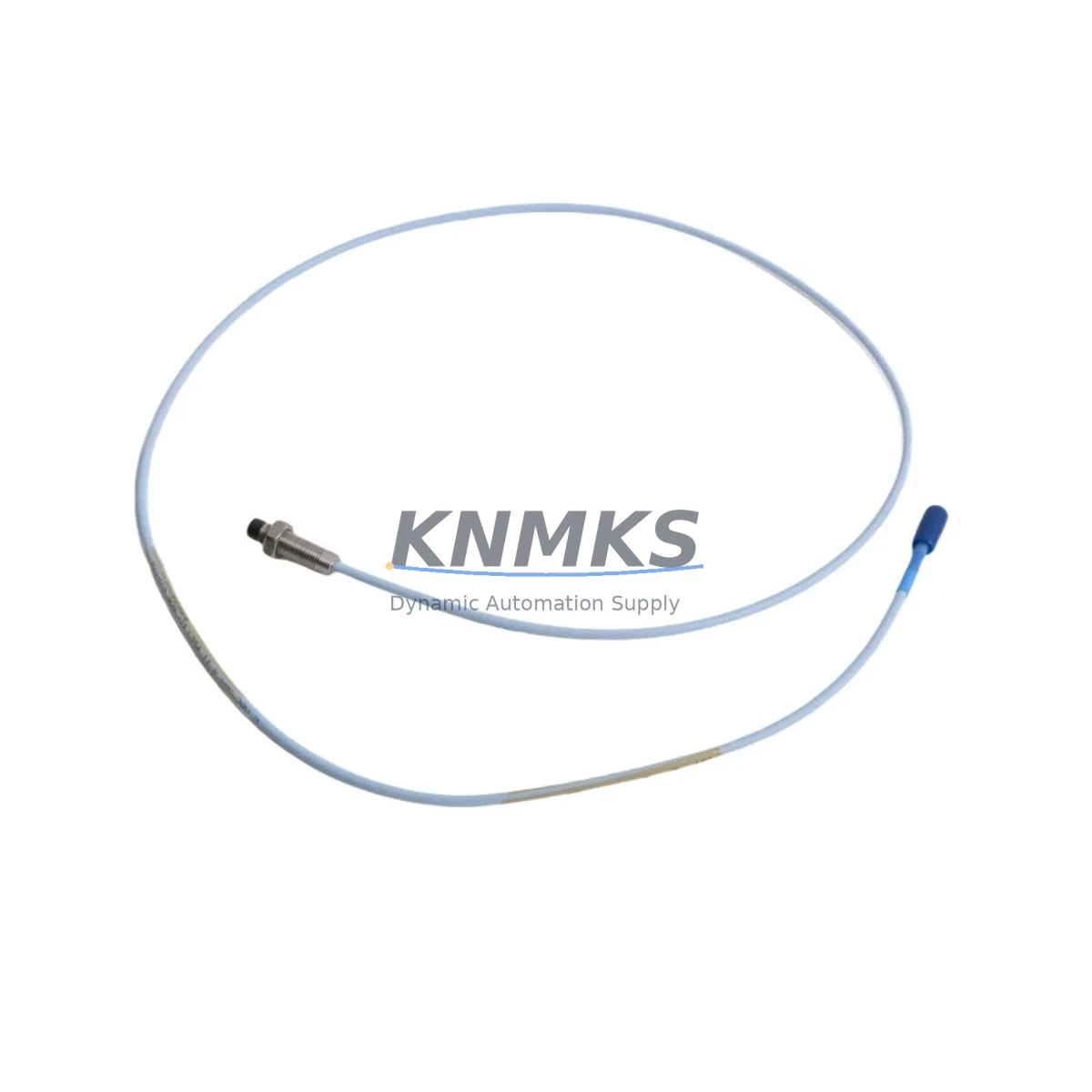

The Bently Nevada 330101-00-12-05-02-05 is a 5mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. Designed as a direct, migration-ready replacement for legacy 3300 XL Series installations, this probe supports drop-in retrofits without requiring changes to existing extension cables, proximitor housings, or signal conditioning hardware. It is fully compatible with the Bently Nevada 3300 XL system architecture, including the 3300/16 and 3300/20 proximitor modules, and maintains signal chain integrity across the full operating range.

For plants managing aging turbine protection systems, compressor trains, or pump monitoring panels, the 330101-00-12-05-02-05 provides a verified upgrade path that preserves existing wiring infrastructure. Engineers replacing worn or failed probes during scheduled outages can install this unit without recalibrating the proximitor or modifying the 3500 rack configuration. The probe’s 5mm sensing range and standard Bently Nevada connector interface ensure backward compatibility with installed extension cables such as the 330130 series, reducing retrofit complexity and minimizing downtime exposure.

Each unit is pre-shipment tested against Bently Nevada factory specifications, with gap voltage, sensitivity, and linearity verified before dispatch. A support terms confirmed by quotation cover all units, supporting procurement teams that require documented quality assurance for critical rotating equipment applications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating turbine or compressor protection panel requires careful coordination across multiple system components. Before removing the failed 330101-00-12-05-02-05, engineers should document the existing gap voltage reading at the proximitor terminal and confirm the extension cable — typically a 330130-080-00-00 or equivalent — is undamaged and correctly routed through the conduit. The proximitor module, whether a 3300/16 or 3300/20, should be checked for correct sensitivity jumper settings (200 mV/mil for standard 5mm probes) before the new probe is installed.

In 3500 rack environments where the 3500/42 vibration monitor module is in use, the probe signal feeds directly into the rack’s I/O terminal block. Technicians should verify that the terminal block wiring — shield, center conductor, and drain — is correctly landed before powering the channel. If the installation involves a 3500/15 power supply module, confirm that the rack supply voltage is stable at –24 VDC before energizing the probe circuit.

For plants migrating from older 3300 Series (non-XL) installations to the 3300 XL platform, the 330101-00-12-05-02-05 is a compatible upgrade. The probe’s connector and cable geometry match the 330130 extension cable family, and the output signal is directly readable by both legacy 3300 proximitors and the newer 3500/42 monitor. If the control room HMI — whether a System 1 workstation or a third-party DCS display — is configured with existing vibration alarm setpoints, those setpoints do not require adjustment following a like-for-like probe replacement.

Where the retrofit involves expanding the monitoring scope — for example, adding a second radial probe channel or installing a thrust position probe alongside the existing radial probe — the 3500 rack’s available I/O slots and the 3500/42 module’s channel count should be confirmed before procurement. In such cases, a 3500/20 rack interface module or additional 3500/42 cards may be required to support the expanded I/O configuration.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement begins with pre-staging the replacement unit and verifying its gap voltage and sensitivity before the maintenance window opens. The 330101-00-12-05-02-05 is dispatched pre-tested, which eliminates the need for bench calibration on-site and allows technicians to proceed directly to installation during the outage window.

To protect existing program logic and alarm configurations, the 3500 rack’s bypass function should be activated on the affected channel before probe removal. This prevents nuisance trips from propagating to the DCS or safety system during the swap. Once the new probe is installed and the gap voltage is confirmed within the linear range (typically –10 VDC ±0.5 VDC at the design gap), the bypass can be released and the channel returned to normal monitoring.

For installations where the probe feeds a Bently Nevada System 1 condition monitoring platform, the channel configuration — including probe type, scale factor, and alarm thresholds — should be exported before the outage and re-verified after the replacement. This ensures that the HMI display and trend historian continue to reflect accurate engineering units without requiring a full reconfiguration. Where the probe signal also feeds a third-party DCS via a 4–20 mA converter or a 3500/45 position monitor, the output scaling should be confirmed against the DCS tag configuration before the unit is returned to service.

Maintaining a spare 330101-00-12-05-02-05 in the plant’s critical spares inventory — alongside a matched 330130 extension cable and a spare 3300/20 proximitor — is recommended for facilities operating continuous processes where unplanned downtime carries significant production cost. KNMKS maintains multi-region stock of this probe to support both emergency dispatch and scheduled outage procurement cycles.

Retrofit Support FAQ

Q1: Is the 330101-00-12-05-02-05 a direct replacement for the original Bently Nevada part?
Yes. This unit is a migration-ready replacement for the original Bently Nevada 330101-00-12-05-02-05 proximity probe. It matches the original probe’s sensing range, connector interface, cable geometry, and output sensitivity, allowing direct installation into existing 3300 XL proximitor housings and extension cable assemblies without modification.

Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the proximitor terminal (target: –10 VDC ±0.5 VDC at the design air gap). Confirm the proximitor sensitivity jumper is set to 200 mV/mil for 5mm probes. Check that the channel is reading within the linear range on the 3500/42 monitor or equivalent display before releasing the bypass and returning the channel to service.

Q3: Does this probe require any wiring changes at the terminal block?
No wiring changes are required for a like-for-like replacement. The probe connects to the existing 330130 extension cable using the standard Bently Nevada coaxial interface. Terminal block wiring at the proximitor or 3500 rack I/O module remains unchanged. If the installation involves a new cable run, follow the standard Bently Nevada shielding and grounding requirements for proximity probe circuits.

Q4: What support terms and pre-shipment testing does KNMKS provide?
All 330101-00-12-05-02-05 units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch. Each unit undergoes pre-shipment testing covering gap voltage output, sensitivity linearity, and connector integrity before leaving the warehouse. In-stock units are available for same-day or next-business-day dispatch to support emergency replacement and scheduled outage requirements.
