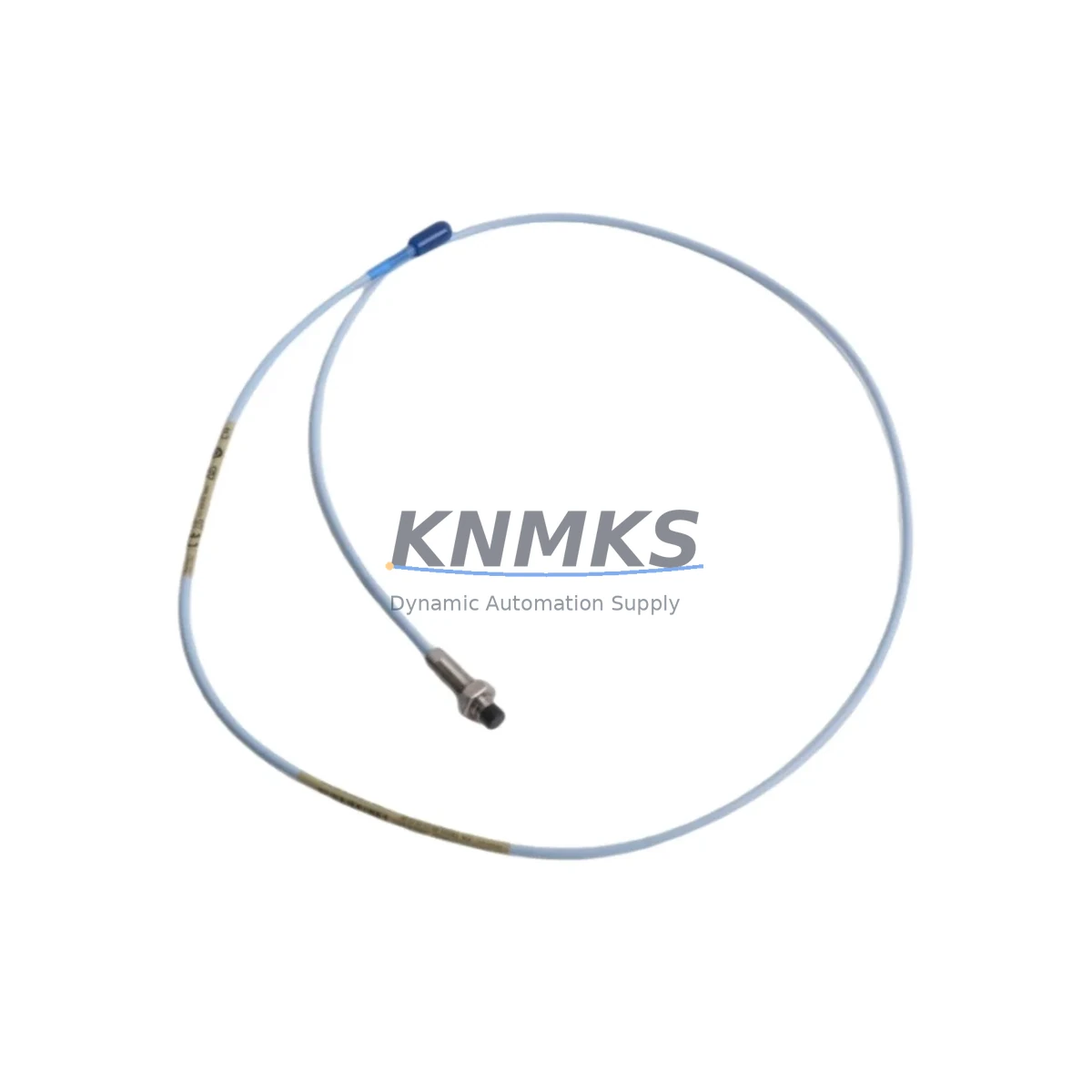

Bently Nevada 330101-00-12-05-02-02 Fail-Safe Proximity Transducer: Fault-Proof Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330101-00-12-05-02-02 is a high-precision eddy-current proximity transducer engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature fluctuations, mechanical vibration, and moisture-laden atmospheres — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, and heavy manufacturing lines.

In safety-critical rotating machinery protection — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — undetected shaft displacement or abnormal vibration can escalate within milliseconds from a minor anomaly to a catastrophic mechanical failure. The 330101-00-12-05-02-02 is purpose-built to eliminate that risk. Its non-contact sensing principle removes mechanical wear from the measurement chain entirely, ensuring that the transducer itself never becomes a source of false trips or missed alarms. The output remains linear and repeatable across the full operating range, giving control systems and safety PLCs the reliable signal quality needed to make accurate trip decisions without nuisance shutdowns.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including sensitivity calibration, insulation resistance testing, and output linearity confirmation, before dispatch. This ensures that replacement units can be installed directly into live safety loops with confidence, minimizing the exposure window during planned or emergency maintenance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-12-05-02-02 transducer does not operate in isolation — its reliability is inseparable from the integrity of the surrounding monitoring and protection architecture. In a properly engineered control cabinet, this probe works in conjunction with the Bently Nevada 3300 XL Extension Cable (part series 330130) to bridge the distance between the probe tip and the signal conditioning driver without signal degradation. The driver module — typically the Bently Nevada 3300 XL Proximitor Sensor (series 330180) — conditions the raw eddy-current signal into the clean DC voltage output that the monitoring system reads.

Within the protection loop, the conditioned signal feeds into a Bently Nevada 3500 Series Vibration Monitor, which provides the relay outputs for turbine or compressor trip logic. To protect the entire signal chain from power-side disturbances, a dedicated 24 VDC DIN-rail power supply with surge protection — such as those from the Phoenix Contact QUINT series or equivalent — should be installed upstream of the monitor rack. Voltage transients and ground loops are among the most common causes of spurious trips and signal drift in proximity monitoring systems; a properly rated surge protection device (SPD) at the cabinet entry point eliminates this risk category entirely.

For installations in hazardous areas or where SIL-rated safety loops are required, the transducer system should be paired with a Bently Nevada 3500/42M Proximitor / Velomitor Monitor or equivalent SIL 2-capable monitor module, ensuring that the complete measurement chain meets the functional safety requirements of IEC 61511 or IEC 61508. Grounding discipline — using a single-point ground scheme within the monitor rack — further reduces common-mode noise that can mask real vibration events or generate false alarms in high-EMI environments such as those near large variable frequency drives (VFDs) or high-voltage switchgear.

Critical Industrial Safety Applications

The 330101-00-12-05-02-02 is deployed across a wide spectrum of safety-critical rotating machinery protection applications:

Petrochemical and Refining: In hydrocarbon processing plants, this transducer monitors shaft radial vibration and axial position on process-critical compressors and pumps. An undetected seal failure or bearing degradation event in these machines can result in hydrocarbon release, fire, or explosion. The non-contact, continuous monitoring provided by this probe gives the safety system the earliest possible warning, enabling controlled shutdown before a dangerous condition develops.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity transducers to monitor shaft eccentricity, differential expansion, and radial vibration simultaneously. The 330101-00-12-05-02-02, operating within a 3300 XL or 3500 Series system, provides the measurement stability required for turbine protection relays to distinguish genuine mechanical distress from transient electrical noise — a distinction that directly determines whether a plant remains online or trips unnecessarily.

Mining and Mineral Processing: Large ball mills, SAG mills, and conveyor drive systems in mining operations are subject to extreme dust loading, moisture ingress, and structural vibration. The robust construction and sealed coaxial cable assembly of this transducer maintain measurement integrity in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous production circuits.

Water and Wastewater Treatment: High-service pumping stations and blower systems in water treatment facilities require continuous availability. Proximity-based vibration monitoring on these assets enables condition-based maintenance scheduling, avoiding both over-maintenance and run-to-failure scenarios that compromise water supply reliability.

Metallurgy and Steel Production: Rolling mill drives, continuous casters, and large induction furnace auxiliaries operate in environments with intense electromagnetic fields and thermal cycling. The shielded cable construction and high-temperature probe rating of the 330101-00-12-05-02-02 make it suitable for these demanding metallurgical applications where standard instrumentation would fail prematurely.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-12-05-02-02?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to meet its specified sensitivity, linearity, or output range within the confirmed support period, KNMKS will provide a replacement or documented resolution support. The confirmed support period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-00-12-05-02-02 unit is tested for output sensitivity (mV/mil), signal linearity across the full measurement gap range, and cable insulation resistance before shipment. Units that do not meet Bently Nevada factory specifications are quarantined and not dispatched. A test record is available upon request for units destined for safety-loop installation.

Q3: Is this transducer compatible with existing 3300 XL and 3500 Series monitor racks?
Yes. The 330101-00-12-05-02-02 is a standard 3300 XL Series probe and is fully compatible with Bently Nevada 3300 XL extension cables (330130 series), 3300 XL Proximitor drivers (330180 series), and 3500 Series monitor modules. No reconfiguration of the monitor rack is required for a like-for-like replacement.

Q4: Can KNMKS support long-term or scheduled supply for maintenance programs?
Yes. KNMKS maintains stock of the 330101-00-12-05-02-02 and related 3300 XL Series components to support planned maintenance schedules, annual turnaround outages, and emergency replacement requirements. Long-term supply agreements and reserved inventory arrangements are available for facilities with recurring demand. Contact our team to discuss scheduled delivery programs tailored to your maintenance calendar.
