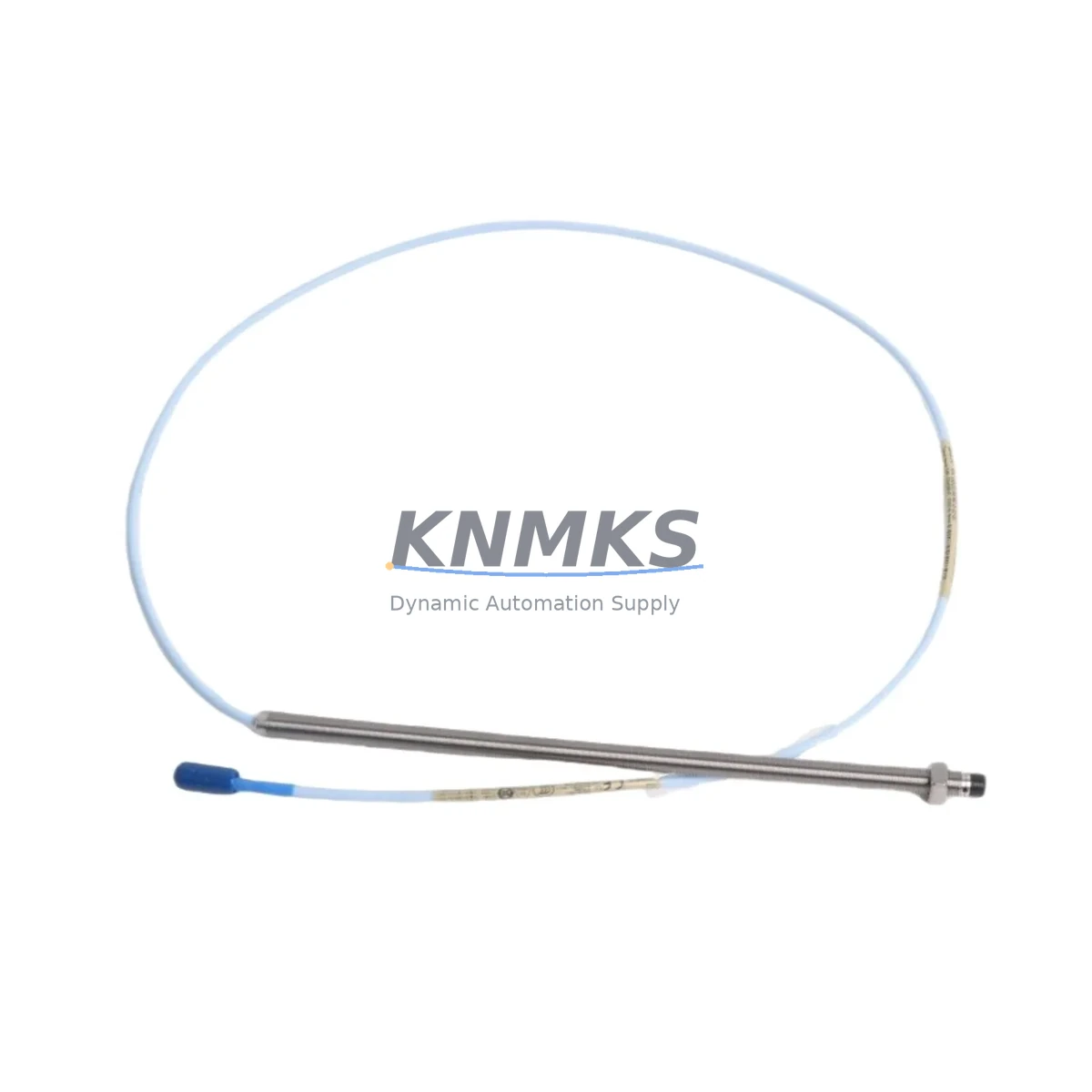

Bently Nevada 330101-00-12-05-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-12-05-01-05 Fail-Safe Proximity Probe for Critical Industrial Reliability

The Bently Nevada 330101-00-12-05-01-05 is a precision eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery, turbines, compressors, and critical drive trains, this probe is a cornerstone component in any safety-instrumented control architecture where unplanned downtime is not an option.

With a robust stainless-steel housing, the 330101-00-12-05-01-05 withstands high-temperature, high-vibration, and chemically aggressive field conditions — including petrochemical processing units, power generation turbines, offshore platforms, and heavy metallurgical equipment. Its eddy-current sensing principle ensures non-contact, wear-free measurement, eliminating mechanical degradation over extended service cycles and reducing maintenance intervention frequency in critical rotating machinery protection loops.

Every unit shipped by KNMKS undergoes full functional verification and signal output testing prior to dispatch, ensuring that the probe meets Bently Nevada factory performance specifications. Backed by a support terms confirmed by quotation, this component is available from verified inventory with fast global logistics support.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330101-00-12-05-01-05 proximity probe operates as the primary sensing element within a multi-layer protection chain. It is typically paired with the Bently Nevada 330180-X1-05 8mm Driver, which conditions the raw eddy-current signal into a calibrated voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor I/O Module — a rack-mounted signal processor that interfaces with the plant DCS or safety PLC via hardwired relay or 4–20 mA analog output.

Within the control cabinet, surge protection is critical. Transient voltage spikes from nearby VFDs, motor starters, or switching power supplies can corrupt proximity signal lines. Installing a Phoenix Contact TRABTECH surge arrester on the signal input terminals of the 3500 rack significantly reduces the risk of signal drift or false trip events caused by conducted EMI. For power supply redundancy, the Bently Nevada 3500/15 Power Supply Module provides dual-feed capability, ensuring that a single power rail failure does not interrupt the monitoring system.

In high-density control cabinets where thermal management is a concern, the proximity probe signal cables should be routed away from high-current power conductors and secured with EMI-rated cable glands. Pairing the probe system with a Bently Nevada 330130-045-00-00 Extension Cable of the correct length ensures impedance matching and preserves the calibrated scale factor across the full cable run — a critical requirement for accurate vibration amplitude measurement in API 670-compliant protection systems.

For facilities operating under IEC 61511 functional safety requirements, the proximity probe loop — from sensor to final element — should be documented with a full SIL verification, including proof-test intervals and diagnostic coverage ratios. The 3300 XL system’s proven field history and deterministic output behavior make it a reliable candidate for SIL 1 and SIL 2 machinery protection loops.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-12-05-01-05 is deployed across a wide spectrum of critical industrial sectors where rotating machinery reliability directly impacts process safety and production continuity.

In petrochemical and refinery operations, this probe monitors shaft radial vibration on centrifugal compressors and process pumps handling flammable or toxic media. Early detection of rotor imbalance, bearing wear, or seal degradation allows operators to schedule corrective maintenance during planned turnarounds rather than responding to emergency shutdowns — a critical advantage in continuous-process facilities where unplanned outages carry significant safety and financial consequences.

In power generation — including gas turbines, steam turbines, and large hydro generators — the 330101-00-12-05-01-05 provides the axial position and differential expansion data required by the turbine control system to execute safe load ramp-up and coast-down sequences. Incorrect or missing position data during these transient phases can result in blade-to-casing contact, a catastrophic failure mode that the 3300 XL system is specifically designed to prevent.

In mining and mineral processing, where crushers, mills, and conveyor drives operate under extreme dust, moisture, and shock-load conditions, the IP67-rated stainless-steel probe housing provides reliable protection against ingress and mechanical damage. The non-contact sensing principle eliminates the probe wear that would otherwise occur in high-particulate environments.

In water and wastewater treatment facilities, large vertical pump motors and blower drives benefit from continuous vibration monitoring to detect cavitation, impeller imbalance, and bearing deterioration before they escalate into pump failures that disrupt treatment capacity. The 330101-00-12-05-01-05 integrates directly into existing Bently Nevada 3500 rack systems already installed at many municipal and industrial water facilities worldwide.

In metallurgical and steel production environments, where rolling mill drives and continuous caster equipment operate under extreme thermal and mechanical stress, the high-temperature rating of the 3300 XL probe tip — up to 177°C — ensures reliable operation in close proximity to hot metal processing zones without signal degradation or premature sensor failure.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-12-05-01-05?
All Bently Nevada 330101-00-12-05-01-05 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, signal output non-conformance, and premature component failure under normal operating conditions. Support requests are supported with direct technical assistance and replacement logistics.

Q2: What pre-shipment testing is performed on each unit?
Every probe undergoes functional output verification, impedance check, and visual inspection prior to dispatch. Units are tested for compliance with the 3300 XL system’s calibrated scale factor (7.87 V/mm) and confirmed to be free from cable damage, connector corrosion, or housing deformation. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 330101-00-12-05-01-05 compatible with existing 3300 XL drivers and extension cables?
Yes. This probe is fully compatible with the Bently Nevada 3300 XL driver and extension cable ecosystem, including the 330180 series drivers and 330130 series extension cables. It is also compatible with the 3500/42M Proximitor I/O module and integrates with standard 3500 rack configurations without hardware modification.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains verified inventory of the 330101-00-12-05-01-05 and related 3300 XL system components to support both planned maintenance schedules and emergency replacement scenarios. For facilities with critical spare parts programs, we offer supply commitment discussions and priority fulfillment arrangements. Contact our technical sales team to discuss your site’s long-term stocking requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-12-05-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-12-05-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
