Bently Nevada 330101-00-11-20-02-CN Maintenance-Proven Spare Part for Factory Uptime

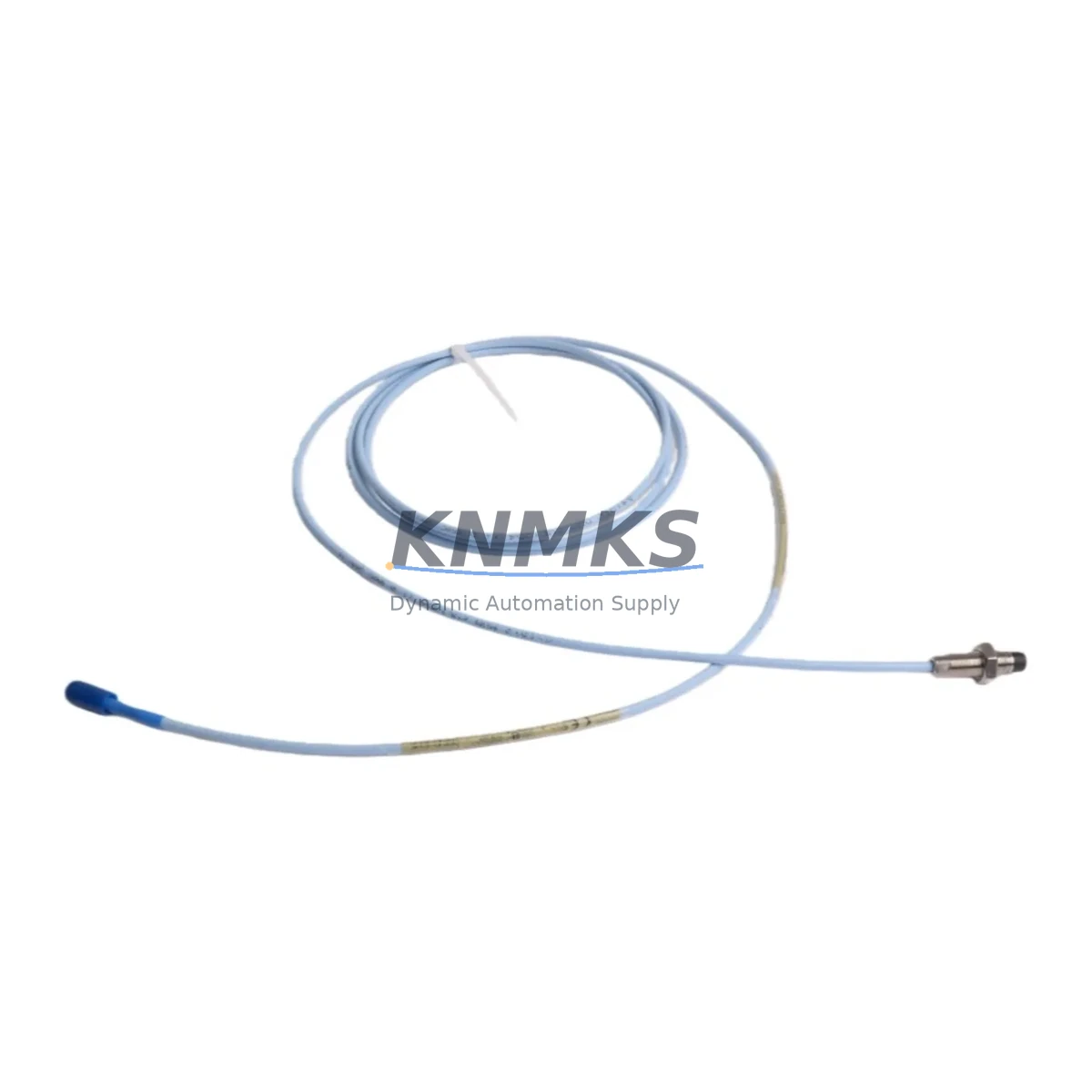

The Bently Nevada 330101-00-11-20-02-CN is an original 11mm proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications across energy, petrochemical, manufacturing, and infrastructure sectors. As a maintenance-proven spare part, this proximity probe is a critical component in turbine protection systems, compressor monitoring panels, and pump condition monitoring circuits where unplanned downtime carries significant operational and financial risk.

Maintenance engineers and procurement teams managing aging DCS/PLC-integrated machinery rely on the 330101-00-11-20-02-CN as a direct replacement for worn or failed proximity probes in Bently Nevada 3300 XL monitoring systems. The probe is factory-tested prior to shipment, verified for signal integrity, and backed by a support terms confirmed by quotation — ensuring confidence in both emergency replacement scenarios and planned annual overhaul cycles.

Whether you are responding to a vibration alarm, executing a scheduled turnaround, or building a strategic spare parts inventory for critical rotating equipment, the 330101-00-11-20-02-CN delivers the compatibility, reliability, and long-term supply assurance your maintenance program demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-11-20-02-CN proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the entire measurement chain is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by inspecting the 330130 Proximitor Sensor (driver/oscillator module) for output voltage drift, connector corrosion, or housing damage — a degraded Proximitor is the most common root cause of false vibration alarms that lead to unnecessary probe replacements.

The 330180 Barrier (intrinsic safety barrier or signal conditioner) should be checked for continuity and correct impedance matching, particularly in hazardous area installations where barrier degradation can introduce signal noise or measurement offset. Inspect all coaxial extension cables (typically 330130-series or field-wired RG-type) for kinks, abrasion, and connector integrity — cable faults account for a significant proportion of proximity system failures in high-vibration environments.

At the monitoring rack level, verify the 3300/16 or 3300/20 vibration monitor card for correct gap voltage reading (typically -10 VDC at nominal gap) and alarm setpoint configuration. If the system interfaces with a Bently Nevada 3500 Series rack for plant-wide condition monitoring, confirm that the channel configuration and transducer type settings remain consistent after probe replacement. For installations with signal isolators or galvanic isolators in the measurement loop, verify isolation resistance and output signal fidelity post-replacement.

Procurement engineers building annual maintenance kits for rotating equipment should consider stocking the 330101-00-11-20-02-CN alongside matched Proximitor sensors, extension cable assemblies, and terminal block connectors to enable complete loop replacement during planned outages — minimizing the risk of secondary failures extending downtime beyond the maintenance window.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3300 XL rack. Note the existing gap voltage and alarm status before disconnection.

Step 2 — Probe Removal: Disconnect the coaxial cable at the Proximitor junction. Remove the probe from the mounting bracket, noting the installed gap (typically 1.0–1.5 mm for standard steel targets). Record the thread engagement depth for reference.

Step 3 — New Probe Installation: Install the 330101-00-11-20-02-CN into the existing bracket. Set the gap to the recorded or OEM-specified value using a non-ferrous feeler gauge. Secure the locknut to prevent vibration-induced drift.

Step 4 — Cable Reconnection & Gap Verification: Reconnect the coaxial cable to the Proximitor. Power the loop and verify gap voltage at the Proximitor output (target: -10 VDC ±0.5 VDC at nominal gap). Adjust gap if required.

Step 5 — System Functional Check: Confirm vibration reading at the 3300 XL monitor is within expected baseline range. Verify alarm and trip setpoints are active. Document the replacement in the equipment maintenance log.

Step 6 — Return to Service: Release the work permit and restore normal monitoring. Schedule a follow-up gap check at the next available opportunity (recommended within 30 days of installation).

This workflow supports direct replacement of legacy 330101-series probes without modification to existing mounting hardware or cable infrastructure, preserving system compatibility and minimizing production impact.

Spare Parts Support FAQ

Q1: Is the 330101-00-11-20-02-CN compatible with all 3300 XL series monitors?
Yes. The 330101-00-11-20-02-CN is designed for use with the full Bently Nevada 3300 XL monitor family, including the 3300/16, 3300/20, 3300/25, and 3300/55 models, when paired with the correct 330130 Proximitor Sensor. Compatibility with non-standard target materials (e.g., titanium, Inconel) should be verified against the system calibration record before installation.

Q2: What pre-shipment testing is performed on this spare part?
Each 330101-00-11-20-02-CN unit undergoes signal output verification, gap calibration check, coaxial cable continuity test, and insulation resistance measurement before dispatch. A test report is available upon request. Units are shipped in anti-static protective packaging to prevent transit damage.

Q3: Can you support long-term supply commitments for critical spare parts programs?
Yes. We support blanket purchase orders and scheduled delivery programs for maintenance teams managing multi-unit rotating equipment fleets. Long-term supply agreements help ensure availability of the 330101-00-11-20-02-CN and associated components (Proximitor sensors, extension cables, barriers) without lead-time risk during peak maintenance seasons or plant turnarounds.

Q4: What support terms coverage applies to this spare part?
The 330101-00-11-20-02-CN carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and verified performance failures under normal operating conditions. Support requests are supported with replacement or credit, subject to inspection of the returned unit. Contact our technical team for support terms registration and claim procedures.
