Bently Nevada 330101-00-11-10-11-00 Migration-Ready Proximity Probe

Overview

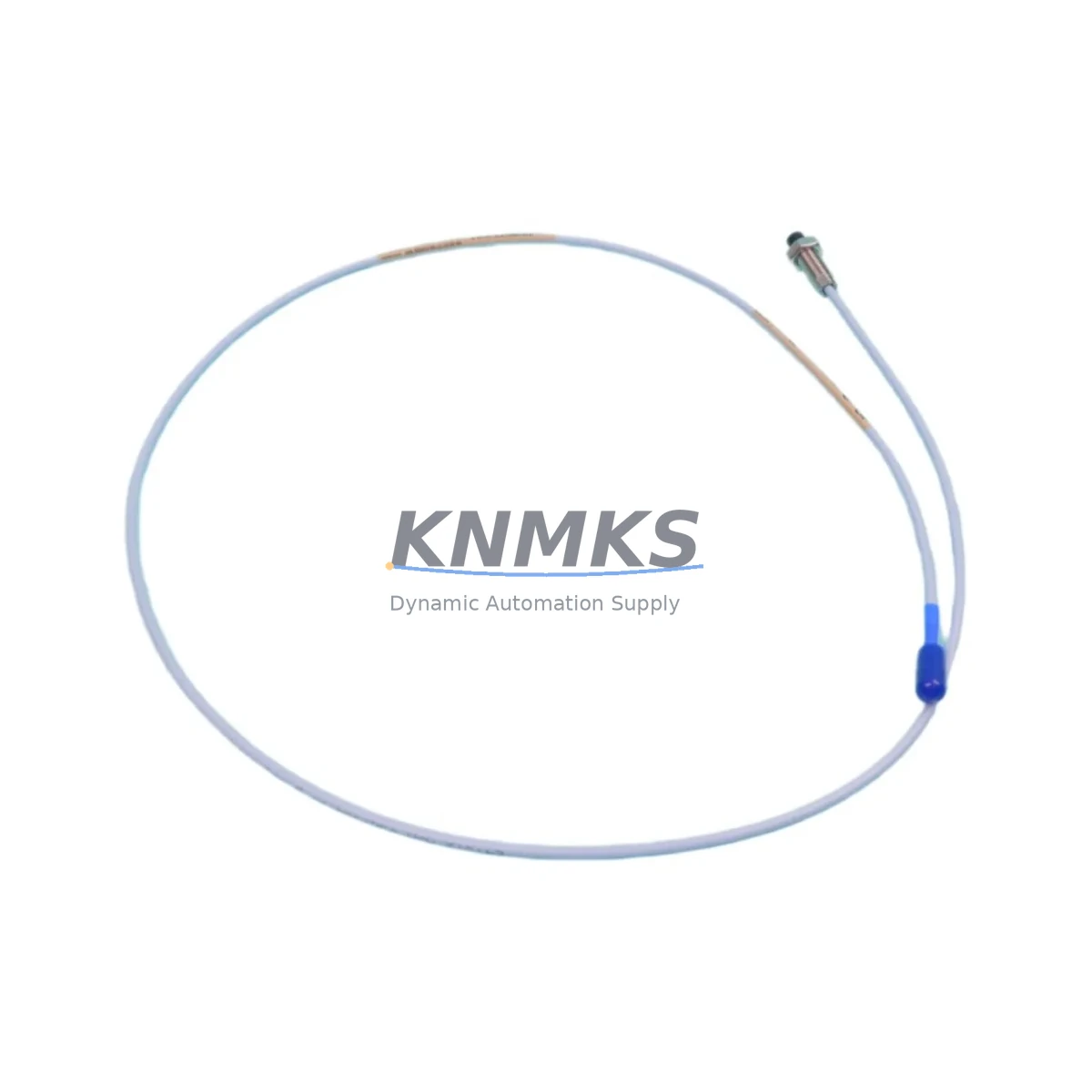

Bently Nevada 330101-00-11-10-11-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-11-10-11-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, this probe serves as a validated drop-in replacement for discontinued Bently Nevada proximity transducer assemblies, enabling facilities to extend operational continuity without full system overhauls. Whether you are managing a turbine protection panel, compressor train monitoring rack, or a multi-channel vibration monitoring cabinet, the 330101-00-11-10-11-00 delivers the signal integrity and dimensional compatibility required for seamless migration.

This probe is designed to interface directly with the Bently Nevada 3300 XL proximitor/seismic monitor series, maintaining the standard -24 VDC bias voltage output and the established sensitivity of 200 mV/mil (7.87 V/mm). Engineers replacing aging 330101-series probes in existing installations will find that the cable length, connector type, and thread specification align with original OEM mounting provisions, significantly reducing the mechanical rework required during scheduled turnarounds or emergency replacements.

In retrofit scenarios where the original Bently Nevada 3300 XL monitor cards — such as the 3300/16 or 3300/20 — remain in service, the 330101-00-11-10-11-00 maintains full electrical compatibility without requiring recalibration of the proximitor gap voltage or adjustment of the monitor’s alert and danger setpoints. This is particularly critical in facilities where the vibration monitoring logic is integrated into a DCS or safety instrumented system via hardwired 4–20 mA outputs or relay contacts, as any signal deviation during probe replacement could trigger spurious shutdowns.

For installations migrating from older Bently Nevada 7200 Series or 3000 Series proximity systems to the 3300 XL platform, the 330101-00-11-10-11-00 is frequently paired with the Bently Nevada 3300 XL 8mm Proximitor (330180-91-00) to form a complete transducer assembly. The proximitor provides the oscillator-demodulator function and must be matched to the probe cable length to ensure the system operates within the calibrated range. When replacing probes in multi-channel racks, it is advisable to also verify the condition of the Bently Nevada 3300/05 power supply module, as aging power supplies can introduce noise that masks genuine vibration signals.

Facilities upgrading control cabinets that previously housed Bently Nevada 3500 Series rack-based systems alongside 3300 XL monitors should confirm backplane slot assignments and I/O module addressing before commissioning the replacement probe. In mixed-platform environments, the 330101-00-11-10-11-00 may also be used in conjunction with Bently Nevada TK3 Series extension cables to bridge installation distances where the standard integral cable length is insufficient. Confirming the total system scale factor — probe plus extension cable plus proximitor — is a mandatory step before returning the machine to service.

For facilities operating under API 670 machinery protection standards, the 330101-00-11-10-11-00 supports compliance with radial vibration, axial position, and differential expansion measurement requirements when installed as part of a complete 3300 XL transducer assembly. Site engineers should document the as-found and as-left gap voltages during replacement, verify that the new probe’s target material matches the original calibration curve, and confirm that the Bently Nevada System 1 or ADRE data acquisition software reflects the updated channel configuration before closing out the work order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When planning the replacement of a 330101-00-11-10-11-00 in an operating plant, the first step is to audit the existing transducer assembly: confirm the integral cable length (typically 5m or 9m), inspect the armored conduit for damage, and verify that the probe holder thread is free of corrosion or mechanical deformation. If the probe holder requires replacement, the downtime estimate must account for machining or thread repair on the bearing housing.

In control cabinets where the 3300 XL monitor cards share a rack with Bently Nevada 3300/05 power supply modules and 3300/55 keyphasor modules, the replacement sequence should be planned to avoid disturbing adjacent channel wiring. Terminal block labeling should be photographed before disconnection, and the as-found gap voltage for each channel should be recorded in the maintenance management system. If the facility uses a Bently Nevada 3500/22M transient data interface or a 3500/42M proximitor I/O module in an adjacent rack, confirm that the channel mapping in the DCS historian remains consistent after the probe swap.

For plants migrating from older 7200 Series proximity systems, the 330101-00-11-10-11-00 may require a new probe holder to accommodate the M10 thread specification if the legacy installation used a 7200-series probe with a different thread form. In these cases, the Bently Nevada 330130-080-00-00 armored extension cable is commonly used to bridge the distance between the new probe and the existing conduit entry point. Signal isolation barriers or Bently Nevada 3300 XL signal conditioners may also be required if the monitor card input impedance differs from the original system design.

HMI screens in GE iFIX, Wonderware InTouch, or Rockwell FactoryTalk environments that display vibration trend data from the 3300 XL system should be reviewed to confirm that the engineering unit scaling and alarm thresholds remain valid after the probe replacement. If the facility’s safety instrumented system references the vibration channel for a protective function, the SIS logic should be bypassed and documented in the management of change record before work begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the maintenance window, the replacement 330101-00-11-10-11-00 should be bench-tested against a reference target to confirm the gap voltage curve matches the system’s calibration documentation. A pre-staged spare proximitor — such as the 330180-91-00 — should be available on-site in case the existing proximitor shows signs of drift or oscillator failure during the outage.

During the replacement, the monitor channel should be placed in bypass mode within the DCS or safety system to prevent spurious trip signals while the probe is disconnected. The original program logic in the PLC or DCS — including vibration alert, danger, and shutdown setpoints — must not be modified during the mechanical replacement. Once the new probe is installed and the gap voltage is confirmed within the acceptable range (typically -10 VDC ± 0.5 VDC at the design air gap), the bypass can be removed and the channel returned to normal monitoring service.

For facilities with redundant vibration monitoring channels, the replacement can be performed on one channel at a time while the redundant channel remains in service, effectively eliminating the risk of an unprotected machine condition during the outage. After both channels are restored, a coast-down or bump test should be performed to verify that the vibration trend data is consistent between channels and that the System 1 or ADRE waveform data reflects the expected machine signature. All as-left documentation — including gap voltage, probe serial number, and installation date — should be entered into the CMMS before the work order is closed.

Retrofit Support FAQ

Q1: Is the 330101-00-11-10-11-00 a direct replacement for discontinued Bently Nevada 330101-series probes?
Yes. The 330101-00-11-10-11-00 maintains the same 8mm diameter, M10 thread specification, sensitivity, and bias voltage output as the original 330101-series proximity probes. It is compatible with the 3300 XL proximitor and monitor card platform without requiring mechanical or electrical modifications to the existing installation.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, measure the gap voltage at the proximitor output with the machine stationary. Confirm the reading falls within the system’s calibrated range (typically -10 VDC ± 0.5 VDC at the design air gap). Record the as-left gap voltage in the maintenance management system, remove the monitor channel bypass, and verify that the vibration trend data in the DCS historian and HMI is consistent with the pre-outage baseline.

Q3: Can this probe be used with Bently Nevada 3500 Series monitor racks?
The 330101-00-11-10-11-00 is calibrated for the 3300 XL platform. Use with 3500 Series racks requires verification of the system scale factor and may require a different proximitor model. Consult the 3500 Series I/O module documentation and confirm the probe-proximitor-cable combination meets the 3500 system’s input requirements before installation.

Q4: What support terms and supply terms apply to this product?
All units are covered by a support terms confirmed by quotation from the date of shipment. Stock is maintained for immediate dispatch to support planned maintenance outages and emergency replacement requirements. Each unit is functionally tested before shipment to confirm gap voltage output and signal integrity.
