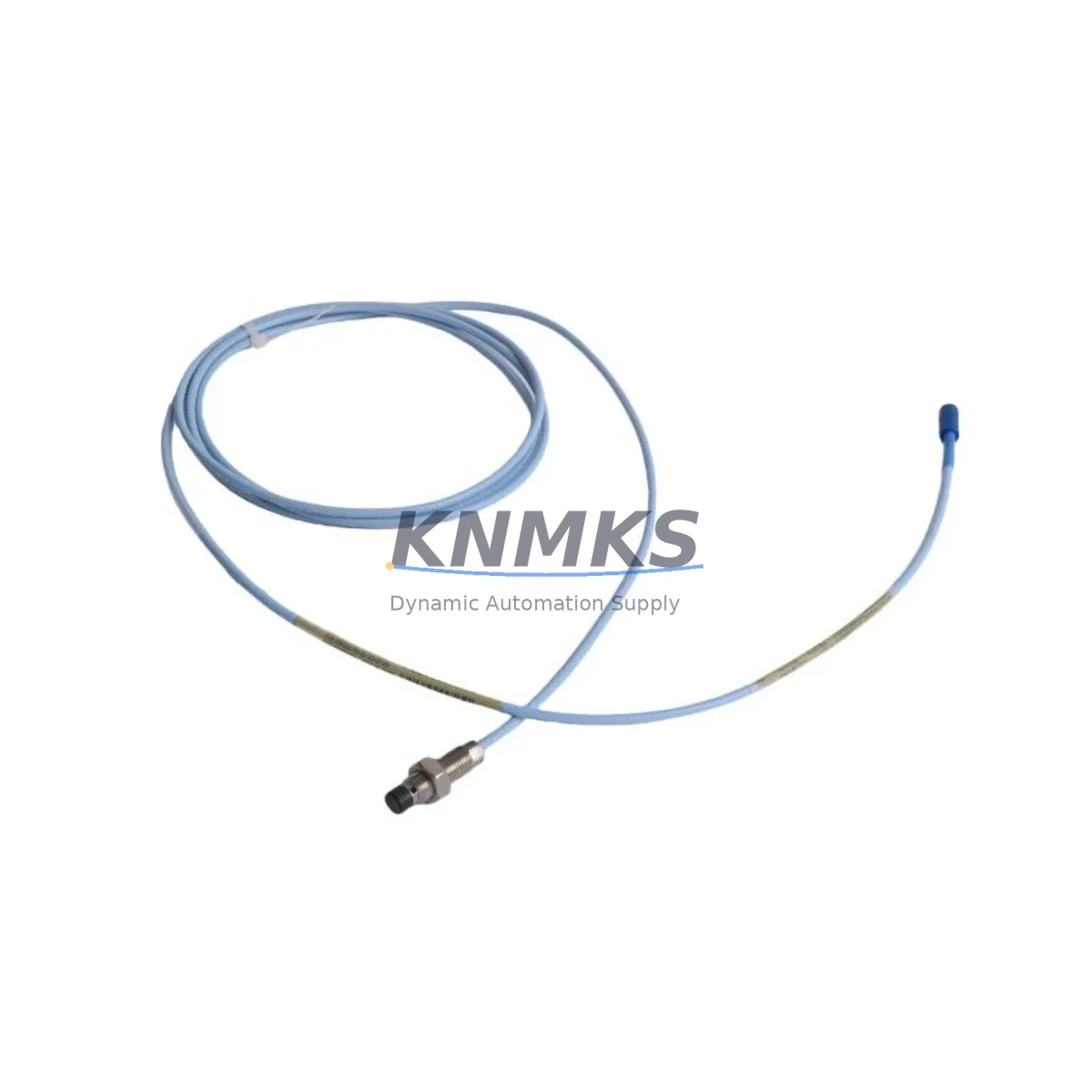

Bently Nevada 330101-00-11-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-11-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-11-10-02-00 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. Originally deployed across turbine, compressor, and pump trains running on the Bently Nevada 3300 XL monitoring platform, this probe remains one of the most widely specified sensors in legacy vibration protection systems worldwide. As original equipment reaches end-of-life and OEM support windows close, plant engineers and reliability teams are increasingly sourcing verified replacement units to sustain existing monitor racks without triggering a full system overhaul.

This listing supplies the 330101-00-11-10-02-00 as a migration-ready, drop-in replacement. Each unit is tested prior to shipment to confirm gap voltage output, sensitivity, and frequency response within Bently Nevada factory specification. Stock is available for immediate dispatch, supporting both emergency breakdown scenarios and planned turnaround outages where lead time from the OEM is no longer viable.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-11-10-02-00 in an operating plant requires a structured approach that accounts for the full measurement chain, not just the probe itself. The proximity probe is one component in a three-part system: the probe, the extension cable (typically a 330130-series cable matched to the required total system length), and the driver module housed in the monitor rack. When the probe is replaced, the extension cable connector and seating should be inspected simultaneously. If the plant has been running the original cable for more than a decade, proactive replacement of the extension cable alongside the probe eliminates a second unplanned outage.

At the monitor rack level, the 3300 XL monitor modules — including radial vibration monitors, axial position monitors, and keyphasor modules — must be verified for channel configuration before the new probe is energised. If the site is taking the opportunity to migrate from a 3300 XL rack to a Bently Nevada 3500 series rack, the channel scale factor, alert and danger setpoints, and OK relay logic must all be reconfigured in the 3500 rack software. The 3500/42M radial vibration monitor, for example, requires the sensitivity and gap voltage parameters to be entered explicitly during commissioning, and these values must match the probe-driver system being installed.

Power supply integrity is a critical pre-check. The 3300 XL driver requires a stable −24 VDC supply; confirm the rack power supply module output is within tolerance before connecting the new probe. If the rack power supply is also approaching end-of-life, replacing it during the same outage window avoids a repeat shutdown. Similarly, if the plant is running a DCS integration through a 3500/20 rack interface module or a Modbus gateway, verify that the communication link remains active after the channel is re-gapped and the monitor is returned to service — a misconfigured OK relay can generate a spurious trip signal that propagates to the DCS and initiates an unintended unit shutdown.

For sites running Bently Nevada System 1 condition monitoring software, the probe replacement should be logged in the asset database and the baseline vibration spectrum updated after the machine returns to normal operating speed and temperature. This ensures that trend alarms are referenced against a valid post-retrofit baseline rather than pre-replacement data that may reflect a degraded sensor.

Downtime Control During System Migration

Minimising downtime during a proximity probe replacement begins with pre-staging all components before the machine is taken offline. Confirm that the replacement 330101-00-11-10-02-00, the matched extension cable, and any required driver spares are on-site and bench-tested before the outage window opens. A pre-installation gap voltage check using a portable oscillator and voltmeter allows the technician to verify probe and driver functionality before the machine is opened, eliminating the risk of discovering a faulty replacement unit after the bearing housing has been disturbed.

During the outage, preserve the original program logic and setpoint configuration in the monitor rack by exporting the channel configuration from the 3300 XL or 3500 rack software before any hardware is disturbed. This configuration file becomes the restoration reference if the new probe requires setpoint adjustment or if the monitor channel needs to be reset. For sites where the vibration monitor is interlocked with a turbine control system or a safety instrumented system, coordinate the bypass procedure with the control room to ensure the interlock is properly inhibited during the re-gapping process and reinstated with a verified OK signal before the machine is restarted.

Post-installation, perform a slow-roll check at low shaft speed to confirm the gap voltage is stable and within the linear range before accelerating to operating speed. This step protects both the machine and the monitoring system by confirming sensor integrity before full load is applied. Document the as-left gap voltage, the slow-roll vibration reading, and the running vibration level at operating speed as the post-retrofit acceptance record.

Retrofit Support FAQ

Q1: Is the 330101-00-11-10-02-00 a direct drop-in replacement for the original Bently Nevada probe in a 3300 XL system?
Yes, provided the replacement probe is paired with the correct extension cable and driver for the total system cable length. The probe, extension cable, and driver must be treated as a matched system. Substituting only the probe while retaining a damaged or mismatched extension cable will result in calibration error and potential false readings.

Q2: Can this probe be used with a Bently Nevada 3500 series rack instead of the 3300 XL?
Yes. The 330101-00-11-10-02-00 is compatible with 3500 series monitor racks when paired with the appropriate 3500-series driver and the channel is configured with the correct sensitivity (7.87 V/mm) and gap voltage parameters. Confirm the rack channel type supports 8mm probe systems before ordering.

Q3: What pre-shipment testing is performed on each unit?
Each 330101-00-11-10-02-00 supplied by KNMKS is tested for gap voltage output across the linear range, sensitivity at nominal gap, and connector integrity before dispatch. A test record is available on request. Units are shipped with protective packaging to prevent connector damage in transit.

Q4: What support terms coverage applies, and what is the typical lead time?
All units carry a support terms confirmed by quotation covering manufacturing defects and verified performance deviation from Bently Nevada factory specification. Stock units are available for immediate dispatch. For volume requirements or blanket-stock arrangements to support planned maintenance programmes, contact the sales team to discuss allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-11-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-11-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
