Bently Nevada 330101-00-10-10-12-05 Spare for Factory Uptime: Maintenance-Proven Proximity Transducer for Continuous Operation

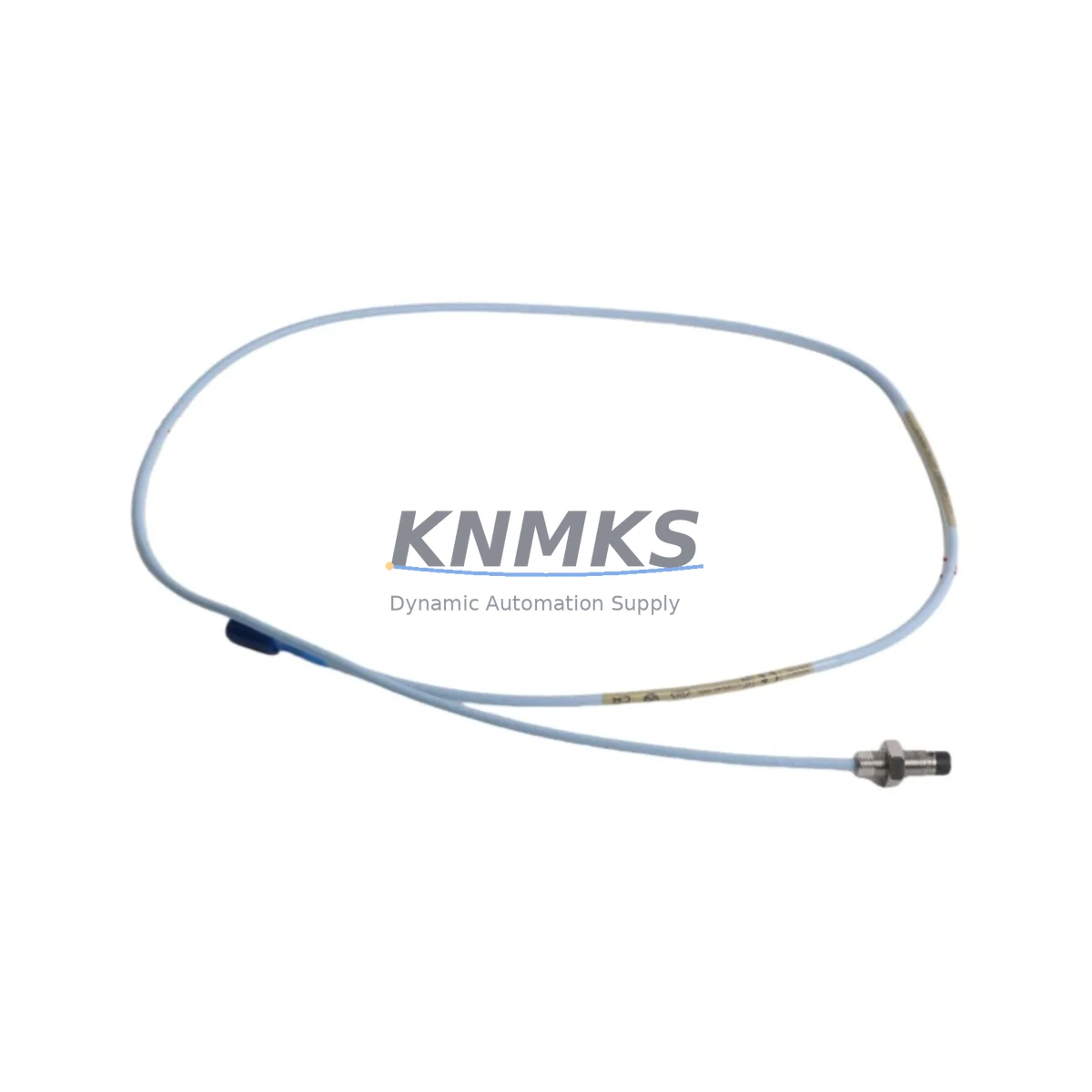

The Bently Nevada 330101-00-10-10-12-05 is an 8mm proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this transducer is a direct, original-specification replacement that restores system integrity without recalibration risk or compatibility compromise.

Maintenance engineers and reliability teams operating Bently Nevada 3300 XL systems depend on the 330101-00-10-10-12-05 as a front-line sensor in radial vibration, axial position, and differential expansion measurement loops. Its 8mm tip diameter, standard 5-metre extension cable configuration, and -24 VDC bias voltage output make it a plug-compatible replacement for aging or damaged transducers in existing conduit runs and junction boxes — minimising installation time and reducing the risk of wiring errors during emergency shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-10-10-12-05 proximity transducer is flagged during a routine control cabinet inspection or triggers a high-vibration alarm on the 3300 XL monitor, the replacement workflow should extend beyond the transducer itself. A disciplined maintenance engineer will simultaneously verify the condition of the paired Bently Nevada 330130-080-00-00 extension cable — the interconnect between the transducer and driver — since cable insulation degradation or connector corrosion is a common secondary failure mode that can cause erratic gap voltage readings even after a new transducer is installed.

The Bently Nevada 3300/20 proximitor/driver housed in the monitor rack should be inspected for output voltage drift and power supply rail stability. If the proximitor is drawing from a shared -24 VDC bus, verify that the 3300 XL power supply module is delivering within specification — a marginal power supply is frequently the root cause of repeated transducer failures in the same measurement channel. Facilities running older 3300 XL racks should also audit the 3300/16 or 3300/25 monitor cards for relay contact wear, particularly on trip and alert output circuits that feed the plant DCS or safety instrumented system.

For sites where the 3300 XL system interfaces with a Bently Nevada 3500 Series rack or a third-party DCS via 4–20 mA or Modbus, confirm that signal isolators and I/O termination boards remain within calibration. Fuse integrity on the transducer power feed circuit should be checked as part of every corrective maintenance event — a blown fuse on the -24 VDC supply line will produce a gap voltage out-of-range fault that mimics a failed transducer. Maintaining a bonded spare inventory that includes the 330101-00-10-10-12-05 transducer, the matching extension cable, and at least one proximitor driver ensures that any single-point failure in the measurement chain can be resolved within one shift, keeping the machinery protection system fully operational.

Site Replacement Workflow

Replacing the 330101-00-10-10-12-05 in the field follows a structured sequence that minimises downtime and eliminates the risk of introducing new faults during the intervention. Before removing the existing transducer, record the gap voltage displayed on the 3300 XL monitor channel — this baseline confirms the target air gap for the replacement unit and provides a reference for post-installation verification.

Disconnect the extension cable at the transducer end and inspect the MIL-C-5015 connector for moisture ingress, pin corrosion, or mechanical damage. If the connector shows any degradation, replace the extension cable assembly concurrently rather than reusing a compromised interconnect with a new transducer. Thread the replacement 330101-00-10-10-12-05 into the existing bracket or probe holder, adjusting the gap to achieve the nominal -10.0 VDC to -10.5 VDC output at the proximitor, which corresponds to the centre of the linear range for this transducer model.

After securing the locknut and reconnecting the extension cable, confirm the gap voltage on the monitor display and verify that the channel has cleared any latched alerts or trips. Document the as-left gap voltage in the equipment maintenance record. For systems where the 330101-00-10-10-12-05 replaces an older 330100 Series transducer, confirm that the proximitor driver part number is compatible with the 3300 XL specification — mixing legacy 3300 and current 3300 XL drivers on the same measurement chain can introduce sensitivity errors that are difficult to diagnose without a calibration reference.

This replacement procedure applies equally to planned outage windows and emergency corrective actions, and the straightforward installation geometry of the 8mm probe format means that a trained technician can complete the swap, gap-set, and verification sequence in under 30 minutes on most machine trains.

Spare Parts Support FAQ

Q1: Is the 330101-00-10-10-12-05 a direct replacement for older 330100 Series transducers in existing 3300 XL racks?
The 330101-00-10-10-12-05 is designed for the 3300 XL system and is the current-generation replacement for the earlier 330100 Series in most applications. However, compatibility depends on the specific proximitor driver installed in your rack. Verify the driver part number against the 3300 XL compatibility matrix before installation, particularly on racks that have not been upgraded from the original 3300 specification. We recommend confirming the full measurement chain — transducer, extension cable, and driver — before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-10-10-12-05 unit is electrically tested prior to dispatch to verify output sensitivity, bias voltage, and cable continuity. Units that do not meet the original Bently Nevada specification are not shipped. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and electrical performance, providing procurement teams with a documented quality assurance baseline for spare parts inventory records.

Q3: How should this transducer be managed within a long-term spare parts inventory strategy?
For critical rotating machinery — compressors, steam turbines, gas turbines, and large pumps — industry best practice recommends holding a minimum of one bonded spare per measurement channel for each machine train, with additional buffer stock for high-criticality or single-train assets. The 330101-00-10-10-12-05 has a stable shelf life when stored in its original packaging in a dry, temperature-controlled environment. Blanket purchase orders covering 12–24 months of anticipated consumption provide cost certainty and protect against lead-time risk from supply chain disruptions.

Q4: Can you support long-term or repeat supply requirements for this part?
Yes. We maintain stock of the 330101-00-10-10-12-05 and related 3300 XL Series components to support both emergency replacement orders and planned annual maintenance programmes. Orders are processed with short lead times, and we can accommodate blanket order arrangements for customers with recurring demand. All shipments include documentation suitable for maintenance records and quality management system compliance. Contact our team to discuss volume pricing, scheduled delivery, and multi-SKU spare parts packages tailored to your site’s 3300 XL inventory requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-10-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-10-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
