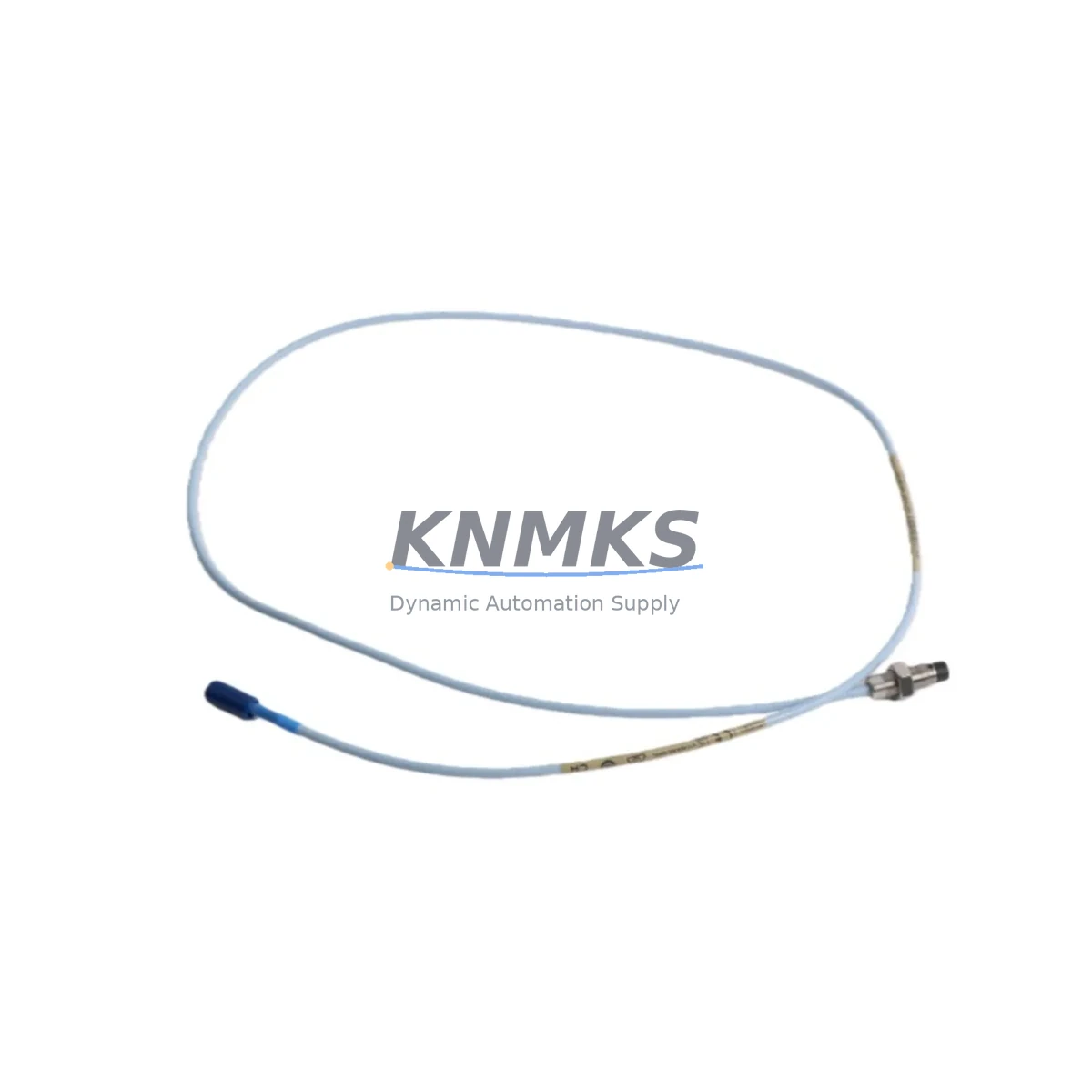

Bently Nevada 330101-00-10-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-10-10-02-CN Fail-Safe Proximity Probe: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330101-00-10-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port machinery, and marine propulsion systems, this probe delivers the measurement accuracy and signal integrity that safety-critical rotating machinery demands.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the 330101-00-10-10-02-CN provides a robust, interference-resistant sensing solution that protects rotating assets — turbines, compressors, pumps, fans, and gearboxes — from the risks of vibration-induced failure, shaft displacement anomalies, and undetected mechanical degradation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In safety-instrumented control cabinets and machinery protection panels, the 330101-00-10-10-02-CN probe operates as the primary sensing element within a complete 3300 XL measurement chain. For reliable signal transmission from the probe to the monitoring system, it is paired with a Bently Nevada 330130-045-00-CN extension cable, which maintains signal integrity across the full cable run without introducing impedance mismatches or ground loop interference — a critical concern in high-EMI environments such as variable frequency drive (VFD) cabinets and high-voltage switchgear rooms.

The signal is conditioned by the Bently Nevada 330180-X1-05 Proximitor Sensor, which converts the raw eddy-current signal into a calibrated DC voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor Monitor — a rack-mounted module that provides real-time vibration alarming, trip relay outputs, and Modbus/4–20 mA integration with plant DCS or safety PLC systems. In facilities running Rockwell Automation or Siemens S7-series safety PLCs, the 3500/42M monitor’s relay outputs can be wired directly into the safety interlock logic, enabling automatic machine trip on high-vibration events without operator intervention.

To protect the entire measurement chain from power-line transients and surge events — common in petrochemical and mining environments with long cable runs — a Phoenix Contact TRABTECH surge protection device is recommended at the cabinet entry point. Additionally, cabinet thermal management using Rittal TopTherm fan-and-filter units ensures that the Proximitor and associated signal conditioning modules remain within their rated operating temperature range, preventing thermal drift that could compromise measurement accuracy in high-ambient-temperature installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330101-00-10-10-02-CN is widely deployed on centrifugal compressors, reactor feed pumps, and crude oil transfer pumps in API 670-compliant machinery protection systems. Its ability to detect shaft radial vibration and relative displacement in real time enables early identification of rotor imbalance, bearing wear, and seal degradation — allowing maintenance teams to schedule corrective action before a forced shutdown or catastrophic failure occurs.

Power Generation: Steam turbine and gas turbine installations rely on eddy-current proximity probes for continuous shaft orbit monitoring. The 330101-00-10-10-02-CN’s wide operating temperature range and EMI-shielded coaxial cable make it suitable for turbine bearing pedestals where thermal gradients and electromagnetic noise from generator windings are significant challenges.

Mining & Mineral Processing: In ball mills, SAG mills, and slurry pump drives operating in dusty, high-vibration environments, the probe’s robust mechanical construction and sealed cable entry resist contamination ingress. Reliable shaft position data from this probe feeds directly into the mill protection interlock, preventing catastrophic bearing failure during high-load grinding cycles.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and structural resonance. The 330101-00-10-10-02-CN provides the measurement stability needed for long-interval condition monitoring programs in facilities where manual inspection access is limited.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and converter vessel tilting drives operate under extreme mechanical stress. Proximity probe-based monitoring on these assets provides early warning of gear mesh anomalies and coupling misalignment, reducing unplanned production interruptions in high-throughput steel plants.

Port & Marine: Ship propulsion shafting, bow thruster drives, and crane hoist gearboxes in marine and port environments face combined challenges of saltwater corrosion, vibration, and shock loading. The 330101-00-10-10-02-CN’s corrosion-resistant construction and wide temperature tolerance support reliable operation in these harsh offshore and dockside conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-10-10-02-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with replacement dispatch or documented resolution support, subject to return inspection. Coverage begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-10-10-02-CN probe undergoes a full functional verification prior to dispatch, including signal output linearity check, cable continuity and insulation resistance test, and connector integrity inspection. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL Series extension cables and Proximitor monitors?
Yes. The 330101-00-10-10-02-CN is fully compatible with the complete Bently Nevada 3300 XL measurement chain, including 330130-series extension cables and 330180-series Proximitor sensors. It is also backward-compatible with legacy 3300 Series installations where the probe tip diameter and thread specification match. Confirm your existing Proximitor model before installation to ensure scale factor alignment.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated stock of the 330101-00-10-10-02-CN and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and long-term spare parts programs. For facilities requiring guaranteed inventory reservation or annual supply agreements, contact our technical sales team to discuss stocking arrangements tailored to your maintenance cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-10-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-10-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
