Bently Nevada 330101-00-10-10-02-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-00-10-10-02-00 Spare Part for Factory Uptime

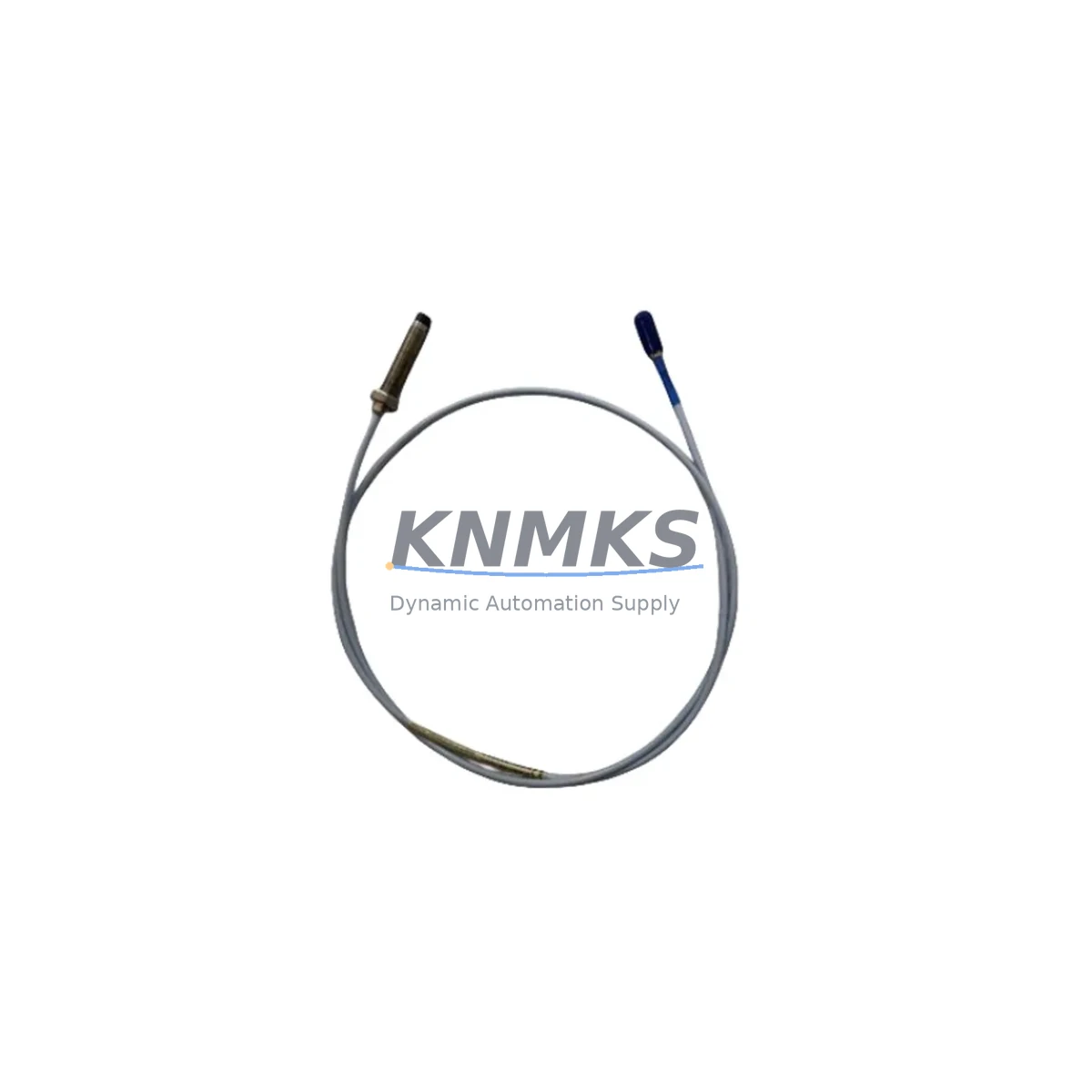

The Bently Nevada 330101-00-10-10-02-00 is an original proximity probe designed for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the 3300 XL Series condition monitoring system, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers depend on to sustain uninterrupted production. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a strategic spare parts inventory, the 330101-00-10-10-02-00 is a maintenance-critical component that should be stocked and verified before it is needed.

Proximity probes in the 3300 XL system are subject to mechanical wear, cable fatigue, connector corrosion, and signal drift over extended service cycles. When a probe fails or drifts out of calibration tolerance, the entire vibration monitoring loop — from the probe tip through the extension cable to the Proximitor® sensor — must be evaluated as a matched system. Replacing only the probe without verifying the paired extension cable and Proximitor® sensor can introduce measurement error that compromises machinery protection integrity. This unit ships pre-tested and verified against OEM electrical specifications, with a support terms confirmed by quotation covering manufacturing defects and performance conformance.

For maintenance teams managing turbines, compressors, pumps, and gearboxes instrumented with Bently Nevada 3300 XL systems, maintaining a minimum of one spare probe assembly per critical machine train is a recognized best practice. Procurement engineers sourcing long-lead spare parts for multi-site operations will find that stocking the 330101-00-10-10-02-00 alongside matched extension cables and Proximitor® sensors eliminates the risk of mismatched system gaps during emergency replacements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement should never be treated as an isolated swap. The 3300 XL transducer system is a matched assembly: the 330101-00-10-10-02-00 probe, its paired extension cable (such as the 330130 series), and the Proximitor® sensor (3300 XL 8 mm or 11 mm series) must be calibrated and verified together to maintain system accuracy within API 670 tolerances. During any planned or emergency replacement, maintenance engineers should simultaneously inspect the following components:

• Extension Cable (e.g., 330130-045-00-00): Check for jacket abrasion, connector corrosion, and continuity. A degraded cable introduces impedance mismatch that shifts the output voltage even with a new probe installed.
• Proximitor® Sensor (3300 XL series): Verify bias voltage output (typically -10 VDC at mid-gap) and confirm the sensor is matched to the probe tip diameter. Mismatched Proximitor® sensors are a common source of post-replacement calibration failures.
• Barrier or Signal Conditioner: In hazardous area installations, inspect the associated Zener barrier or galvanic isolator for continuity and correct voltage clamping. A failed barrier can suppress the probe signal or cause false high-vibration trips.
• I/O Module and Monitor Card (3500 series or equivalent): Confirm the monitor channel is reading within the expected gap voltage range after probe installation. A channel that reads out-of-range after a verified probe installation may indicate a failing monitor card or wiring fault at the terminal block.
• Terminal Block and Field Wiring: Inspect for loose terminations, moisture ingress, and insulation breakdown. High-resistance connections at the terminal block introduce noise that can trigger nuisance alarms on sensitive vibration channels.
• Power Supply to Monitor Rack: Confirm the rack power supply (typically 24 VDC) is within tolerance. Voltage sag under load can affect Proximitor® sensor bias output and degrade measurement accuracy across all channels simultaneously.

For facilities operating multiple machine trains with 3300 XL instrumentation, a consolidated spare parts kit — including at least one 330101-00-10-10-02-00 probe, one matched extension cable, and one spare Proximitor® sensor — reduces mean time to repair (MTTR) from hours to minutes during an unplanned outage.

Site Replacement Workflow

Replacing the 330101-00-10-10-02-00 in the field follows a structured sequence to minimize downtime and avoid introducing new faults during the repair:

• Step 1 — Isolate and Document: Record the existing gap voltage and vibration baseline from the monitor display before removing the probe. This establishes the reference for post-installation verification.
• Step 2 — De-energize and Disconnect: Remove power from the Proximitor® sensor or place the monitor channel in bypass mode per site safety procedures. Disconnect the extension cable at the probe connector.
• Step 3 — Remove Old Probe: Unthread the probe from the mounting bracket. Inspect the bracket threads and seating surface for damage. Clean the mounting bore before installing the replacement.
• Step 4 — Install Replacement Probe: Thread the 330101-00-10-10-02-00 into the bracket and set the initial gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for standard steel targets). Use a non-metallic feeler gauge to avoid target surface damage.
• Step 5 — Reconnect and Energize: Reconnect the extension cable, restore power to the Proximitor® sensor, and allow a 2-minute warm-up period before reading the gap voltage.
• Step 6 — Verify and Fine-Tune: Confirm the gap voltage reads within the linear range (approximately -10 VDC at nominal gap). Adjust probe position as needed and lock the locknut to the specified torque.
• Step 7 — Restore Monitor Channel: Remove bypass mode, confirm alarm setpoints are active, and document the new gap voltage in the maintenance record.

This workflow is compatible with both hot-standby and single-channel monitor configurations and supports compliance with API 670 documentation requirements for machinery protection system maintenance records.

Spare Parts Support FAQ

Q1: Is the 330101-00-10-10-02-00 compatible with all 3300 XL Proximitor® sensors?
The 330101-00-10-10-02-00 is designed for use with the 3300 XL 8 mm proximity transducer system. Compatibility with specific Proximitor® sensor models depends on the probe tip diameter and cable length configuration. Always verify the complete system part numbers (probe + extension cable + Proximitor® sensor) against the Bently Nevada system specification sheet before installation. We can assist with compatibility verification prior to shipment.

Q2: What does the support terms confirmed by quotation cover, and how is it validated?
The support terms confirmed by quotation cover manufacturing defects, electrical performance non-conformance, and mechanical integrity from the date of shipment. Each unit undergoes pre-shipment electrical testing including sensitivity verification, bias voltage check, and continuity confirmation. Test records are available upon request. Support requests are processed through direct contact with our technical support team.

Q3: Can you support long-term supply agreements for multi-site operations?
Yes. We support blanket purchase orders and long-term supply agreements (12–36 months) for the 330101-00-10-10-02-00 and associated 3300 XL system components. Reserved stock arrangements are available for facilities with critical uptime requirements. Contact our procurement team to discuss volume pricing, lead time guarantees, and consignment stocking options.

Q4: What is the recommended spare parts stocking strategy for the 330101-00-10-10-02-00?
For facilities with two or more machine trains instrumented with 3300 XL systems, we recommend maintaining a minimum of two probe assemblies per site as active spares. For single-train critical applications (e.g., main steam turbines or primary compressors), a minimum of one complete matched set — probe, extension cable, and Proximitor® sensor — should be held in a controlled spare parts store with annual condition verification. Probes stored beyond 36 months should be electrically re-verified before installation.
