Bently Nevada 330101-00-10-10-01-00 Migration-Ready Proximity Transducer

Overview

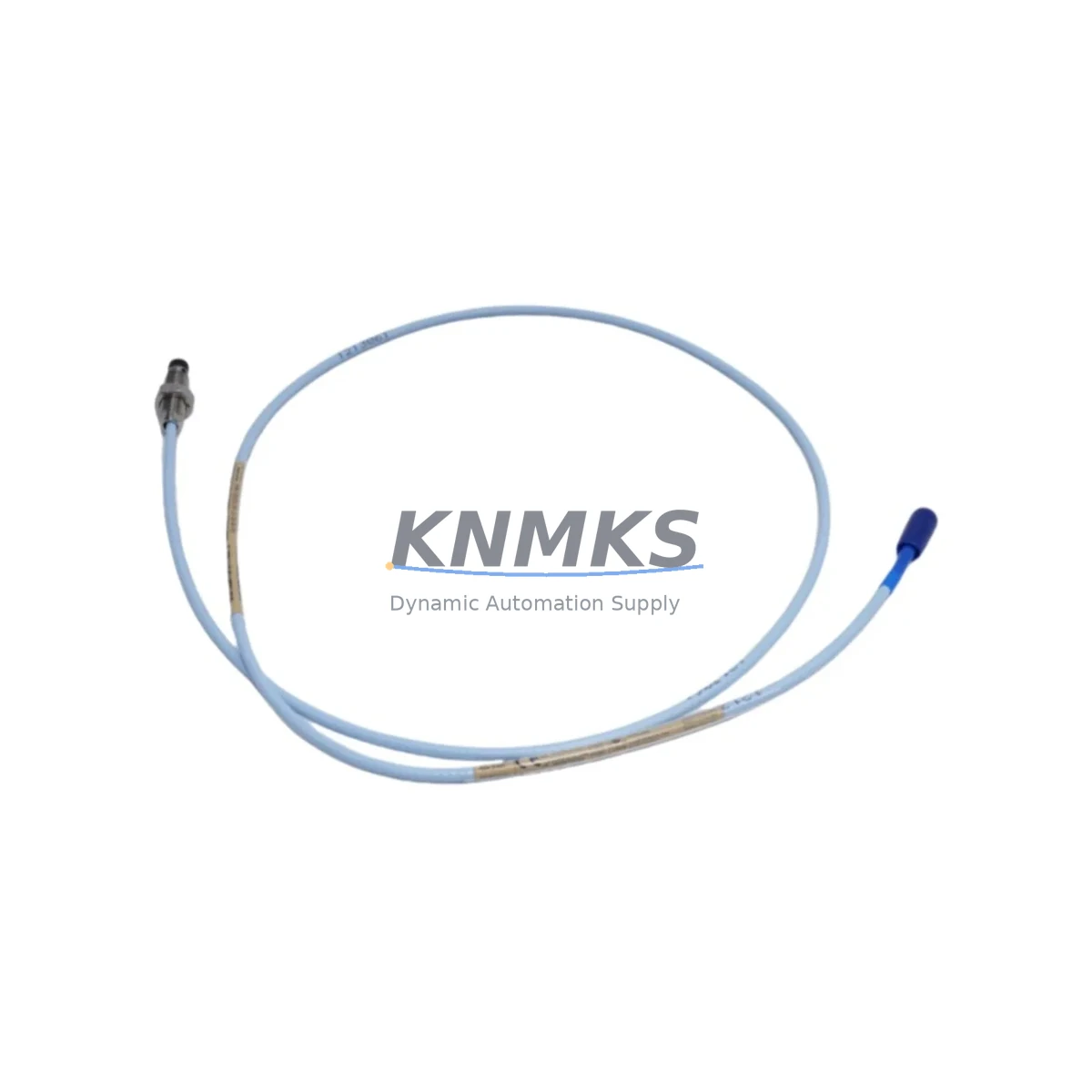

Bently Nevada 330101-00-10-10-01-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330101-00-10-10-01-00 is an eddy-current proximity transducer engineered for the 3300 XL Series continuous monitoring system. As legacy rotating machinery protection platforms approach end-of-support, this module serves as a direct migration-ready replacement for discontinued 3300 Series transducers, enabling maintenance teams to restore vibration and position measurement capability without redesigning the monitoring architecture. Whether you are upgrading a turbine protection panel, retrofitting a compressor train, or restoring a legacy condition monitoring rack, the 330101-00-10-10-01-00 delivers the signal integrity and dimensional compatibility required for a low-risk, minimum-downtime changeover.

This transducer operates on the standard Bently Nevada 3300 XL signal conditioning chain. It is designed to interface directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, maintaining the 200 mV/mil (7.87 V/mm) scale factor that existing monitor cards and relay modules are calibrated to accept. Engineers replacing a failed or obsolete 330101-00-05-10-01-00 or 330101-00-15-10-01-00 variant should verify cable length and gap voltage at commissioning, as the 10-metre extension length of this SKU is a key differentiator in multi-transducer rack configurations.

For sites running the 3500 Series machinery protection system in parallel, the 330101-00-10-10-01-00 can be integrated into mixed-generation monitoring architectures where the 3500/42M Proximitor I/O Module handles signal routing. Confirm that the Proximitor input channel is configured for the correct transducer type and that the 3500 rack’s system power supply provides adequate current headroom when adding transducer channels during a phased migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the transducer arrives on site. Start by auditing the existing monitoring rack to confirm which Proximitor Sensor model is installed — the 3300 XL Proximitor and the earlier 3300 NSv Proximitor have different housing dimensions and connector pinouts, and substituting one for the other without updating the junction box wiring can introduce ground loops that corrupt vibration readings. If the rack also houses a 3300 XL 16-Channel Temperature Monitor or a 3300 XL Dual Voting Logic module, verify that the backplane power budget accommodates the additional transducer channel before energising the new assembly.

Cable routing is a frequent source of delay in field retrofits. The 330101-00-10-10-01-00 ships with a 10-metre armoured extension cable. If the existing conduit run is shorter, the excess cable must be coiled and secured away from high-voltage conductors to prevent electromagnetic interference on the low-level transducer signal. For installations where the original cable was a 5-metre variant (such as those paired with a 330101-00-05-10-01-00), a cable extension adapter or a full cable replacement may be required — confirm conduit fill capacity and bend radius before pulling new cable.

Sites that are simultaneously upgrading their HMI from a legacy operator station to a modern SCADA platform should note that the 3300 XL system communicates vibration data to the control room via the 3500 Gateway Communication Module or a dedicated serial link. If the new HMI uses Modbus TCP or OPC-UA, confirm that the gateway firmware supports the target protocol and that the tag database has been updated to reflect the new transducer channel addresses. Failure to update the HMI tag map is one of the most common causes of false alarms during the first 48 hours after a monitoring system retrofit.

For compressor and turbine applications where the machine cannot be taken offline for extended periods, consider a staged replacement strategy: install the new 330101-00-10-10-01-00 in a spare channel of the 3500 rack while the legacy transducer remains active, validate the gap voltage and vibration readings against the reference channel, then cut over during the next scheduled maintenance window. This approach keeps the protection system live throughout the transition and provides a direct signal comparison that simplifies commissioning sign-off.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer replacement requires a structured pre-outage checklist. Before removing the legacy unit, download and archive the current monitor configuration from the 3300 XL or 3500 rack using the System 1 software or the rack’s front-panel interface. This preserves alarm setpoints, danger levels, and channel-specific calibration offsets that would otherwise need to be re-entered manually — a process that can add two to four hours to a commissioning window if the original configuration file is unavailable.

During the physical swap, keep the Proximitor Sensor powered if the rack design permits hot-swap on the transducer channel. Some 3300 XL rack configurations allow the Proximitor to remain energised while the probe is disconnected, which means the monitor card continues to report a valid (though out-of-range) signal rather than dropping into a fault state that could trigger a spurious shutdown relay. Confirm this behaviour with the rack’s I/O module documentation before proceeding.

After installation, perform a static gap check before rotating the machine. The nominal gap for an 8 mm probe on a steel target should produce a DC output of approximately −10 to −18 VDC depending on the target material and surface finish. Record this baseline value in the maintenance log alongside the transducer serial number and installation date. If the gap voltage falls outside the expected range, re-gap the probe before closing the bearing housing — correcting a gap error after the machine is back in service requires another outage.

Finally, run a 30-minute observation period at low speed before returning the machine to full load. Monitor the vibration trend on the 3300 XL or 3500 display and compare the new channel’s readings against adjacent channels or historical baseline data. Any anomalous spike or drift during this period is far easier to investigate and correct while the machine is still at reduced speed than after it has been returned to production.

Retrofit Support FAQ

Q1: Is the 330101-00-10-10-01-00 a direct drop-in replacement for the 330101-00-05-10-01-00?
The probe tip, thread, and scale factor are identical, but the extension cable length differs — 10 metres versus 5 metres. Before ordering, measure the distance from the probe mounting location to the Proximitor junction box. If the existing conduit is sized for a 5-metre cable, you will need to either re-route the cable or use a cable management solution to handle the additional 5 metres. The monitor card calibration does not need to change.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-10-10-01-00 is bench-tested for scale factor accuracy, gap voltage linearity, and cable continuity prior to shipment. A test report is available upon request. Units are shipped in anti-static packaging with end-cap protection on the probe tip to prevent damage during transit. The support terms confirmed by quotation cover manufacturing defects and is valid from the date of shipment.

Q3: Can this transducer be used with a 3500/42M Proximitor I/O Module?
Yes. The 330101-00-10-10-01-00 is compatible with the 3500/42M when the I/O module is configured for the 3300 XL 8 mm transducer type. Confirm the I/O module firmware revision supports this transducer family and that the rack’s system power supply provides sufficient current for the additional channel. Update the System 1 database to include the new channel before going live.

Q4: What is the lead time and stock availability?
We maintain in-stock inventory of the 330101-00-10-10-01-00 to support urgent replacement and planned maintenance schedules. Standard orders ship within 1–3 business days. For large-quantity blanket orders or multi-site retrofit programmes, contact our sales team to discuss reserved stock arrangements and volume pricing. All units are covered by a support terms confirmed by quotation from the date of shipment.
