Bently Nevada 330101-00-08-50-02-CN Migration-Ready Proximity Probe

Overview

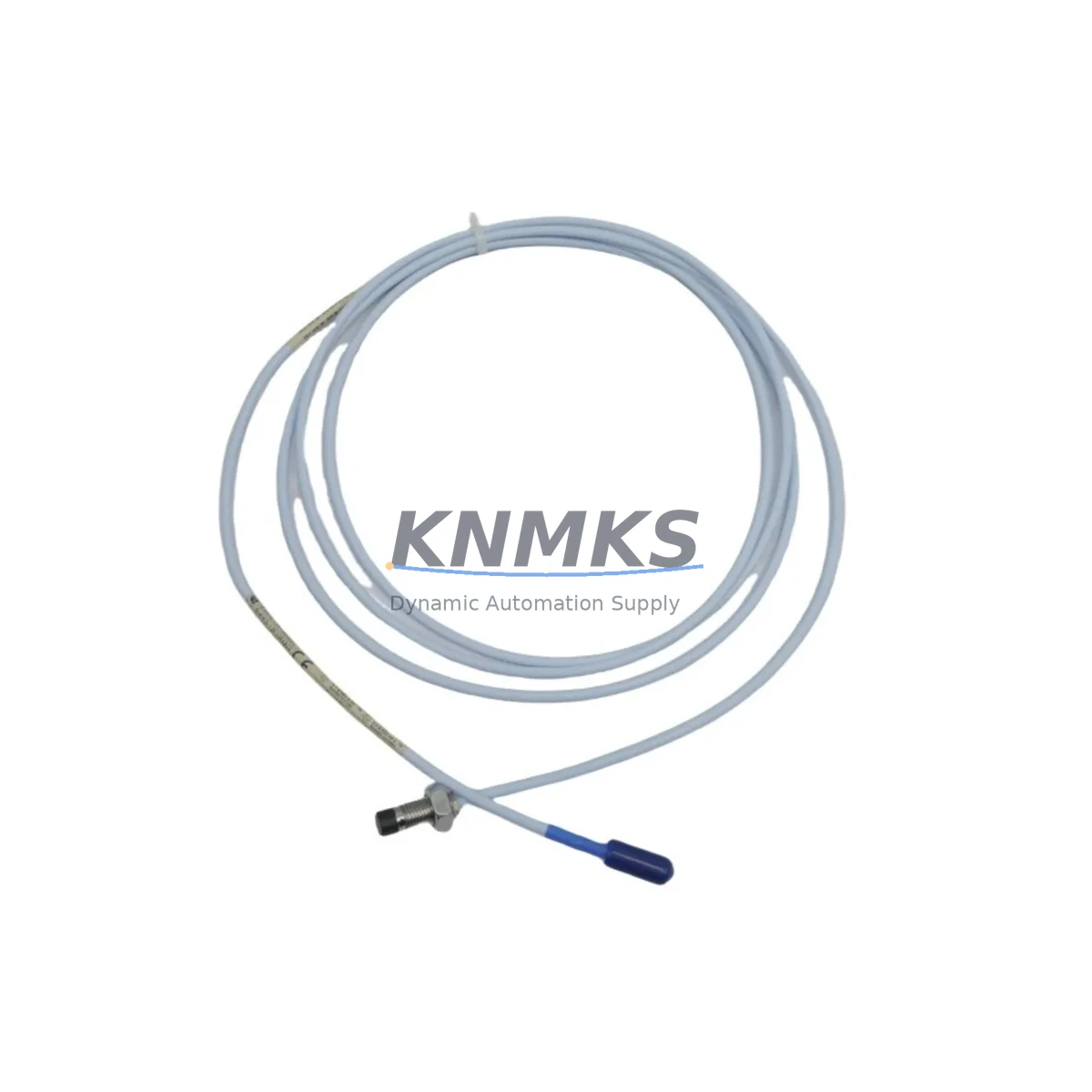

Bently Nevada 330101-00-08-50-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-08-50-02-CN is an 8mm proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, this probe serves as the primary drop-in replacement for discontinued 3300 Series probes, enabling plant engineers to extend the operational life of existing monitoring systems without requiring full rack replacement or DCS reconfiguration. Whether you are managing a planned shutdown retrofit or responding to an unplanned probe failure, the 330101-00-08-50-02-CN is stocked and ready for immediate dispatch with full factory-equivalent performance.

This probe is designed for direct integration into existing 3300 XL monitor racks. The 8mm sensing tip, 5-meter armored cable, and standard TNC connector allow technicians to swap the probe without modifying the existing conduit routing or junction box layout. Before installation, engineers should confirm the gap voltage setting on the paired 3300 XL proximitor — typically the Bently Nevada 330180-X1-05 proximitor — to ensure the output signal remains within the monitor’s acceptance window. Incorrect gap voltage is the most common cause of false alerts following a probe replacement, and this step should be completed before the machine is returned to service.

For plants running the Bently Nevada 3500 Series rack alongside legacy 3300 XL hardware, the 330101-00-08-50-02-CN remains compatible with 3300 XL proximitors and does not require a firmware update on the monitor side. However, if the migration path involves transitioning the entire monitoring loop to a 3500/42M Proximitor Monitor, the probe cable length and connector type should be re-evaluated against the new rack’s I/O terminal block assignments. In mixed-generation installations, it is advisable to document the existing Keyphasor reference signal routing before any hardware swap to avoid losing phase reference data during the transition.

Terminal wiring for the 330101-00-08-50-02-CN follows the standard Bently Nevada color-coded scheme: the shield drain wire must be grounded at one end only — typically at the proximitor housing — to prevent ground loop interference in the vibration signal. Plants that have previously experienced signal noise issues after probe replacement should inspect the grounding continuity of the cable armor before commissioning the new probe. In installations where the cable runs through areas with high electromagnetic interference, additional shielding or rerouting away from VFD power cables may be necessary to maintain signal integrity.

When this probe is used as part of a broader control cabinet upgrade — for example, when replacing an aging Allen-Bradley or Siemens PLC rack alongside the vibration monitoring system — the 4–20 mA or voltage output from the 3300 XL monitor can be re-terminated to the new PLC’s analog input module without signal conditioning, provided the input impedance of the new module falls within the monitor’s specified load range. This simplifies integration when the plant is simultaneously upgrading to a newer control platform and avoids the need for additional signal isolators in the loop.

Spare parts lifecycle planning is a critical consideration for any plant running 3300 XL hardware. The 330101-00-08-50-02-CN is available from KNMKS with verified stock, allowing maintenance teams to pre-position replacement probes in the site spare parts store ahead of scheduled turnarounds. Each unit is tested prior to shipment and supplied with a support terms confirmed by quotation covering manufacturing defects. For plants managing multiple machine trains, bulk procurement of matched probe and proximitor sets — such as pairing the 330101-00-08-50-02-CN with the corresponding 330180 proximitor and 330130 extension cable — reduces the risk of mismatched component specifications during emergency replacements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330101-00-08-50-02-CN into an existing automation environment requires a structured review of the surrounding system components before the maintenance window begins. The probe itself is a passive sensor, but its performance is directly dependent on the condition and calibration of the associated 330180 proximitor, the 330130 extension cable connecting the probe to the proximitor, and the 3300 XL monitor card receiving the signal. If any of these components are at or beyond their recommended service life, replacing the probe alone may not restore full system performance.

For plants where the 3300 XL rack is integrated into a broader DCS or SCADA architecture via a Bently Nevada 3500/22M Transient Data Interface or a legacy serial gateway, the retrofit plan should include a review of the communication link between the vibration monitor and the plant historian. Changes to the monitor’s channel configuration — such as reassigning the probe to a different monitor slot — can alter the data tag mapping in the historian, requiring a corresponding update in the DCS configuration or the OPC server tag list.

In control cabinets where the 3300 XL rack shares enclosure space with a PLC chassis — for example, a Siemens S7-300 or an Allen-Bradley ControlLogix rack — the physical installation of the replacement probe cable should be planned to maintain the required separation between the low-level sensor cable and the PLC’s 24 VDC power supply wiring. Inadequate separation is a common source of induced noise on the vibration signal and can cause nuisance trips on the monitor’s danger relay output, which may be wired directly into the PLC’s digital input module for machine protection logic.

If the retrofit is part of a broader I/O expansion project — for example, adding new measurement points to an existing 3300 XL rack — the available slot count in the rack should be confirmed before ordering additional monitor cards. The 3300 XL rack supports a fixed number of monitor slots, and adding a new probe channel may require either a rack expansion or the installation of a second rack with its own power supply module. In either case, the Keyphasor signal must be distributed to all racks monitoring the same machine train, which may require a Keyphasor distribution module if the existing wiring does not support multiple rack connections.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or system migration begins with pre-staging all replacement components — including the 330101-00-08-50-02-CN probe, the matched proximitor, and any required extension cable — at the work site before the machine is taken offline. Each unit supplied by KNMKS is tested prior to shipment, which eliminates the need for incoming inspection testing during the maintenance window and allows the technician to proceed directly to installation.

To protect the existing program logic and alarm setpoints stored in the 3300 XL monitor, the monitor’s configuration should be exported using Bently Nevada’s System 1 software or the monitor’s front-panel interface before any hardware is disturbed. This configuration backup ensures that if the monitor card is inadvertently reset during the probe swap — for example, due to a power interruption — the original setpoints, full-scale ranges, and danger relay assignments can be restored without requiring the original commissioning engineer to be present on site.

For machines that cannot be taken fully offline during the probe replacement — for example, in continuous process plants where the machine train must remain in service — a temporary bypass of the monitor’s danger relay output may be required during the gap voltage adjustment procedure. This bypass should be coordinated with the control room operator and documented in the plant’s management of change system before work begins. The bypass should be removed and the relay output verified before the machine is returned to normal monitored operation.

After the new probe is installed and the gap voltage is set, the monitor’s OK relay output should be confirmed in the healthy state before the maintenance window is closed. Any residual vibration alarm conditions should be acknowledged and cleared in the DCS or SCADA system, and the plant historian should be checked to confirm that the new probe’s data tag is logging correctly. A short period of monitored operation — typically one full machine startup and stabilization cycle — is recommended before the retrofit is considered complete and the work order is closed.

Retrofit Support FAQ

Q: Is the 330101-00-08-50-02-CN a direct replacement for my existing 3300 Series probe?
A: Yes. The 330101-00-08-50-02-CN is dimensionally and electrically compatible with standard 3300 XL 8mm probe installations. No wiring modification is required in most cases. Confirm the thread size of the probe boss and the cable routing before installation to ensure a drop-in fit.

Q: Do I need to recalibrate the proximitor after replacing the probe?
A: Gap voltage adjustment is required after any probe replacement. Use a digital multimeter or the Bently Nevada gap tool to set the output voltage to the nominal gap value specified for your machine’s measurement range. This step is critical to ensure the monitor’s OK relay remains in the healthy state and that vibration readings are accurate.

Q: What is the support terms coverage for this probe?
A: Each 330101-00-08-50-02-CN supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects. Units are tested prior to dispatch. If a support terms claim is required, contact KNMKS at [email protected] with the order reference and a description of the fault.

Q: Can KNMKS supply matched sets of probe, proximitor, and extension cable for a full loop replacement?
A: Yes. KNMKS maintains stock of the 330101-00-08-50-02-CN probe alongside compatible 330180 proximitors and 330130 extension cables. Ordering matched sets ensures component compatibility and simplifies the commissioning process. Contact [email protected] or call +86 18359268345 for availability and lead times.
