Bently Nevada 330101-00-08-20-12-05 Migration-Ready 8mm Proximity Probe

Overview

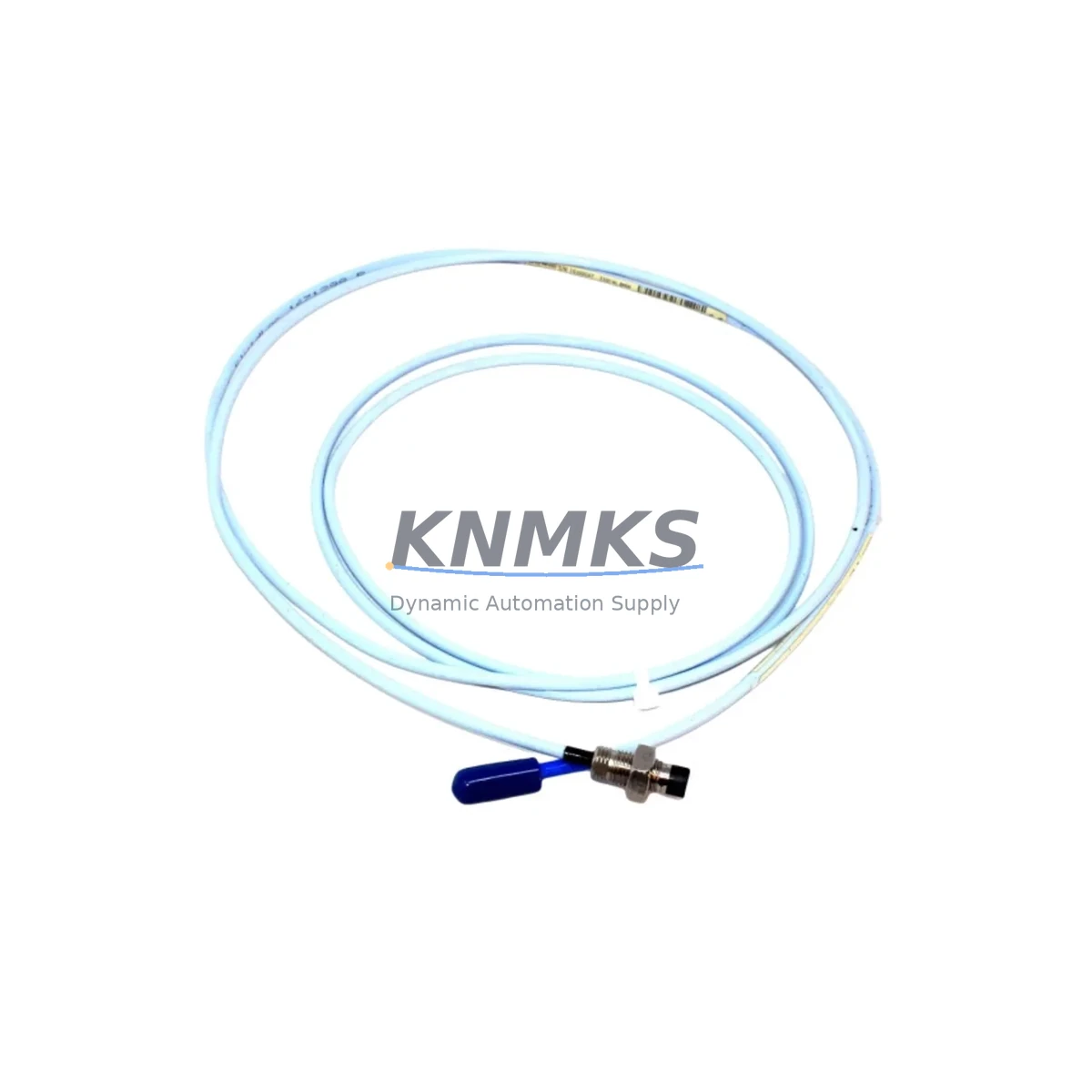

Bently Nevada 330101-00-08-20-12-05 Migration-Ready 8mm Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-08-20-12-05 is an 8mm proximity transducer probe engineered for direct retrofit into legacy 3300 XL vibration monitoring systems. As OEM production timelines extend and original spare inventories deplete, this migration-ready probe provides a verified drop-in replacement path for rotating machinery protection panels, turbine control cabinets, and compressor monitoring racks operating on the Bently Nevada 3300 series platform. Whether you are executing a planned outage upgrade, responding to an unplanned probe failure, or building a 12-month spare buffer for critical assets, the 330101-00-08-20-12-05 is stocked and dispatch-ready.

Before committing to installation, engineers should confirm the following parameters against the existing system documentation: cable length and connector type (the -08-20-12-05 suffix encodes 8mm tip, 2.0m cable, 1/4-28 UNF thread, and 5m extension cable), gap voltage target (typically –10 VDC at the nominal 1.0 mm air gap for 3300 XL inputs), driver compatibility with the 3300 XL proximitor/seismic module, and terminal block wiring polarity at the I/O junction box. Mismatched cable lengths between the probe and the 3300 XL proximitor extension cable will shift the calibrated gap range and must be corrected before commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL probe retrofit requires coordinated review of the entire measurement chain, not just the probe itself. The 330101-00-08-20-12-05 interfaces with the Bently Nevada 3300 XL proximitor module (typically the 330180 series), which conditions the eddy-current signal before it reaches the 3300/16-channel monitor card or a dedicated 3300/20 dual-channel monitor. Engineers planning a cabinet-level upgrade should audit all proximitor modules in the rack simultaneously — a single failed probe often signals age-related degradation across adjacent channels.

For plants migrating from older 7200 series or 3300 non-XL platforms, the probe body and thread dimensions are compatible, but the proximitor driver electronics differ. In these cases, the Bently Nevada 330130 proximitor (5m system) should be specified alongside the probe to ensure the calibrated gap range and sensitivity curve are correctly matched. Attempting to reuse a 7200-series proximitor with a 3300 XL probe will produce offset gap voltage readings and may trigger false alarm or danger trips at the monitor card.

At the control cabinet level, verify that the –24 VDC power supply module has sufficient current headroom before adding replacement channels. Each 8mm probe-and-proximitor pair draws approximately 25–35 mA; a rack with 16 active channels can approach the rated output of a standard cabinet power supply. If the existing supply is already loaded above 80%, plan for a parallel supply or a higher-capacity replacement unit before the retrofit window opens.

Wiring adaptation at the terminal block is straightforward: the three-conductor shielded cable (positive, negative, and shield/common) maps directly to the existing 3300 XL junction box terminals. Confirm that the shield is grounded at one end only (typically at the proximitor end) to avoid ground loops that introduce 50/60 Hz noise into the vibration signal. If the plant uses a signal isolator or barrier module between the field device and the monitor card — common in Zone 1 or Zone 2 hazardous area installations — verify that the isolator’s input impedance is compatible with the 330101 probe output characteristics before finalizing the bill of materials.

For facilities that have already migrated their primary protection system to the Bently Nevada System 1 platform or are running a hybrid architecture with legacy 3300 XL racks alongside newer 3500 series monitors, the 330101-00-08-20-12-05 remains fully compatible with the 3300 XL rack and can continue to feed analog signals into a System 1 data acquisition gateway without modification. This makes it an effective bridge component during phased migration programs where full platform replacement is deferred over multiple outage cycles.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement begins with pre-staging. Before the maintenance window opens, verify that the replacement 330101-00-08-20-12-05 has been bench-tested against a reference proximitor and that the gap voltage at the nominal air gap (typically –10 VDC ± 0.5 VDC) falls within the calibration band documented in the original system configuration record. A probe that passes bench verification can be installed and gapped in the field without requiring a full system re-calibration, reducing the critical-path duration of the replacement activity.

During the outage window, follow a structured swap sequence: isolate the channel at the monitor card (place the channel in bypass or inhibit mode if the 3300 XL firmware supports it), remove the existing probe and extension cable assembly, install the replacement probe, set the air gap using a non-ferrous feeler gauge or a calibrated gap meter, reconnect the extension cable, and restore the channel from bypass. Confirm that the gap voltage displayed at the monitor card matches the expected value before releasing the machine for restart. This sequence preserves the original program logic and alarm setpoints at the monitor card — no configuration download or HMI screen update is required for a like-for-like probe replacement.

For sites where the 3300 XL monitor is integrated into a DCS or safety instrumented system via a 4–20 mA output module or a Modbus/RS-485 communication card, the channel inhibit procedure should be coordinated with the control room operator to suppress nuisance alarms at the DCS historian and prevent spurious SIS trips during the gap-setting phase. Document the inhibit start and end times in the maintenance management system to maintain the audit trail required by functional safety standards.

Stocking a minimum of two 330101-00-08-20-12-05 units per critical machine train — one installed spare and one in the cabinet — eliminates the lead-time risk associated with emergency procurement and allows the maintenance team to execute the replacement within a single shift without waiting for inbound logistics.

Retrofit Support FAQ

Q1: Is the 330101-00-08-20-12-05 a direct replacement for the original Bently Nevada part, and will it work with my existing 3300 XL proximitor?
Yes. The 330101-00-08-20-12-05 is manufactured to the same dimensional and electrical specification as the original OEM part. It is compatible with the 3300 XL proximitor module (330180 series) and produces the same 200 mV/mil sensitivity output. No re-calibration of the monitor card is required for a like-for-like swap.

Q2: What pre-shipment testing is performed, and can I receive documentation?
Each unit undergoes full functional testing prior to dispatch, including gap voltage verification at the nominal air gap and output linearity check across the measurement range. A test certificate is available on request. Units are shipped with protective end caps and anti-static packaging to prevent transit damage.

Q3: How do I confirm the correct cable length suffix for my installation?
The suffix -08-20-12-05 encodes: 8mm probe tip (08), 2.0m integral cable (20), 1/4-28 UNF thread (12), and 5m extension cable (05). Cross-reference the total system cable length (probe + extension) against the Bently Nevada calibration chart for the 3300 XL proximitor to confirm the correct gap voltage range. If your installation uses a different extension cable length, contact us before ordering to confirm the correct part number.

Q4: What is the support terms coverage, and do you hold stock for immediate dispatch?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional performance under the specified operating conditions. Stock is maintained for immediate dispatch to support both planned maintenance schedules and emergency replacement requirements. Lead time for in-stock units is typically 1–3 business days to major industrial regions.
