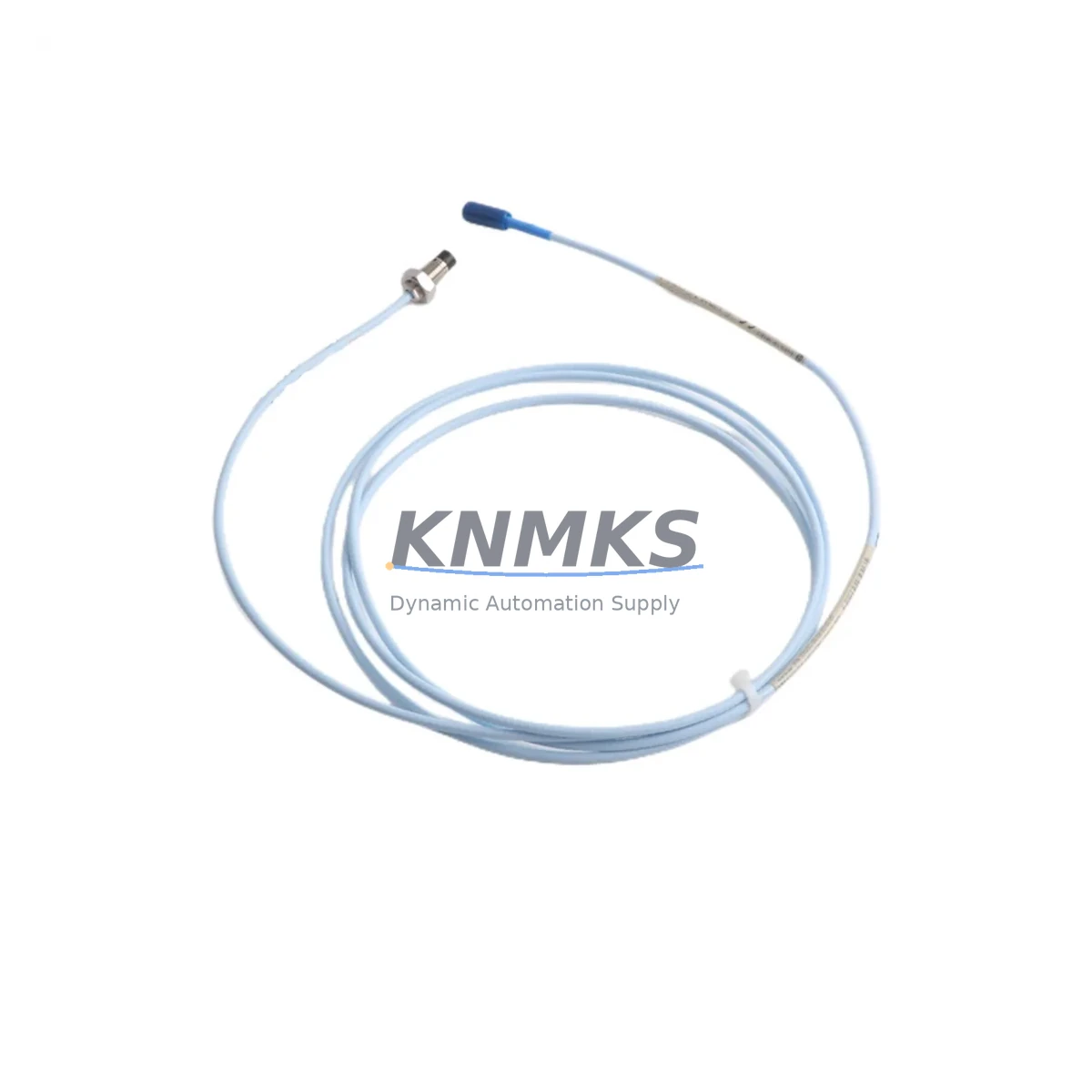

Bently Nevada 330101-00-08-20-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-08-20-02-05 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-08-20-02-05 is an 8mm eddy current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. Designed for critical machinery protection systems, this probe is a cornerstone component in rotating equipment safety loops across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, marine vessels, and continuous process manufacturing lines.

In high-stakes industrial settings where unplanned downtime carries catastrophic operational and financial consequences, the 330101-00-08-20-02-05 provides the signal integrity and mechanical robustness required to maintain control loop continuity. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring long-term measurement stability even under sustained high-speed shaft rotation, heavy radial loads, and aggressive process vibration profiles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins well before the probe tip — it depends on a fully coordinated signal chain within the control cabinet. The 330101-00-08-20-02-05 probe is designed to operate as part of the complete Bently Nevada 3300 XL Proximity Transducer System, which includes the matched 330130-045-01-00 Proximitor® Sensor (signal conditioner/driver) and the appropriate 3300 XL Extension Cable. Together, these three components form a calibrated, impedance-matched measurement loop that preserves signal accuracy across long cable runs in electrically noisy environments.

In heavy industrial control cabinets — particularly those housing variable frequency drives, high-current motor starters, or large transformer banks — electromagnetic interference (EMI) is a persistent threat to low-level analog signals. The shielded coaxial construction of the 330101-00-08-20-02-05 cable assembly, combined with the differential input architecture of the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor®/Seismic Monitor rack modules, provides robust common-mode noise rejection. This ensures that shaft vibration and position data reaching the safety PLC or DCS remains clean and actionable, even in cabinets with dense wiring and high electromagnetic activity.

For installations requiring redundant protection, the probe is frequently paired with a secondary 330101-00-08-20-02-05 unit in a dual-probe configuration, with both channels feeding into a Bently Nevada 3500 Series Machinery Protection System rack. This architecture supports voted logic (e.g., 2-out-of-2 or 2-out-of-3 trip configurations), dramatically reducing the risk of spurious shutdowns while maintaining the ability to detect genuine fault conditions. Surge protection modules installed at the cabinet entry point further safeguard the Proximitor® sensor inputs from transient voltage spikes caused by nearby switching equipment or lightning-induced surges on field cable runs.

Thermal management within the control cabinet is equally critical. The 330101-00-08-20-02-05 probe’s wide operating temperature range (-35°C to +177°C) ensures that even in cabinets with inadequate ventilation or in outdoor installations subject to solar gain, the probe itself remains within specification. However, the associated 3300 XL Proximitor® Sensor should be mounted in a thermally stable zone of the cabinet, away from heat-generating components, to maintain the calibrated sensitivity of the complete transducer system.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-08-20-02-05 proximity probe is deployed across a wide spectrum of critical industrial applications where continuous, uninterrupted machinery monitoring is a safety and regulatory requirement.

In petrochemical and refinery operations, this probe monitors radial shaft vibration and axial position on centrifugal compressors, process pumps, and steam turbines. API 670 compliance requirements mandate continuous vibration monitoring on these machines, and the 330101-00-08-20-02-05 — as part of a certified Bently Nevada system — satisfies these requirements. A vibration exceedance or probe gap fault detected by this sensor can trigger an automatic emergency shutdown (ESD) sequence, preventing catastrophic seal failures, bearing collapses, or rotor-stator contact events.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe provides real-time shaft eccentricity and differential expansion data to the turbine control system. This data is essential for safe startup sequencing, load ramping, and trip protection. Signal dropout or drift from a faulty probe in this context can mask developing mechanical faults, making the reliability and fail-safe design of the 330101-00-08-20-02-05 a non-negotiable requirement.

In mining and mineral processing environments, where dust ingress, moisture, and mechanical shock are constant challenges, the IP67-rated probe body and robust cable construction of the 330101-00-08-20-02-05 provide the environmental protection needed for reliable long-term operation on crusher drives, conveyor head pulleys, and slurry pump sets. The non-contact sensing principle eliminates the probe wear that would otherwise occur in high-vibration, contaminated environments.

In metallurgical and steel mill applications, the probe monitors rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains. The combination of high operating temperature tolerance and strong EMI immunity makes the 330101-00-08-20-02-05 well-suited to the electrically and thermally harsh conditions found in these facilities. Early detection of shaft imbalance or bearing wear through vibration trending allows maintenance teams to schedule corrective action during planned outages, avoiding unplanned production interruptions that can cost tens of thousands of dollars per hour.

In water and wastewater treatment plants, the probe is used on large vertical turbine pumps, blower trains, and centrifuge drives. Continuous vibration monitoring in these applications supports predictive maintenance programs and helps utilities meet regulatory uptime requirements for critical infrastructure.

Safety and Quality FAQ

Q1: What support terms does the 330101-00-08-20-02-05 carry, and what does it cover?
Every 330101-00-08-20-02-05 proximity probe supplied by KNMKS carries a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions. If a unit fails within the confirmed support period due to a manufacturing defect, we will replace or repair it at no charge. Our support terms support is backed by pre-shipment functional testing on every unit.

Q2: How is each unit tested before shipment?
Each 330101-00-08-20-02-05 probe undergoes a multi-point pre-shipment inspection that includes DC resistance measurement of the probe coil, insulation resistance testing of the cable assembly, and functional gap-versus-output verification against the published sensitivity specification (7.87 V/mm ± 10%). Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330101-00-08-20-02-05 is a direct, drop-in compatible replacement for existing Bently Nevada 3300 XL 8mm proximity probe installations. It is designed to work with the standard 3300 XL Extension Cable and Proximitor® Sensor system. No recalibration of the Proximitor® sensor is required when replacing a like-for-like probe, provided the extension cable length and target material remain unchanged. Always verify the complete system calibration after any probe replacement as part of your site commissioning procedure.

Q4: Can KNMKS support long-term or repeat supply of this part?
Yes. KNMKS maintains dedicated inventory of the 330101-00-08-20-02-05 and other high-demand Bently Nevada 3300 XL Series components to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders and scheduled delivery agreements for customers with ongoing maintenance requirements. Contact our sales team to discuss volume pricing and supply continuity arrangements.
