Bently Nevada 330101-00-08-15-02-CN 3300 XL Spare Part

Overview

Bently Nevada 330101-00-08-15-02-CN 3300 XL Spare Part: Maintenance-Proven for Factory Uptime

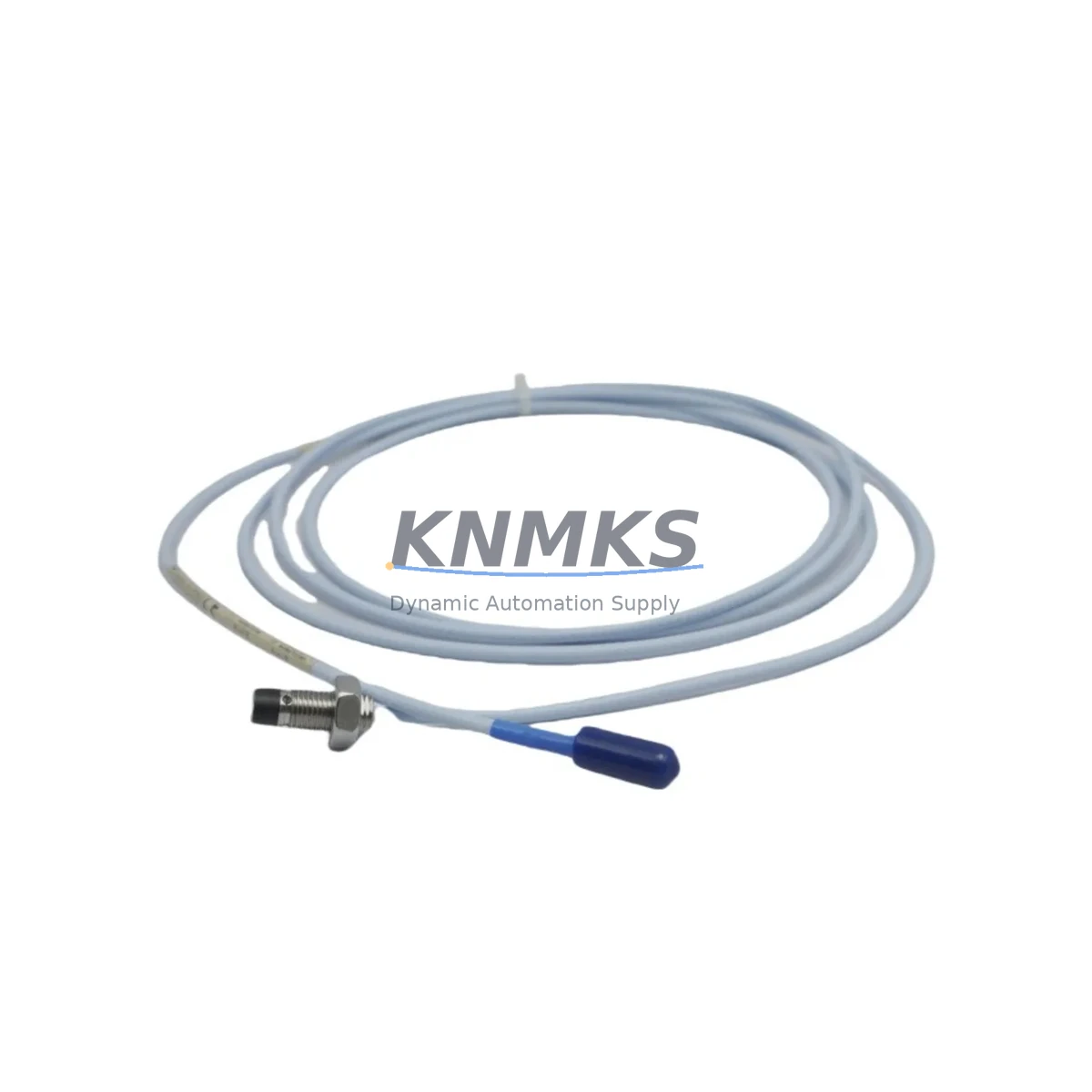

The Bently Nevada 330101-00-08-15-02-CN is an 8mm Eddy Current Proximity Probe from the industry-standard 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery environments. As a maintenance-proven spare part, this probe is a critical component in turbine protection systems, compressor monitoring panels, and high-speed rotating equipment across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Sourced as an original OEM spare, the 330101-00-08-15-02-CN is fully compatible with the Bently Nevada 3300 XL monitoring system and is ready for immediate field deployment to minimize unplanned downtime.

For maintenance engineers managing predictive maintenance programs or responding to emergency shutdowns, having a verified replacement 330101-00-08-15-02-CN on the shelf is a non-negotiable element of any spare parts strategy. The probe’s 8mm tip diameter, standard cable length, and connector configuration are factory-matched to the 3300 XL system architecture, eliminating compatibility guesswork during high-pressure recovery situations. Each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving procurement teams the confidence to stock this part for long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-08-15-02-CN proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to ensure system integrity and prevent repeat failures. The probe does not operate in isolation — it is part of a complete vibration monitoring loop that includes the extension cable (typically a Bently Nevada 330130 series extension cable), the proximitor/driver (such as the 3300 XL 8mm Proximitor, part number 330180-X1-05), and the 3300 XL monitor rack itself.

During the replacement procedure, maintenance engineers should inspect the extension cable for insulation damage, connector corrosion, or impedance mismatch, as a degraded cable will cause erroneous gap voltage readings even with a new probe installed. The proximitor module should be verified for correct output voltage (typically -18V DC at the calibrated gap) and checked for any signs of moisture ingress or terminal oxidation. If the machine has been running in a high-vibration or high-temperature environment, it is advisable to simultaneously inspect the 3300 XL I/O module and the rack backplane connectors for loose seating or contact wear.

For facilities operating Bently Nevada 3500 series systems alongside 3300 XL panels, procurement teams should note that the 330101-00-08-15-02-CN is specific to the 3300 XL architecture and is not directly interchangeable with 3500/42M or 3500/45 proximity probes without system reconfiguration. Stocking both series probes in the spare parts cabinet is recommended for plants with mixed monitoring infrastructure.

Additional components that should be reviewed during a 330101-00-08-15-02-CN replacement include the barrier terminal strips or Zener barriers used in hazardous area installations, the 24VDC or 28VDC power supply feeding the proximitor, and any signal conditioning modules downstream of the monitor rack. If the machine is connected to a DCS or safety instrumented system (SIS), verify that the 4–20mA or relay output signals from the 3300 XL monitor are correctly received after probe replacement and that no spurious trip conditions have been latched. For plants using Bently Nevada System 1 software for online machinery diagnostics, a gap voltage verification and trend reset should be performed post-installation to re-establish baseline vibration signatures.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the 3300 XL monitor channel is in bypass or inhibit mode to prevent spurious trips during probe removal.

Step 2 — Remove the Old Probe: Disconnect the extension cable at the probe connector. Unthread the probe from the mounting bracket. Note the installed gap distance (typically 1.0–1.5mm from the shaft surface) for reference during reinstallation.

Step 3 — Inspect the Mounting Area: Check the probe mounting boss for thread damage, corrosion, or contamination. Clean the target area on the shaft and verify the shaft surface is free of scratches or runout anomalies that could affect measurement accuracy.

Step 4 — Install the 330101-00-08-15-02-CN: Thread the new probe into the mounting bracket. Set the gap to the system-specified distance using a non-metallic feeler gauge or by monitoring the gap voltage output from the proximitor (target: approximately -10V DC at 1.0mm gap for 8mm probes). Lock the probe in position with the locknut.

Step 5 — Reconnect & Verify: Reconnect the extension cable. Power up the proximitor and verify gap voltage is within the linear range. Remove the channel inhibit in the 3300 XL monitor and confirm the vibration reading is stable and within normal operating limits. Document the as-left gap voltage in the maintenance record.

Step 6 — System 1 Baseline Update: If applicable, update the vibration baseline in Bently Nevada System 1 software and notify the control room that the channel is back in service.

This workflow is applicable to both emergency replacement scenarios and planned annual overhaul activities. Keeping a pre-tested 330101-00-08-15-02-CN in the local spare parts store reduces mean time to repair (MTTR) and supports the plant’s overall equipment effectiveness (OEE) targets.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-15-02-CN compatible with both 3300 XL and 3500 series Bently Nevada systems?
The 330101-00-08-15-02-CN is designed and calibrated specifically for the Bently Nevada 3300 XL monitoring system. While the physical probe dimensions are similar to some 3500 series probes, the system calibration, gap voltage range, and proximitor pairing are optimized for 3300 XL architecture. Using this probe with a 3500 series monitor without recalibration is not recommended. Please confirm your system series before ordering.

Q2: How is the unit tested before shipment, and what does the support terms confirmed by quotation cover?
Each 330101-00-08-15-02-CN unit undergoes electrical continuity testing, insulation resistance verification, and gap voltage output confirmation prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits. Support requests are supported with full technical documentation.

Q3: What is the recommended spare parts stocking strategy for the 330101-00-08-15-02-CN?
For critical rotating machinery applications, we recommend maintaining a minimum of two units on-site: one as an active hot spare and one as a long-term reserve. For plants with multiple machines using the 3300 XL system, a consolidated spare parts kit including the probe, a matched extension cable (330130 series), and a spare proximitor module (330180 series) provides the fastest possible recovery path in the event of a monitoring system fault.

Q4: Can you support long-term or blanket purchase orders for the 330101-00-08-15-02-CN?
Yes. KNMKS supports long-term supply agreements, blanket purchase orders, and annual maintenance contract procurement for the 330101-00-08-15-02-CN and related 3300 XL series components. We maintain stock continuity for legacy and discontinued Bently Nevada parts to support plants operating older monitoring infrastructure. Contact our team to discuss volume pricing, lead time commitments, and supply chain risk mitigation options.
