Bently Nevada 330101-00-08-15-01-00 Maintenance-Proven Spare Part for Factory Uptime

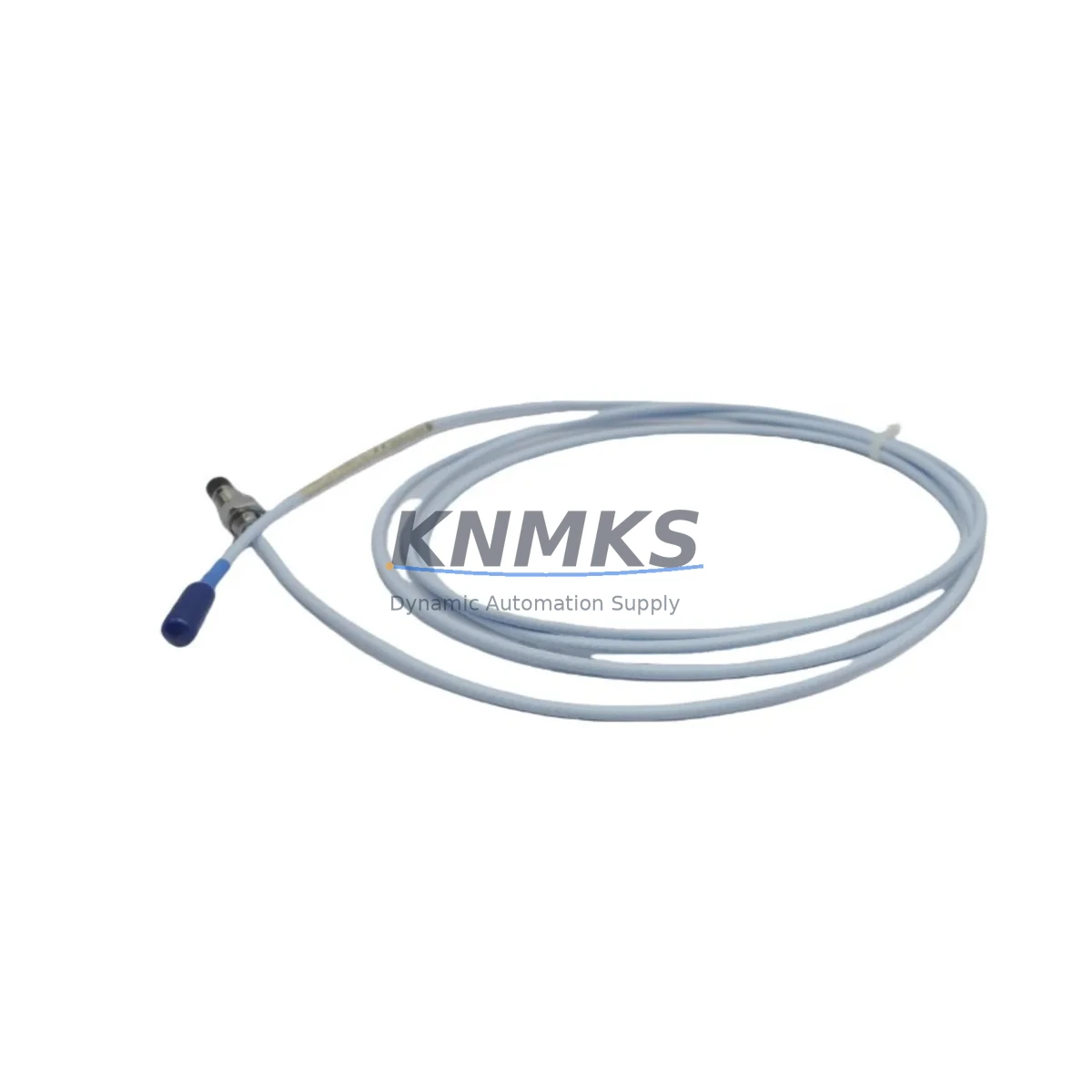

The Bently Nevada 330101-00-08-15-01-00 is an 8mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous vibration and position monitoring on rotating machinery including turbines, compressors, pumps, and gearboxes. As a maintenance-proven spare part, it is a critical component in any predictive maintenance program where unplanned downtime carries significant operational and financial risk.

At KNMKS, every unit of the 330101-00-08-15-01-00 is sourced from verified supply channels, inspected prior to dispatch, and backed by a support terms confirmed by quotation. We support maintenance engineers and procurement teams across power generation, petrochemical, oil & gas, and heavy manufacturing sectors who require reliable, fast-turnaround spare parts to keep critical assets online.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a degraded or failed 330101-00-08-15-01-00 probe during routine vibration checks or a machinery trip event, the replacement workflow rarely ends with the probe alone. The 3300 XL proximity transducer system is a matched three-component assembly — probe, extension cable, and driver — and all three must be verified as a set to restore accurate measurement.

Begin by inspecting the 330130 Series extension cable (commonly the 330130-045-00-00 or 330130-080-00-00 depending on installation geometry). Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. A probe replacement paired with a worn extension cable will produce erratic gap readings and may trigger nuisance trips.

Next, verify the 330180 Series proximitor/driver module seated in the monitor rack. Driver modules can develop output drift over time, particularly in high-vibration panel environments. Use a calibration fixture to confirm the driver’s scale factor matches the 7.87 V/mm specification before returning the loop to service. If the driver is beyond its calibration interval, replace it concurrently — stocking a spare 330180-X1-05 or equivalent driver alongside the probe is a recognized best practice in turbine maintenance programs.

At the monitor rack level, inspect the 3500/40M or 3500/42M proximity monitor card for alarm setpoint integrity and channel configuration. A probe swap is an ideal opportunity to audit OK relay outputs, danger setpoints, and buffered output wiring to the plant DCS or historian. Loose terminal connections on the monitor card’s field wiring terminals are a common source of intermittent faults that are misdiagnosed as probe failures.

For installations where the probe feeds into a 3500 Series rack, also check the rack’s power supply module — typically a 3500/15 Power Supply — for output voltage stability. An under-voltage condition on the rack bus can cause multiple proximity channels to report false OK status, masking real machinery faults. Keeping a spare power supply module in the critical spares inventory is strongly recommended for any facility operating more than four 3500 racks.

Finally, review the junction box and field wiring between the probe tip and the rack. Verify shield continuity, confirm that drain wires are grounded at one end only, and inspect any signal isolators or barriers in the loop. In classified hazardous areas, Zener barriers or galvanic isolators in the proximity loop must be tested for correct clamping voltage and leakage current — a degraded barrier can introduce loop resistance that shifts the probe’s apparent gap reading by several mils, leading to incorrect machinery protection decisions.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Coordinate with operations to place the affected machine in a safe state. Inhibit the proximity channel at the 3500 monitor to prevent spurious trips during probe removal. Document the existing gap voltage (typically read at the buffered output BNC on the monitor card) as a baseline reference.

Step 2 — Probe Removal: Using the correct spanner, back out the 330101-00-08-15-01-00 probe from its mounting boss. Note the number of turns to removal — this gives a rough gap reference for reinstallation. Inspect the mounting boss threads and the probe tip for mechanical damage or shaft contact marks.

Step 3 — New Probe Installation: Thread the replacement 330101-00-08-15-01-00 into the mounting boss. Set the initial gap to the manufacturer’s recommended starting point (typically 1.0 mm / 40 mil for 8mm probes). Connect the extension cable and verify the driver output voltage falls within the linear range (-10 VDC ± 1 VDC at nominal gap is a common acceptance criterion).

Step 4 — System Verification: With the machine still isolated, perform a static calibration check using a calibration fixture or by physically adjusting the probe gap and confirming the driver output tracks linearly. Verify OK relay status at the monitor card. Check that the DCS or historian is receiving a valid signal on the proximity channel.

Step 5 — Return to Service: Remove the channel inhibit, confirm alarm setpoints are restored, and document the replacement in the maintenance management system (CMMS). Record the new probe serial number, installation date, and gap voltage for future reference. This documentation supports support requests and long-term reliability trending.

The 330101-00-08-15-01-00 is a direct form-fit-function replacement for earlier 330101 variants within the 3300 XL family, making it suitable for legacy system life extension without requiring monitor reconfiguration or recalibration of setpoints — a significant advantage for facilities managing aging turbine protection systems.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-15-01-00 compatible with my existing 3300 XL extension cables and drivers?
Yes. The 330101-00-08-15-01-00 is designed as part of the Bently Nevada 3300 XL matched-system architecture. It is compatible with 330130 Series extension cables and 330180 Series driver/proximitor modules. Always verify the complete three-component set (probe + extension cable + driver) is matched to the same series to ensure scale factor accuracy and system OK status.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-08-15-01-00 dispatched by KNMKS undergoes electrical continuity verification, insulation resistance check, and functional output test against a reference target. Units that do not meet Bently Nevada’s published specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: How should I manage long-term spare parts inventory for the 3300 XL proximity system?
Industry best practice for rotating machinery protection systems recommends holding a minimum of one spare probe per monitored shaft, one spare extension cable per installation, and one spare driver module per rack. For facilities with more than ten monitored machines, a pooled critical spares strategy — with KNMKS as a long-term supply partner — reduces per-unit holding costs while maintaining rapid availability. We support blanket order arrangements and consignment stock programs for high-volume customers.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects, premature electrical failure under normal operating conditions, and out-of-specification performance verified by return inspection. It does not cover damage resulting from incorrect installation, shaft contact, chemical contamination, or operation outside the published environmental limits. To initiate a support terms claim, contact KNMKS with the original order number, a description of the failure mode, and photographic evidence of the installation condition. Replacement units are dispatched within 5 business days of claim approval.
