Bently Nevada 330101-00-08-10-11-00 Spare for Factory Uptime

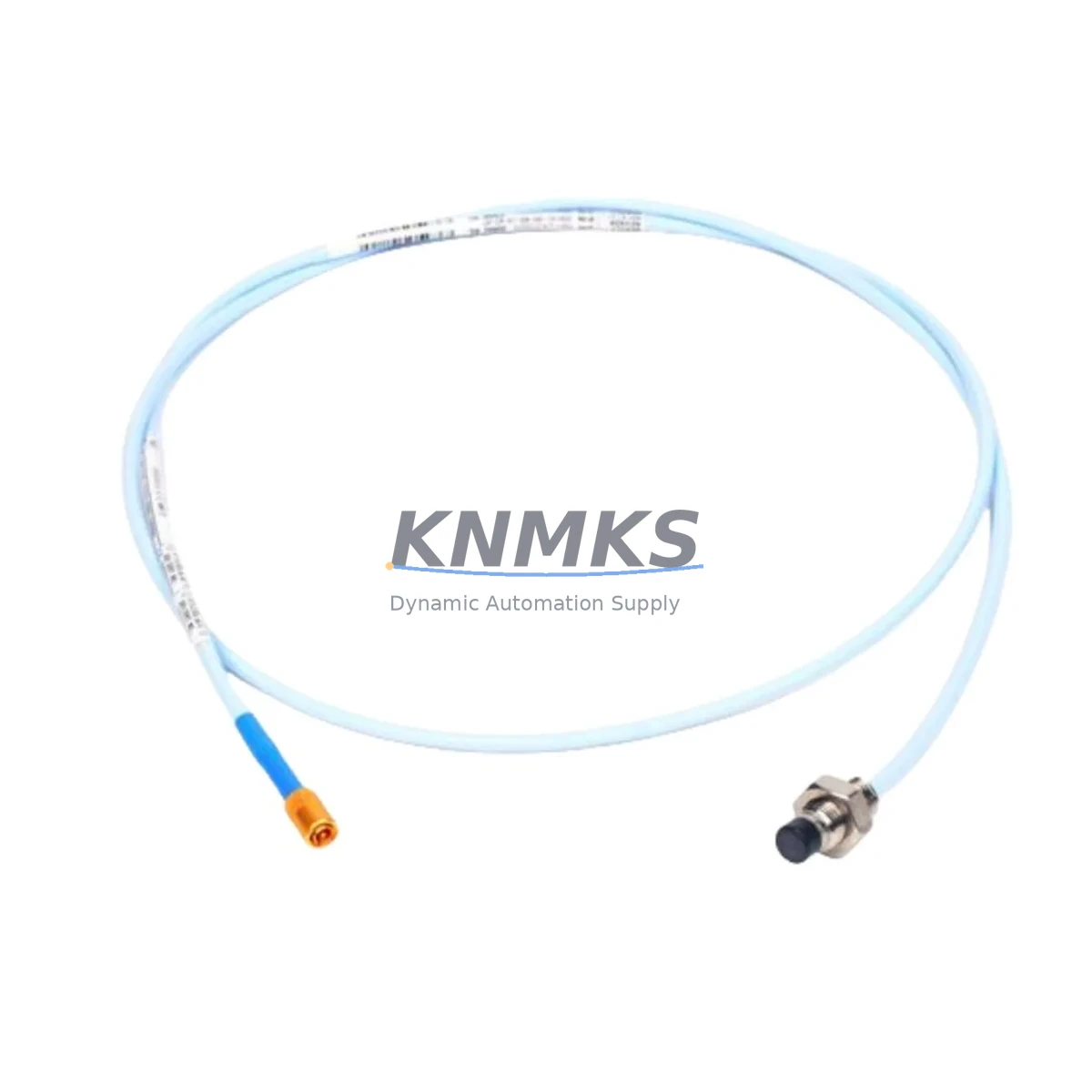

The Bently Nevada 330101-00-08-10-11-00 is an 8mm proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core component of the 3300 XL Series condition monitoring system, this probe delivers reliable eddy-current sensing for shaft displacement, radial vibration, and axial position measurement in turbines, compressors, pumps, and other critical rotating assets. Maintaining an on-hand stock of this probe is a proven strategy for reducing unplanned downtime and protecting high-value rotating equipment from catastrophic failure.

For maintenance engineers managing rotating machinery health, the 330101-00-08-10-11-00 is a direct-fit replacement for aging or damaged probes in the 3300 XL monitoring loop. Its 8mm tip diameter, 5-metre integral cable, and standard Bently Nevada connector interface ensure back-to-back compatibility with existing field installations without requiring re-calibration of the proximitor or reconfiguration of the monitoring rack. Procurement engineers sourcing this part for MRO inventory programs benefit from its long-term availability, consistent OEM-equivalent specification, and support terms confirmed by quotation coverage that supports multi-year maintenance contracts.

In daily inspection rounds, a degraded or failed proximity probe is one of the most common causes of spurious vibration alarms and false trips in turbomachinery protection systems. Keeping a verified spare of the 330101-00-08-10-11-00 in the control room or maintenance store eliminates the risk of extended lead times from OEM channels — lead times that can stretch from weeks to months for discontinued or allocated parts. A tested, ready-to-install spare allows the maintenance team to execute a probe swap within a planned outage window or during a brief process hold, restoring full condition monitoring coverage before the machine returns to service.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-08-10-11-00 in the field, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure the restored system meets its protection setpoints. Maintenance engineers should begin by verifying the condition and output voltage of the paired 3300 XL 8mm Proximitor (330180 series) — a worn or contaminated proximitor will degrade probe linearity even after a new probe is installed. The extension cable connecting the probe to the proximitor should also be inspected for jacket damage, connector corrosion, and continuity; a faulty 330130 series extension cable is a frequent source of intermittent vibration signal faults that are often misdiagnosed as probe failure.

At the monitoring rack level, confirm that the 3300/16 or 3500/42 vibration monitor module is correctly configured for 8mm probe sensitivity and that the OK relay output is functioning. Inspect the 3300 XL rack power supply for stable -24 VDC output; a marginal power supply will cause erratic probe output and false OK status. If the machine is equipped with a Keyphasor module (3300/25 or 3500/25), verify its signal integrity at the same time — Keyphasor reference is required for phase-referenced vibration analysis and should be confirmed operational before returning the machine to service.

For installations integrated with a System 1 or System 1 Evolution condition monitoring platform, confirm that the channel configuration and gap voltage setpoints are updated to reflect the new probe installation. Procurement teams building annual MRO kits for turbomachinery sites should consider stocking the probe alongside its proximitor, extension cable, and a spare 3300 XL rack fuse or power module to cover the full monitoring loop in a single emergency response kit. Sites running legacy 3300/55 or 3300/65 monitors should also verify backward compatibility of the 330101-00-08-10-11-00 with their specific rack revision before committing to bulk stock.

Site Replacement Workflow

Replacing the 330101-00-08-10-11-00 on a live turbomachinery site follows a structured sequence to minimize downtime and maintain system integrity. Before removing the old probe, record the existing gap voltage (typically -10 VDC ±0.5 VDC for a correctly gapped 8mm probe) as a baseline for the new installation. Isolate the monitoring channel at the rack to prevent a false trip during the swap, then carefully remove the probe from its mounting boss, noting the thread engagement depth for reference.

Install the new 330101-00-08-10-11-00 to the same thread depth, reconnect the extension cable, and restore power to the channel. Measure the gap voltage with a calibrated multimeter and adjust probe position until the output falls within the linear range. Confirm the OK relay status at the monitor module before re-enabling the protection trip function. Document the installation date, gap voltage, and probe serial number in the site maintenance log to support future condition trending and support requests. This workflow typically requires 30–60 minutes per probe position and can be executed during a planned process hold without a full machine shutdown.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-10-11-00 compatible with both 3300 and 3500 series monitoring racks?
The 330101-00-08-10-11-00 is designed for the 3300 XL monitoring system. Compatibility with 3500 series racks depends on the specific monitor module and its configured probe type. Always verify the monitor module’s probe sensitivity setting (7.87 V/mm for 8mm probes) before installation. When in doubt, consult the rack configuration documentation or contact our technical team for compatibility confirmation prior to ordering.

Q2: What pre-shipment testing is performed on this spare?
Each 330101-00-08-10-11-00 unit is bench-tested for output sensitivity, linearity across the specified gap range, and cable continuity before dispatch. Test records are available upon request. Units are shipped in anti-static packaging with connector protection to prevent transit damage. The support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications under normal operating conditions.

Q3: Can this probe be used as a long-term replacement for discontinued Bently Nevada probe variants?
Yes. The 330101-00-08-10-11-00 is a current-production 3300 XL series probe and serves as a direct replacement for earlier 8mm probe variants with the same thread, cable length, and connector configuration. For sites migrating from older 3300 series (non-XL) probes, verify the proximitor model and gap voltage setpoints to ensure full system compatibility. We maintain ongoing stock to support long-term MRO programs and can provide blanket order arrangements for sites requiring guaranteed annual supply.

Q4: What is the recommended inventory strategy for rotating machinery sites?
For sites with four or more monitored machine trains, maintaining a minimum of two spare probes per probe type per site is recommended. This covers both an immediate emergency replacement and a secondary spare during the replenishment lead time. Pairing the probe stock with a spare proximitor and extension cable of the same series ensures the full monitoring loop can be restored without waiting for multiple part deliveries. Annual inventory reviews aligned with planned outage schedules help prevent stock-outs during peak maintenance periods.
