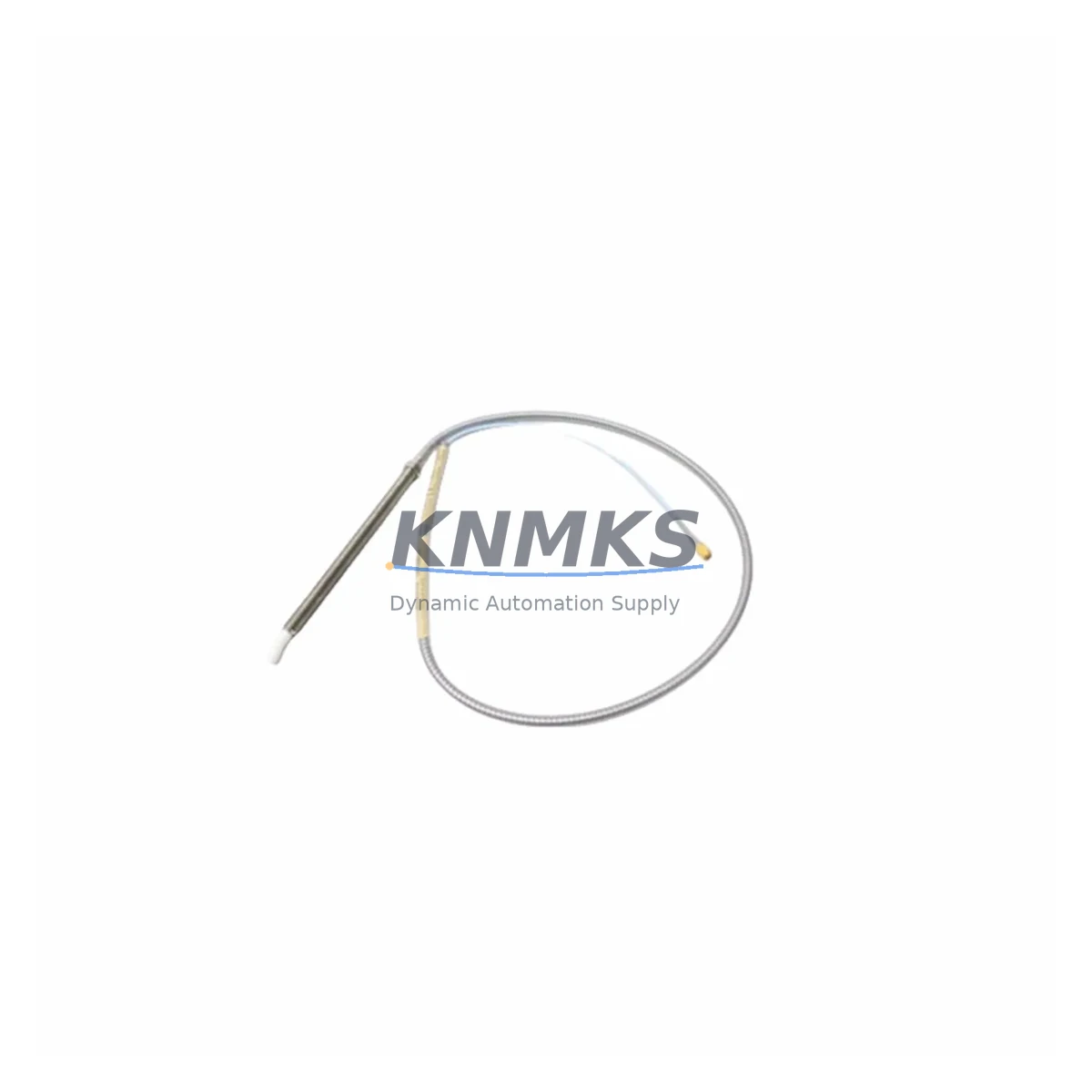

Bently Nevada 330101-00-08-10-02-05 Migration-Ready Probe

Overview

Bently Nevada 330101-00-08-10-02-05 Migration-Ready Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330101-00-08-10-02-05 is an 8 mm proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across power generation, oil & gas, petrochemical, and heavy industry. As original Bently Nevada 3300 XL hardware reaches end-of-support and spare parts become increasingly scarce, engineering teams face mounting pressure to source verified replacement probes that maintain full signal chain compatibility without requiring reconfiguration of the existing monitor rack, field wiring, or System 1 software.

This SKU — 330101-00-08-10-02-05 — is a direct-fit, migration-ready replacement probe. It is pre-tested against 3300 XL system specifications prior to shipment, supplied with a support terms confirmed by quotation, and held in multi-region stock to support both emergency replacements and planned outage windows. The probe integrates with the standard Bently Nevada 3300 XL proximitor/driver (such as the 330180 series) and is compatible with the coaxial cable and connector assemblies already installed in most legacy installations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-08-10-02-05 in a live or recently shut-down 3300 XL installation requires a structured approach to avoid introducing new faults during the changeover. Before removing the failed or end-of-life probe, engineers should document the existing gap voltage reading at the 330180 Proximitor output — typically in the range of –10 to –18 VDC for a correctly gapped 8 mm probe — and record the current vibration baseline from the System 1 historian. This baseline becomes the acceptance reference after the replacement probe is installed and re-gapped.

The probe cable routing should be inspected at the same time. In many legacy installations, the original Bently Nevada extension cable (such as the 330130 series) has been in service for a decade or more and may show insulation degradation or connector wear. Replacing the extension cable alongside the probe eliminates a common source of signal noise that can mask genuine machinery faults after a probe swap. Similarly, the 330180 Proximitor itself should be checked for output drift; if the proximitor is also approaching end-of-life, coordinating its replacement with the probe change reduces the number of future planned outages.

For installations where the 3300 XL monitor rack includes a 3300/16 or 3300/20 monitor card, verify that the channel configuration in System 1 still reflects the correct transducer type and scale factor after the probe replacement. In some cases, older System 1 databases contain hardcoded calibration offsets tied to the original probe serial number; these should be cleared and re-entered using the new probe’s calibration certificate. If the site also operates a Bently Nevada 3500 Series rack in parallel — a common arrangement during phased migration from 3300 XL to 3500 — confirm that the shared I/O wiring and common-ground references are not disturbed during the probe changeout.

Where the control system interfaces the 3300 XL vibration outputs to a DCS or safety system — for example, a Honeywell Experion PKS or a Yokogawa CENTUM VP historian — the 4–20 mA or relay output from the monitor card should be verified at the DCS input card after the probe is replaced and re-gapped. A brief functional test of the trip relay logic, using a calibrated gap simulator if available, confirms that the full signal chain from probe tip to DCS alarm is intact before the machine is returned to service.

Downtime Control During System Migration

Minimizing downtime during a 3300 XL probe replacement begins with pre-staging. Having the 330101-00-08-10-02-05 replacement probe, the correct extension cable, and any required connector adapters on-site before the planned outage window eliminates the most common cause of extended downtime: waiting for parts. Our multi-region stock and priority dispatch capability are specifically designed to support this pre-staging requirement, with units available for same-day or next-day shipment in most regions.

During the outage, the original program logic in the 3300 XL monitor and the System 1 database does not need to be modified for a like-for-like probe replacement. The monitor channel configuration, alarm setpoints, and trip thresholds remain valid, provided the replacement probe is gapped to the same nominal voltage as the original. This means the re-commissioning procedure is limited to physical installation, gap adjustment, and a signal verification check — typically achievable within a two- to four-hour maintenance window for a single probe channel.

For sites executing a broader migration from 3300 XL to a newer platform such as the Bently Nevada 3500 Series, the probe itself is often the one component that can be retained across the platform change, since the 3500 Series monitors are designed to accept the same 8 mm probe family. In this scenario, replacing a worn 330101-00-08-10-02-05 probe during the migration window — rather than after the new monitor is commissioned — avoids a second outage and ensures the new system starts with a verified, warranted transducer.

Retrofit Support FAQ

Q1: Is the 330101-00-08-10-02-05 a direct drop-in replacement for the original Bently Nevada part?
Yes. This SKU is a direct-fit replacement for the original Bently Nevada 330101-00-08-10-02-05 proximity probe. It uses the same 8 mm probe body, coaxial connector, and output characteristics as the original, and is compatible with the 330180 Proximitor and 3300 XL monitor cards without modification to the existing wiring or system configuration.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes gap voltage verification, sensitivity measurement, and linearity testing against the 3300 XL calibration curve before shipment. A test record is available upon request. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and performance deviations from specification.

Q3: How do I confirm the correct gap voltage after installation?
After installing and threading the replacement probe to the correct depth, measure the DC voltage at the 330180 Proximitor output with the machine stationary. For an 8 mm probe in the 3300 XL system, the nominal gap voltage at the recommended air gap (typically 1.0–1.5 mm) should fall within the linear range specified on the probe calibration certificate. Adjust the probe depth until the output voltage matches the original baseline recorded before removal.

Q4: What is the lead time and do you hold stock for emergency orders?
We maintain multi-region inventory of the 330101-00-08-10-02-05 to support both planned maintenance and emergency replacements. Standard orders ship within 24 hours; emergency dispatch with expedited freight is available. Contact [email protected] or call +86 18359268345 to confirm current stock availability and arrange priority shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-08-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-08-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
