Bently Nevada 330101-00-08-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

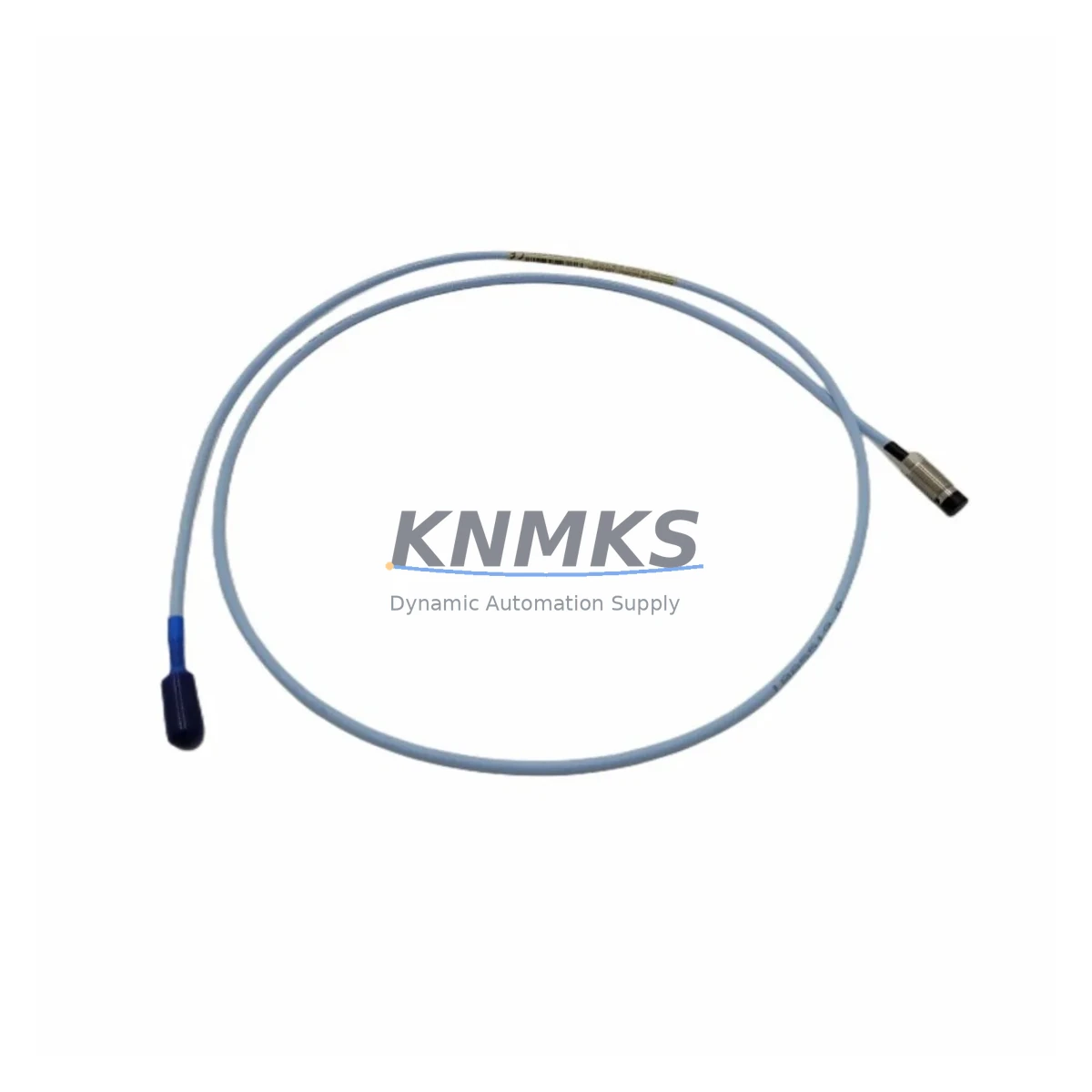

The Bently Nevada 330101-00-08-10-02-00 is an 8mm proximity probe engineered for continuous shaft vibration and position monitoring within the 3300 XL Series machinery protection system. Designed to operate in demanding industrial environments — including turbines, compressors, pumps, and gearboxes — this probe delivers the precise eddy-current sensing performance that maintenance engineers rely on to detect rotor imbalance, shaft misalignment, and bearing wear before they escalate into unplanned shutdowns.

For maintenance and procurement teams managing aging rotating machinery, securing a verified, tested spare of the 330101-00-08-10-02-00 is a foundational step in any predictive maintenance or emergency response plan. This probe is a direct, back-to-back compatible replacement for installed 3300 XL proximity systems, requiring no recalibration of the monitoring rack when the cable length and driver pairing are matched correctly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-08-10-02-00 proximity probe in the field, a disciplined inspection of the surrounding measurement chain is essential to avoid repeat failures and ensure signal integrity from day one. The probe alone does not operate in isolation — its performance is directly tied to the condition and compatibility of every component in the eddy-current loop.

Begin with the extension cable (typically a 330130-series cable matched to the probe’s integral cable length). Inspect the connector pins, shielding continuity, and jacket condition. A degraded extension cable is one of the most common causes of erratic gap voltage readings after a probe swap. Next, verify the Proximitor sensor (e.g., 330180-series 8mm driver) — check its output voltage at the known gap distance and confirm the bias voltage is within the –10 VDC to –18 VDC window specified for the 3300 XL system.

At the monitoring rack level, inspect the 3300 XL monitor module receiving the probe signal. Confirm that the channel configuration — gap, direct, and 1X/2X setpoints — has not drifted due to firmware issues or previous field overrides. If the plant runs a System 1 Evolution or legacy System 1 software platform, verify that the channel tag and engineering unit scaling are correctly mapped after the probe replacement.

For installations where the probe monitors a critical compressor or steam turbine, also inspect the Keyphasor module (e.g., 3300 XL Keyphasor) and its associated probe. A faulty Keyphasor signal will corrupt 1X and 2X vector data across all channels on the same rack, masking real vibration trends. Additionally, check the rack power supply module — the 3300 XL system requires a stable –24 VDC supply, and a marginal power supply can introduce noise floors that mimic mechanical faults.

Where the probe is installed near high-voltage switchgear or variable frequency drives, consider whether signal isolators or Zener barriers are in the loop for hazardous area compliance. These components age and should be tested for correct clamping voltage during any planned outage. Finally, review the terminal strip and field junction box for corrosion, loose terminations, or moisture ingress — particularly in outdoor or coastal installations where humidity accelerates connector degradation.

Stocking a matched set — probe, extension cable, and Proximitor sensor — as a pre-assembled spare kit is the most effective way to minimize mean time to repair (MTTR) when a channel alarm triggers during a production run.

Site Replacement Workflow

Step 1 — Pre-shutdown verification: Confirm the installed probe’s gap voltage (target: –10.0 VDC ± 0.5 VDC at the nominal air gap) using a calibrated voltmeter at the Proximitor output terminals. Document the baseline reading for post-installation comparison.

Step 2 — Isolation and lockout: Follow site LOTO procedures. De-energize the Proximitor sensor at the rack terminal. Do not disconnect the extension cable from the Proximitor until the sensor is de-energized to avoid connector damage.

Step 3 — Probe removal: Using the correct probe wrench, back out the 330101-00-08-10-02-00 from the probe holder. Note the number of turns from the flush position to record the installed gap setting for the replacement unit.

Step 4 — New probe installation: Thread the replacement probe into the holder. Set the air gap to the documented value (typically 1.0 mm to 1.5 mm for most 8mm probe applications). Re-connect the extension cable and re-energize the Proximitor.

Step 5 — Gap voltage confirmation: Measure the output voltage at the Proximitor. Confirm it falls within the linear range (–10 VDC ± 10%). If the reading is outside range, re-adjust the probe gap in 0.1 mm increments until the target voltage is achieved.

Step 6 — System check: Clear any latched alarms at the 3300 XL monitor. Confirm that the direct vibration, gap, and vector readings are stable and consistent with pre-shutdown baseline data. Log the replacement in the plant CMMS with the new probe serial number and installation date.

This workflow supports a complete probe swap in under 60 minutes for a prepared maintenance team, minimizing production impact and ensuring the monitoring system is fully restored to its original protection capability.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-10-02-00 a direct drop-in replacement for older 3300 series proximity probes?
The 330101-00-08-10-02-00 is designed for the 3300 XL system and is not directly interchangeable with the earlier 3300 (non-XL) series probes, which use a different Proximitor driver and sensitivity specification. Always confirm the installed Proximitor model before ordering. If your system uses a 330100-series (non-XL) Proximitor, a different probe part number is required.

Q2: How is each unit tested before shipment?
Every 330101-00-08-10-02-00 unit is bench-tested for output sensitivity (V/mm), linear range, and connector integrity prior to dispatch. A test report is available on request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q3: What is the recommended inventory strategy for this probe?
For plants with four or more 3300 XL channels monitoring critical rotating equipment, we recommend maintaining a minimum of two spare probes on-site, paired with matched extension cables and one spare Proximitor sensor. This covers a single-channel emergency replacement and leaves one unit in reserve. For facilities with long procurement lead times or remote locations, a blanket stock agreement with quarterly replenishment is advisable.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, output sensitivity out of specification, and connector failure under normal operating conditions. It does not cover damage resulting from incorrect installation gap settings, mechanical impact, or use outside the specified temperature and target material range. Support requests are processed with return of the defective unit and the original test report.
