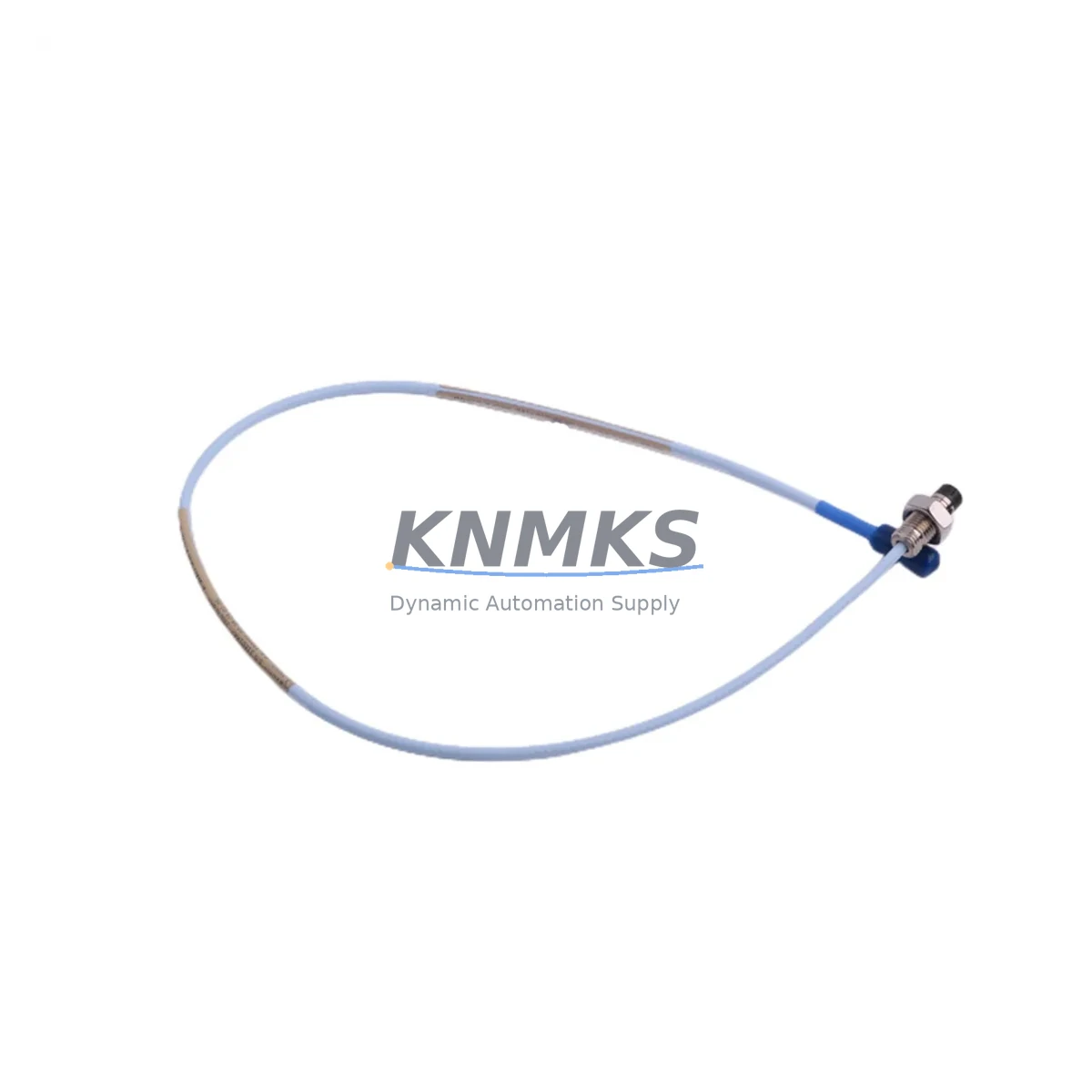

Bently Nevada 330101-00-08-05-02-05 Migration-Ready Proximity Sensor for Legacy Control Systems

Overview

Bently Nevada 330101-00-08-05-02-05 Migration-Ready Proximity Sensor for Legacy Control Systems

The Bently Nevada 330101-00-08-05-02-05 is an 8mm eddy-current proximity sensor designed for the 3300 XL Series continuous vibration monitoring platform. As legacy machinery protection systems reach end-of-service milestones, this sensor serves as a direct migration-ready replacement for obsolete 330100 and 330101 variants previously installed in turbine, compressor, and pump monitoring panels. Whether you are executing a planned control-cabinet upgrade or responding to an unplanned sensor failure, the 330101-00-08-05-02-05 provides a verified drop-in solution that preserves existing wiring topology, signal conditioning parameters, and Bently Nevada System 1 software compatibility.

When planning a retrofit around this sensor, engineers must confirm several critical parameters before committing to a replacement order. The extension cable length — typically paired with a 330130 or 330180 series extension cable — must match the original installation distance between the sensor tip and the proximitor housing. The proximitor itself, such as the 3300 XL 8mm Proximitor (330180-91-00), must be verified for firmware revision compatibility with the host monitoring rack. In installations where the 3500/42M Proximitor I/O Module or the 3500/25 Enhanced Keyphasor Module is used, the channel configuration in the 3500 Rack Configuration Software must be reviewed to ensure the new sensor’s sensitivity (200 mV/mil) and gap voltage range (−10 VDC to −18 VDC) are correctly mapped before live commissioning.

Terminal wiring adaptation is another key checkpoint. The 330101-00-08-05-02-05 uses a standard Bently Nevada coaxial connector interface. If the existing field wiring terminates at a 3500/20 Power Supply or a 3500/15 Power Supply with I/O module, the barrier terminal strip assignments must be cross-referenced against the original loop drawing. Any deviation in shield grounding or drain wire routing can introduce noise that triggers false alerts in the vibration monitoring channel, causing unnecessary process shutdowns during the commissioning window.

For installations migrating from older 7200 Series or 3300 Series racks to the current 3500 Series architecture, the 330101-00-08-05-02-05 is fully compatible with the updated rack backplane interface. However, the migration team should also audit the Keyphasor signal path — often sourced from a 330980 or 330850 series Keyphasor probe — to confirm that phase reference data is correctly re-established after the rack swap. HMI screens configured in System 1 Evolution or third-party SCADA platforms may require tag remapping if the rack slot address changes during the physical installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing monitoring loop. Beyond the 330101-00-08-05-02-05 sensor itself, the replacement project typically involves reviewing the paired 330130-080-00-00 extension cable to confirm it has not exceeded its rated bend radius or suffered jacket degradation in high-temperature environments. The 3500/42M Proximitor I/O Module, which conditions the raw sensor signal into a 4–20 mA or digital output for the DCS, must be reconfigured if the original module was set for a different sensor model. In plants running a Honeywell Experion or Emerson DeltaV DCS, the I/O channel tag in the controller database must be updated to reflect the new sensor’s calibration curve before the loop is returned to service.

Where the control cabinet also houses a 3500/22M Transient Data Interface or a 3500/64M Process Variable Monitor, the engineering team should verify that the new sensor’s dynamic range does not saturate the input card during startup transients — a common issue when replacing sensors on high-speed rotating equipment such as steam turbines or centrifugal compressors. Signal isolators or barriers installed upstream of the 3500 rack should also be inspected for impedance compatibility with the 330101-00-08-05-02-05’s output characteristics.

For sites performing a broader control-cabinet upgrade that includes replacing the 3500/20 Power Supply or adding a 3500/05 Rack Interface Module for Ethernet connectivity, the sensor replacement can be bundled into the same maintenance window to minimize total downtime. Coordinating the sensor swap with the rack firmware update and the System 1 database backup ensures that the plant historian retains a continuous vibration trend record across the migration event.

Downtime Control During System Migration

Minimizing process interruption during a proximity sensor replacement requires a structured pre-outage checklist. Before the maintenance window opens, the original program logic — including alarm setpoints, danger thresholds, and time-delay relay configurations stored in the 3500 rack — should be exported and archived. The System 1 software database should be backed up, and a screenshot of all active HMI faceplate configurations should be saved to document the pre-migration baseline.

During the physical swap, the 330101-00-08-05-02-05 should be installed and gap-set to the manufacturer’s recommended −12 VDC nominal gap voltage before the rack is powered. This allows the commissioning technician to verify the static gap reading in the 3500 Rack Configuration Software before the machine is restarted, eliminating the risk of a false danger trip during run-up. Once the machine reaches operating speed, the dynamic vibration reading should be compared against the pre-outage historian trend to confirm the new sensor is tracking correctly.

All units supplied by KNMKS are pre-tested against Bently Nevada factory specifications prior to shipment. Each sensor is verified for sensitivity, linearity, and gap voltage response, and ships with a test certificate. This pre-shipment validation step is designed to eliminate the risk of receiving a defective unit and having to extend the maintenance window for a second replacement cycle.

Retrofit Support FAQ

Q1: Is the 330101-00-08-05-02-05 a direct replacement for the 330101-00-08-05-02-00?
Yes. The -02-05 suffix denotes the cable length variant (5-meter integral cable). Confirm your existing installation uses a 5-meter sensor-to-proximitor cable run. If the original installation used a different cable length suffix, select the matching variant to avoid extension cable mismatch.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the gap to achieve −12 VDC (±0.5 V) at the proximitor output. Verify the reading in the 3500 Rack Configuration Software, confirm alarm and danger setpoints are restored from the archived configuration, and perform a channel functional test before returning the machine to service.

Q3: Can this sensor be used with non-Bently Nevada monitoring racks?
The 330101-00-08-05-02-05 outputs a standard analog voltage signal compatible with most third-party vibration monitoring cards, provided the input impedance and voltage range of the receiving card match the sensor’s output specification. Consult the third-party rack’s input card datasheet and compare against the 330101 series output characteristics before installation.

Q4: What support terms and supply terms apply?
All units carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. KNMKS maintains in-stock inventory for immediate dispatch. Orders confirmed before the daily cut-off ship the same business day. A test certificate is included with each unit.
