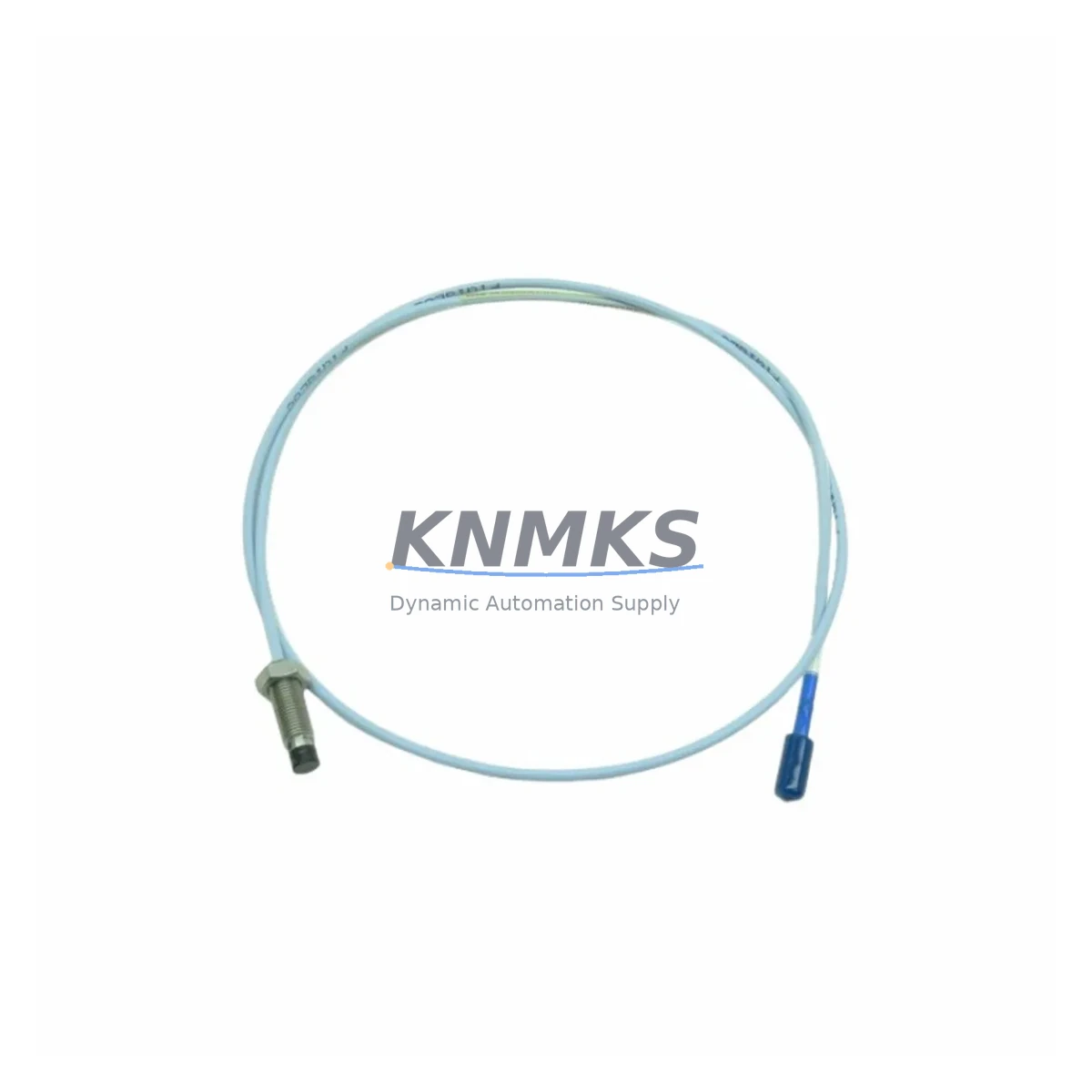

Bently Nevada 330101-00-08-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-08-05-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-08-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated machinery protection architecture, this probe delivers the signal integrity and mechanical durability required for critical rotating equipment protection — from steam turbines and compressors to pumps, fans, and gearboxes in petrochemical, power generation, mining, and continuous manufacturing facilities.

In high-stakes control environments where unplanned downtime carries six-figure hourly costs, the 330101-00-08-05-02-00 provides the measurement confidence that maintenance engineers and reliability teams depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring stable output across millions of operating cycles without signal degradation. Whether installed in a high-temperature turbine bearing housing, a moisture-laden water treatment pump bay, or a high-vibration compressor train, this probe maintains measurement accuracy within specification — protecting both equipment and personnel.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-08-05-02-00 proximity probe is rarely deployed in isolation. In a properly engineered machinery protection system, it forms the sensing front-end of a layered protection architecture. The probe connects via a matched Bently Nevada 330130-080-00-00 extension cable to a 3300 XL proximitor/driver — typically the 330180-X1-05 proximitor sensor — which conditions the raw eddy-current signal into a calibrated voltage output for the monitoring system.

Within the control cabinet, the conditioned signal feeds into a Bently Nevada 3500/42M Proximitor/Seismic Monitor or equivalent rack-mounted monitor card, where trip setpoints, alert thresholds, and relay outputs are configured for automatic machinery shutdown on vibration exceedance. For facilities running redundant protection loops, dual-probe configurations using a second 330101-series probe on the same shaft journal provide voting logic (2-of-3 or 1-of-2) to eliminate spurious trips while maintaining SIL-rated protection integrity.

Power supply stability is equally critical. Transient voltage spikes or supply sag on the –24 VDC proximitor supply rail can cause false gap readings and nuisance trips. Pairing the monitoring system with a Bently Nevada 3500/15 Power Supply module — or an equivalent DIN-rail mounted industrial DC/DC converter with surge suppression — ensures the probe and driver operate within their specified supply window at all times. In cabinets with high electromagnetic interference from variable frequency drives or large contactors, shielded cable routing and proper grounding of the probe cable shield at a single point prevent common-mode noise from corrupting the gap signal.

For facilities transitioning from legacy Bently Nevada 7200 Series or 3300 NSv probes, the 330101-00-08-05-02-00 provides a direct mechanical and electrical replacement path, maintaining backward compatibility with existing conduit entries, junction boxes, and monitor rack wiring — minimizing retrofit scope and reducing outage duration during planned turnarounds.

Critical Industrial Safety Applications

The 330101-00-08-05-02-00 proximity probe is deployed across the full spectrum of heavy industrial and process-critical applications where rotating machinery failure carries unacceptable safety and financial consequences.

In petrochemical and refinery environments, this probe monitors radial shaft vibration on centrifugal compressors, reactor charge pumps, and cooling tower fans — providing the early-warning signal that triggers automatic shutdown before bearing failure escalates to seal breach or fire. In power generation facilities, it is installed on steam turbine journal bearings and boiler feed pump shafts, where API 670-compliant vibration monitoring is a regulatory requirement for continuous operation.

In mining and mineral processing plants, the probe’s IP67 rating and wide operating temperature range make it suitable for slurry pump drives, ball mill pinion bearings, and conveyor drive gearboxes operating in dusty, wet, and high-vibration conditions. Water and wastewater treatment facilities rely on this probe for large vertical turbine pump monitoring, where shaft position measurement detects impeller wear and thrust bearing degradation before catastrophic failure.

In metallurgical and steel plants, the probe monitors rolling mill drive shafts and continuous caster pinch roll drives — applications where thermal cycling, scale contamination, and high radial loads demand a sensor with proven long-term stability. Port and marine applications include propulsion shaft monitoring on large vessels and crane hoist motor protection, where the probe’s non-contact design eliminates the maintenance burden of contact-type sensors in salt-air environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-08-05-02-00?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the probe fails to meet its specified sensitivity, linearity, or frequency response within the confirmed support period, we provide a free replacement or documented resolution support. Support requests are processed within 5 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on this proximity probe?
Every 330101-00-08-05-02-00 unit undergoes a functional verification test prior to shipment, including gap sensitivity check against the 7.87 V/mm nominal specification, cable continuity and insulation resistance test, and visual inspection for connector integrity and cable jacket condition. A test report is available upon request for quality-critical applications.

Q3: Is the 330101-00-08-05-02-00 compatible with existing 3300 XL drivers and monitors?
Yes. This probe is fully compatible with the Bently Nevada 3300 XL proximitor/driver family, including the 330180 and 330130 series extension cables and drivers, and integrates directly with 3500 Series rack monitors. It is also backward-compatible with legacy 3300 NSv system wiring in most retrofit scenarios, subject to gap recalibration at installation.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated buffer stock of the 330101-00-08-05-02-00 and related 3300 XL Series components to support blanket purchase orders and annual maintenance contracts. For facilities with critical spare parts programs, we offer reserved inventory allocation and priority dispatch to minimize lead time risk during planned turnarounds or emergency replacements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-08-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-08-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
