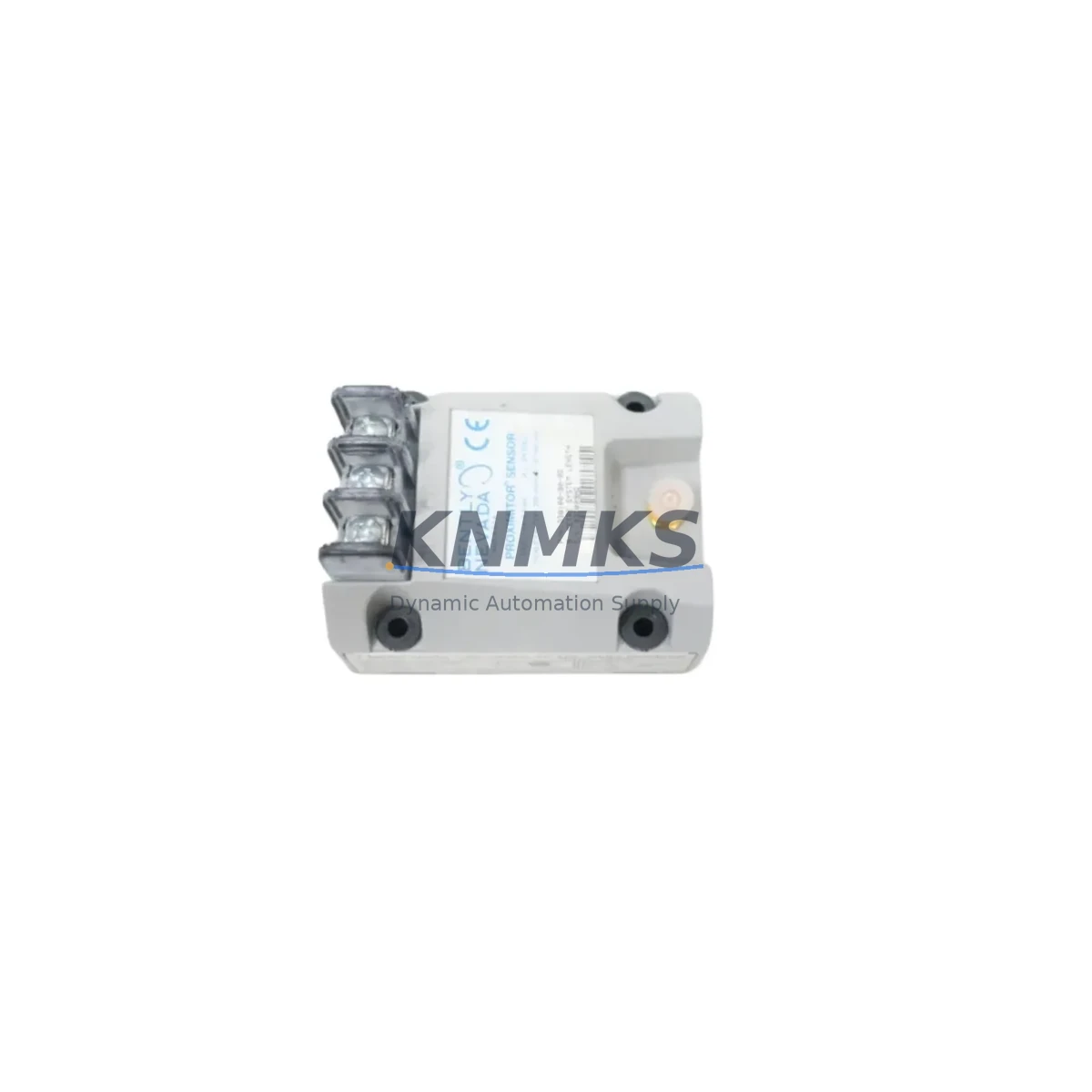

Bently Nevada 330100-90-05 Fail-Safe Proximitor Sensor

Overview

Bently Nevada 330100-90-05 Fail-Safe Proximitor Sensor for Critical Vibration Control

The Bently Nevada 330100-90-05 is a precision eddy-current Proximitor Sensor designed for the 3300 XL Series continuous vibration monitoring system. Engineered for fail-safe operation in critical rotating machinery protection circuits, this sensor delivers reliable shaft displacement and radial vibration measurements in environments where control interruption is not an option. From petrochemical compressor trains to power generation turbines, the 330100-90-05 is a cornerstone component in machinery protection strategies that demand zero-compromise signal integrity.

In high-stakes industrial environments — including offshore platforms, metallurgical plants, and continuous process facilities — vibration signal drift or sensor failure can trigger unplanned shutdowns, cascade protection trips, or, worse, undetected mechanical degradation. The 330100-90-05 addresses these risks through its ruggedized construction, stable output linearity, and compatibility with the 3300 XL monitoring rack infrastructure. Its eddy-current sensing principle is inherently immune to contamination from oil mist, condensation, and particulate matter, making it well-suited for turbine bearing housings, gearbox monitoring points, and pump shaft surveillance in harsh field conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330100-90-05 as part of a comprehensive machinery protection strategy requires attention to the entire signal chain within the control cabinet and field junction infrastructure. The sensor interfaces directly with the Bently Nevada 3300 XL Proximitor Monitor — a rack-mounted signal conditioning and trip relay module that processes the raw proximity voltage into actionable alarm and danger setpoints. Ensuring the monitor’s power supply rail is stable is critical; fluctuations in the 24 VDC supply feeding the 3300 XL rack can introduce baseline drift that mimics shaft displacement, triggering false trips in sensitive protection loops.

Field wiring between the 330100-90-05 and the monitor should be routed through shielded twisted-pair cable, with the shield grounded at a single point to prevent ground loops that corrupt the low-level DC signal. In high-EMI environments — such as those near variable frequency drives or large motor starters — additional signal isolation using a Bently Nevada 3300 XL Signal Conditioner or equivalent galvanic isolator is recommended to maintain measurement fidelity. Terminal blocks within the junction box should be inspected for corrosion and torque compliance, as loose connections on the sensor output circuit are a leading cause of intermittent vibration alarms.

For complete machinery protection, the 330100-90-05 is typically deployed alongside Bently Nevada 330130 Series extension cables, which maintain the calibrated system sensitivity across the full probe-to-monitor distance. The 3300 XL Keyphasor Module is often installed in the same rack to provide phase reference for vector analysis during balancing and diagnostic work. In turbine protection panels, a Bently Nevada 3500/42M Proximitor Monitor may serve as the primary trip relay, with the 330100-90-05 feeding the field input. Surge protection devices at the cabinet entry point protect the monitor inputs from transient overvoltages caused by nearby switching events or lightning-induced surges on long cable runs.

Critical Industrial Safety Applications

The 330100-90-05 is deployed across a broad spectrum of safety-critical industrial environments where rotating machinery reliability directly impacts production continuity and personnel safety. In petrochemical and refinery facilities, it monitors centrifugal compressors and process pumps operating under API 670 machinery protection standards, where a missed vibration alarm can result in catastrophic seal failure or bearing collapse. The sensor’s non-contact measurement principle eliminates wear-related drift, ensuring consistent alarm setpoint accuracy over multi-year service intervals without recalibration.

In power generation plants — including gas turbines, steam turbines, and hydro generators — the 330100-90-05 provides continuous shaft radial vibration monitoring at bearing pedestals, feeding trip signals to the turbine protection system. Any deviation beyond the danger setpoint triggers an automatic shutdown sequence, preventing rotor damage that would otherwise require weeks of outage for repair. Mining and mineral processing operations rely on this sensor for crusher drive monitoring and mill bearing surveillance, where the combination of heavy dust, vibration, and temperature cycling demands a sensor with proven environmental robustness.

In water treatment and desalination plants, high-speed pump trains running continuously benefit from the 330100-90-05’s ability to detect early-stage imbalance and misalignment before they escalate to bearing failure. Port and marine applications, including shipboard propulsion monitoring and crane drive protection, leverage the sensor’s wide operating temperature range and IP67 protection to maintain reliable operation in salt-laden, high-humidity environments. Across all these applications, the sensor’s compatibility with the 3300 XL and 3500 Series monitoring infrastructure ensures seamless integration into existing machinery protection architectures without requiring panel redesign.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330100-90-05?
Every 330100-90-05 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional performance. Support requests are supported with direct technical assistance and replacement coordination to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes full functional verification including output voltage linearity check across the calibrated measurement range, insulation resistance testing, and physical inspection of the probe tip, cable, and connector. A test report is available upon request.

Q3: Is the 330100-90-05 compatible with both 3300 XL and 3500 Series monitors?
The 330100-90-05 is natively calibrated for the 3300 XL monitoring system. Compatibility with the 3500 Series is achievable using the appropriate Bently Nevada interface adapter and recalibration of the monitor’s scale factor settings. Confirm your rack configuration before ordering.

Q4: Can KNMKS support long-term or blanket supply agreements for this part?
Yes. KNMKS maintains stock of the 330100-90-05 and can support scheduled delivery programs for maintenance planners requiring 12–36 month supply continuity. Contact our team to discuss volume pricing and delivery scheduling aligned with your planned maintenance intervals.
