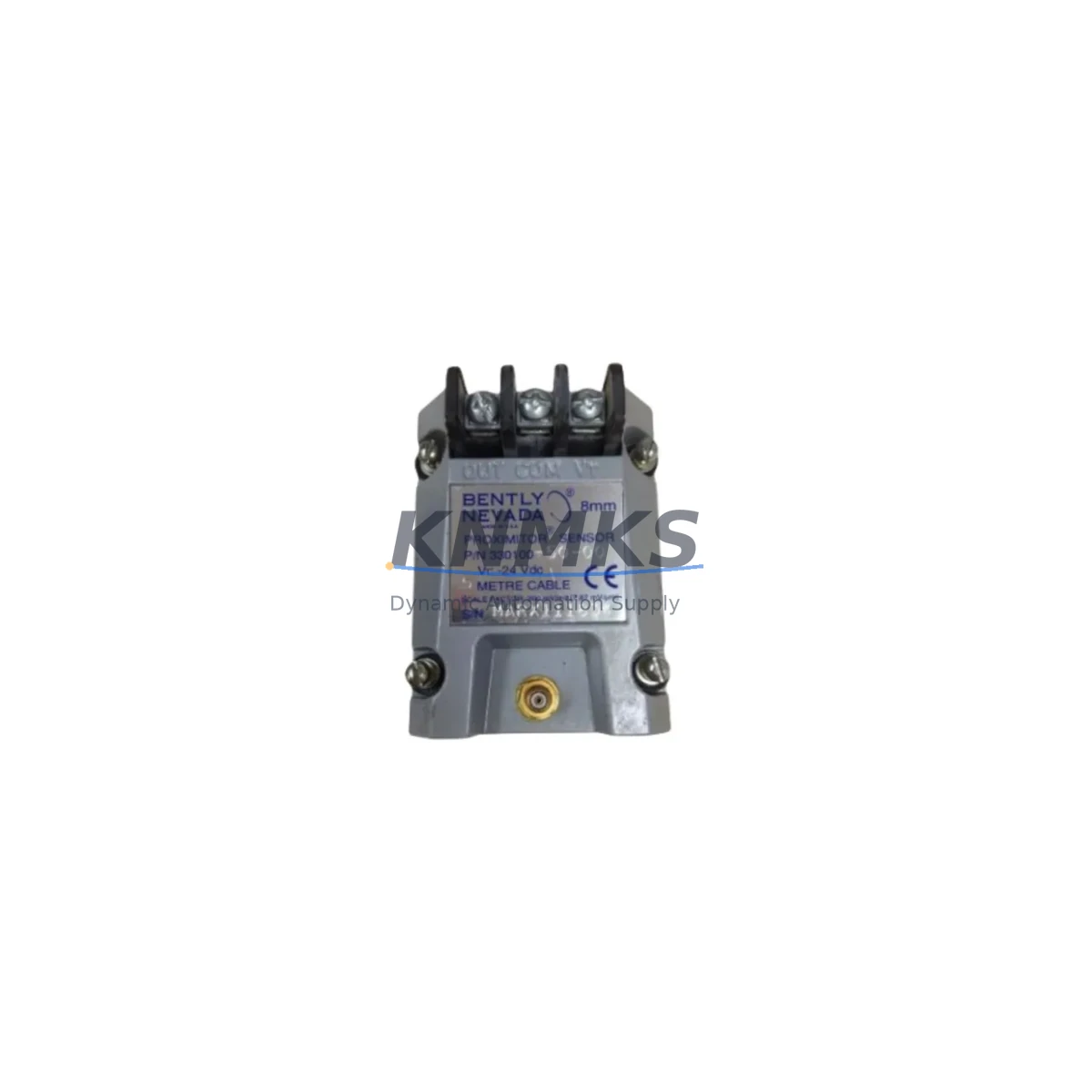

Bently Nevada 330100-90-00 Migration-Ready Proximitor Sensor

Overview

Bently Nevada 330100-90-00 Migration-Ready Proximitor Sensor for Legacy Control Systems

The Bently Nevada 330100-90-00 is a 3300 XL Series Proximitor® Sensor engineered for continuous proximity measurement in rotating machinery protection systems. As legacy Bently Nevada 3300 Series installations reach end-of-support milestones, the 330100-90-00 serves as the primary migration-ready replacement for discontinued 330100 variants, enabling maintenance teams to restore full vibration monitoring capability without redesigning the control architecture. This sensor is compatible with the 3300 XL monitoring system rack and interfaces directly with existing Keyphasor® modules, I/O terminal blocks, and 3300/16 rack-mounted monitors — preserving original program logic and alarm setpoints during the transition.

For facilities operating legacy turbomachinery protection panels, the 330100-90-00 provides a verified drop-in upgrade path. The sensor outputs a standard -18 VDC bias voltage signal and operates within the 3300 XL system’s defined gap voltage range, eliminating the need for signal conditioning adapters or intermediate converters. Before installation, engineers should confirm the existing extension cable length (typically 330130-080-00 or 330130-040-00 series) and verify that the proximitor driver card within the 3300/16 monitor is firmware-compatible with the 330100-90-00 output characteristics. Mismatch in cable length or driver card firmware version is the most common source of calibration drift during retrofit commissioning.

When integrating the 330100-90-00 into an upgraded control cabinet, technicians must verify terminal block wiring against the original loop drawing. The sensor uses a three-wire configuration (power, signal, and common), and any substitution of terminal strip type — particularly when migrating from older Bently Nevada 3300/05 or 3300/10 rack formats to the 3300 XL — requires a full point-to-point continuity check before energizing the loop. The 3300 XL rack’s backplane interface accepts the 330100-90-00 without physical modification, but module address assignment within the System 1® software must be re-confirmed after replacement to avoid channel mapping errors in the vibration trending database.

In multi-shaft turbine trains where the 330100-90-00 is deployed alongside 330180-90-00 Velomitor® sensors or 330500-02-00 temperature transmitters, the commissioning sequence should follow a channel-by-channel validation protocol: energize the proximitor loop first, confirm gap voltage at the monitor front panel, then bring online adjacent I/O channels. This staged approach prevents false trip signals from propagating through the 3500 Series rack or any downstream DCS interface during the live cutover window. Where the plant DCS communicates with the Bently Nevada rack via Modbus RTU or OPC-DA, the communication link should be placed in bypass mode during sensor swap to prevent nuisance alarms at the control room HMI.

For brownfield sites where the original HMI graphics reference the legacy sensor tag number, the 330100-90-00 replacement does not require HMI screen modification — the physical tag and loop number remain unchanged. However, if the site is simultaneously upgrading from System 1 Classic to System 1 Evolution, the sensor’s channel configuration must be re-imported into the new software environment using the exported .s1e configuration file. Failure to re-import the configuration will result in default alarm thresholds being applied, which may not match the original machinery protection setpoints.

Installation space requirements for the 330100-90-00 are identical to the legacy 330100 series: the sensor body diameter is 8 mm, with a standard M8 x 1 thread for bracket mounting. No additional clearance is required in the control cabinet or field junction box. All units are pre-tested prior to shipment against Bently Nevada factory calibration standards, and each sensor is supplied with a calibration certificate confirming output linearity across the full operating gap range. Stock is maintained for immediate dispatch, with a support terms confirmed by quotation covering manufacturing defects and calibration integrity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330100-90-00 retrofit begins with a complete audit of the existing 3300 XL rack configuration. Maintenance planners should document the current slot assignments for all installed modules — including the 3300/16 dual-channel monitor cards, the 3300/46 Keyphasor® module, and any 3300/55 relay output modules — before initiating the sensor replacement. This audit prevents slot conflict errors when the replacement sensor is commissioned and the System 1 software re-scans the rack for active channels.

Where the control cabinet also houses a 3500/22M transient data interface or a 3500/42M proximity monitor, the 330100-90-00 can be integrated into the same wiring harness without signal interference, provided the cable shield grounding follows the single-point grounding scheme specified in the Bently Nevada installation manual. Technicians should also inspect the 330130 series extension cable for insulation degradation — particularly in high-temperature or high-vibration environments — as cable resistance drift is a leading cause of gap voltage offset after sensor replacement.

For sites planning a parallel upgrade of the power supply module (such as replacing an aging 3300/15 power supply with a current-production equivalent), the sensor swap and power supply replacement should be sequenced separately to isolate fault sources during commissioning. Similarly, if the site is adding I/O expansion via a 3500/20 rack interface module, the new I/O addressing must be configured in System 1 before the 330100-90-00 is brought online to avoid channel address conflicts. Signal isolators installed between the proximitor loop and the DCS analog input card should also be verified for input impedance compatibility with the 330100-90-00 output stage.

Downtime Control During System Migration

Minimizing unplanned downtime during a 330100-90-00 sensor replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the original program logic — including alarm setpoints, danger thresholds, and time-delay relay settings — should be exported from System 1 and stored offline. This export serves as the recovery baseline if the replacement sensor requires recalibration or if the monitor card reports a configuration mismatch after the swap.

During the physical replacement, the affected channel should be placed in bypass within the 3300 XL monitor to prevent a spurious trip signal from reaching the turbine protection relay. The bypass state should be logged in the plant’s permit-to-work system and confirmed at the DCS operator station before any wiring is disturbed. Once the 330100-90-00 is installed and the extension cable is reconnected, the gap voltage should be measured at the monitor front panel and compared against the original commissioning record before the bypass is lifted.

For critical machinery where zero unplanned downtime is required, a hot-standby approach using a pre-wired spare sensor in a parallel junction box allows the replacement to be completed within a single shift. All units supplied by KNMKS are pre-tested and calibration-certified prior to dispatch, ensuring that the replacement sensor can be installed and verified without an extended on-site calibration cycle. The support terms confirmed by quotation cover the full post-installation period, providing assurance that the replacement sensor will perform to specification throughout the next planned maintenance interval.

Retrofit Support FAQ

Q: Is the 330100-90-00 a direct drop-in replacement for the legacy 330100-00-00 and 330100-50-00?
A: Yes. The 330100-90-00 is the current-production successor to the discontinued 330100-00-00 and 330100-50-00 variants. It uses the same M8 x 1 thread, identical body diameter, and the same three-wire loop configuration. No bracket modification or wiring change is required, provided the extension cable length matches the original installation.

Q: What commissioning checks are required after installation?
A: After physical installation, verify gap voltage at the 3300/16 monitor front panel (typically -10 VDC ±0.5 VDC at nominal gap), confirm channel address assignment in System 1, and validate alarm setpoints against the original commissioning record. If the site uses Modbus RTU or OPC-DA communication, confirm that the DCS is receiving valid process values on the replaced channel before lifting the bypass.

Q: Are units tested before shipment?
A: Yes. Every 330100-90-00 unit supplied by KNMKS undergoes full pre-shipment calibration testing. A calibration certificate confirming output linearity across the operating gap range is included with each unit. This eliminates the need for on-site calibration equipment during the replacement window and reduces commissioning time.

Q: What support terms and supply continuity does KNMKS provide?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and calibration integrity from the date of shipment. KNMKS maintains dedicated stock of the 330100-90-00 to support both emergency replacement orders and planned maintenance programs. Multi-unit orders for long-term spare parts programs (12–36 month supply agreements) are available — contact the sales team for volume pricing and lead time confirmation.
