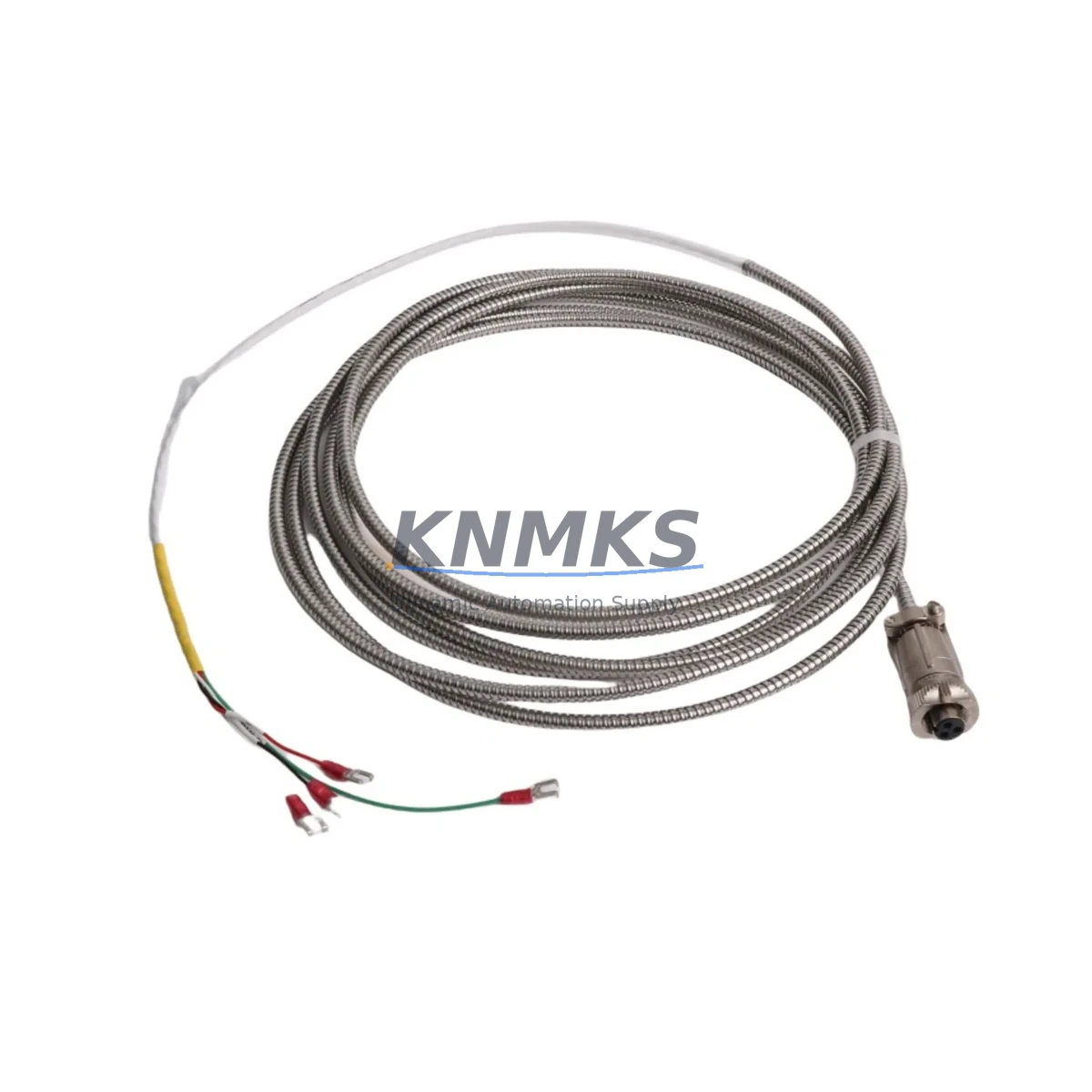

Bently Nevada 16710-17 Migration-Ready Proximity Cable: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 16710-17 is a precision-engineered proximity probe interconnect cable designed to serve as a direct, migration-ready replacement for aging vibration monitoring infrastructure built around the Bently Nevada 3300 Series and 7200 Series platforms. As these legacy systems approach end-of-life and original spare parts become increasingly scarce, the 16710-17 provides a verified, drop-in solution that preserves signal integrity, maintains system continuity, and eliminates the need for costly full-system overhauls.

For maintenance engineers and reliability teams managing rotating machinery protection systems — including turbines, compressors, pumps, and gearboxes — the 16710-17 interconnect cable is a critical link between the proximity probe and the Bently Nevada monitor rack. Its compatibility with both the 3300 XL 8mm and 3300 5mm probe series, as well as the 7200 Series transducer systems, makes it an essential stocking item for any facility running Bently Nevada-based condition monitoring.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 16710-17 interconnect cable is rarely an isolated task — it is typically part of a broader vibration monitoring system retrofit or spare parts replenishment cycle. During the planning phase, engineers must account for the full signal chain: from the proximity probe tip (such as the Bently Nevada 330101 or 330103 8mm probe) through the extension cable (16710-17) to the proximitor/driver (such as the 3300 XL proximitor, part number 330180) and finally into the monitor module housed in the 3500 rack or legacy 3300 rack assembly.

When upgrading from a 3300 Series platform to a 3500 Series rack, the 16710-17 cable can often be retained in the field wiring, provided the cable length and connector termination are verified against the new rack’s input specifications. This significantly reduces field labor costs and minimizes the need to re-pull cables through conduit — a major advantage in confined machinery spaces or offshore installations where cable access is restricted.

For facilities also upgrading their condition monitoring software or transitioning from System 1 to System 1 Evolution, the cable infrastructure represented by the 16710-17 remains fully compatible, as the signal conditioning occurs at the proximitor and monitor level rather than at the cable itself. Engineers should also confirm that the Bently Nevada 3500/42M or 3500/40M monitor modules in the target rack are configured for the correct probe type and gap range before finalizing the cable swap.

In control cabinet upgrades where space is being reconfigured, the physical routing of the 16710-17 cable should be planned alongside any changes to the 3500 rack backplane, power supply modules (such as the 3500/15 power supply), and I/O termination blocks. Ensuring adequate cable management and separation from high-voltage power conductors is essential to maintaining signal quality in the eddy-current measurement chain.

Downtime Control During System Migration

One of the primary concerns during any proximity monitoring cable replacement is minimizing unplanned downtime and protecting the integrity of the existing vibration alarm and trip logic. When replacing the 16710-17 in a live production environment, the recommended approach is to pre-stage the replacement cable, verify connector compatibility offline, and schedule the swap during a planned maintenance window aligned with the machinery’s inspection cycle.

Before disconnecting the existing cable, technicians should document the current gap voltage readings at each probe location — typically between -10 VDC and -18 VDC for standard 3300/7200 Series eddy-current systems. These baseline readings serve as the acceptance criteria for the post-installation calibration check. After installing the 16710-17 replacement cable, gap voltage must be re-verified and compared against the original values to confirm that the probe-driver-cable system is operating within the manufacturer’s specified linear range.

For systems where the Bently Nevada 3500 rack is managing both radial vibration and axial position monitoring simultaneously, it is critical to maintain monitor power and rack communication continuity during the cable swap. Where possible, use the rack’s channel bypass or inhibit function to suppress false alarms during the brief disconnection period, rather than placing the entire rack in bypass mode. This approach preserves trip protection on adjacent channels and reduces the risk of a spurious machinery trip during the retrofit.

Post-installation, a full functional test should be conducted — including signal simulation if available — before returning the machinery to service. All gap voltage readings, alarm setpoints, and trip thresholds should be re-confirmed in the monitor configuration and documented in the plant’s maintenance management system.

Retrofit Support FAQ

Q1: Is the 16710-17 a direct replacement for the original Bently Nevada part, or are there wiring modifications required?
The 16710-17 is designed as a direct drop-in replacement for the original OEM part of the same number. No wiring modifications, re-termination, or re-programming of the associated 3300 or 7200 Series monitor modules are required. Simply disconnect the existing cable, install the 16710-17, and verify gap voltage at the proximitor output.

Q2: Has the 16710-17 been tested for compatibility with both the 3300 XL and 7200 Series systems before shipment?
Yes. Each 16710-17 unit undergoes pre-shipment functional verification to confirm connector integrity, cable continuity, and shielding performance. Units are shipped with a test report confirming compliance with Bently Nevada interconnect cable specifications. The support terms confirmed by quotation cover all manufacturing defects identified after installation.

Q3: What should I check if the gap voltage reading is out of range after installing the replacement cable?
First, verify that the cable connectors are fully seated at both the probe and proximitor ends. Then check the cable length — the 16710-17 has a defined length specification, and using an incorrect length can shift the gap voltage range. If the reading remains out of range, inspect the proximity probe tip for damage and confirm the proximitor driver (e.g., 330180 or equivalent) is functioning correctly. Contact our technical support team at [email protected] for commissioning assistance.

Q4: Do you maintain stock of the 16710-17, and what is the typical lead time?
Yes, the 16710-17 is maintained as a stocked item to support urgent replacement and planned maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact us directly to discuss inventory reservation and pricing. All units are covered by a support terms confirmed by quotation from the date of shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

16710-17
Assorted Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 16710-17
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
