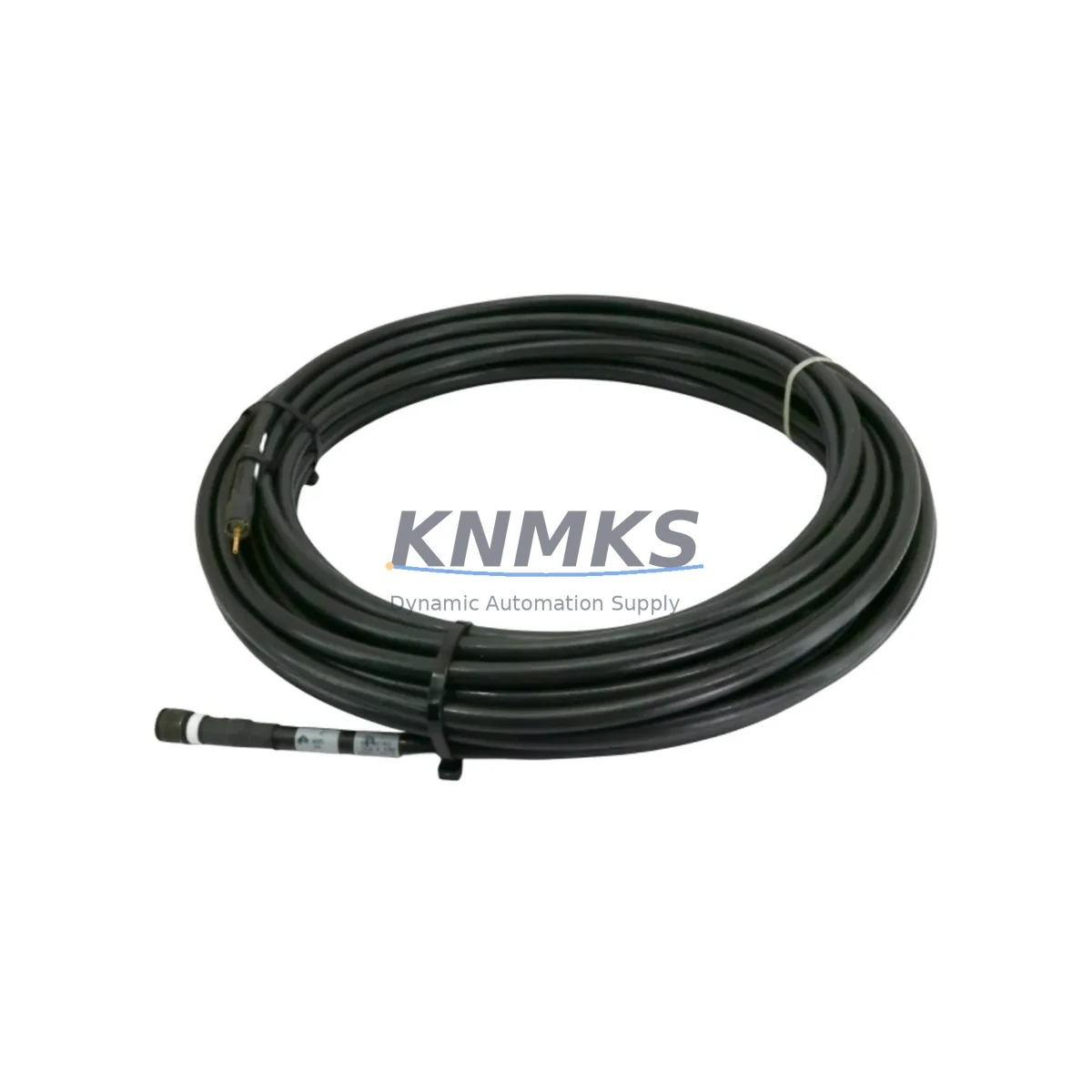

AMAT 0150-76458 Migration-Ready Cable Assembly for CVD Systems

Overview

AMAT 0150-76458 Migration-Ready Cable Assembly for CVD Systems

The Applied Materials AMAT 0150-76458 (W/CON) is a migration-ready cable assembly engineered for direct replacement of discontinued and end-of-life interconnect components in Applied Materials CVD and Etch process systems. As semiconductor fabs and equipment maintenance teams face increasing pressure to sustain aging tool fleets beyond OEM support windows, the 0150-76458 provides a verified drop-in solution that eliminates the need for costly platform overhauls or unplanned downtime caused by obsolete wiring harnesses.

This cable assembly is a qualified replacement for the 0090-08798 and 6838-H106A part numbers, both of which have reached end-of-life status in the Applied Materials spare parts catalog. Engineers planning a retrofit or system restoration project can source the 0150-76458 as a direct substitute, maintaining original signal integrity, connector compatibility, and mechanical fit within the existing control cabinet layout.

Before completing a cable swap in a live CVD or Etch tool, maintenance teams should verify several critical parameters: confirm that the replacement cable’s connector pinout matches the original harness at both the process module and the system controller interface; check that the cable routing path accommodates the physical length and bend radius of the 0150-76458 (approximately 2,600 g, indicating a substantial multi-conductor assembly); and validate that the power supply module feeding the associated I/O rack — often an Applied Materials 0190-series power distribution unit — can sustain the load after the cable swap without triggering overcurrent protection. In systems where the 0150-76458 interfaces with a 0100-series I/O expansion module or a 0660-series process controller board, address mapping and module slot assignments must be re-confirmed in the system’s configuration file before powering up.

For tools running legacy VxWorks-based or early Windows NT embedded control platforms, firmware compatibility between the cable assembly’s signal protocol and the host controller’s communication stack should be validated prior to installation. In some configurations, the 0150-76458 carries analog or digital signals routed through a 0240-series signal conditioning board, which may require recalibration after the harness replacement to restore accurate sensor readings and process feedback loops.

HMI screen updates are often overlooked during cable retrofit projects. If the replaced harness was associated with a specific I/O channel mapped to an Applied Materials Brooks Automation HMI panel or a third-party SCADA display, the channel tag assignments and alarm thresholds tied to that wiring path should be reviewed and updated to reflect the new installation. Failure to update HMI mappings can result in false alarms or masked fault conditions during post-retrofit commissioning.

Communication link integrity is another key checkpoint. In systems where the 0150-76458 is part of a SECS/GEM or RS-232/RS-485 communication chain connecting the process module to the fab host, the cable replacement should be followed by a full communication link test to confirm that message sequencing, equipment constants, and status variable reporting remain intact. Any interruption in the SECS/GEM link during the swap window should be coordinated with the fab’s MES team to avoid false equipment state transitions in the production tracking system.

Installation space confirmation is essential before ordering. The 0150-76458 is designed for standard Applied Materials tool cabinet form factors, but in retrofitted or field-modified enclosures, available cable tray space and connector clearance at the backplane interface should be physically measured before the replacement unit is installed. In tight enclosures shared with a 0190-series DC power supply and multiple 0100-series I/O modules, cable management clips and strain relief brackets may need to be repositioned to accommodate the replacement harness routing.

All units supplied by KNMKS are subject to pre-shipment functional testing and visual inspection. Each 0150-76458 cable assembly is shipped with a support terms confirmed by quotation covering manufacturing defects and connector integrity. Stock is maintained across regional distribution hubs to support urgent spare parts requests and planned maintenance windows without extended lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful cable assembly retrofit in an Applied Materials CVD or Etch tool requires a structured approach that accounts for the interdependencies between the wiring harness and the surrounding control architecture. The 0150-76458 typically operates within a system that includes a 0660-series process controller board managing recipe execution, a 0100-series I/O expansion module handling discrete and analog signal routing, and a 0190-series power distribution unit supplying regulated DC voltage to the process module’s control circuits.

During retrofit planning, the maintenance team should generate a full I/O map of the signals carried by the original 0090-08798 or 6838-H106A harness. This map should identify each conductor’s function — whether it carries a 24 VDC digital output, a 4–20 mA analog input, a thermocouple signal, or a communication bus line — and confirm that the replacement 0150-76458 replicates the same signal assignments at each connector position. In systems where a 0240-series signal conditioning board is installed between the harness and the process controller, the conditioning board’s gain and offset settings may need to be re-verified after the cable swap to maintain accurate process variable readings.

For tools that have undergone previous field modifications, the as-built wiring documentation may differ from the original OEM schematic. In these cases, a physical continuity check of the installed harness — using a calibrated multimeter or cable tester — should be completed before the 0150-76458 is connected to the live system. If the tool’s control cabinet also houses a 0100-series backplane assembly with multiple module slots, confirm that the cable’s backplane connector seats fully and that the locking mechanism engages correctly before applying power.

Teams managing multi-tool retrofits across a fab line should also consider stocking a programming cable compatible with the 0660-series controller to enable rapid firmware re-flashing or configuration backup during the maintenance window, reducing the risk of extended downtime if a configuration file needs to be restored after the cable replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable assembly replacement in a CVD or Etch tool requires preparation that begins well before the maintenance window opens. The first priority is to create a full backup of the tool’s current recipe library, equipment constants, and I/O configuration using the system’s built-in backup utility or a compatible programming interface. This backup ensures that if the post-retrofit commissioning reveals a configuration mismatch, the original program logic can be restored without requiring a full system re-qualification.

During the swap itself, the tool should be placed in a controlled shutdown state with all process gases purged and the chamber vented to atmosphere before any wiring work begins. The replacement 0150-76458 should be pre-staged in the work area with all connector covers removed and the cable routed through the planned cable tray path before the original harness is disconnected. This parallel staging approach reduces the time the system spends in an open-circuit state and limits the exposure of sensitive connector pins to contamination.

After the new cable is connected and the cabinet is closed, a systematic power-up sequence should be followed: restore DC power to the I/O modules first, confirm that all module status indicators show normal operation, then restore communication to the process controller and verify that the SECS/GEM link re-establishes within the expected timeout window. A short dry-run cycle — without process gases — should be executed to confirm that all I/O signals are responding correctly and that no alarm conditions are present before the tool is returned to production.

For facilities operating under strict OEE targets, coordinating the cable retrofit with a scheduled preventive maintenance interval — rather than responding to a failure — is strongly recommended. KNMKS maintains ready stock of the 0150-76458 to support planned maintenance schedules, with same-day shipping available for urgent requests to minimize the gap between order placement and tool restoration.

Retrofit Support FAQ

Q: Is the AMAT 0150-76458 a direct replacement for the 0090-08798 and 6838-H106A without any wiring modification?
A: In standard Applied Materials CVD and Etch tool configurations, the 0150-76458 is a direct drop-in replacement for both the 0090-08798 and 6838-H106A. No wiring modification is required in unmodified tool cabinets. For tools that have undergone field modifications, a connector pinout verification against the as-built wiring diagram is recommended before installation.

Q: What commissioning steps are required after installing the 0150-76458?
A: After installation, verify I/O module status indicators, confirm HMI channel mappings, re-establish the SECS/GEM or RS-232/RS-485 communication link, and run a dry-cycle test without process gases. If a signal conditioning board is present in the signal path, recalibrate gain and offset settings as needed.

Q: Has the 0150-76458 been tested before shipment?
A: Yes. All units supplied by KNMKS undergo pre-shipment functional testing and visual inspection of connectors, conductors, and shielding integrity. A test report is available upon request for quality documentation purposes.

Q: What support terms and stock availability does KNMKS offer for the 0150-76458?
A: Each unit carries a support terms confirmed by quotation from the shipment date, covering manufacturing defects and connector integrity. KNMKS maintains regional inventory to support both planned maintenance schedules and urgent spare parts requests, with expedited shipping options available for critical tool-down situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Applied Materials
Assorted Brands

Model / Series

W/CON 0150-76458 0090-08798 6838-H106A
Assorted Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Applied Materials W/CON 0150-76458 0090-08798 6838-H106A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
